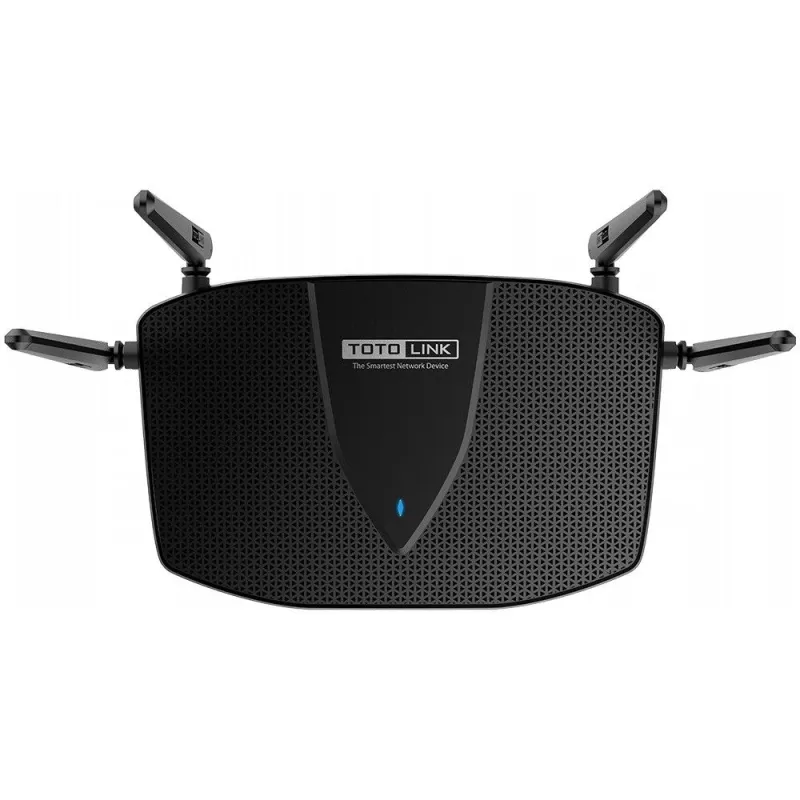

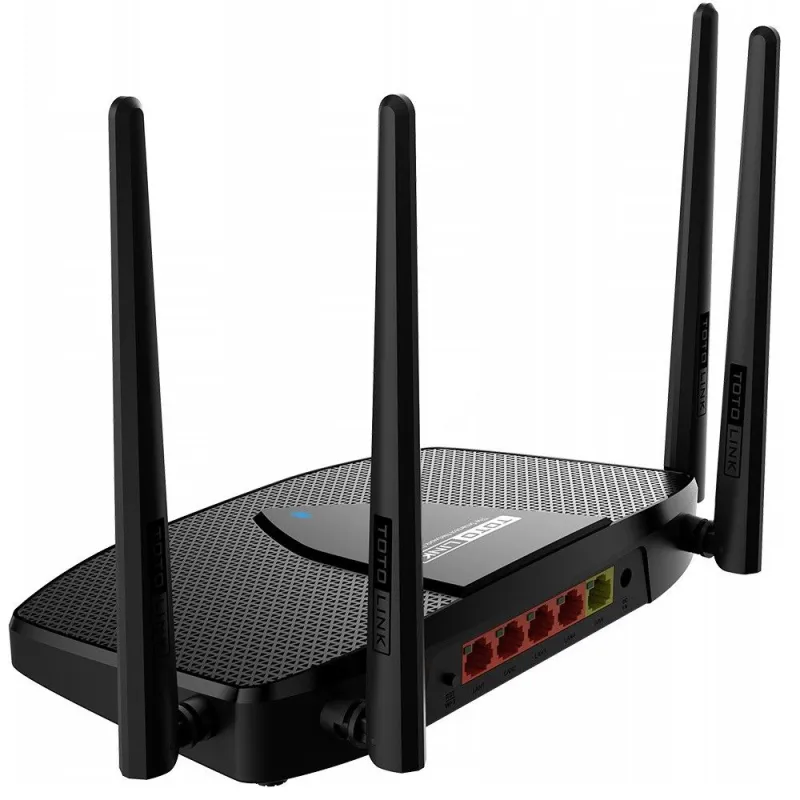

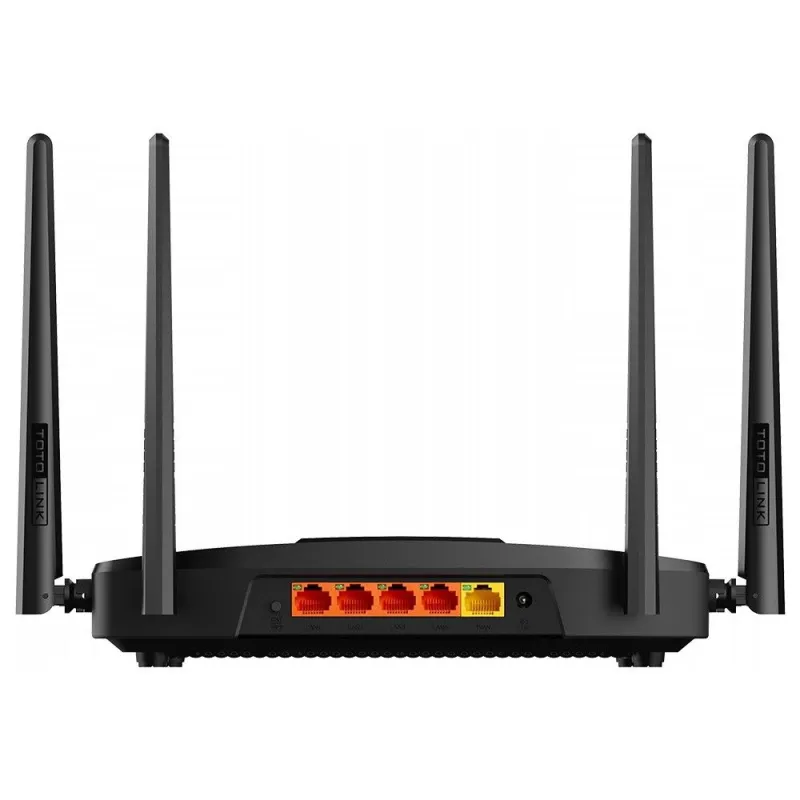

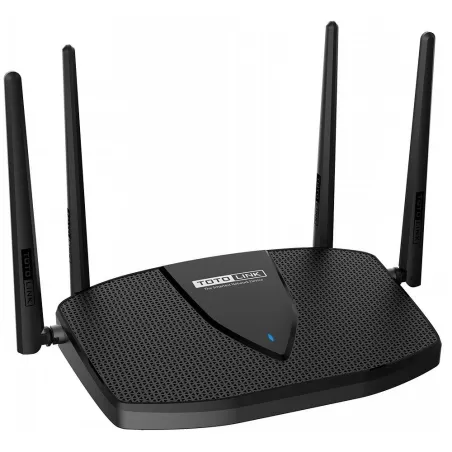

TOTOLINK X5000R AX1800 Wireless Dual Band WIFI6 Gigabit Router

Product Specification

Overview

TOTOLINK X5000R AX1800 Wireless Dual Band Gigabit Router มาตรฐาน WIFI6, 4 Port Lan Gigabit

รับประกัน

Life Time

Chipsets

- MT7621A+MT7915DA+MT7975DN

Flash/RAM

- 16Mbyte/256Mbyte

Interface

- 4*1000Mbps LAN Ports
- 1*1000Mbps WAN Port

Power Supply

- 12V DC/1A

-  4 * 5dBi fixed external antennas

- 1 *SYS(Blue)
- 4 *LAN(Green),
- 1 *WAN(Green)

Dimensions (L x W x H)

- 241.0 x 147.0 x 48.5mm

Standards

- IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11n,
- IEEE 802.11g, IEEE 802.11b, IEEE 802.11a

RF Frequency

- 2.4~2.4835GHz
- 5.18~5.825GHz

- 2.4GHz: Up to 573.5Mbps (2*2 40MHz)
- 5GHz: Up to 1201Mbps (2*2 80MHz)

- 2.4GHz < 22dBm
- 5GHz < 20dBm

Wireless Security

- 64/128-bit WEP, WPA, WPA2 and WPA-Mixed ,WPA3

Reception Sensitivity

- 2.4G: 11b: <-85dbm;
11g: <-72dbm;
11n: HT20<-68dbm  HT40: <-65dbm

- 5G: 11a:<-72dbm;
11n: HT20<-68dbm  HT40: <-65dbm
11ac: <-55dbm
11ax VHT80 : <-46dbm
11ax VHT160 : <-43dbm

Basic

- Internet Settings
- Wireless Settings
- Parental Control
- Guest Network Settings
- Smart QoS

Network

- Internet Setup
- LAN Setup
- DDNS
- IPTV
- IPv6

Wireless

 - Wireless Setup
- Guest Network
- Schedule
- Access Control
- Advanced
- Parental Control
- Smart QoS

Device Management

- Routing Table
- Static Route
- IP/MAC Binding

Security

- IP/Port Filtering
- MAC Filtering
- URL Filtering

NAT

- Virtual Server
- DMZ
- VPN Passthrough

Remote network

- L2TP Server
- Shadow socks
- Account Manage

Service

- Remote
- UPnP
- Schedule

Tools

- Change Password
- Time Setup
- System
- Upgrade
- Diagnosis
- Route Tracking
- Log

Operation Mode

- Gateway mode
- Bridge mode
- Repeater mode
- WISP mode

Other Function

- Multi-language automatic adaptation
- Domain Access
- QR Code
- LED Control
- Reboot
- Logout

Package Contents

- X5000R Wireless Router *1
- Power Adapter *1
- RJ45 Ethernet Cable *1
- Quick Installation Guide *1

Environment

- Operating Temperature: 0C- 50C (32F - 122F)
- Storage Temperature: -40C-70C (-40F - 158F)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
