Product Specification
|
|
Overview
|

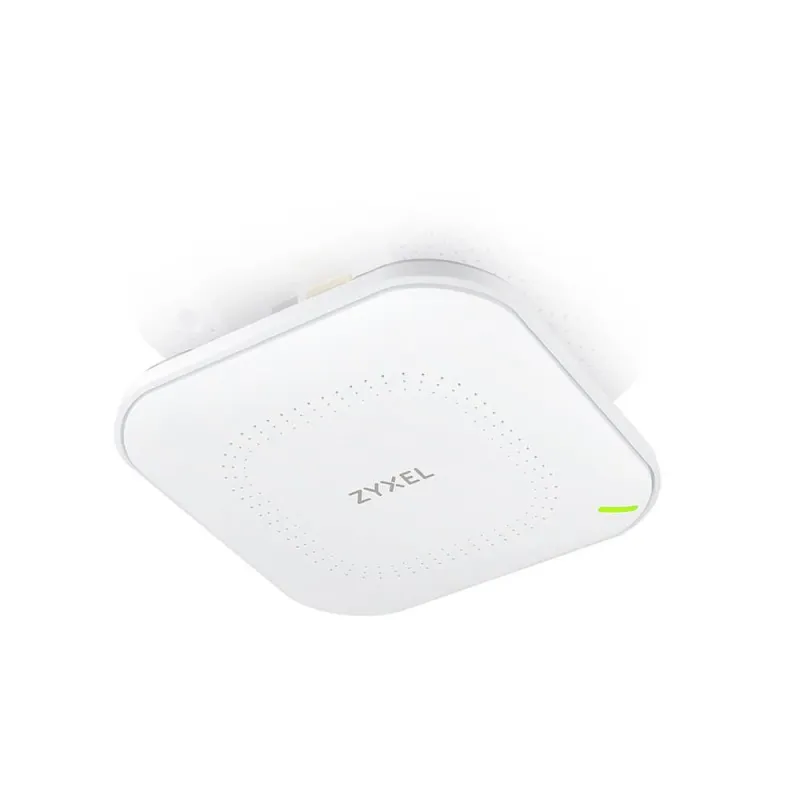

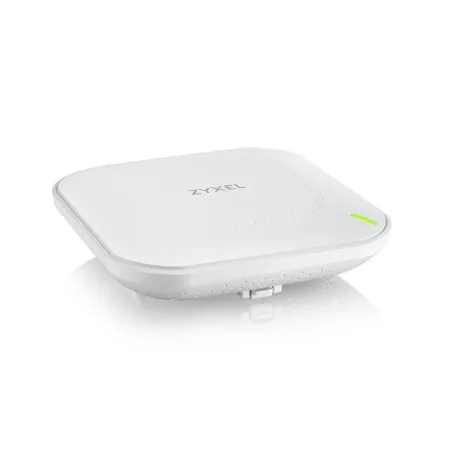

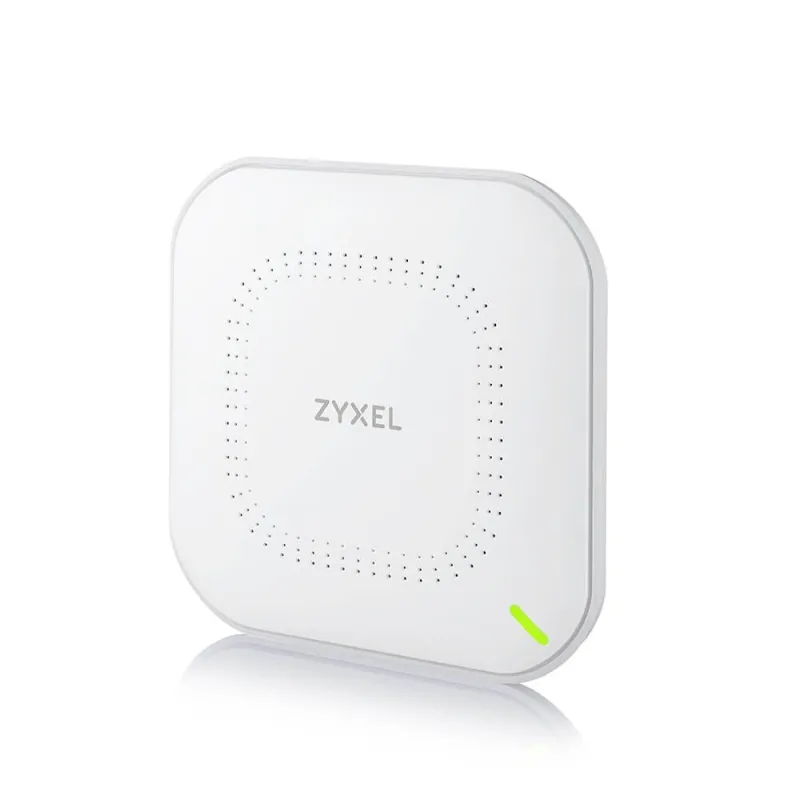

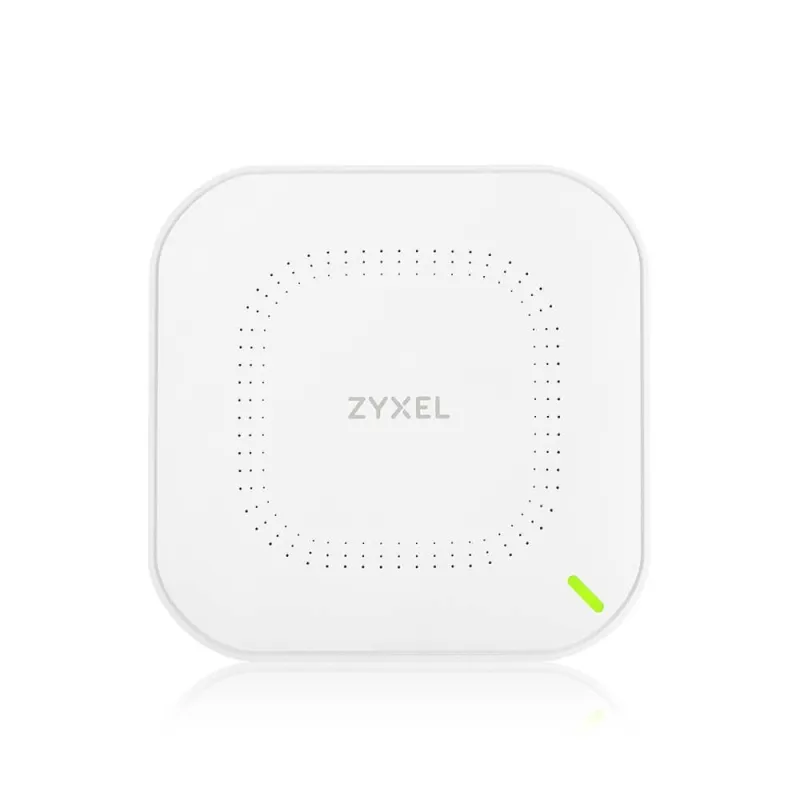

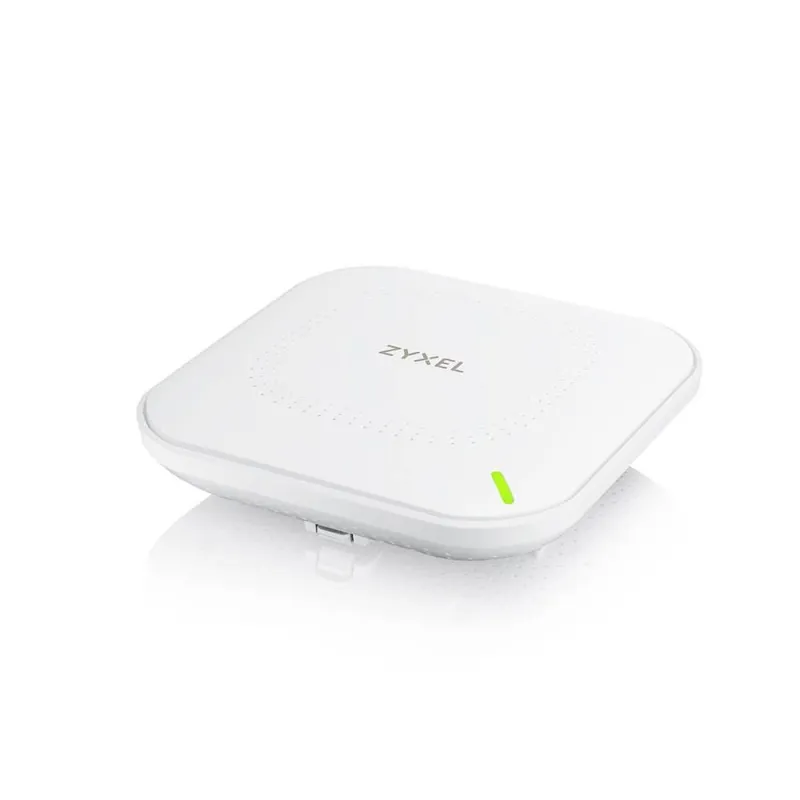

Zyxel NWA1123ACv3 Wireless Access Point AC1200Mbps Wave 2 MU-MIMO, Port Lan Gigabit, Standalone/NebulaFlex Cloud รองรับ PoE
|
|
Standard
|
IEEE802.11 ac/n/g/b/a
|
|
MIMO
|
MU-MIMO
|
|
Wireless speed
|
2.4 GHz:
300Mbps
5 GHz:
866Mbps
|
|
Frequency band
|
2.4 GHz
USA (FCC): 2.412 to 2.462 GHz
Europe (ETSI): 2.412 to 2.472 GHz
5 GHz
USA (FCC): 5.15 to 5.25 GHz; 5.725 to 5.850 GHz
European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
|
|
Bandwidth
|
20-, 40- and 80-MHz
|
|
Conducted typical transmit output power
|
US (2.4GHz/5GHz)
23/23dBm
EU (2.4GHz/5GHz)
19/23dBm
|
|
Antenna type
|
2x2 MIMO Embedded Antenna
|
|
Antenna gain
|
2.4GHz
3 dBi
5GHz
4 dBi
|
|
Minimum receive sensitivity
|
Up to -99 dBm
|
|
Band Steering
|
Yes
|
|
WDS / Mesh
|
Yes
|
|
Fast roaming
|
Pre-authentication, PMK caching and 802.11r/k/v
|
|
DCS
|
Yes
|
|
Load balancing
|
Yes
|
|
Encryption
|
WEP
WPA
WPA2-PSK
WPA3
|
|
Authentication
|
WPA
WPA2-Enterprise
EAP
IEEE 802.1X
RADIUS authentication
|
|
Access management
|
L2-isolation
MAC filtering
|
|
IPv6
|
Yes
|
|
VLANs
|
Yes
|
|
WMM
|
Yes
|
|
U-APSD
|
Yes
|
|
DiffServ marking
|
Yes
|
|
Operating mode
|
Cloud managed
standalone
|
|
ZON Utility
|
Discovery of Zyxel switches, APs and gateways
Centralized and batch configurations
IP configuration
IP renew
Device reboot
Device locating
Web GUI access
Firmware upgrade
Password configuration
|
|
Zyxel Wireless Optimizer
|
WiFi AP planning
WiFi coverage detection
Wireless health management
|
|
Web UI/ CLI
|
Yes
|
|
SNMP
|
Yes
|
|
Item
|
Dimensions (WxDxH)(mm/in.)
140 x 140 x 37.5 /5.51 x 5.51 x 1.48
Weight (g/lb.)
249/0.55
|
|
Packing
|
Dimensions (WxDxH)(mm/in.)
240 x 155 x 60 / 9.45 x 6.10 x 2.36
Weight (g/lb.)
560/1.23
|
|
Included accessories
|
Power adapter
Ceiling-mount plate
|
|
MTBF(hr)
|
630,794
|
|

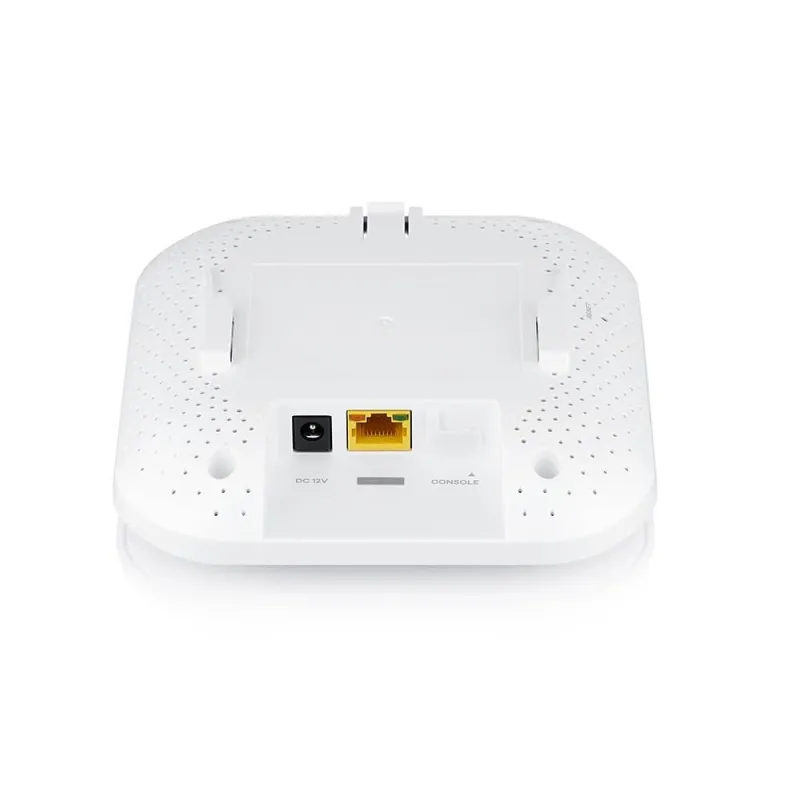

Ethernet port
|
1x 10/100/1000M LAN
|
|
Power
|
Input: AC 100 - 240V - 50/60 Hz 0.3A; Output: DC +12V 1A
PoE (802.3af): power draw 11 W
|
|
Operating
|
Temperature
0°C to 50°C/32°F to 122°F
Humidity
10% to 90% (non-condensing)
|
|
Storage
|
Temperature
-40°C to 70°C/-40°F to 158°F
Humidity
10% to 90% (non-condensing)
|
|
Radio
|
FCC Part 15C
FCC Part 15E
ETSI EN 300 328
EN 301 893
LP0002
EN 60601-1-2
|
|
EMC
|
FCC Part 15B
EN 301 489-1
EN 301 489-17
EN55022
EN55024
EN61000-3-2/-3
BSMI CNS13438
|
|
Safety
|
EN 60950-1
IEC 60950-1
BSMI CNS14336-1
|
