• lower cost than SFP+ optical transceiver and active optical cable (AOC)
• Support for multi-gigabit data rates up to 10.5Gbps
• Support for 1x, 2x, 4x and 8x Fibre Channel data rates
• Hot-pluggable SFP 20PIN footprint
• I/O Connector designed for high-speed differential signal applications
• Improved Pluggable Form Factor (IPF) compliant for enhanced EMI/EMC performance
• Single 3.3V power supply
• Compatible to SFP+ MSA
• Operating temperature range: 0 to 70°C
• RoHS Compliant and Lead-Free
Zyxel DAC10G-1M Product Specification |
|
|
Overview |

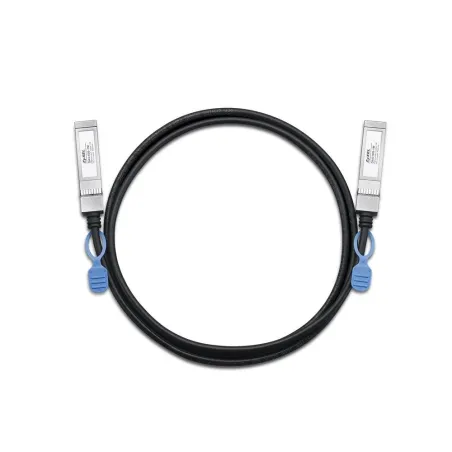

Zyxel DAC10G-1M สาย DAC สำหรับเชื่อมต่อ Port SFP+ บนอุปกรณ์ Switch ความเร็ว 10Gbps ความยาว 1 เมตร |
|
OEM Part Number |
DAC10G-1M |
|
Form Factor |
SFP+ DAC Cable |
|
Passive or actively equalized |
Passive |
|
Cable Length |
1 m |
|
Cable Type |
Twinax |
|
Minimum cable bend radius |
25 mm |
|
Connector |
SFP+/SFP+ |
|
Environment |
Operating: 0°C to 70°C |
|
Application |
Storage Area Networks( SAN) |
|
Optcore Part Number |
SFP-10G-DAC-P1M-ZYX |
|
Data Rate |
10.5Gb/s |
|
Supply Voltage |
3.3V |
|
Cable impedance |
100 Ω |
|
Wire Gauge |
30AWG |
|
Cable Jacket Type |
PVC |
|
Digital Diagnostic Monitoring |
N/A |
|
Weight |
0.1 kg |
|
Compliance |
SFF-8472,SFF-8431 |
|
|
|
