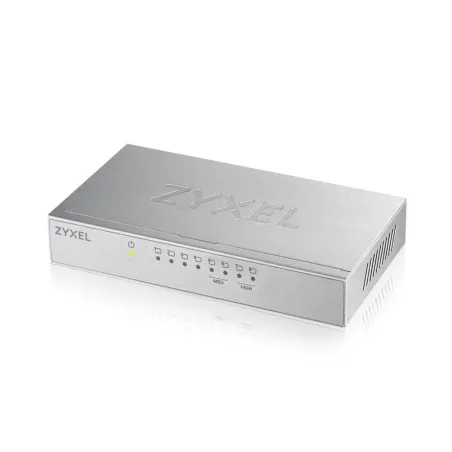

Zyxel GS-108B v3 8-Port Desktop Gigabit Ethernet Switch

IEEE 802.3 10BASE-T Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3 Nway auto-negotiation

IEEE 802.3x full duplex operation and flow control

IEEE 802.3az Energy Efficient Ethernet

Ethernet: 10/20 Mbps

Fast Ethernet: 100/200 Mbps

Gigabit Ethernet: 1000/2000 Mbps

MAC address table: 4 K

Memory buffer: 128 KB

Switching fabric (non-blocking): 16 Gbps

Auto-MDI/MDIX in all ports

Transmission method: Store-and-forward architecture

Port-based QoS support

Jumbo frame support up to 9 KB

• Interface

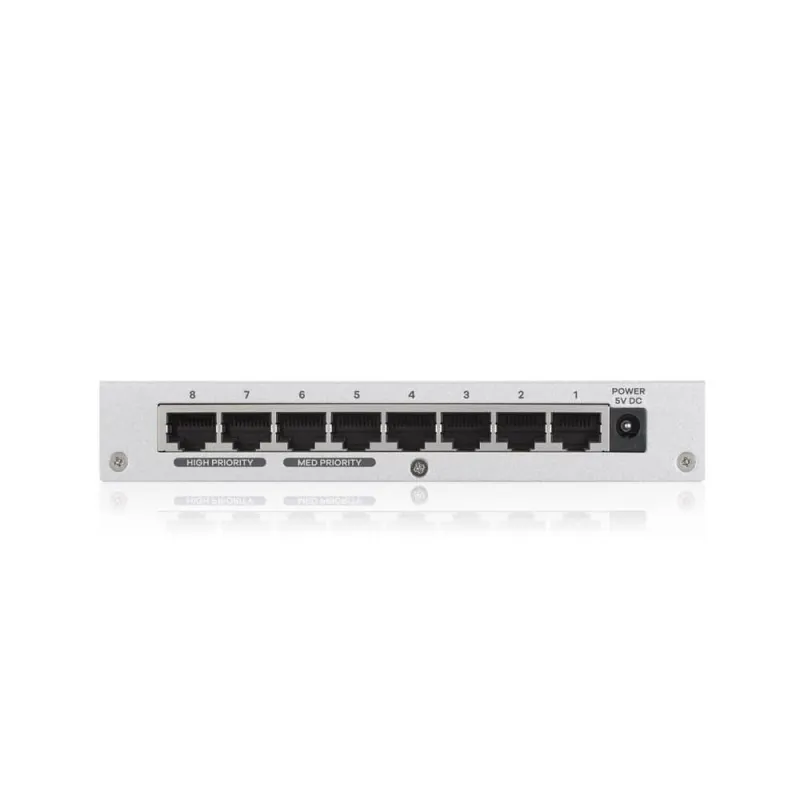

  • Eight RJ-45 10/100/1000 Mbps Ethernet ports with auto MDI/MDIX support

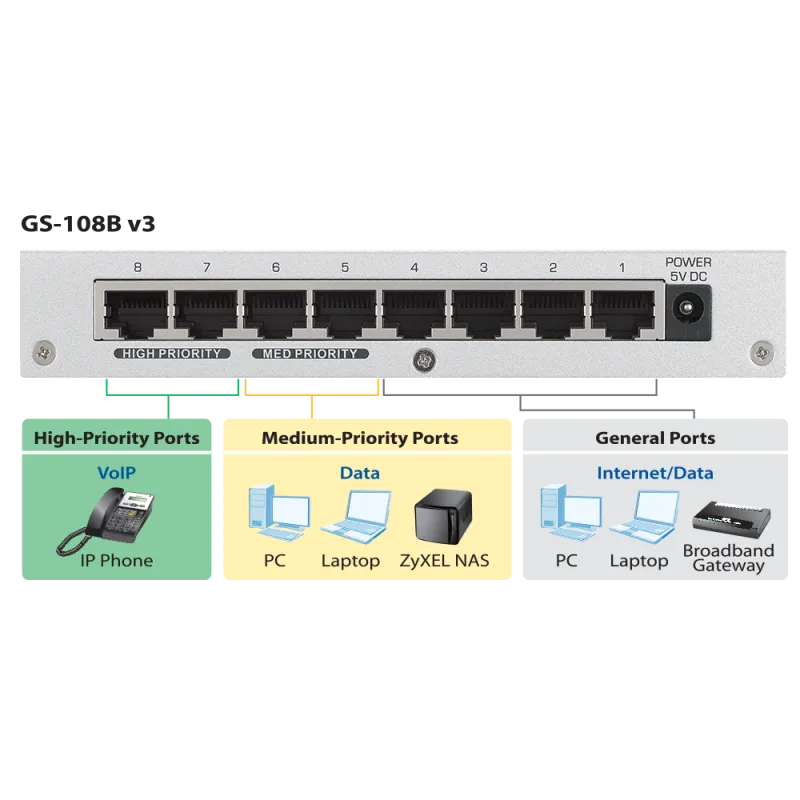

• QoS Ports
  • Two high-priority QoS ports and two medium-priority QoS ports

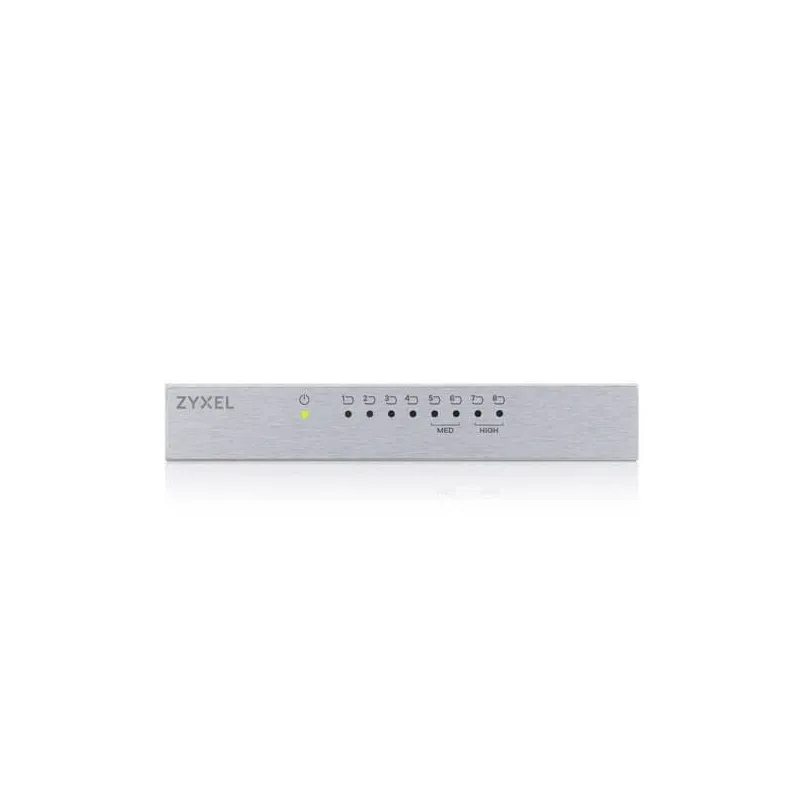

• LED Indicator
  • PWR: Power
  • Per port: Link/Activity
    • Amber: 10/100 Mbps
    • Green: 1000 Mbps
• Power Supply
  • Input: 100-240 V AC
  • Output: 5 V DC, 1 A
• Power consumption: 3.0 watt max.

• Operating Environment
  • Temperature: 0°C to 40°C (32°F to 104°F)
  • Humidity: 10% to 90% (Non-condensing)
• Storage Environment
  • Temperature: -40°C to 70°C (-40°F to 158°F)
  • Humidity: 10% to 95% (Non-condensing)

• EMC: CE, EAC, FCC, BSMI Class B
