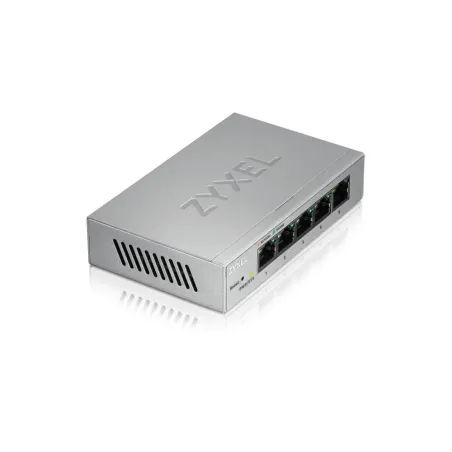

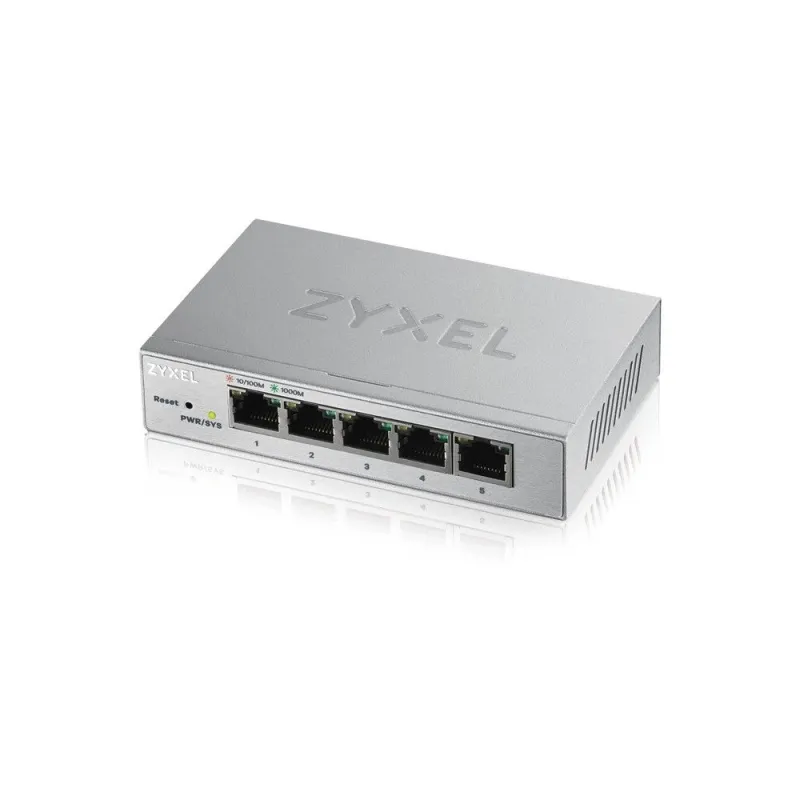

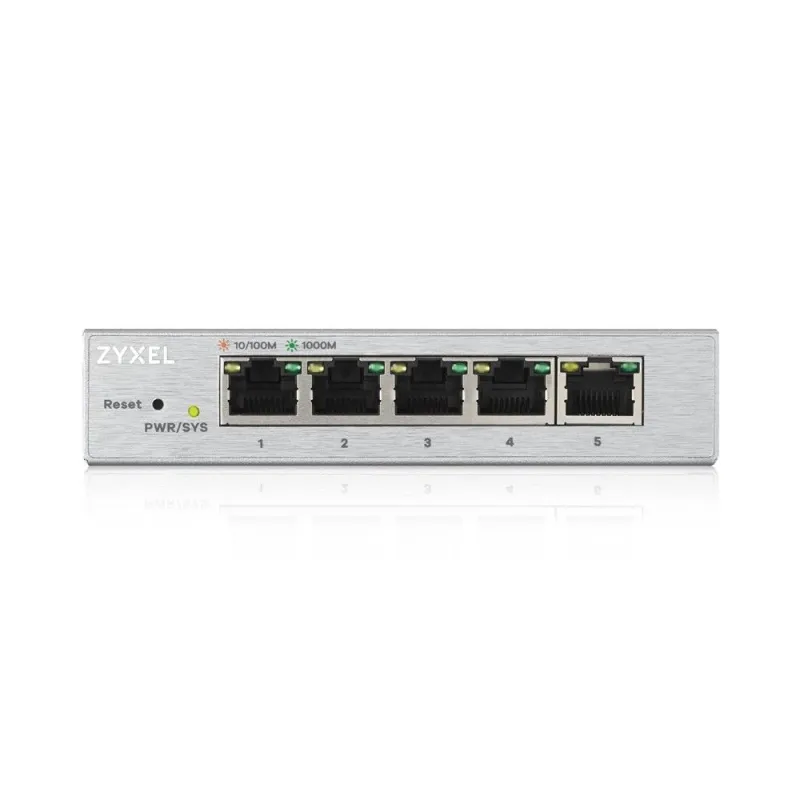

Zyxel GS1200-5 Product Specification
|
|
Overview
|
Zyxel GS1200-5 L2 Web Managed Switch 5 Port ความเร็ว Gigabit บริหารจัดการผ่าน Web Browser รองรับ 802.1Q VLAN, Port Mirroring, Loop Detection
ประกัน Limited Lifetime (เงื่อนไขการรับประกัน)
|
|
Case
|
Metal
|
|
Auto MDI/MDI-X
|
Yes
|
|
Store and Forward
|
Yes
|
|
Full Duplex Capability
|
Yes
|
|
Flow Control
|
Yes
|
|
10/100 Mbps Ethernet Ports
|
-
|
|
10/100/1000 Mbps Ethernet Ports
|
5
|
|
10/100/1000 Mbps Ethernet PoE+ Ports
|
-
|
|
Switching Capacity
|
10 Gbps
|
|
MAC Address
|
2K
|
|
Memory Buffer
|
128 KB
|
|
Jumbo Frames
|
Up to 9 KB
|
|
Web GUI
|
Yes
|
|
802.3x Flow Control
|
Yes
|
|
DHCP Client
|
Yes
|
|
802.1Q VLAN
|
Yes
|
|
WRR Priority QoS
|
Yes
|
|
Port-based QoS
|
Yes
|
|
802.1p CoS
|
Yes
|
|
Broadcast Storm Control
|
Yes
|
|
Loop Detection /Prevention
|
Yes
|
|
IGMP Snooping v1/v2/and v3 Compatitble
|
Yes
|
|
Link Aggregation
|
Yes
|
|
Port Mirroring
|
Yes
|
|
Fanless
|
Yes
|
|
Power Saving by Detecting Link Status & Cable Length
|
Yes
|
|
Input voltage
|
5V DC/1A
|
|
Power supply
|
External
|
|
Maximum power consumption (watt)
|
2.67
|
|
PoE power budget (watt)
|
-
|
|
Item dimensions (WxDxH)
|
121x 75 x 26mm
(4.8” x 3.0” x 1.0”)
|
|
Item weight
|
233g (0.51 lb.)
|
|
Packing dimensions (WxDxH)
|
127 x 82 x 95 mm
(5.0” x 3.2” x 3.7”)
|
|
Packing weight
|
388g (0.86 lb.)
|
|
Operating
|
Temperature
0?C to 40?C/32?F to 104?F
Humidity
10% to 90% (non-condensing)
|
|
Storage
|
Temperature
-40?C to 70?C/-40?F to 158?F
Humidity
10% to 90% (non-condensing)
|
|
|
|
|
|
|
