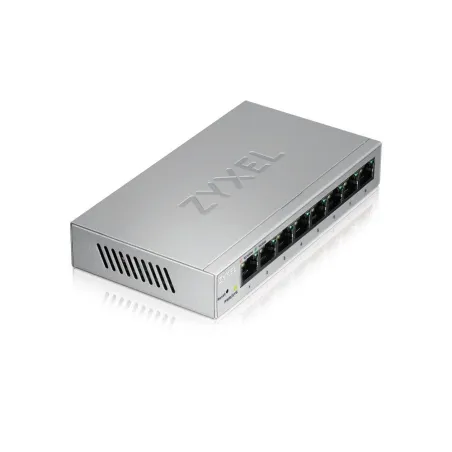

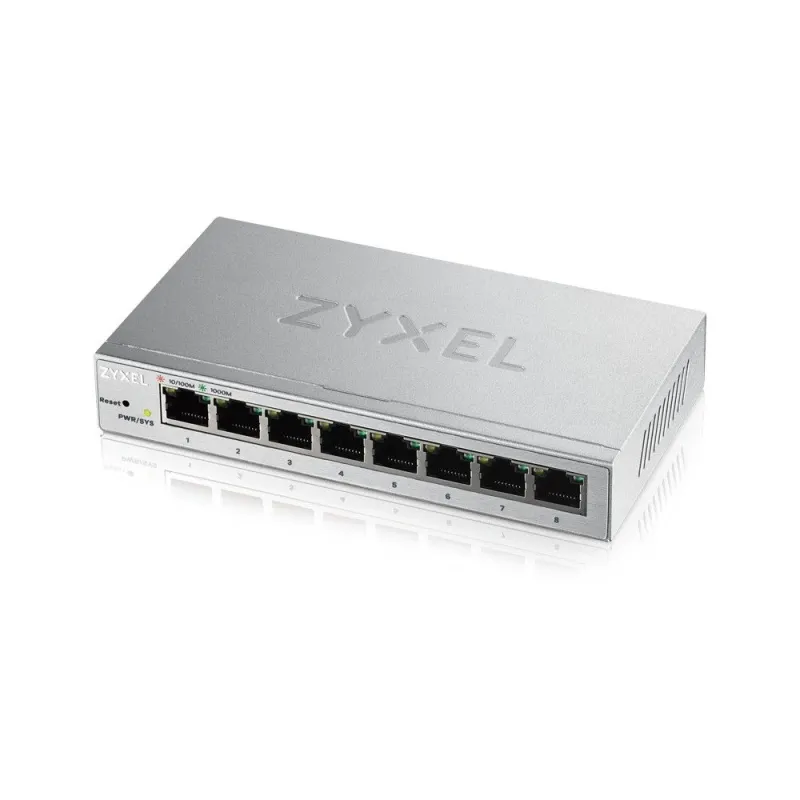

GS1200-8 Zyxel Web Managed Gigabit Switch 8 Port รองรับ 802.1q VLAN

Zyxel GS1200-8 L2 Product Specification

Overview

Zyxel GS1200-8 L2 Web Managed Switch 8 Port ความเร็ว Gigabit บริหารจัดการผ่าน Web Browser รองรับ 802.1Q VLAN, Port Mirroring, Loop Detection

ประกัน Limited Lifetime (เงื่อนไขการรับประกัน)

Case

Metal

Auto MDI/MDI-X

Yes

Store and Forward

Yes

Full Duplex Capability

Yes

Flow Control

Yes

10/100 Mbps Ethernet Ports

-

10/100/1000 Mbps Ethernet Ports

8

10/100/1000 Mbps Ethernet PoE+ Ports

-

Switching Capacity

16 Gbps

MAC Address

4K

Memory Buffer

192 KB

Jumbo Frames

Up to 9 KB

Web GUI

Yes

802.3x Flow Control

Yes

DHCP Client

Yes

802.1Q VLAN

Yes

WRR Priority QoS

Yes

Port-based QoS

Yes

802.1p CoS

Yes

Broadcast Storm Control

Yes

Loop Detection /Prevention

Yes

IGMP Snooping v1/v2/and v3 Compatitble

Yes

Link Aggregation

Yes

Port Mirroring

Yes

Fanless

Yes

Power Saving by Detecting Link Status & Cable Length

Yes

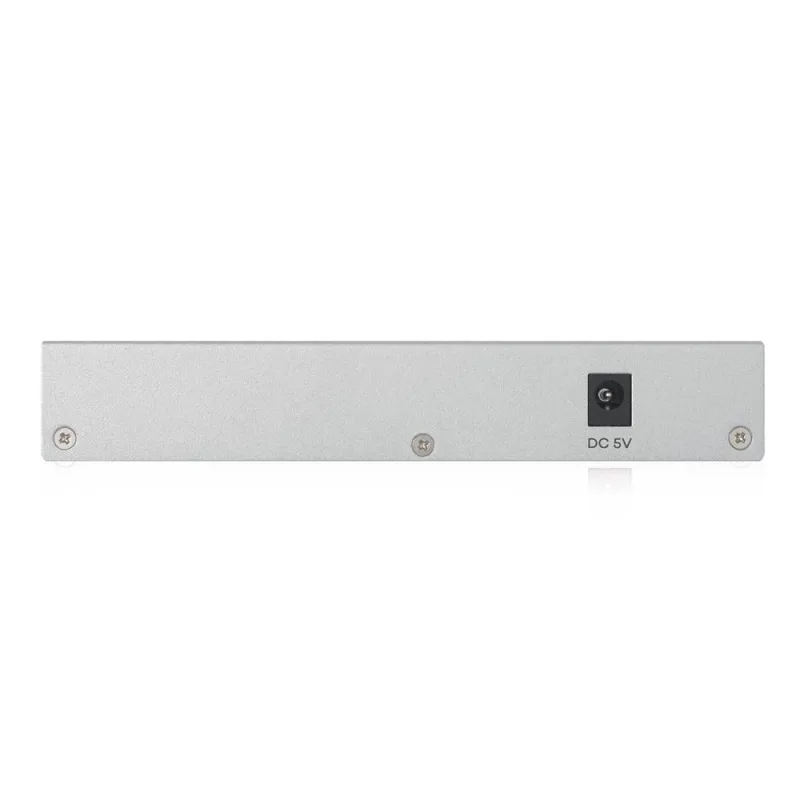

Input voltage

5V DC/1A

Power supply

External

Maximum power consumption (watt)

4.37

PoE power budget (watt)

-

Item dimensions (WxDxH)

155x 85 x 26 mm
(6.1” x 3.0” x 1.0”)

Item weight

325g (0.72 lb.)

Packing dimensions (WxDxH)

161 x 90 x 95 mm
(6.3” x 3.5” x3.7”)

Packing weight

497g (1.10 lb.)

Operating

Temperature
0?C to 40?C/32?F to 104?F
Humidity
10% to 90% (non-condensing)

Storage

Temperature
-40?C to 70?C/-40?F to 158?F
Humidity
10% to 90% (non-condensing)
