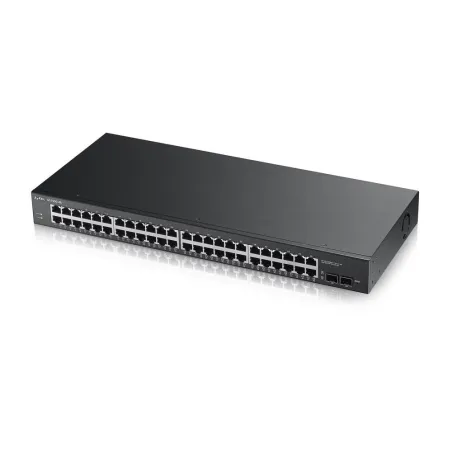

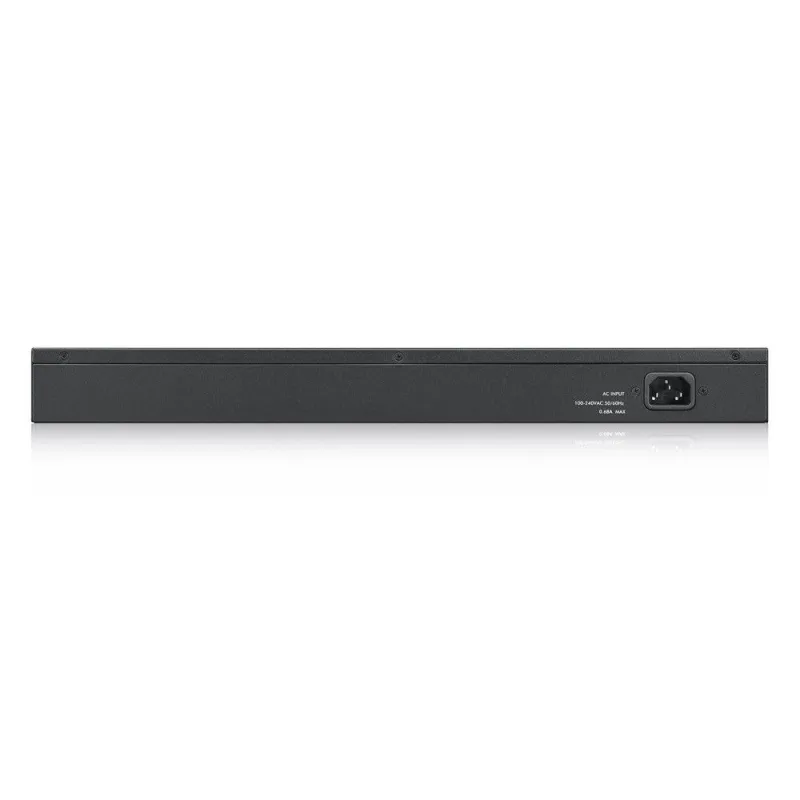

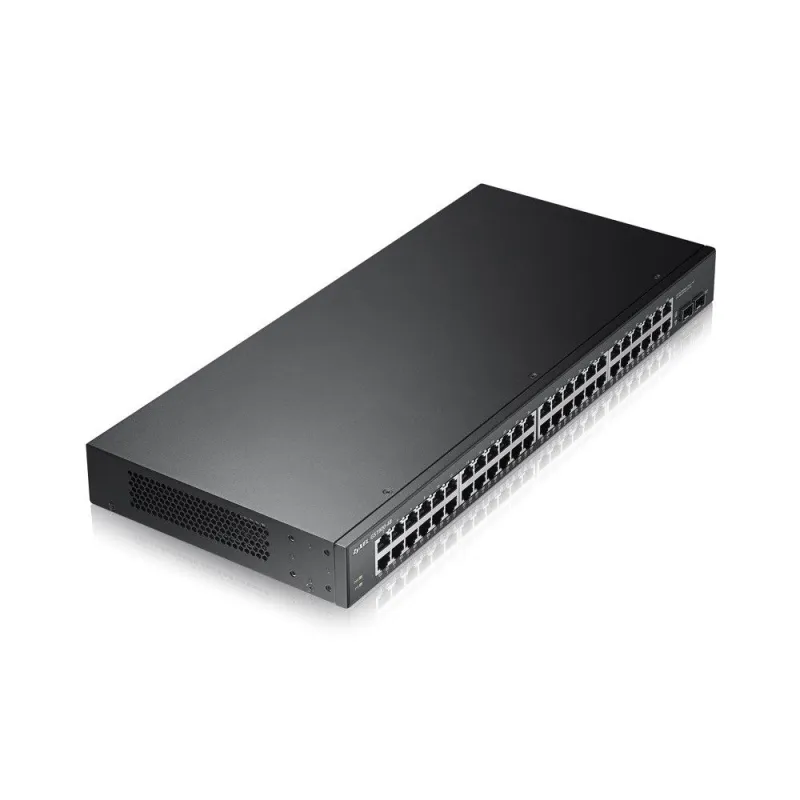

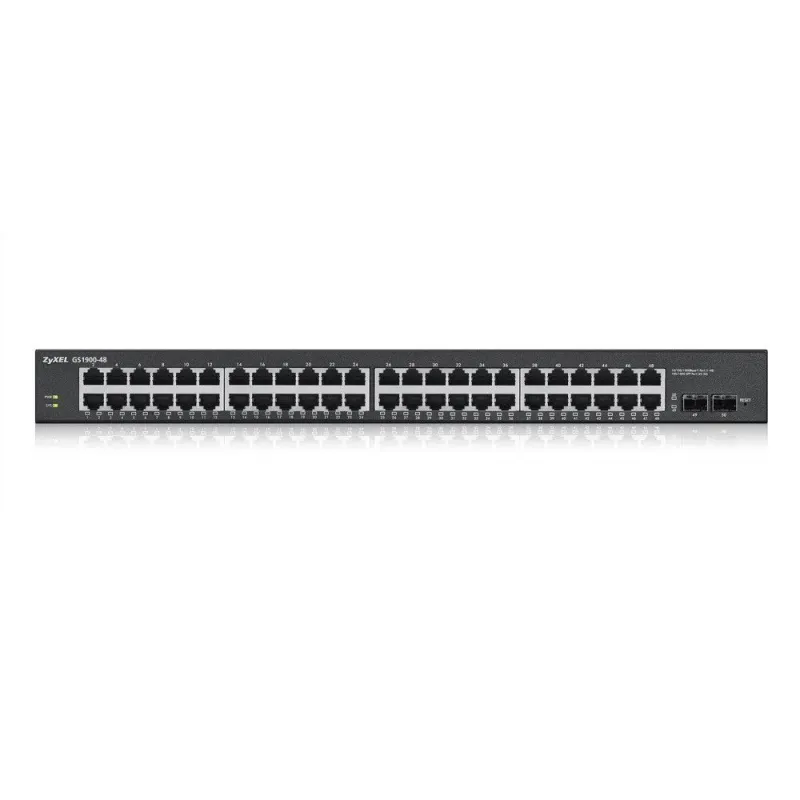

GS1900-48 Zyxel L2 Smart Managed Switch 48 Port Gigabit 2 SFP Port Rack-mount
  • GS1900-48 Zyxel L2 Smart Managed Switch 48 Port Gigabit 2 SFP Port Rack-mount
  • GS1900-48 Zyxel L2 Smart Managed Switch 48 Port Gigabit 2 SFP Port Rack-mount
  • GS1900-48 Zyxel L2 Smart Managed Switch 48 Port Gigabit 2 SFP Port Rack-mount
  • GS1900-48 Zyxel L2 Smart Managed Switch 48 Port Gigabit 2 SFP Port Rack-mount

GS1900-48 Zyxel L2 Smart Managed Switch 48 Port Gigabit 2 SFP Port Rack-mount

GS1900-48

Zyxel GS1900-48 L2 Smart Managed Switch 48 Port ความเร็ว Gigabit, 2 Port SFP Rack-mount จัดการผ่าน Web Browser รองรับ 802.1Q VLAN

฿15,300.00
ยังไม่ได้รวมภาษี
จำนวน


ต้องการรายละเอียดสินค้าเพิ่มเติม LINE:
@sysnet

รายละเอียด

Zyxel GS1900 Series Datasheet
Zyxel GS1900 Series User Manual

Zyxel GS1900 Series Quick Guide

Zyxel GS1900 Series คู่มือการตั้งค่า

Zyxel GS1900-48 Product Specification

Overview

Zyxel GS1900-48 L2 Smart Managed Switch 48 Port ความเร็ว Gigabit , 2 Port SFP, Rack-Mount เข้าตู้ Rack 19"

บริหารจัดการผ่าน Web Browser รองรับ 802.1Q VLAN, IGMP snooping, SNMP v3

10/100/1000BASE-T,fixed

48 Port Gigabit

SFP 100/1000 Mbps

2 Port SFP

Switching capacity (Gbps)

100

Forwarding rate (Mpps)

74

Packet buffer (byte)

1.5M

MAC address table

8K

Jumbo frame (byte)

9K
Power

100 - 240 V AC,50/60 Hz

Max. power consumption (watt)

16

Dimensions (WxDxH)(mm/in.)

440 x 131 x 44/17.32 x 5.16 x 1.73

Weight (kg/lb.)

2.9/6.39

Operating temperature

0?C to 50?C (32?F to 122?F)

Storage temperature

-40?C to 70?C (-40?F to 158?F)

Operating humidity

10% to 95%(non-condensing)

Storage humidity

10% to 95% (non-condensing)

Standard Compliance

IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Ethernet
IEEE 802.3ab (1000BASE-T) Ethernet
IEEE 802.3x flow control
IEEE 802.3az EEE support
IEEE 802.1p CoS support
IEEE 802.3af PoE (GS1900-8HP/10HP/24HP/48HP)
IEEE 802.3at PoE plus (GS1900-8HP/10HP/24HP/48HP)
IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
Full-duplex and half duplex operation with IEEE 802.3x flow control and backpressure
Store and forward
Auto MDI/MID-X

Security

IEEE 802.1x
Port security
Layer 2 MAC filtering
BPDU guard
Static MAC forwardingRADIUS
TACACS+
SSL
Management VLAN
CPU defense engine
DoS prevention

Resilience and Availability

IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
IEEE 802.3ad LACP
Dual configuration files
Dual images

MIB

RFC 1213 MIB II
RFC 2819 RMON (group 1,2,3,9)
RFC 1215 generic traps
RFC 1493 bridge
Private MIB

Layer 2 Multicast

IGMP snooping (v1,v2,v3)

Discovery

IEEE 802.1 AB LLDP
LLDP-MED

Network Management

SNMP v1,v2,v3
RMON (1,2,3,9)
ICMP echo/echo reply
Syslog

Class of Service (CoS)

IEEE 802.1p class of service (SPQ, WRR)
Port-based CoS
IP TOS precedence

IPv6

IPv6 over Ethernet (RFC 2464)
Dual-stack (RFC 4213)
ICMPv6 (RFC 4884)
Neighbor discovery (RFC 4861)
Auto configuration
Static IPv6 address and prefix length
Static IPv6 default gateway
IPv6 duplicate address detection

Certifications

EMC
CE, FCC, C-Tick, Class A (GS1900-24/24HP/48/48HP)
CE, FCC, C-Tick, Class B (GS1900-8/8HP/10HP/16/24E)
BSMI CNS13438
Safety
LVD EN60950-1
BSMI CNS14336-1
CB IEC60950-1 (GS1900-8HP/10HP/16/24E/24)
RoHS compliant

Traffic Management and QoS

Port-based VLAN
IEEE 802.1Q VLAN tagging
IEEE 802.3ad LACP
Guest VLAN
Voice VLAN
Storm contro
IEEE 802.1p priority queues per port
IEEE 802.1p Queuing method (scheduler)
Input priority mapping
Rate limiting per port (ingress/egress)
IEEE 802.3x flow control

ZON Utility

Discovery of Zyxel switches, APs and gateways
Centralized and batch configurations
IP configuration
IP renew
New Device factory reset
Device reboot
Device locating
Web GUI access
Firmware upgrade
Password configuration
One-click quick association with Zyxel AP Configurator  (ZAC)

รายละเอียดสินค้า
5 รายการ

ข้อมูลสินค้า

ประเภท Switch
L2 Managed
ความเร็ว Port Lan
1Gbps (Gigabit)
จำนวน Port Lan
48 Port
SFP Port Gigabit
1-2 Port
