Product Specification |

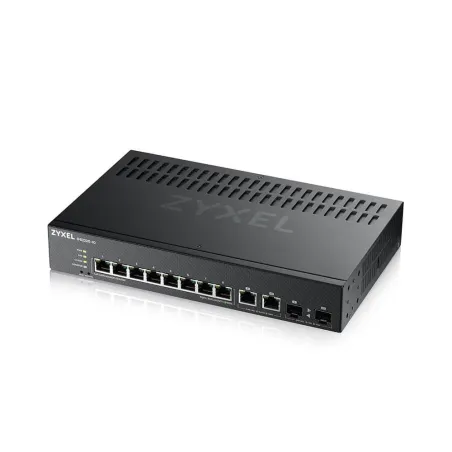

Overview | Zyxel GS2220-10 L2+ Managed Switch 8 Port Gigabit, 2 Port SFP Combo, รองรับ VLAN, IGMP snooping |
Total port count | 10 |
100/1000 Mbps | 8 |
Gigabit Combo (RJ-45/SFP) | 2 |
802.3at PoE ports | - |
Total PoE budget (watts) | - |
Switching capacity (Gbps) | 20 |
Forwarding rate (Mpps) | 15 |
Packet buffer (byte) | 1.5M |
MAC address table | 16K |
Flash/RAM (MB) | 32/256 |
Input | 100 - 240 V AC, 50/60 Hz |
Max. power consumption (watt) | 11 |
Dimensions (WxDxH)(mm/in.) | 267 x 162 x 44/ 10.51 x 6.38 x 1.73 |
Weight (kg/lb.) | 1.3/2.87 |
Acoustic noise (min/max, dBA) | 0 |
Standard Compliance | IEEE 802.3u 100BASE-TX Ethernet* IEEE 802.3ab 1000BASE-T Ethernet* IEEE 802.3z 1000BASE-X* IEEE 802.3af PoE* IEEE 802.3at PoE plus* IEEE 802.3az EEE* IEEE 802.3x flow control IEEE 802.1AB LLDP/LLDP-MED IEEE 802.3ad LACP aggregation* IEEE 802.1D Spanning Tree Protocol (STP)* IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)* IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) IEEE 802.1Q VLAN tagging IEEE 802.1p Class of Service (CoS) prioritization* IEEE 802.1X port authentication* * Cloud and standalone modes supported features |
Resilience and Availability | IEEE 802.1D Spanning Tree Protocol (STP)* IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)* IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) IEEE 802.3ad LACP Loop guard* Root guard BPDU guard ErrDisable recovery MRSTP (Zyxel Proprietary) Dual configuration files Dual images* * Cloud and standalone modes supported features |
Traffic Control | 802.1Q static VLANs*/dynamic VLANs: 1 K/4 K Port-based VLAN Protocol-based VLAN IP subnet-based VLAN MAC-based VLAN Private VLAN Voice VLAN* Vendor ID based VLAN* VLAN ingress filtering LACP algorithm of source/ destination IP or MAC GVRP L2PT * Cloud and standalone modes supported features |
Security | Port security* Layer 2 MAC filtering Layer 3 IP filtering Layer 4 TCP/UDP socket filtering Static MAC forwarding Multiple RADIUS servers* Multiple TACACS+ servers New for V4.70 Compound authentication 802.1x VLAN and 802.1p assignment by RADIUS Login authentication by RADIUS Login authentication by TACACS+ TACACS+ accounting RADIUS accounting Authorization on RADIUS Authorization on TACACS+ SSH v2 SSL MAC freeze DHCP snooping IPv4 DHCP snooping IPv6 ARP inspection Static IP-MAC-Port binding Policy-based security filtering Port isolation IP source guard (IPv4/IPv6) MAC search* Guest VLAN* ACL packet filtering (IPv4/IPv6) CPU protection Interface related trap enable disable (by port) MAC-based authentication per VLAN * Cloud and standalone modes supported features |
Quality of Service (QoS) | No. of hardware queues per port: 8* Storm control and event log: Broadcast, multicast, unknown unicast (DLF)* Port-based rate limiting* (ingress/ egress) Rate limiting per IP/TCP/UDP per port Policy-based rate limiting 802.3x flow control 802.1p Class of Service (SPQ, WFQ, WRR, hybrid-SPQ combination capable) DiffServ (DSCP) * Cloud and standalone modes supported features |
Layer 2 Multicast | L2 multicast* IGMP snooping (v1, v2, v3)* IGMP snooping fast leave* Configurable IGMP snooping timer and priority* IGMP snooping statistics* IGMP throttling* MVR support IGMP filtering* IGMP snooping immediate leave* IGMP proxy mode & snooping mode selection* MLD snooping * Cloud and standalone modes supported features |
Manageability | SNMP v1, v2c, v3 SNMP trap group RMON (1, 2, 3, 9) ICMP echo/echo reply Syslog* IEEE 802.1AB LLDP Cloud support on V4.70 IEEE 802.1AB LLDP-MED* Custom default Syslog (IPv4/IPv6) Display port utilization* Support NebulaFlex Pro for Cloud Management * Cloud and standalone modes supported features |
IPv6 Management | IPv6 over Ethernet (RFC 2464) IPv6 addressing architecture (RFC 4291) Dual stack (RFC 4213) ICMPv6 (RFC 4443) Path MTU (RFC 1981) Minimum path MTU size of 1280 (RFC 5095) Encapsulation for maximum PMTU of 1500 Neighbor discovery (RFC 4861) DHCPv6 relay Default DHCP client mode* * Cloud and standalone modes supported features |
Device Management | Standalone management by Web interface Cloud management by Nebula Control Center* Zyxel iStackingTM Web interface Management through Console, Telnet, SNMP Remote firmware upgrade by FTP/ Web/TFTP New for V4.70 Networked AV mode by Web Interface Configuration saving and retrieving* Multiple logins supported Configure clone* Multilevel CLI CLI (Cisco-like) DHCP relay MAC proxy New for V4.70 DHCP server guard DHCP relay per VLAN DHCP client IPv4* DHCP client IPv6 DHCP option 82 New for V4.70 Auto PD Recovery Daylight saving* NTP supports IPv4/IPv6 Port mirroring* RS-232 out-of-band console port Scheduled PoE* PoE default consumption mode* Restore to last custom default * Cloud and standalone modes supported features |
Certifications | Safety
LVD
BSMI
EMC FCC Part 15 (Class A) CE (Class A) BSMI ENC RoHS Level A |
Zyxel One Network | ZON Utility* Discovery of Zyxel switches, APs and gateways Centralized and batch configurations IP configuration IP renew Device factory reset Device reboot Device locating Web GUI access Password configuration One-click quick association with Zyxel AP Configurator (ZAC) Automatic detection of the latest firmware Displays device serial number and hardware version Cloud mode on/off option for Hybrid series devices * Cloud and standalone modes supported features Smart Connect Discover neighboring devices One-click remote management access to the neighboring Zyxel devices Reset neighboring devices remotely to factory defaults Power cycle neighboring powered devices (PoE switches only) |
