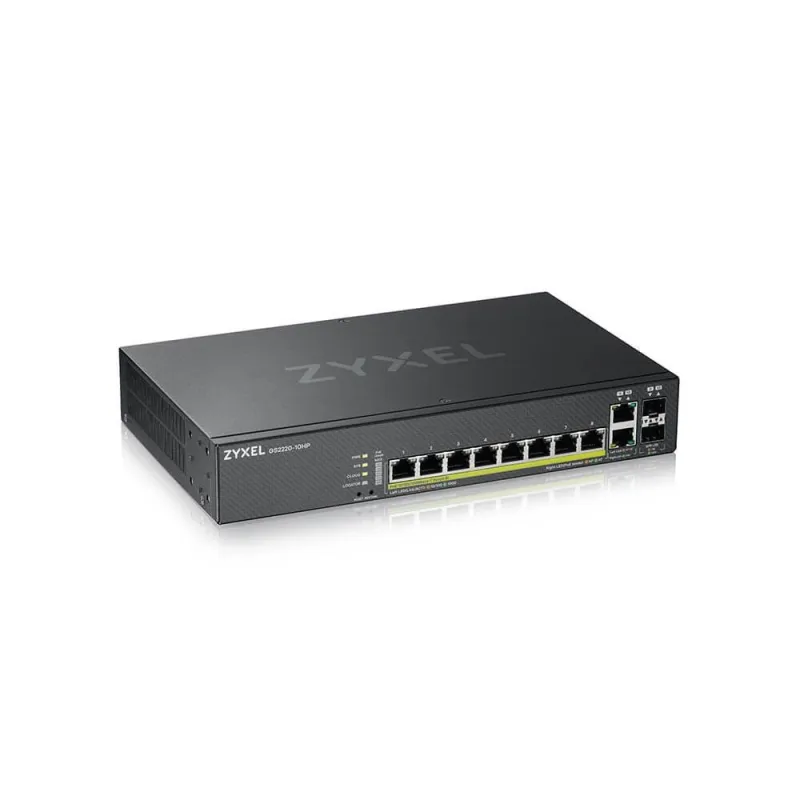

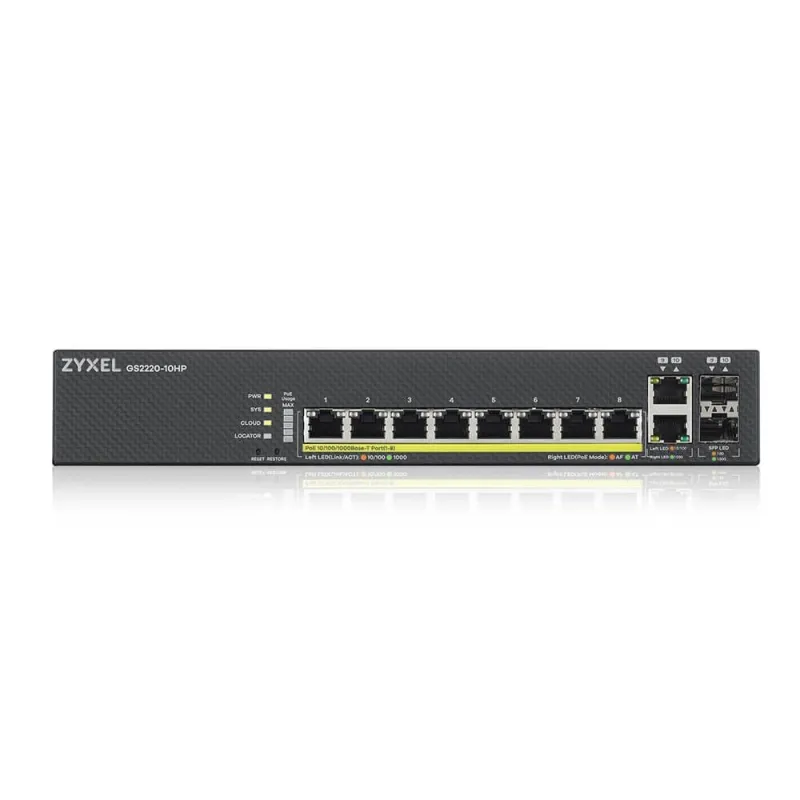

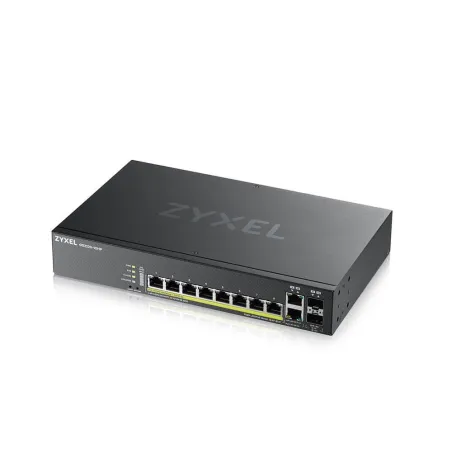

GS2220-10HP Zyxel L2+ Managed POE Switch 8 Port, 2 Port SFP, 180W
  • GS2220-10HP Zyxel L2+ Managed POE Switch 8 Port, 2 Port SFP, 180W
  • GS2220-10HP Zyxel L2+ Managed POE Switch 8 Port, 2 Port SFP, 180W
  • GS2220-10HP Zyxel L2+ Managed POE Switch 8 Port, 2 Port SFP, 180W
  • GS2220-10HP Zyxel L2+ Managed POE Switch 8 Port, 2 Port SFP, 180W

GS2220-10HP Zyxel L2+ Managed POE Switch 8 Port, 2 Port SFP, 180W

GS2220-10HP

Zyxel GS2220-10HP L2+ Managed POE Gigabit Switch 8 Port รองรับการ Managed ทั้งแบบ Nebula Cloud และแบบ Standalone, VLAN, IGMP snooping จ่ายไฟสูงสุด 180W

฿12,250.00
ยังไม่ได้รวมภาษี
จำนวน
ชิ้นสุดท้ายในสต็อก


ต้องการรายละเอียดสินค้าเพิ่มเติม LINE:
@sysnet

รายละเอียด

Zyxel GS2220 Series Datasheet
Zyxel GS2220 Series User Manual

Product Specification

Overview

Zyxel GS2220-10HP L2+ Managed Switch 8 Port Gigabit รองรับ VLAN, IGMP snooping

Total port count

10

100/1000 Mbps

8

Gigabit Combo (RJ-45/SFP)

2

802.3at PoE ports

8

Total PoE budget (watts)

180W

Switching capacity (Gbps)

20

Forwarding rate (Mpps)

15

Packet buffer (byte)

1.5M

MAC address table

16K

Flash/RAM (MB)

32/256

Input

100 - 240 V AC, 50/60 Hz

Max. power consumption (watt)

210.8W

Dimensions (WxDxH)(mm/in.)

267 x 162 x 44/ 10.51 x 6.38 x 1.73

Weight (kg/lb.)

1.38/3.97

Acoustic noise (min/max, dBA)

18/41

Standard Compliance

IEEE 802.3u 100BASE-TX Ethernet*

IEEE 802.3ab 1000BASE-T Ethernet*

IEEE 802.3z 1000BASE-X*

IEEE 802.3af PoE*

IEEE 802.3at PoE plus*

IEEE 802.3az EEE*

IEEE 802.3x flow control

IEEE 802.1AB LLDP/LLDP-MED

IEEE 802.3ad LACP aggregation*

IEEE 802.1D Spanning Tree Protocol (STP)*

IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)*

IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)

IEEE 802.1Q VLAN tagging

IEEE 802.1p Class of Service (CoS) prioritization*

IEEE 802.1X port authentication*

* Cloud and standalone modes supported features

Resilience and Availability

IEEE 802.1D Spanning Tree Protocol (STP)*

IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)*

IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)

IEEE 802.3ad LACP

Loop guard*

Root guard

BPDU guard

ErrDisable recovery

MRSTP (Zyxel Proprietary)

Dual configuration files

Dual images*

* Cloud and standalone modes supported features

Traffic Control

802.1Q static VLANs*/dynamic VLANs: 1 K/4 K

Port-based VLAN

Protocol-based VLAN

IP subnet-based VLAN

MAC-based VLAN

Private VLAN

Voice VLAN*

Vendor ID based VLAN*

VLAN ingress filtering

LACP algorithm of source/ destination IP or MAC

GVRP

L2PT

* Cloud and standalone modes supported features

Security

Port security*

Layer 2 MAC filtering

Layer 3 IP filtering

Layer 4 TCP/UDP socket filtering

Static MAC forwarding

Multiple RADIUS servers*

Multiple TACACS+ servers

New for V4.70 Compound authentication

802.1x VLAN and 802.1p assignment by RADIUS

Login authentication by RADIUS

Login authentication by TACACS+

TACACS+ accounting

RADIUS accounting

Authorization on RADIUS

Authorization on TACACS+

SSH v2

SSL

MAC freeze

DHCP snooping IPv4

DHCP snooping IPv6

ARP inspection

Static IP-MAC-Port binding

Policy-based security filtering

Port isolation

IP source guard (IPv4/IPv6)

MAC search*

Guest VLAN*

ACL packet filtering (IPv4/IPv6)

CPU protection

Interface related trap enable disable (by port)

MAC-based authentication per VLAN

* Cloud and standalone modes supported features

Quality of Service (QoS)

No. of hardware queues per port: 8*

Storm control and event log: Broadcast, multicast, unknown unicast (DLF)*

Port-based rate limiting* (ingress/ egress)

Rate limiting per IP/TCP/UDP per port

Policy-based rate limiting

802.3x flow control

802.1p Class of Service (SPQ, WFQ, WRR, hybrid-SPQ combination capable)

DiffServ (DSCP)

* Cloud and standalone modes supported features

Layer 2 Multicast

L2 multicast*

IGMP snooping (v1, v2, v3)*

IGMP snooping fast leave*

Configurable IGMP snooping timer and priority*

IGMP snooping statistics*

IGMP throttling*

MVR support

IGMP filtering*

IGMP snooping immediate leave*

IGMP proxy mode & snooping mode selection*

MLD snooping

* Cloud and standalone modes supported features

Manageability

SNMP v1, v2c, v3

SNMP trap group

RMON (1, 2, 3, 9)

ICMP echo/echo reply

Syslog*

IEEE 802.1AB LLDP

Cloud support on V4.70 IEEE 802.1AB LLDP-MED*

Custom default

Syslog (IPv4/IPv6)

Display port utilization*

Support NebulaFlex Pro for Cloud Management

* Cloud and standalone modes supported features

IPv6 Management

IPv6 over Ethernet (RFC 2464)

IPv6 addressing architecture (RFC 4291)

Dual stack (RFC 4213)

ICMPv6 (RFC 4443)

Path MTU (RFC 1981)

Minimum path MTU size of 1280 (RFC 5095)

Encapsulation for maximum PMTU of 1500

Neighbor discovery (RFC 4861)

DHCPv6 relay

Default DHCP client mode*

* Cloud and standalone modes supported features

Device Management

Standalone management by Web interface

Cloud management by Nebula Control Center*

Zyxel iStackingTM

Web interface

Management through Console, Telnet, SNMP

Remote firmware upgrade by FTP/ Web/TFTP

New for V4.70 Networked AV mode by Web Interface

Configuration saving and retrieving*

Multiple logins supported

Configure clone*

Multilevel CLI

CLI (Cisco-like)

DHCP relay MAC proxy

New for V4.70 DHCP server guard

DHCP relay per VLAN

DHCP client IPv4*

DHCP client IPv6

DHCP option 82

New for V4.70 Auto PD Recovery

Daylight saving*

NTP supports IPv4/IPv6

Port mirroring*

RS-232 out-of-band console port

Scheduled PoE*

PoE default consumption mode*

Restore to last custom default

* Cloud and standalone modes supported features

Certifications

Safety
LVD
BSMI
EMC

FCC Part 15 (Class A)

CE (Class A)

BSMI ENC

RoHS

Level A

Zyxel One Network

ZON Utility*

Discovery of Zyxel switches, APs and gateways

Centralized and batch configurations

IP configuration

IP renew

Device factory reset

Device reboot

Device locating

Web GUI access

Password configuration

One-click quick association with Zyxel AP Configurator (ZAC)

Automatic detection of the latest firmware

Displays device serial number and hardware version

Cloud mode on/off option for Hybrid series devices

* Cloud and standalone modes supported features

Smart Connect

Discover neighboring devices

One-click remote management access to the neighboring Zyxel devices

Reset neighboring devices remotely to factory defaults

Power cycle neighboring powered devices (PoE switches only)



รายละเอียดสินค้า
2 รายการ

ข้อมูลสินค้า

ประเภท Switch
L2 Managed
ความเร็ว Port Lan
1Gbps (Gigabit)
จำนวน Port Lan
8 Port
มาตรฐานจ่ายไฟ POE
802.3af/at (30W)
จำนวน Port POE
8 Port
มี Uplink Port Lan Gigabit
Yes
SFP Port Gigabit
1-2 Port
