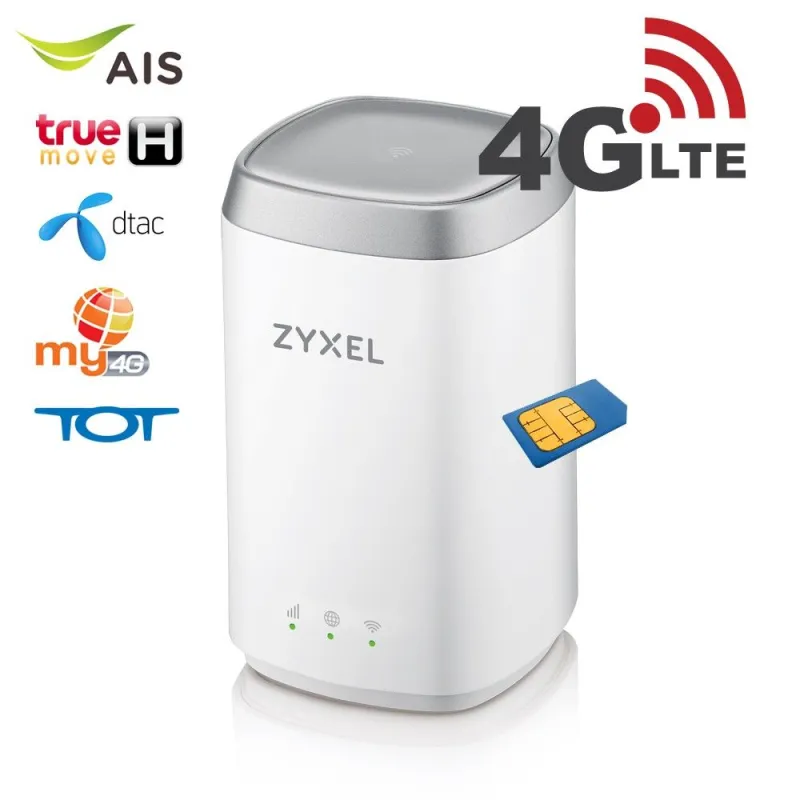

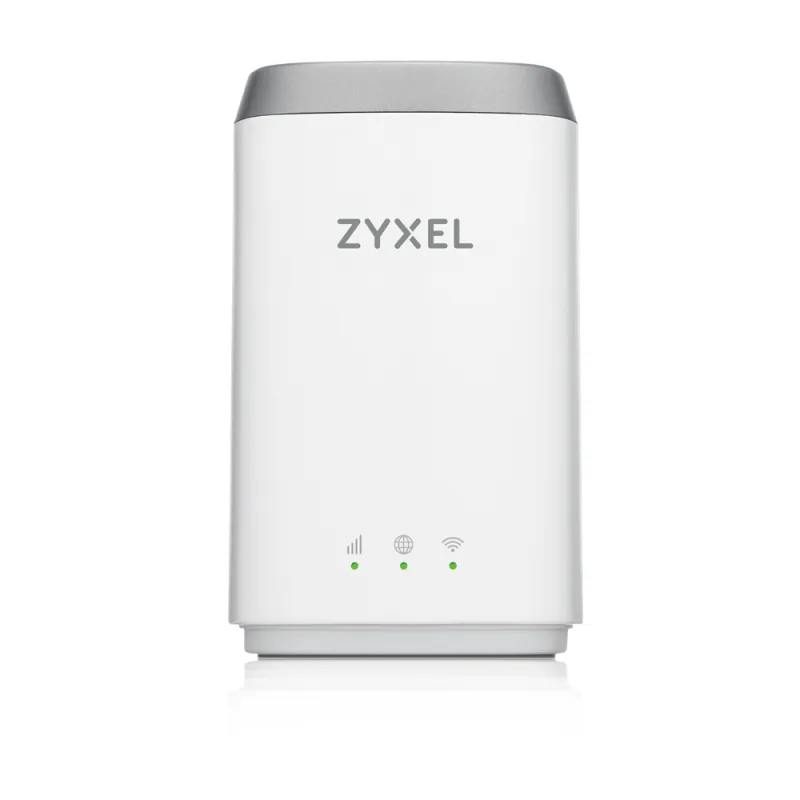

Zyxel LTE4506 AC1200 Wireless Dual Band 4G LTE Router แบบใส่ Sim รองรับ 4G ทุกเครือข่าย

Zyxel LTE4506 Product Specification

Overview

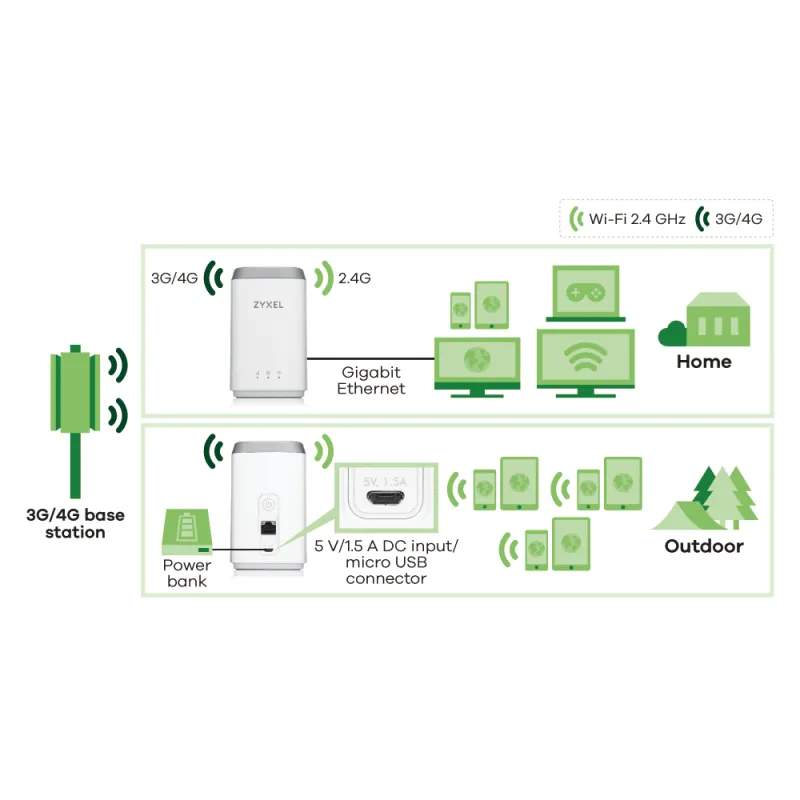

Zyxel LTE4506 เราเตอร์ใส่ซิม AC1200 Wireless Dual Band 4G LTE Router แบบใส่ Sim รองรับเ 4G LTE ทุกเครือข่าย กระจายสัญญาณ Wifi มาตรฐาน AC รองรับไฟ 5VDC USB จาก Powerbank สามารถพกพาได้

ประกัน Limited Lifetime (เงื่อนไขการรับประกัน)

WiFi AP Features

802.11 ac/n/a/g/b, 2.4 GHz & 5 GHz Simultaneous Dual-band (2.4 GHz: 2x2; 5 GHz: 2x2)
Auto Channel Select (ACS)
WiFi enabled device #: up to 32
Hidden SSID
Security modes: WPA/WPA2 PSK, & WPA/WPA2 mixed mode
Access control: STA blacklist/white list
Dual-SSID support
WPS: Pin and PBC, WPS2.0

System Features

Web UI/multiple language supported
SMS management
Quota management
APN/PIN management
Network selection
Data usage/statistic
DHCP server
NAT
Port forwarding
IP firewall
Proxy DNS
VPN pass-through
TR-069 management
IPV6/IPv4 dual stack

Operating System Supported

IE 8, IE 9, IE10, IE11, Edge
Firefox latest 2 version (38, 39)
Chrome latest 2 version (42, 43)
Safari 7, 8

LTE Air Interface

Standard compliant: 3GPP Release 10 Category 6
Supported frequency:
Band 1/3/7/8/20/28/40 – LTE TDD 2300 MHz LTE FDD 2600/2100/1800/900/800/700 MHz

Carrier aggregation support: B1+B8/B3+B20/B3+B7/B3+B8/B7+B20/ B7+B28/B40+B40/B3+B3/B7+B7/B3+B28

LTE antenna: 2 internal antennas
FDD LTE peak data rate:300 Mbps DL within 40 MHz bandwidth (CA)50 Mbps UL within 20 MHz bandwidth

TDD LTE peak data rate:224 Mbps DL within 40MHz bandwidth (CA)10 Mbps UL within 20 MHz bandwidth

UMTS/EDGE/GPRS/GSM Air Interface

Standard compliant: DC-HSDPA/HSPA+ compliant
Supported frequency:
HSPA+/UMTS 2100/900 MHz (band 1/8)EDGE/GPRS/GSM 1800/900 MHz (band 3/8)
DC-HSPA+ downlink data rate up to 42 Mbps
HSUPA uplink data rate up to 5.76 Mbps
UMTS data rate up to 384 kbps
EDGE data rate up to 236.8 kbps
GPRS data rate up to 85.6 kbps

Hardware Interface

DC input (5 V/1.5 A, Micro USB)
One UICC/USIM card slot
Reset button
WiFi on/off button
Power on/off button
One Gigabit Ethernet (RJ-45)
LED indicators:
Signal strengthInternet status
WiFi status

Dimensions

(WxDxH): 66.8 x 66.8 x 110.5 mm (2.63" x 2.63" x 4.35")

Weight

150 g (0.33 lb.)

Operating Environment

Temperature: 0°C to 40°C (32°F to 104°F)

Storage Environment

Temperature: -25°C to 70°C (-13°F to 158°F)

Compliance & Certifications
