แบรนด์: ZyXel
Zyxel NAP102 Datasheet
Zyxel NAP102 Quick Install Guide
Zyxel NAP Series User Guide
Zyxel NAP102 Product Specification |
|
Overview |

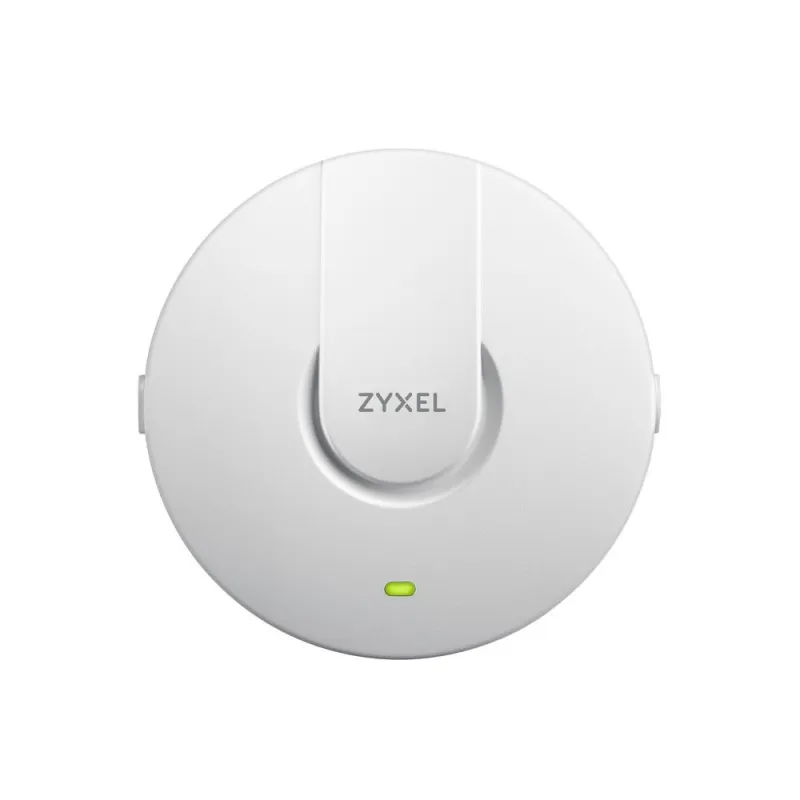

Zyxel NAP102 802.11ac Dual-radio Nebula Cloud Managed Access Point 2x2 SU-MIMO, Port Lan Gigabit, รองรับ Mode Standalone/Nebula Cloud รองรับ PoE |
|
Nebula Access Point: Self-configuration, zero-touch / Dynamic Channel Selection, Load Balancing & Smart Client Steering / Captive portal, RADIUS authentication, Social Login with Facebook Includes 3 Year Professional Pack |
รายละเอียด |
802.11ac Dual-radio Nebula Cloud Managed Access Point |
Frequency band |
2.4 GHz (IEEE 802.11 b/g/n) 5 GHz (IEEE 802.11 a/n/ac) |
ระบบเสาอากาศ |
Embedded Internal Antenna |
เสาอากาศ |
2.4 GHz 3 dBi; 5 GHz 4 dBi |
อัตราการรับ-ส่งข้อมูล |
802.11 a/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24,36, 48, and 54 Mbps |
Receive Sensitivity |
Min. Rx sensitivity up to to -99 dBm |
WLAN Maximum Throughput |
Up to 450 Mbps |
Fast roaming |
Pre-authentication, PMK caching and 802.11r/k/v. |
Smart mesh |
Yes |
Wireless Security |
WPA2-PSK |
Network |
VLANs |
QoS (PG) |
IEEE 802.3 IEEE 802.3u |
Number of 10/100/1000M LAN |
1 |
PoE Power Draw |
9W |
Input power |
12VDC, 1A |
Ethernet |
IEEE 802.3 |
PoE |
IEEE 802.3af |
WLAN |
802.11b: DBPSK, DQPSK, CCK |
คลื่นวิทยุ |
ETSI EN 300 328 V1.7.1: 11-2006 |
แม่เหล็กไฟฟ้า |
EN 301 489-1 V1.8.1: 11-2008 |
ความปลอดภัย |
EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 |
รายการ |
ขนาด (WxDxH)(mm/in.): |
บรรจุภัณฑ์ |
ขนาด (WxDxH)(mm/in.): |
การป้องกันสภาพอากาศ |
- |
การดำเนินงาน |
อุณหภูมิ : |
Storage |
อุณหภูมิ : |
