Nebula Access Point: Self-configuration, zero-touch / Dynamic Channel Selection, Load Balancing & Smart Client Steering / Captive portal, RADIUS authentication, Social Login with Facebook
Includes 3 Year Professional Pack
|
|
รายละเอียด
|

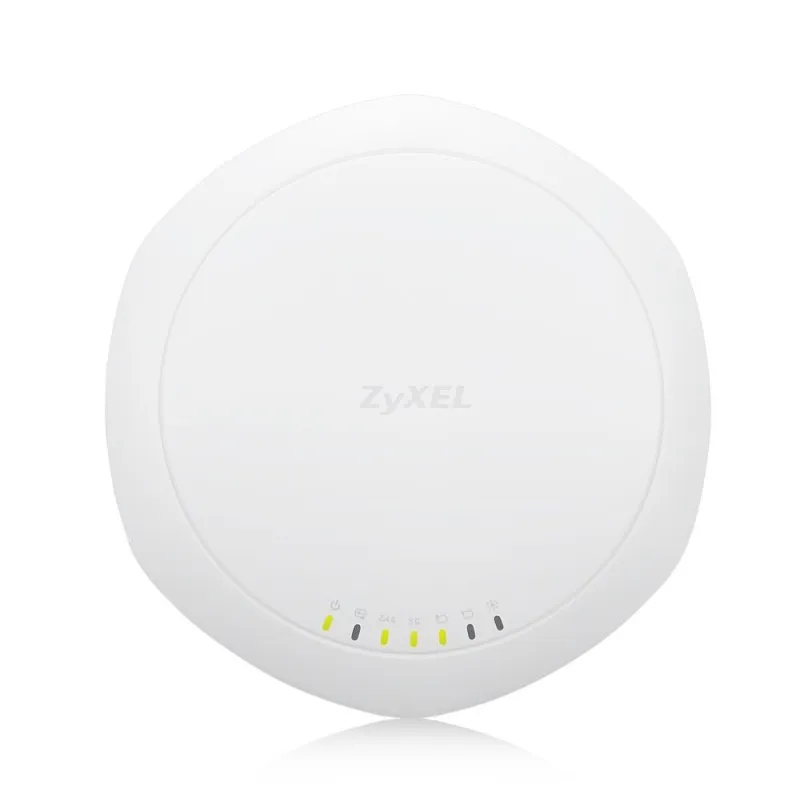

802.11ac Dual-radio Dual-optimized Antenna 3x3 Nebula Cloud Managed Access Point
|
|
Frequency band
|
2.4 GHz (IEEE 802.11 b/g/n)
USA (FCC): 2.412 to 2.462 GHz
Europe (ETSI): 2.412 to 2.472 GHz
Taiwan (TW): 2.412 to 2.462 GHz
5 GHz (IEEE 802.11 a/n/ac)
USA (FCC): 5.15 to 5.35 GHz; 5.725 to 5.850 GHz
Europe (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
Taiwan (TW): 5.15 to 5.35 GHz; 5.725 to 5.850 GHz
|
|
เสาอากาศ
|
Ceiling: 2.4 GHz 3 dBi; 5 GHz 4 dBi
Wall: 2.4 GHz 4 dBi; 5 GHz 5 dBi
|
|
อัตราการรับ-ส่งข้อมูล
|
802.11a/g: 1, 2, 5.5, 6, 9,11, 12, 18, 24, 36, 48, and 54 Mbps
802.11n: up to 450 Mbpsin MCS23 (40 MHz)
802.11ac: up to 1300Mbps in MCS9 (80 MHz)
|
|
Receive Sensitivity
|
Min. Rx sensitivity up to -102 dBm
|
|
Fast roaming
|
Pre-authentication, PMK caching and 802.11r/k/v.
|
|
Wireless Security
|
WPA2-PSK
WPA2-Enterprise
Multiple EAP types
IEEE802.1X
MAC filtering
Layer-2 isolation
RADIUS authentication
More encryption supported and captive portal
|
|

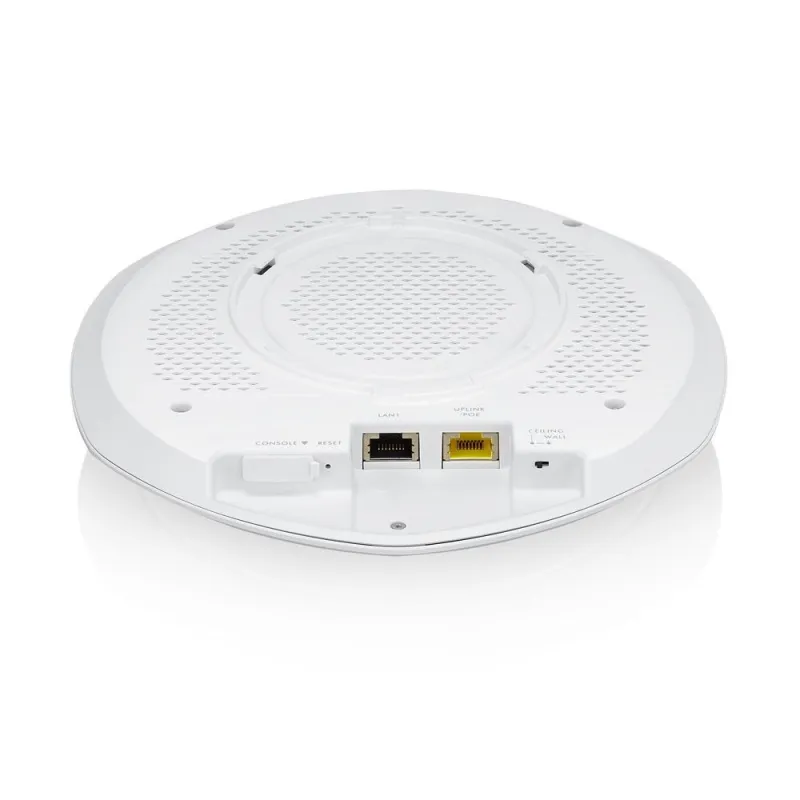

Number of 10/100/1000M LAN
|
2
|
|
PoE Power Draw
|
12.48W (802.3at PoE)*
Note: * Max. power draw is 12.48 W. In extreme cases, the inrush current is greater than 802.3af limit, thus 802.3at PoE is required.
|
|
Ethernet
|
IEEE 802.3
IEEE 802.3u
IEEE 802.11ab
IEEE 802.3au
IEEE 802.3az
IEEE 802.3at
|
|
WLAN
|
802.11b: DBPSK, DQPSK, CCK
802.11g: BPSK, QPSK, 16-QAM, 64-QAM
802.11a: BPSK, QPSK, 16-QAM, 64-QAM
802.11n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 64-QAM, 256-QAM
|
|
คลื่นวิทยุ
|
FCC Part 15C
FCC Part 15E
ETSI EN 300 328
EN 301 893
LP0002
|
|
แม่เหล็กไฟฟ้า
|
FCC Part 15B
EN 301 489-1
EN 301 489-17
EN55022
EN61000-3-2/-3
EN60601-1-2
BSMI CNS13438
|
|
ความปลอดภัย
|
EN 60950-1
IEC 60950-1
BSMI CNS14336-1
|
|
รายการ
|
ขนาด (WxDxH)(mm/in.):
203.9 x 191.7 x 34.7/8.03 x 7.55 x 1.37
น้ำหนัก (g/lb.): 445/0.98
|
|
บรรจุภัณฑ์
|
ขนาด (WxDxH)(mm/in.):
235 x 246 x 60/9.25 x 9.69 x 2.36
น้ำหนัก (g/lb.): 938/2.07
|
|
การดำเนินงาน
|
อุณหภูมิ :
0°C to 50°C/32°F to 122°F
ความชื้น: 10% to 90% (non-condensing)
|
|
Storage
|
อุณหภูมิ :
-40°C to 70°C/-40°F to 158°F
ความชื้น: 10% to 90% (non-condensing)
|
