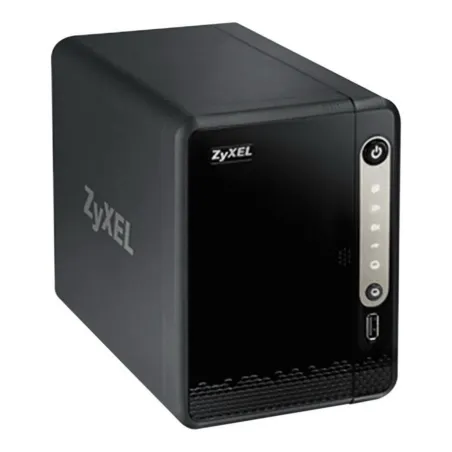

Zyxel NAS326 อุปกรณ์จัดเก็บข้อมูล NAS 2 Bay รองรับ HDD SATA II ความจุ 6TB x 2 ทำ File Sharing/ Media Server/ Bittorrent

Zyxel NAS326 Product Specification

Overview

Zyxel NAS326 อุปกรณ์จัดเก็บข้อมูลในระบบเครือข่าย (NAS - Network Attached Storage)  ขนาด 2 Bay รองรับ HDD SATA II ความจุสูงสุด 6TB x 2 (12TB)

2 Port USB 3.0 และ 1 Port USB 2.0 รองรับ , Port LAN ความเร็ว Gigabit ใช้สำหรับทำสำรองข้อมูลในระบบเครือข่าย File Sharing , Media Server หรือ Load Bittorrent

รองรับ HDD 3.5" SATA I/II จำนวน 2 ชุด ความจุดสูงสุด 12TB (4TB x 2) (อุปกรณ์ไม่รวม HDD)

สามารถโหลด BitTorrent ได้โดยไม่ต้องเปิดคอมพิวเตอร์ ประหยัดไฟฟ้า

Interface

2 Port USB 3.0, 1 Port USB 2.0

1 RJ-45 10/100/1000Mbps (Auto-MDI/Auto-MDI-X)

Networking

Network protocol

CIFS/SMB for Windows
NFS for Linux/Unix
AFP for Mac
DHCP client
PPPoE
Network Time Protocol (NTP)
iSCSI

Network applications

Media server
Twonky media server with DLNA 1.5 and UPnP AV
iTunes server
Logitech media server
Photo album server

Web service

WebDAV
FTP server
phpMyAdmin/MySQL/PHP
RSS client & server
Print server (CIFS)
Remote access support (DyDNS)

iOS and Android application

ZyXEL Drive, zCloud, ownCloud

Network application management

User & group management
Package management for setting up applications

Network security

Support HTTPS and FTPES (FTP over explicit TLS/SSL)
Encrypted NAS to NAS remote replication
Encrypted NAS to external disk archive backup

Data Management

Backup support

One-touch copy/sync button for external USB capable devices backup
Backup planner:
Instant/Scheduled backup
NAS to NAS synchronization/archive backup
- Rsync
NAS to external USB hard disk backup
Google Drive, Dropbox, Memopal,
ownCloud, SynBackupfree, Cyberduck and NetDrive support
Apple Time Machine support

Download/Upload support

Auto-download from FTP/HTTP/P2P download service (Torrent file supported)
Scheduled download
Auto-upload photos and videos to YouTube/ Flickr/ FTP server

File system support

Internal HDD: EXT4
External HDD: NTFS, EXT2, EXT3, EXT4, FAT32, HFS+ (read only), exFAT

System Management

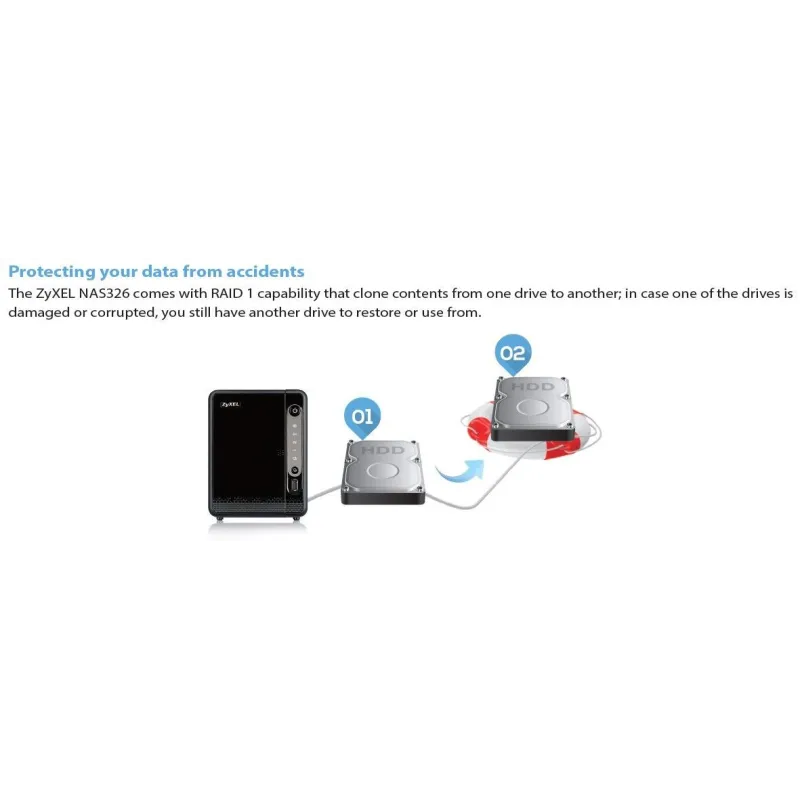

• JBOD, RAID 0/1
Online firmware upgrade
• Self-Monitoring Analysis and Reporting Technology (S.M.A.R.T.)

Power and Thermal Management

Power control

Internal disk hibernation support
Scheduled power on/off/reboot
Wake-on-LAN support
System automatically resume after power outage? APC USB UPS monitoring and auto shutdown

Thermal management

Smart fan speed control
High temperature alert/buzzer
Auto shutdown while high temperature

Minimum System Requirements

• OS for utility: Windows XP onward, Mac OS X 10.5 onward
Browser: IE 11+, Firefox 20+, Google Chrome 37+, Safari 5+

Application Package Center

myZyXELcloud service

myZyXELcloud agent

Cloud application

ownCloud (Cloud synchronization server)
Google Drive
Dropbox
Memopal

Download management

NZBGet (NZB file download management supported)
Transmission (Torrent file supported)
pyLoad (Download manager for many oneclick-hosting sites)

Additional

Gallery (The web-based application allows your NAS to host pictures)
WordPress (Blogging tool and content management system)
Tftp
NFS
Logitech media server (Stream audio system)
PHP-MySQL-phpMyAdmin (MySQL administration tool)

Hardware Specifications

• CPU: Marvell Armada 380 1.3 GHz
• Memory: DDR3 512 MB
• Two 2.5" or 3.5" SATA II hard disk interface supported up to 12 TB (6 TB x2)
• One Gigabit Ethernet RJ-45 connector
Two USB 3.0 ports
• One USB 2.0 port

Power consumption

 Access mode: 28 watt (full loading: Internal HDD x2, External HDD x3)
Hard disk spin-down mode: 5.5 watt

Power

Input: 100 - 240 V AC, 50/60 Hz

Output: 12 V DC, 5 A

Item dimensions (WxDxH)

207 x 164 x 123 mm (8.15" x 6.46" x 4.84")

Item weight

1,257 g (2.77 lb.)

Packing dimensions (WxDxH)

280 x 173 x 275 mm (11.02" x 6.81" x 10.82")

Packing weight

2,260 g (4.99 lb.)

Operating Environment

• Temperature: 0C to 40C (32F to 104F)
• Humidity: 10% to 95% (Non-condensing)

Storage Environment

• Temperature: -30C to 70C (-22F to 158F)
• Humidity: 10% to 95% (Non-condensing)

Package Contents

• Network storage device (Hard disks not included)
• Power supply and power cordEthernet cable
• FindMe note
• Quick start guide
• Warranty card
• Hardware bag
• Accessory pack
