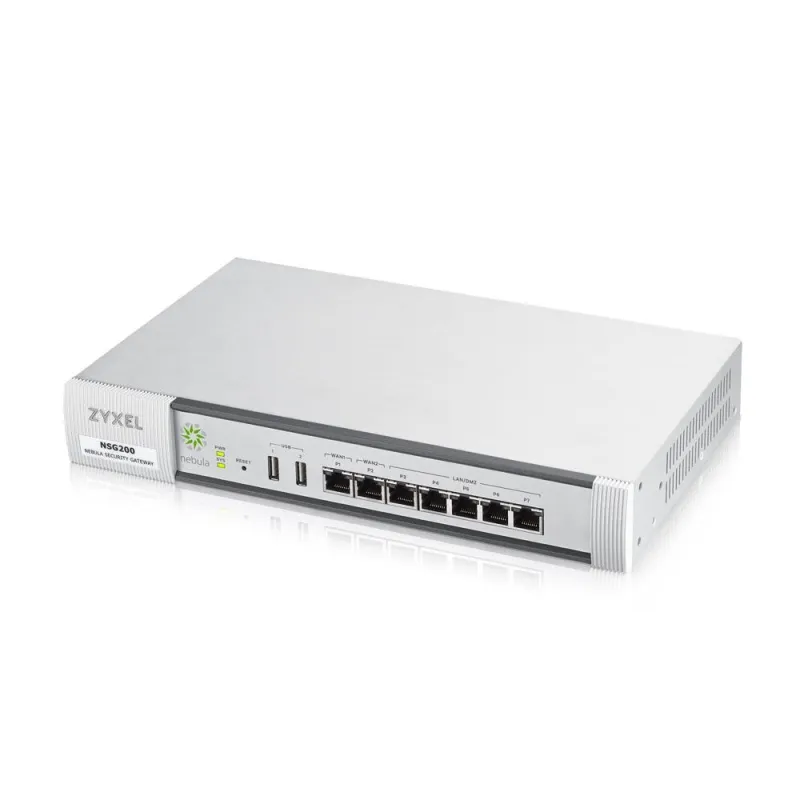

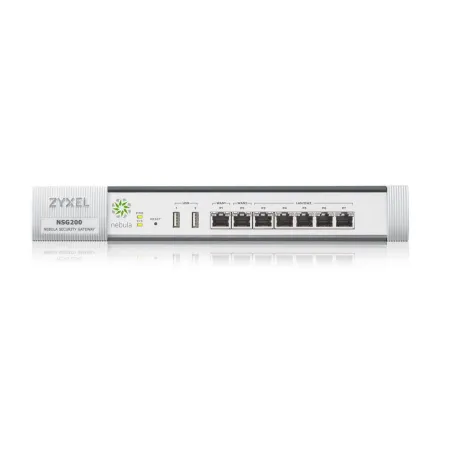

Zyxel NSG200 Product Specification
|
|
Overview
|
Zyxel NSG200 Nebula Security Gateway รองรับ Internet 2 Wan, Next-Gen Firewall, IPsecs VPN 200 Tunnels, IDP, Content Filtering , Anti-Virus
Firewall throughput 1.25Gbps
|
|
|
Includes 1 Year Security Pack and Professional Pack
|
|
Description
|
Nebula Cloud Managed Security Gateway
|
|
10/100/1000 Mbps RJ-45 ports
|
5 x LAN (GbE), 2 x WAN (GbE)
|
|
USB ports
|
2
|
|

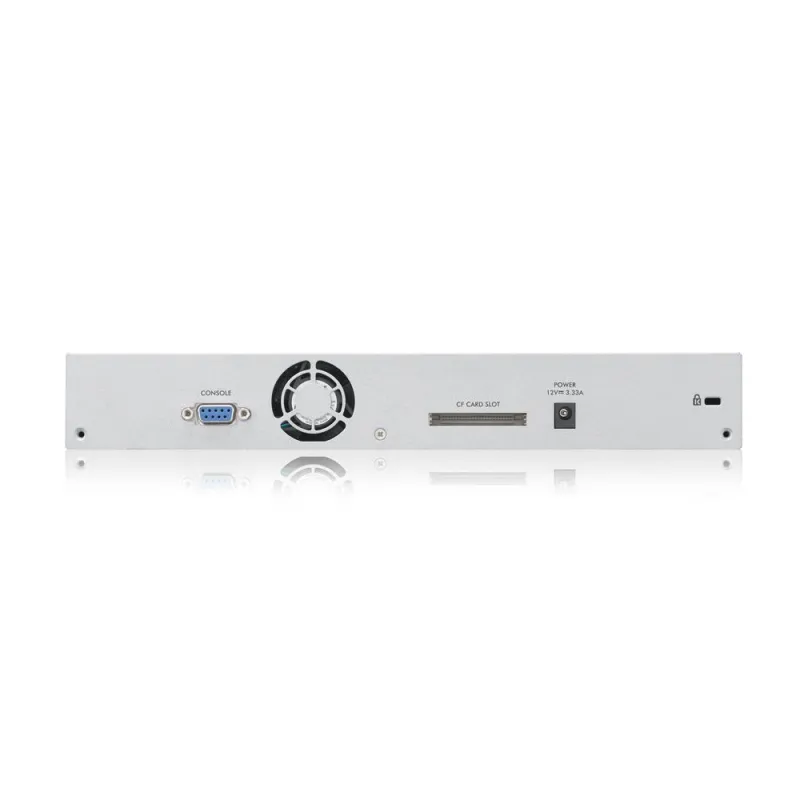

Console port
|
Yes (DB9)
|
|
Rack-mountable
|
Yes
|
|
Wall-mountable
|
-
|
|
Fanless
|
-
|
|
SPI firewall throughput (Mbps) *2
|
1,250
|
|
VPN throughput (Mbps)*3
|
500
|
|
IDP throughput (Mbps)*4
|
500
|
|
AV throughput (Mbps)*4
|
300
|
|
SP throughput (Mbps, AV and IDP)*4
|
300
|
|
Unlimited users
|
Yes
|
|
Max. TCP concurrent sessions*5
|
80,000
|
|
Max. TCP session rate
|
8,000
|
|
Max. concurrent IPsec VPN tunnels*6
|
200
|
|
VLAN interface
|
16
|
|
Firewall
|
Yes
|
|
Virtual private network (VPN)
|
Yes (IPSec, L2TP over IPSec)
|
|
Application Patrol
|
Yes
|
|
Intrusion Detection and Prevention (IDP)
|
Yes
|
|
Bandwidth Management
|
Yes
|
|
Content Filtering
|
Yes
|
|
Anti-Virus
|
Yes
|
|
WAN Failover
|
Yes
|
|
Power input
|
12 V DC, 3.33 A max.
|
|
Max. power consumption (watt)
|
37
|
|
Heat dissipation (BTU/hr)
|
199.61
|
|
Item
|
Dimensions (WxDxH)(mm/in.):
300 x 178 x 44/11.81 x 7.0 x 1.73
Weight (kg/lb.): 2.0/4.4
|
|
Packing
|
Dimensions (WxDxH)(mm/in.):
351 x 243 x 149/13.82 x 9.57 x 5.87
Weight (kg/lb.): 3.264/7.20
|
|
Included accessories
|
Power cord
Power adapter
Rack mounting kit
|
|
MTBF (hr)
|
787,109.3
|
|
EMC
|
FCC Part 15 (Class B)
CE EMC(Class B)
C-Tick (Class B)
BSMI
|
|
Operating
|
Temperature :
0°C to 40°C/32°F to 104°F
Humidity: 10% to 90% (non-condensing)
|
|
Storage
|
Temperature :
-30°C to 70°C/-22°F to 158°F
Humidity: 10% to 90% (non-condensing)
|
|
Safety
|
LVD (EN60950-1)
BSMI
|
|
Features
|
|
Firewall
|
Stateful packet inspection
VLAN
PPPoE
Static route
|
|
IPSec VPN
|

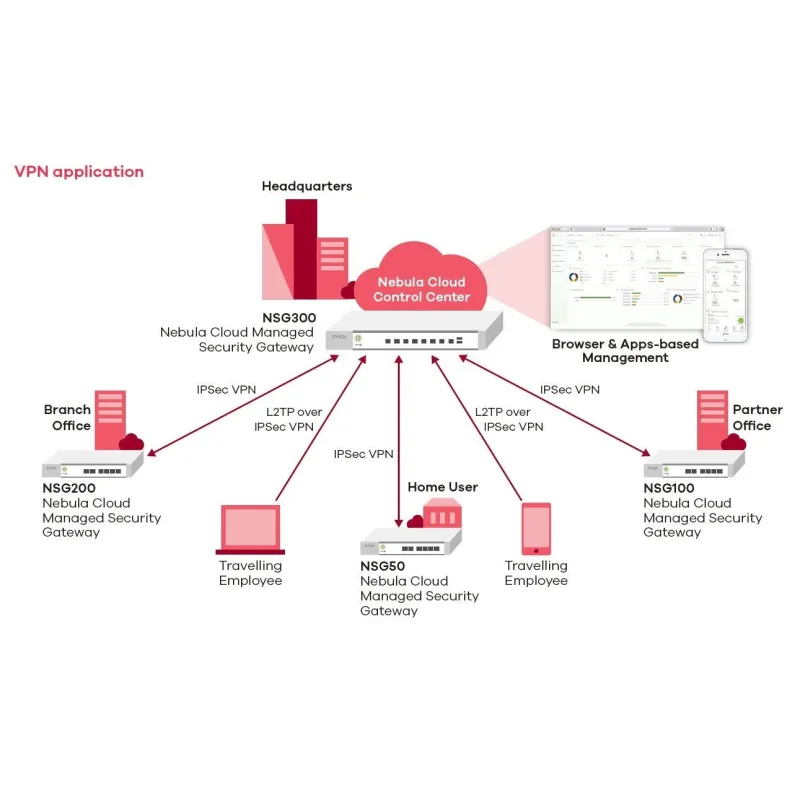

Topology: Site-to-site, hubs-andspoke, server-and-client
Encryption: AES (256-bit), 3DES and DES
Authentication: SHA-2 (512-bit), SHA-1 and MD5
Perfect forward secrecy (DH groups) support 1, 2, 5, 14
IPSec NAT traversal
Dead peer detection and relay detection
VPN auto-reconnection
L2TP over IPSec
|
|
Intrusion Detection and Prevention (IDP)*
|
Signature-based
Behavior-based scanning
Automatic signature updates
|
|
Application Patrol*
|
Granular control over the most important applications
Identifies and controls applications and behaviors
Top application usage record
|
|
Content Filtering*
|
Social media filtering
Malicious Website filtering
URL blocking
Blacklist and whitelist support
Dynamic, cloud-based URL filtering database
Unlimited user license support
Customizable warning messages and redirection URL
HTTPs Domain filtering
|
|
Anti-Virus*
|
Supports Anti-Virus signatures
Identifies and blocks over 650,000 viruses
Stream-based Anti-Virus engine
HTTP, FTP, SMTP, POP3 and IMAP4 protocol support
Automatic signature updates
No file size limitation
|
|
Streamlined Policy
Management
|
Unified policy management interface
Supported exclusive security features: IDP, Application Patrol, firewall (ACL)
Policy criteria: Source and destination IP address, destination port, time
|
|
Networking
|
Routing mode
Ethernet and PPPoE
NAT
VLAN tagging (802.1Q)
DHCP client/server/relay
Dynamic DNS support
Maximum bandwidth
Bandwidth limit per client IP
|
|
Authentication
|
Microsoft Windows Active Directory integration
External RADIUS user database
Nebula Cloud (Nebula Control Center) authentication
|
|
Captive Portal
|
Web-based authentication
Forced user authentication (transparent authentication)
Sign-on or click-to-continue authentication
Multiple instances of captive portal
Customizable portal templates Internal or external captive portal redirect
Walled garden support
|
|
System Management
|

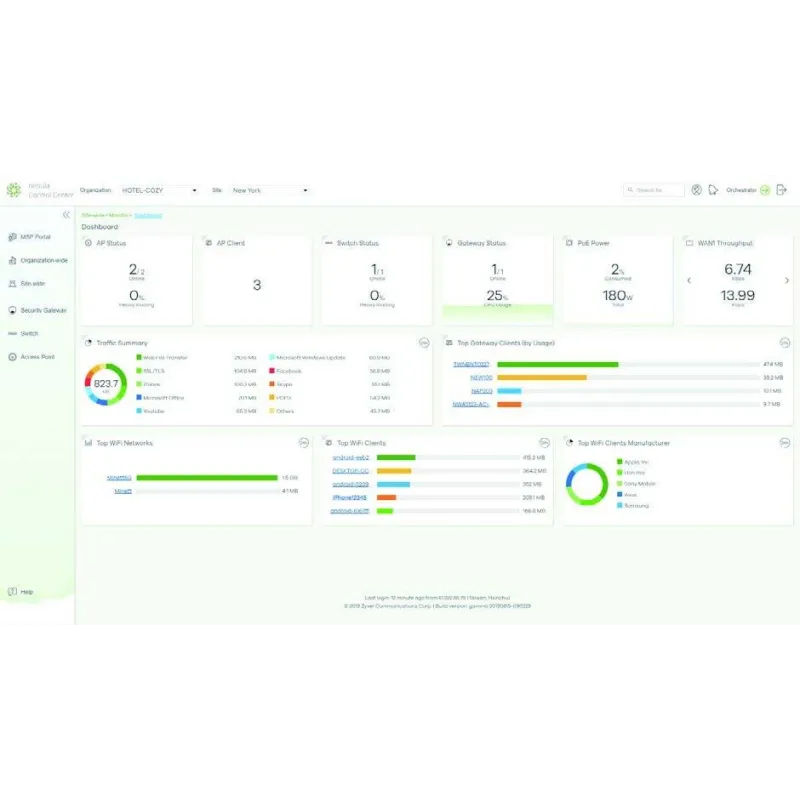

Cloud managed
Role-based administration
SNMP v2c (MIB-II)
System configuration rollback
Cloud firmware upgrade
|
|
Logging and Monitoring
|
Comprehensive local logging
Syslog (up to 2 servers)

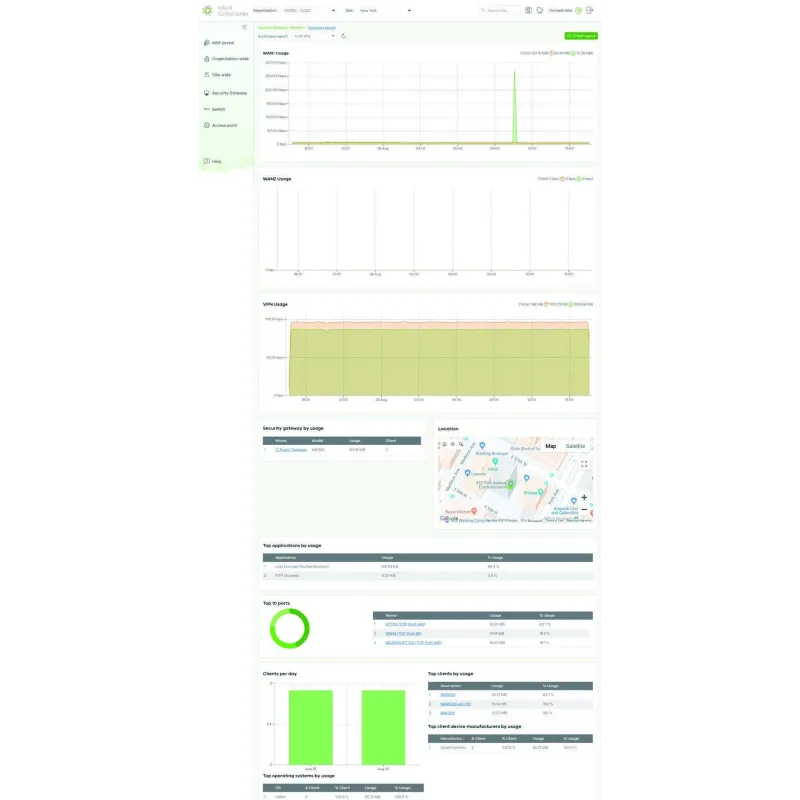

Real-time traffic monitoring
Nebula Security Service (NSS) analysis report*
|
|
|
* IDP and Application Patrol, Content Filtering and Anti-Virus services in NSS-SP (Nebula Security Service-Security Pack) license will be co-terminated separately from NCC Pro Pack (Nebula Control Center Professional Pack) service license.
|
|
รับประกัน
|
รับประกันสินค้าตลอดอายุการใช้งาน (Limited Lifetime Warranty) ภายใต้เงื่อนไขของไซเซล
|
|
|
|
