Zyxel NSG300 Product Specification |
Overview | Zyxel NSG300 Nebula Security Gateway รองรับ Internet 2 Wan, Next-Gen Firewall, IPsecs VPN 300 Tunnels, IDP, Content Filtering , Anti-Virus Firewall throughput 4Gbps |
| Includes 1 Year Security Pack and Professional Pack |
Description | Nebula Cloud Managed Security Gateway |
10/100/1000 Mbps RJ-45 ports | 6 x Individual LAN (GbE), 2 x WAN (GbE) |
USB ports | 2 |
Console port | Yes (DB9) |
Rack-mountable | Yes |
Wall-mountable | - |
Fanless | - |
SPI firewall throughput (Mbps) *2 | 4,000 |
VPN throughput (Mbps)*3 | 750 |
IDP throughput (Mbps)*4 | 950 |
AV throughput (Mbps)*4 | 450 |
SP throughput (Mbps, AV and IDP)*4 | 450 |
Unlimited users | Yes |
Max. TCP concurrent sessions*5 | 500,000 |
Max. TCP session rate | 10,000 |
Max. concurrent IPsec VPN tunnels*6 | 300 |
VLAN interface | 16 |
Firewall | Yes |
Virtual private network (VPN) | Yes (IPSec, L2TP over IPSec) |
Application Patrol | Yes |
Intrusion Detection and Prevention (IDP) | Yes |
Bandwidth Management | Yes |
Content Filtering | Yes |
Anti-Virus | Yes |
WAN Failover | Yes |
Power input | 100 - 240V AC, 50/60 Hz, 1.3 A max. |
Max. power consumption (watt) | 58.5 |
Heat dissipation (BTU/hr) | 199.61 |
Item | Dimensions (WxDxH)(mm/in.):
430 x 250 x 44/16.93 x 9.84 x 1.73
Weight (kg/lb.): 3.3/7.28 |
Packing | Dimensions (WxDxH)(mm/in.):
519 x 392 x 163/20.43 x 15.43 x 6.42
Weight (kg/lb.): 4.8/10.58 |
Included accessories | Power cord
Rack mounting kit |
MTBF (hr) | 560,811.50 |
EMC | FCC Part 15 (Class A)
CE EMC(Class A)
C-Tick (Class A)
BSMI |
Operating | Temperature :
0°C to 40°C/32°F to 104°F
Humidity: 10% to 90% (non-condensing) |
Storage | Temperature :
-30°C to 70°C/-22°F to 158°F
Humidity: 10% to 90% (non-condensing) |
Safety | LVD (EN60950-1)
BSMI |
Features |
Firewall | Stateful packet inspection
VLAN
PPPoE
Static route |

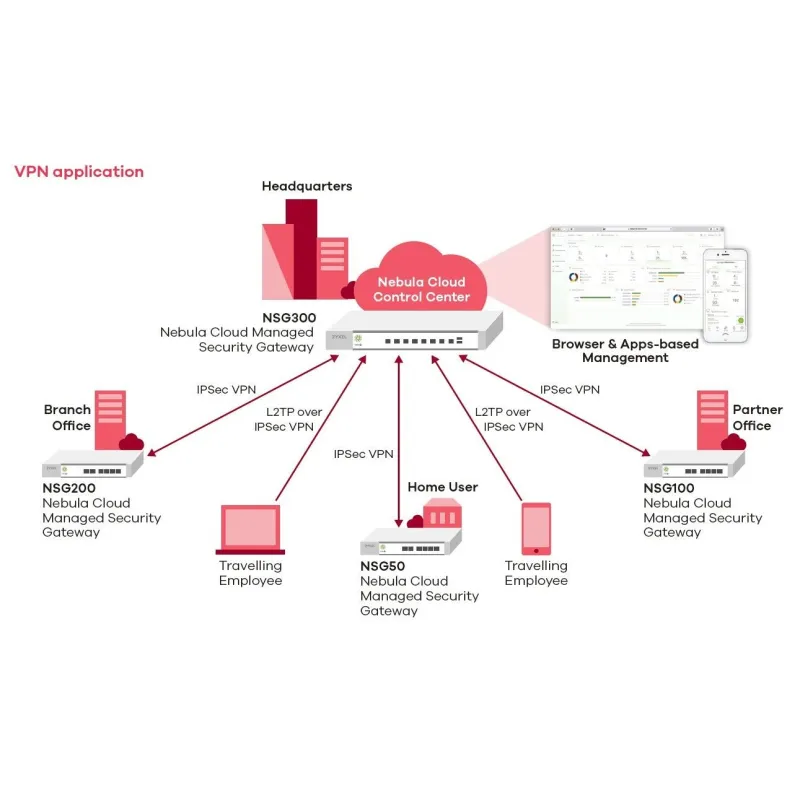

IPSec VPN | Topology: Site-to-site, hubs-andspoke, server-and-client
Encryption: AES (256-bit), 3DES and DES
Authentication: SHA-2 (512-bit), SHA-1 and MD5
Perfect forward secrecy (DH groups) support 1, 2, 5, 14
IPSec NAT traversal
Dead peer detection and relay detection
VPN auto-reconnection
L2TP over IPSec |
Intrusion Detection and Prevention (IDP)* | Signature-based
Behavior-based scanning
Automatic signature updates |
Application Patrol* | Granular control over the most important applications
Identifies and controls applications and behaviors
Top application usage record |
Content Filtering* | Social media filtering
Malicious Website filtering
URL blocking
Blacklist and whitelist support
Dynamic, cloud-based URL filtering database
Unlimited user license support
Customizable warning messages and redirection URL
HTTPs Domain filtering |
Anti-Virus* | Supports Anti-Virus signatures
Identifies and blocks over 650,000 viruses
Stream-based Anti-Virus engine
HTTP, FTP, SMTP, POP3 and IMAP4 protocol support
Automatic signature updates
No file size limitation |
Streamlined Policy Management | Unified policy management interface
Supported exclusive security features: IDP, Application Patrol, firewall (ACL)
Policy criteria: Source and destination IP address, destination port, time |
Networking | Routing mode
Ethernet and PPPoE
NAT
VLAN tagging (802.1Q)
DHCP client/server/relay
Dynamic DNS support
Maximum bandwidth
Bandwidth limit per client IP |
Authentication | Microsoft Windows Active Directory integration
External RADIUS user database
Nebula Cloud (Nebula Control Center) authentication |
Captive Portal | Web-based authentication
Forced user authentication (transparent authentication)
Sign-on or click-to-continue authentication
Multiple instances of captive portal
Customizable portal templates Internal or external captive portal redirect
Walled garden support |
System Management | Cloud managed
Role-based administration
SNMP v2c (MIB-II)
System configuration rollback
Cloud firmware upgrade |
Logging and Monitoring | Comprehensive local logging
Syslog (up to 2 servers)
Real-time traffic monitoring
Nebula Security Service (NSS) analysis report* |
| * IDP and Application Patrol, Content Filtering and Anti-Virus services in NSS-SP (Nebula Security Service-Security Pack) license will be co-terminated separately from NCC Pro Pack (Nebula Control Center Professional Pack) service license. |
รับประกัน | รับประกันสินค้าตลอดอายุการใช้งาน (Limited Lifetime Warranty) ภายใต้เงื่อนไขของไซเซล |
| |
