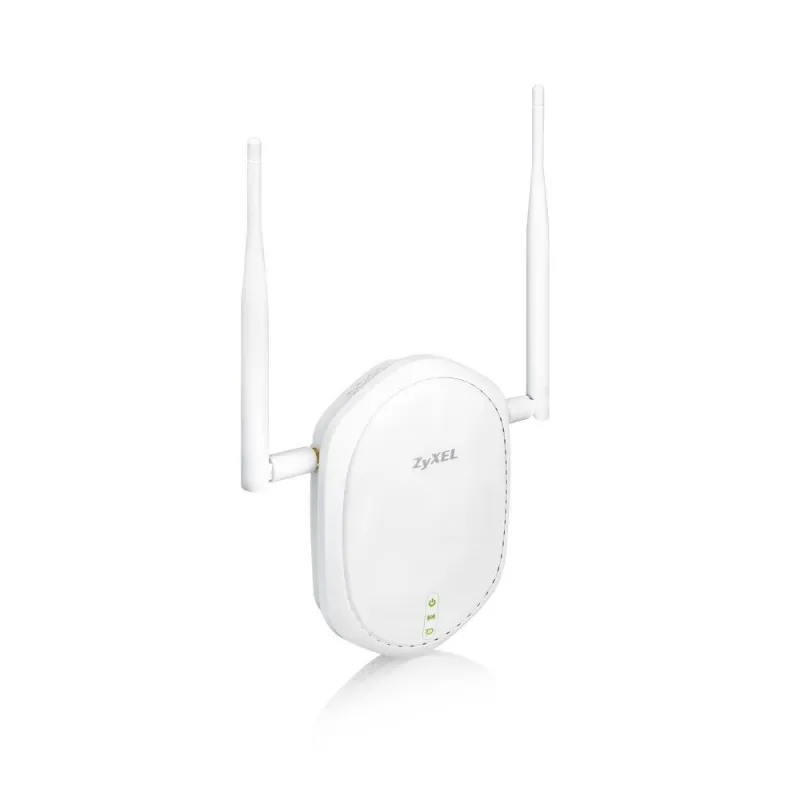

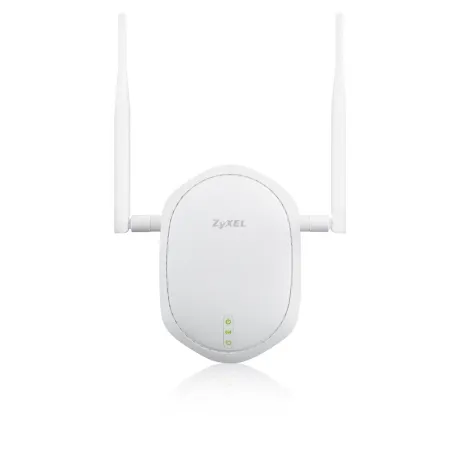

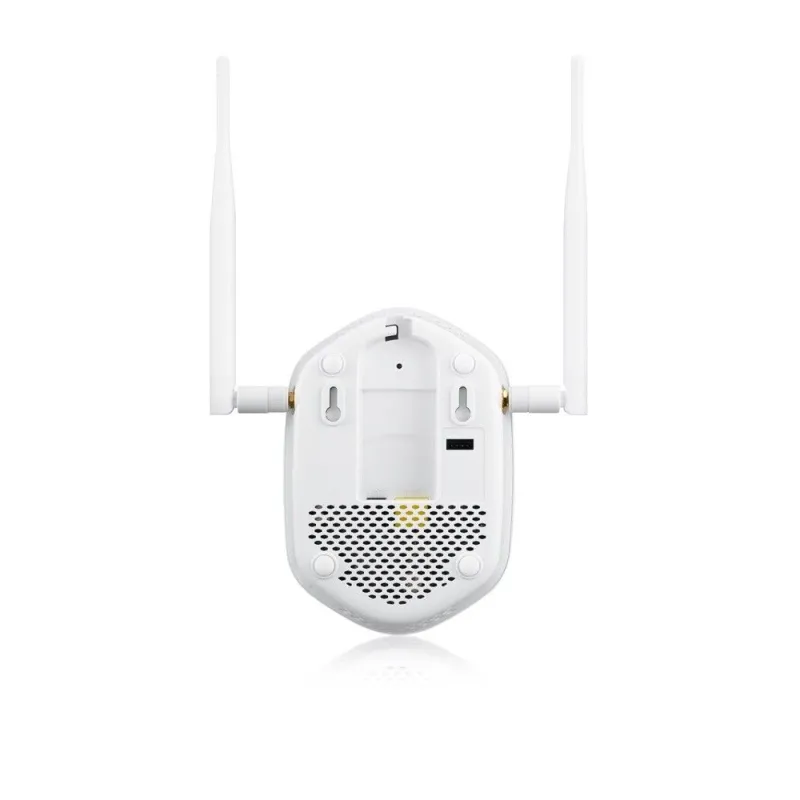

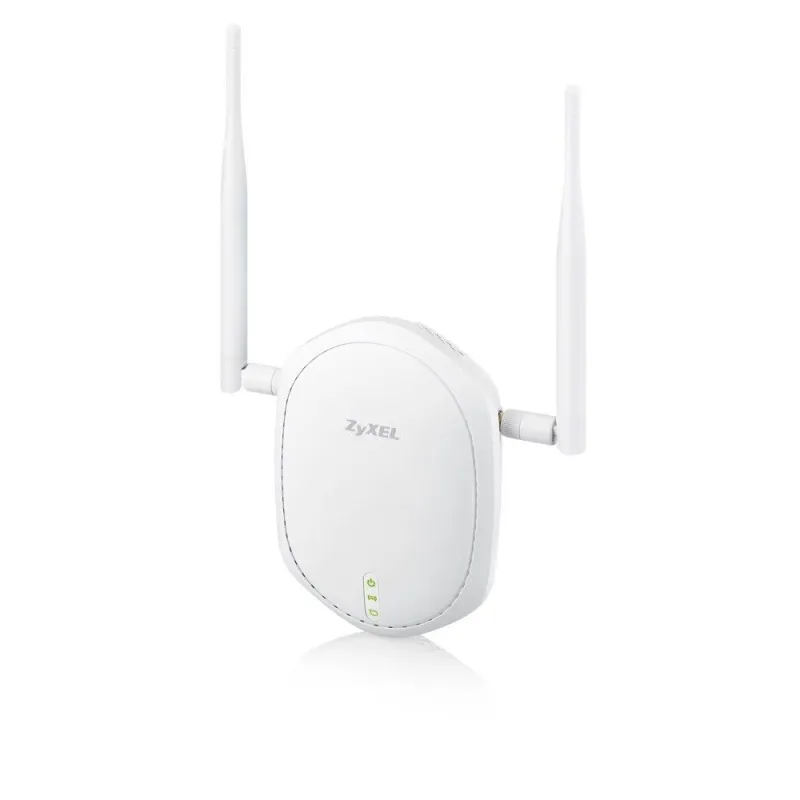

Zyxel NWA1100-NH Long Range High Power Wireless Access Point 802.11n 300Mbps

Zyxel NWA1100-NH Product Specification

Overview

Zyxel NWA1100-NH Wireless Access Point Long Range High Power N300 Port Lan Gigabit, Standalone Wireless AP รองรับ PoE

Product name

802.11n Long Range PoE Access Point

Wireless frequency

2.4 GHz

Radio

1

Number of antenna

2T2R MIMO

Antenna gain

5 dBi

Frequency band

2.4 GHz (IEEE 802.11 b/g/n)

802.11n premium features

2x2 multiple-input multiple-output (MIMO) with two spatial streams
Maximal Ratio Combining (MRC)
20- and 40-MHz channels
PHY data rates up to 300 Mbps
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
Cyclic Delay diversity (CSD) support
Maximum Likelihood Demodulation (MLD) support
Low Density Parity Check (LDPC) support

Typical transmit output power(Conducted)

28 dBm, 2 antennas

18 dBm, 2 antennas

Received sensitivity

2.4 GHz

Number of 10/100/1000M LAN

1

PoE

Yes

PoE power draw

6 W

WLAN maximum net throughput

Up to 110 Mbps

WMM (Wi-Fi certified)

Yes

WEP

Yes

WPA/WPA2-PSK

Yes

WPA/WPA2-Enterprise

Yes

EAP types

PEAP, EAP-TLS, -TTLS, -SIM, -FAST, -AKA, -MD5 and -GTC

Number of multiple SSID

8

IEEE 802.1x

Yes

MAC filtering

Yes

Layer-2 isolation

Yes

WLAN access control list

Yes

RADIUS authentication

Yes

IPv6 support

Yes

VLANs

Yes

DHCP client

Yes

ZAC

Batch AP configuration
Batch AP firmware upgrade
Batch AP profile backup

ZON Utility

Standalone AP mode

Yes

CLI

Yes

SNMP

v1, v2c, v3

Power supply

Input: AC 100 - 240 V -50/60 Hz 0.3 A; Output: DC +12 V 1 A

MTBF (hr)

1,018,459.6

Ethernet

IEEE 802.3, IEEE 802.3u, IEEE 802.3az, IEEE 802.3af

PoE

IEEE 802.3af

WLAN

802.11b: DBPSK, DQPSK, CCK
802.11g: BPSK, QPSK, 16-QAM, 64-QAM
802.11n: BPSK, QPSK, 16-QAM, 64-QAM

Radio

FCC Part 15C
ETSI EN 300 328, EN60601-1-2
DGT LP00

EMC

FCC Part 15B
EN 301 489-1, EN 301 489-17, EN 55022,
EN 55024, EN 61000-3-2/-3/EN60601-1-2
BSMI CNS13438

Safety

EN 60950-1
IEC 60950-1
BSMI CNS14336-1

Item
Dimensions (WxDxH)(mm/in.)
Weight (g)

153 x 110 x 38/6.02 x 4.33 x 1.5

240/0.529

Packing
Dimensions (WxDxH)(mm/in.)
Weight (g/lb.)

285 x 210 x 72/11.22 x 8.26 x 2.83

602/1.327

Included accessories

Power adapter
Mounting screws

Operating environment
Temperature
Humidity

0°C to 60°C/32°F to 140°F

10% to 95% (non-condensing)

Storage environment
Temperature
Humidity

30°C to 70°C/-22°F to 158°F

10% to 95%
