Zyxel NWA1123-AC PRO Wireless Access Point AC1750 3T3R MIMO

Wireless frequency

2.4 GHz & 5 GHz

Radio

2

Frequency band

2.4 GHz (802.11 b/g/n)
USA (FCC): 2.412 to 2.462 GHz
Europe (ETSI): 2.412 to 2.472 GHz

5 GHz (802.11 a/n/ac)
USA (FCC): 5.15 to 5.25 GHz; 5.725 to 5.850 GHz
European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz

802.11 premium features

3x3 Multiple-Input Multiple-Output (MIMO) with three spatial streams
Maximal Ratio Combining (MRC)
20-, 40- and 80-MHz channels
PHY data rates total up to 450 Mbps (11n) + 1.3 Gbps (11ac)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
Cyclic Delay diversity (CSD) support
Maximum Likelihood Demodulation (MLD) support
Low Density Parity Check (LDPC) support

Typical transmit output power (dBm) ^*1

US (FCC) 2.4 GHz : 27
US (FCC) 5 GHz : 27
EU (ETSI) 2.4 GHz : 18
EU (ETSI) 5 GHz : 24

Number of antenna

3T3R MIMO

Antenna gain

2.4 GHz :
Ceiling: 3 dBi
Wall: 4 dBi
5 GHz :
Ceiling: 4 dBi
Wall: 5 dBi

Support data rate

802.11a/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbp
802.11n: up to 450 Mbps in MCS15 (40 MHz)
802.11ac: up to 1300 Mbps in MCS9 (80 MHz)

Receive sensitivity

Min. Rx sensitivity to -102 dBm

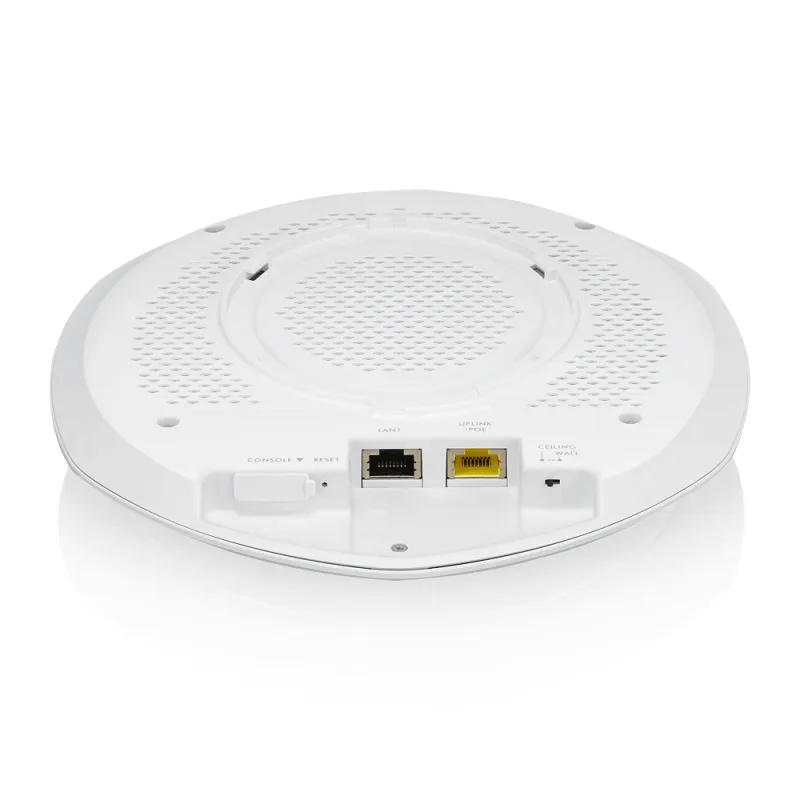

Number of 10/100/1000M LAN

2

PoE

Yes

PoE power draw

12.48 W (802.3at PoE)^*2

WEP

Yes

WPA/WPA2-PSK

Yes

WPA/WPA2-Enterprise

Yes

EAP type

EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-FAST, EAP-AKA and EAP-SIM

WMM

WiFi compliant

IEEE 802.1X

Yes

Number of multiple SSID

16

MAC filtering

Yes

L2 Isolation

Yes, multiple profile

RADIUS authentication

Yes

IPv6 support

Yes

VLANs

Yes

DHCP client

Yes

ZON Utility

• Discovery of Zyxel switches, APs and gateways
• Centralized and batch configurations

  • IP configuration
  • IP renew
  • Device reboot
  • Device locating
  • Web GUI access
  • Firmware upgrade
  • Password configuration
  • One-click quick association with Zyxel AP Configurator (ZAC)

Zyxel AP Configurator^*2

Batch AP configuration

Batch AP firmware upgrade

Batch AP profile backup

Standalone AP mode

Yes

CLI

Yes, SSH

SNMP

Yes

Plenum rating

Yes

Power supply

802.3at PoE only (No DC jack) (ไม่มี POE ในชุดอุปกรณ์)

MTBF (hr)

1,005,235

Ethernet

IEEE 802.3
IEEE 802.3u
IEEE 802.11ab
IEEE 802.3au
IEEE 802.3az
IEEE 802.3at

WLAN

802.11b: DBPSK, DQPSK, CCK
802.11g: BPSK, QPSK, 16-QAM, 64-QAM
802.11a: BPSK, QPSK, 16-QAM, 64-QAM
802.11n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 64-QAM, 256-QAM

Radio

FCC Part 15C
FCC Part 15E
ETSI EN 300 328
EN 301 893
LP0002

EMC

FCC Part 15B
EN 301 489-1
EN 301 489-17
EN55032
EN55024
EN61000-3-2/-3
BSMI CNS13438

Safety

EN 60950-1
IEC 60950-1
BSMI CNS14336-1

Item

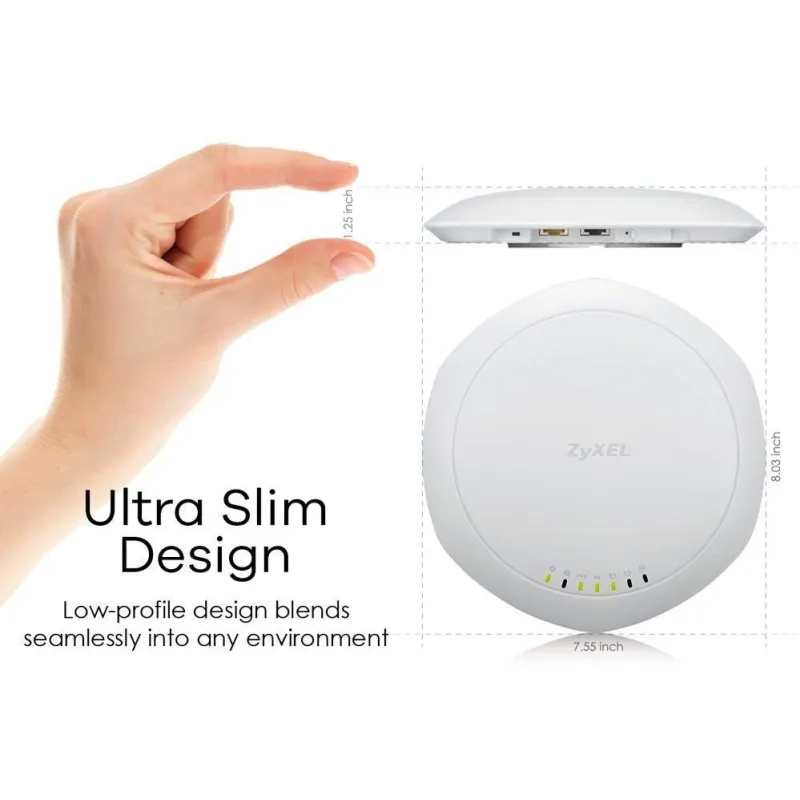

Dimensions (WxDxH)(mm/in.)
203.9 x 191.7 x 34.7/8.03 x 7.55 x 1.37
Weight (g/lb.)
445/0.98

Packing

Dimensions (WxDxH)(mm/in.)
240 x 235 x 100/9.45 x 9.25 x 3.94
Weight (g/lb.)
1210/2.67

Included accessories

PoE Injector and Ethernet 45 cable (optional)
Wall/Ceiling-mount plate

Operating

Temperature
0°C to 50°C/32°F to 122°F
Humidity
10% to 90% (non-condensing)

Storage

Temperature
-40°C to 70°C/-40°F to 158°F
Humidity
10% to 90%
