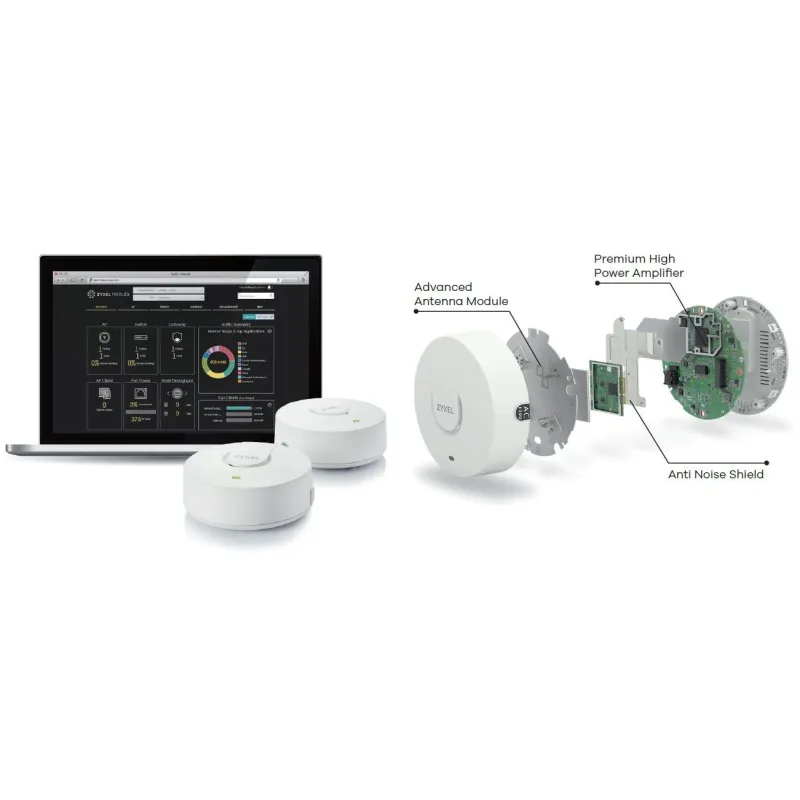

Zyxel NWA1123-ACv2 Wireless Access Point AC1200 2T2R MIMO

ความถี่ไร้สาย

2.4 GHz & 5 GHz

วิทยุ

2

คลื่นความถี่

2.4 GHz
2.4 GHz (IEEE802.11 b/g/n)
USA (FCC): 2.412 to 2.462 GHz
Europe (ETSI): 2.412 to 2.472 GHz

5 GHz
5 GHz (IEEE 802.11 a/n/ac)
USA (FCC): 5.15 to 5.35 GHz; 5.725 to 5.850 GHz
Europe (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz

802.11 premium features

2x2 multiple-input multiple-output (MIMO) with two spatial streams
Maximal ratio combining (MRC)
20-, 40- and 80-MHz channels
PHY data rates total up to 300 Mbps (11n) + 866 Mbps (11ac)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
Cyclic Delay diversity (CSD) support
Maximum Likelihood Demodulation (MLD) support
Low Density Parity Check (LDPC) support

Typical transmit output power (dBm) ^*1

US (FCC) 2.4 GHz : 23
US (FCC) 5 GHz : 26
EU (ETSI) 2.4 GHz : 20
EU (ETSI) 5 GHz : 26

จำนวนของเสาอากาศ

2T2R MIMO

ได้รับเสาอากาศ

2.4 GHz : 3 dBi
5 GHz : 4 dBi

อัตราการส่งข้อมูล

802.11a/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
802.11n: up to 300 Mbps in MCS15 (40MHz; GI=400ns)
802.11ac:up to 866 Mbps in MCS9 (80MHz; 2 spatial Streams; GI=400ns)

ได้รับความไว

2.4 GHz :
802.11b/g, min. up to -99 dBm
802.11n/20 MHz, min. -93 dBm
802.11n/40 MHz, min. up to -88 dBm

5 GHz :
802.11a, min. up to -95 dBm
802.11ac/n/20 MHz, min. -94 dBm
802.11ac/n/40 MHz, min. -92 dBm)
802.11ac/80 MHz, min. -89 dBm)

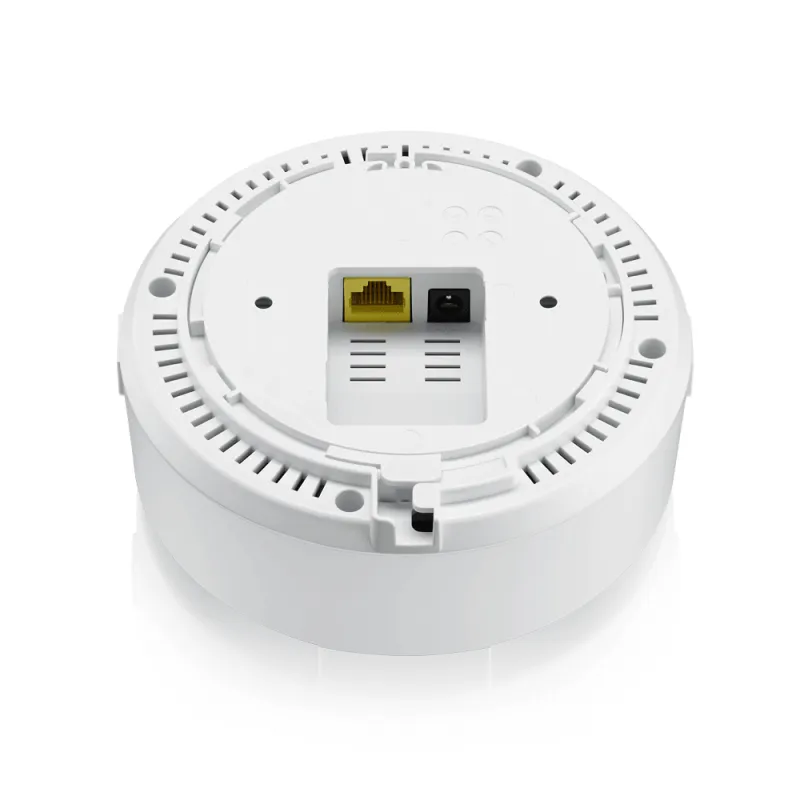

Number of 10/100/1000M LAN

1

PoE

Yes

PoE power draw

9 W

WEP

Yes

WPA/WPA2-PSK

Yes

WPA/WPA2-Enterprise

Yes

EAP type

EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-FAST, EAP-AKA and EAP-SIM

WMM

WiFi compliant

IEEE 802.1X

Yes

Number of multiple SSID

16

MAC filtering

Yes

L2 Isolation

Yes, multiple profile

RADIUS authentication

Yes

IPv6 support

Yes

VLANs

Yes

DHCP client

Yes

ZON Utility

Discovery of Zyxel switches, APs and gateways
Centralized and batch configurations
IP configuration
IP renew
Device reboot
Device locating
Web GUI access
Firmware upgrade
Password configuration
One-click quick association with Zyxel AP Configurator (ZAC)

Zyxel AP Configurator^*2

Batch AP configuration
Batch AP firmware upgrade
Batch AP profile backup

Standalone AP mode

Yes

CLI

Yes, SSH

SNMP

Yes

Plenum rating

Yes

Power supply

Input: AC 100 - 240 V - 50/60 Hz 0.3 A;
Output: DC +12 V 1 A

MTBF (hr)

1,241,824

Ethernet

IEEE 802.3
IEEE 802.3u
IEEE 802.11ac
IEEE 802.3az
IEEE 802.3af

WLAN

802.11b: DBPSK, DQPSK, CCK
802.11g: BPSK, QPSK, 16-QAM, 64-QAM
802.11a: BPSK, QPSK, 16-QAM, 64-QAM
802.11n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 64-QAM, 256-QAM

คลื่นวิทยุ

FCC Part 15C
FCC Part 15E
ETSI EN 300 328
EN 301 893
LP0002
EN 60601-1-2

แม่เหล็กไฟฟ้า

FCC Part 15B
EN 301 489-1
EN 301 489-17
EN55032
EN55024
EN61000-3-2/-3
BSMI CNS13438

ความปลอดภัย

EN 60950-1
IEC 60950-1
BSMI CNS14336-1

รายการ

ขนาด (WxDxH)(mm/in.)
130 x 130 x 54.7/5.12 x 5.12 x 2.17
น้ำหนัก (g/lb.)
300/0.67

บรรจุภัณฑ์

ขนาด (WxDxH)(mm/in.)
278 x 209 x 72/10.94 x 8.23 x 2.83
น้ำหนัก (g/lb.)
700/1.54

Included accessories

Power adapter
Wall/Ceiling-mount plate

การดำเนินงาน

อุณหภูมิ
0°C to 50°C/32°F to 122°F
ความชื้น
10% to 90% (non-condensing)

Storage

อุณหภูมิ
-30°C to 70°C/-22°F to 158°F
ความชื้น
10% to 90%
