Zyxel NWA1302-AC Wall-Plate Access Point AC1166 2x2 SU-MIMO

Standard

IEEE802.11 ac/n/g/b/a

MIMO

SU-MIMO

Peak speed

2.4GHz: 300Mbps
5GHz: 866Mbps

Frequency band

2.4 GHz (IEEE 802.11 b/g/n)
USA (FCC): 2.412 to 2.462 GHz
Europe (ETSI): 2.412 to 2.472 GHz

5 GHz (IEEE 802.11 a/n/ac)
USA (FCC): 5.15 to 5.35 GHz; 5.725 to 5.850 GHz
Europe (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz

Bandwidth

20-, 40- and 80-MHz

Conducted typical transmit output power

US (2.4GHz/5GHz): 18/19dBm
EU (2.4GHz/5GHz): 17/19dBm

Antenna type

2x2 MIMO smart antenna

Antenna gain

2.4GHz: 5 dBi
5GHz: 5 dBi

Minimum Receive sensitivity

Min. Rx sensitivity up to -98 dBm

Band Steering

Yes

Encryption

WEP/ WPA/WPA2-PSK

authentication

WPA/WPA2-Enterprise/ EAP/ IEEE 802.1X/ RADIUS authentication

Access management

L2-isolation/ MAC filtering

IPv6

Yes

VLANs

Yes

WMM

Yes

Operating mode

Cloud managed / standalone

ZON Utility

Discovery of Zyxel switches, APs and gateways
Centralized and batch configurations
IP configurationIP renew
Device reboot
Device locating
Web GUI access
Firmware upgrade
Password configuration
One-click quick association with Zyxel AP Configurator (ZAC)

ZAC

Batch AP configuration
Batch AP firmware upgrade
Batch AP profile backup

Web UI/ CLI

Yes

SNMP

Yes

Item

Dimensions (WxDxH)(mm/in.)
211 x 223 x 29 / 8.31 x 8.78 x 1.54
Weight (g/lb.)
800/1.763

Packing

Dimensions (WxDxH)(mm/in.)
251 x 247 x 55/ 9.88 x 9.72 x 2.17
Weight (g/lb.)
1040/2.292

Included accessories

Multi-purpose mounting bracket with screws

MTBF(hr)

809,263

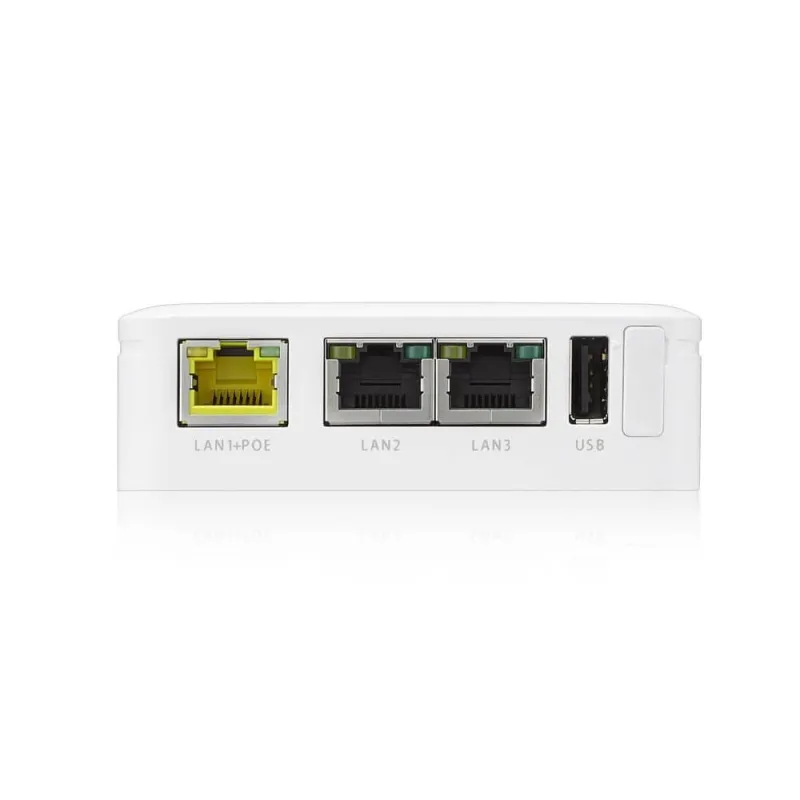

Ethernet port

1x 10/100/1000M uplink
3x 10/100/1000M downlink(including on PoE PSE)

Power

802.3at PoE: 20W (include 7W for PoE PSE)
802.3af PoE: 12W (PoE PSE disabled)

Operating

Temperature
0°C to 50°C/32°F to 122°F
Humidity
10% to 95% (non-condensing)

Storage

Temperature
-30°C to 70°C/-22°F to 158°F
Humidity
10% to 90% (non-condensing)

Radio

ETSI EN 300 328, FCC Part 15C, LP0002, EN 60601-1-2

EMC

EN 301 489-1, EN 301 489-17,EN55022, EN55024, EN61000-3-2/-3, FCC Part B, BSMI CNS13438

Safety

EN 60950-1, IEC 60950-1, BSMI CNS14336-1
