Product Specification
|
|
Overview
|

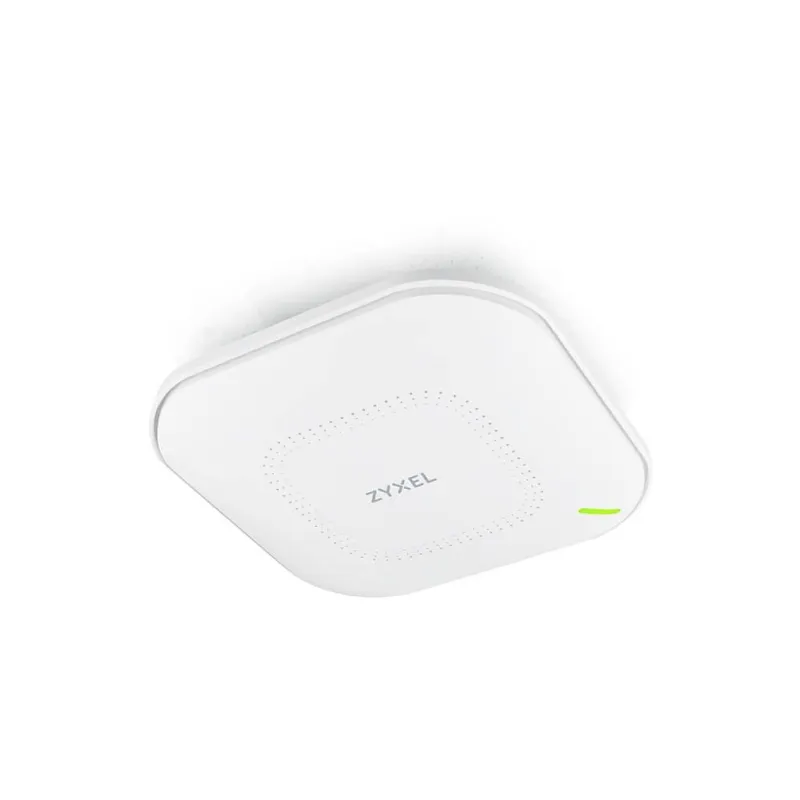

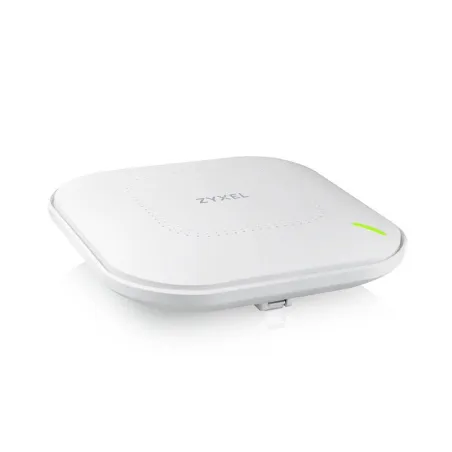

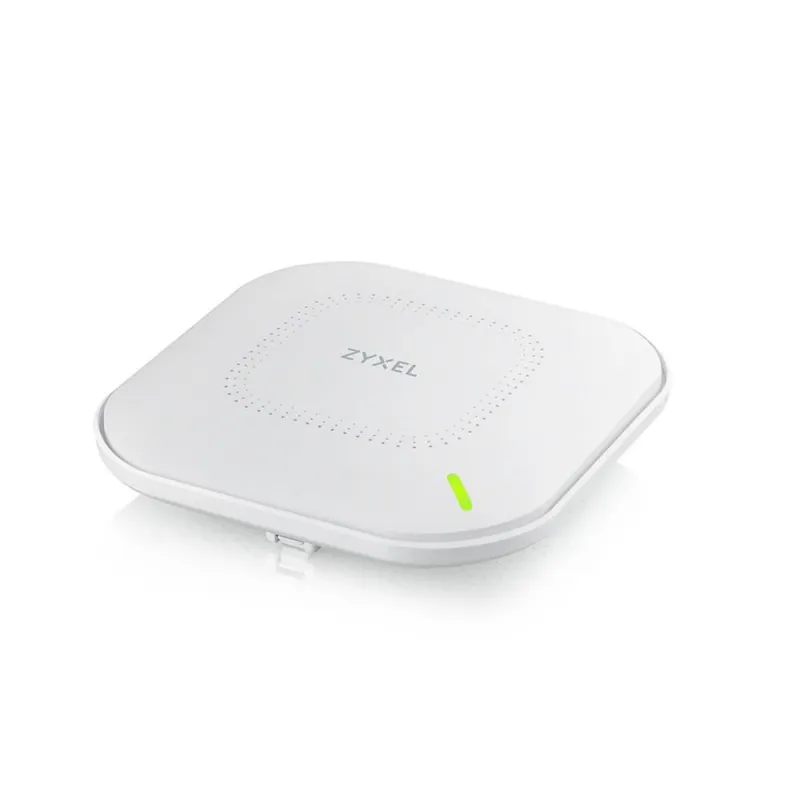

Zyxel NWA210AX AX3000 Wireless Access Point (802.11ax Dual Band) 3.0 Gbps with Quad Core CPU and Dual 4x4 MU-MIMO Antenna บริหารจัดการผ่าน Nebula APP/Cloud or Standalone รองรับ PoE
|
|
Product name
|
| Description |
802.11ax (WiFi 6) Dual-Radio PoE Access Point |
| Wireless |
| Standard |
IEEE802.11 ax/ac/n/g/b/a |
| MIMO |
MU-MIMO |
| Wireless speed |
2.4GHz: 575Mbps
5GHz: 2400Mbps |
| Frequency band |
2.4 GHz
USA (FCC): 2.412 to 2.462 GHz
Europe (ETSI): 2.412 to 2.472 GHz 5 GHz
USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz |
| Bandwidth |
20-, 40- ,80- and 160-MHz |
Conducted typical transmit output power*1
(limited by local regulatory requirements) |
US (2.4GHz/5GHz): 23/25dBm
EU (2.4GHz/5GHz): 19/22dBm |
| RF Design |
| Antenna type |
4x4 + 2x2 MIMO Embedded Antenna |
| Antenna gain |
2.4GHz: Peak Gain 5dBi
5GHz: Peak Gain 6dBi |
| Minimum Receive sensitivity |
Min. Rx sensitivity up to -101 dBm |
| WLAN feature |
| Band Steering |
Yes |
| WDS/Mesh*2 |
Yes (V6.10) |
| Fast roaming |
Pre-authentication, PMK caching and 802.11r/k/v |
| DCS |
Yes |
| Load balancing |
Yes |
| Security |
| Encryption |
WEP
WPA
WPA2-PSK
WPA3
|
| Authentication |
WPA
WPA2-Enterprise
EAP
IEEE 802.1X
RADIUS authentication
|
| Access management |
L2-isolation
MAC filtering
|
| Networking |
| IPv6 |
Yes |
| VLANs |
Yes |
| WMM |
Yes |
| U-APSD |
Yes |
| DiffServ marking |
Yes |
| Management |
| Operating mode |
Nebula Cloud managed
Standalone
|
| ZON Utility |
Discovery of Zyxel switches, APs and gateways
Centralized and batch configurations
-
- IP configuration
- IP renew
- Device factory reset
- Device reboot
- Device locating
- Web GUI access
- Firmware upgrade
- Password configuration
|
| Zyxel Wireless Optimizer |
WiFi AP planning
WiFi coverage detection
Wireless health management
|
| Web UI/ CLI |
Yes |
| SNMP |
Yes |
| MTBF(hr) |
329,004 |
| Physical Specifications |
| Item |
Dimensions (WxDxH)(mm/in.)
180 x 180 x 39/7.09 x 7.09 x 1.54
Weight (g/lb.)
545/1.20 |
| Packing |
Dimensions (WxDxH)(mm/in.)
329 x 212 x 64/12.95 x 8.35 x 2.52
Weight (g/lb.)
1065/2.35 |

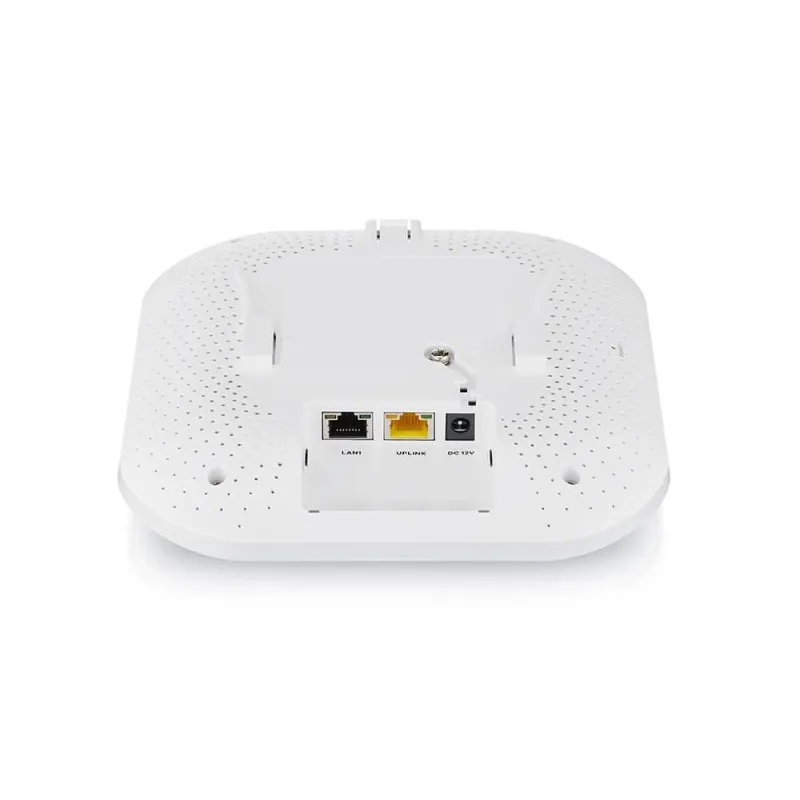

| Ethernet port |
1 x 10/100/1000/2500M LAN
1 x 10/100/1000M LAN
|
| Power |
PoE (802.3)at: power draw 19 W
DC input : 12 VDC 2A
|
| Environmental Specifications |
| Operating |
Temperature
0°C to 50°C/32°F to 122°F
Humidity
10% to 95% (non-condensing) |
| Storage |
Temperature
-30°C to 70°C/-22°F to 158°F
Humidity
10% to 90% (non-condensing) |
| Certifications |
| Radio |
FCC Part 15C
FCC Part 15E
ETSI EN 300 328
EN 301 893
LP0002
|
| EMC |
FCC Part 15B
EN 301 489-1
EN 301 489-17
EN55022
EN55024
EN61000-3-2/-3
EN60601-1-2
BSMI CNS13438
|
| Safety |
Safety EN 60950-1
IEC 60950-1
BSMI CNS14336-1
|
|
รับประกัน
|
รับประกันสินค้าตลอดอายุการใช้งาน (Limited Lifetime Warranty) ภายใต้เงื่อนไขของไซเซล
|
