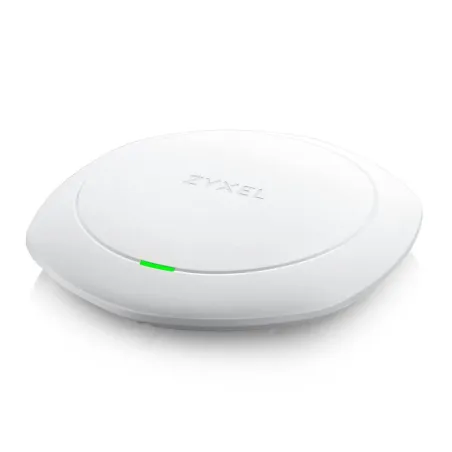

Zyxel NWA5123-AC HD Wireless Access Point AC1600 3x3 MU-MIMO Wave2 Beamforming

802.11n/ac premium features

802.11n: 2x2 MIMO with two spatial stream (SU-MIMO)
802.11ac: 3x3 MIMO with three spatial stream (SU-, or MU-MIMO)
802.11ac beamforming (transmit beamforming)
Maximal ratio combining (MRC)
Low End Sensitivity Improvements (LESI)
Time Domain Channel Smoothing 20-, 40- and 80-MHz channels
PHY data rates total up to 300 Mbps (11n) + 1300 Mbps (11ac)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
Cyclic Delay diversity (CSD) support
Maximum Likelihood Demodulation (MLD) support
Low Density Parity Check (LDPC) support

Typical transmit output power (dBm) ^*1

US (FCC) 2.4 GHz: 25 dBm
US (FCC) 5 G GHz: 28 dBm
EU (ETSI) 2.4 GHz: 20 dBm
EU (ETSI) 5 G GHz: 26 dBm

Antenna gain

2.4 GHz: 3 dBi; 2x2 MIMO
5 GHz: 3 dBi 3x3 MIMO

Support data rate

802.11a/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
802.11n: up to 300 Mbps in MCS15 (40MHz; 2 Spatial Streams; GI=400ns)
802.11ac:up to 1300 Mbps in MCS9 (80MHz; 3 Spatial Streams; GI=400ns)

Receive sensitivity

Min. Rx sensitivity up to -103 dBm

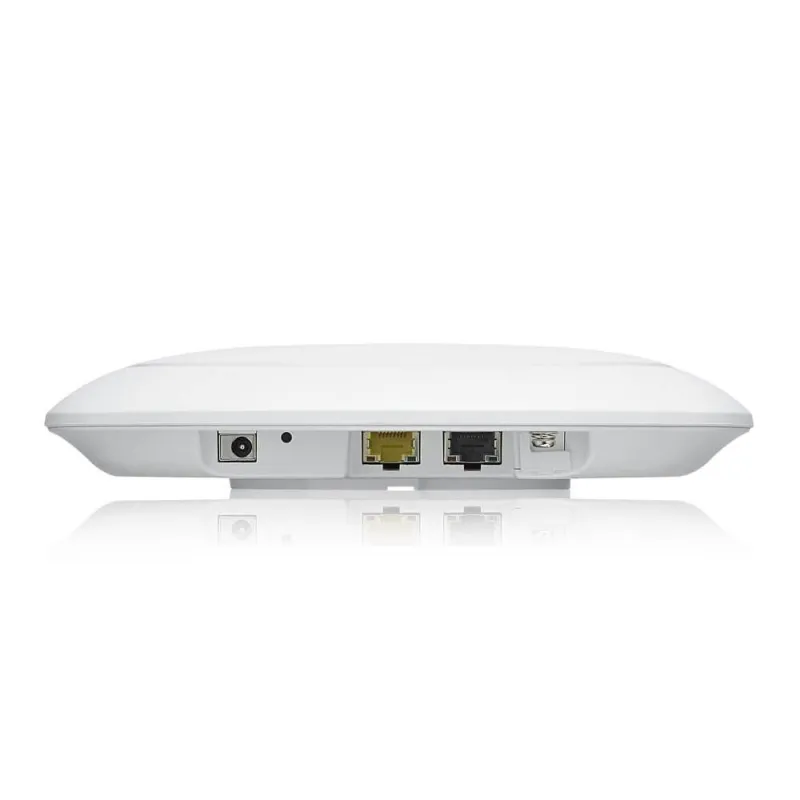

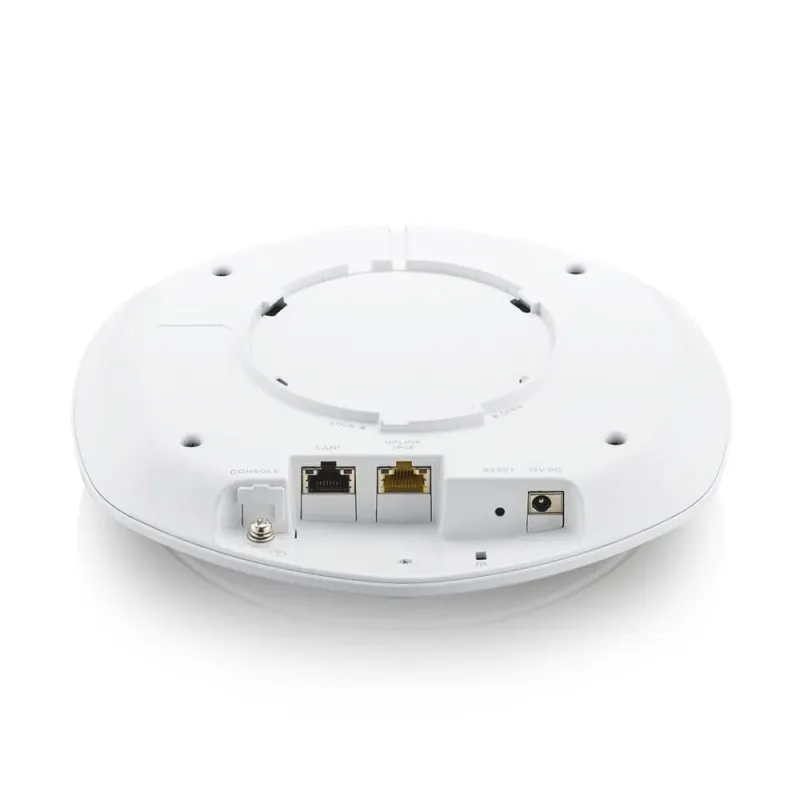

Number of 10/100/1000M LAN

2 x switch ports

Console port

4-Pin serial

Input power requirements

Direct DC power or Power over Ethernet (PoE)^*2

PoE

802.3at (full mode)
802.3af (Restrict 2.4G & 5G radio to one transmit stream only.)

PoE power draw

15.5 W (802.3at PoE)

WLAN maximum throughput

Up to 1600 Mbps

Fast roaming

Pre-authentication and PMK caching

Wireless Security

WPA/WPA2-PSK
WPA/WPA2-Enterprise
WLAN access control list
EAP type
IEEE 802.1X
MAC filtering
Web authentication ^*3
Layer-2 isolation
RADIUS authentication
Microsoft AD authentication^*3
LDAP authentication ^*3
MAC authentication ^*3
Rogue AP detection

Number of SSID

16

QoS

WMM
WMM power save
U-APSD
DiffServ marking

IPv6 support

Yes

VLANs

Yes

DHCP client

Yes

ZON Utility^*4

Discovery of Zyxel switches, APs and gateways
Centralized and batch configurations
IP configuration
IP renew
Device factory reset
Device reboot
Device locating
Web GUI access
Firmware upgrade
Password configuration
One-click quick association with Zyxel AP Configurator (ZAC)

Smart Connect

Neighbor device discovery
One-click remote management access to the neighboring Zyxel devices

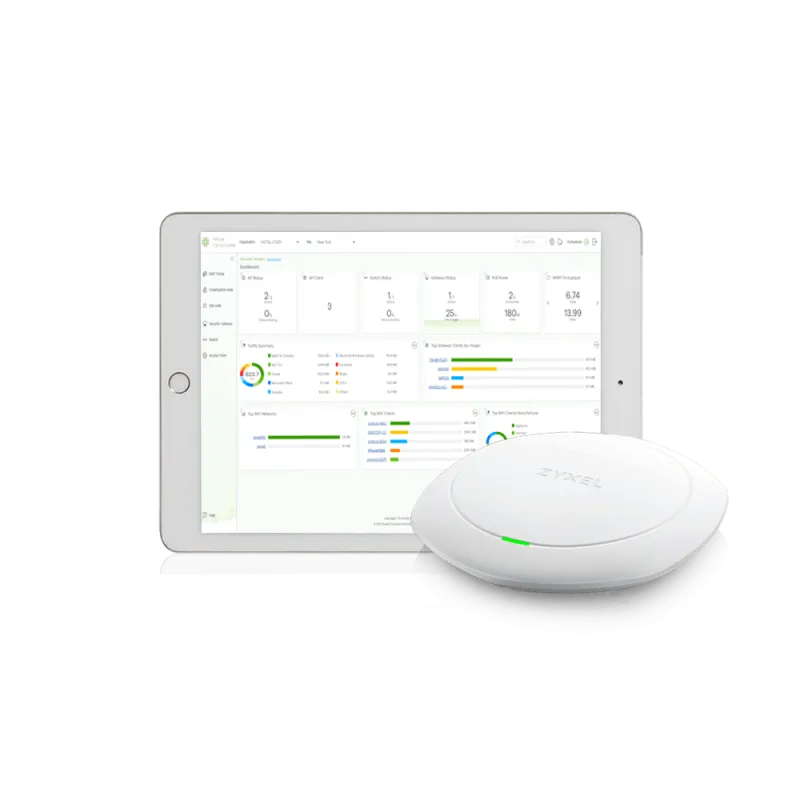

Zyxel AP Configurator^*5

Batch AP configuration
Batch AP firmware upgrade
Batch AP profile backup

Zyxel Wireless Optimizer ^*6

Wi-Fi AP planning
Wi-Fi coverage detection
Wireless health management

Standalone AP mode

Yes

Managed AP mode

Yes

CLI

Yes

SNMP

v2c/v3

Ethernet

IEEE 802.3
IEEE 802.3u
IEEE 802.11ab
IEEE 802.3au
IEEE 802.3az
IEEE 802.3af/at

PoE

IEEE 802.3af/at

WLAN

802.11b: DBPSK, DQPSK, CCK
802.11g: BPSK, QPSK, 16-QAM, 64-QAM
802.11a: BPSK, QPSK, 16-QAM, 64-QAM
802.11n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 64-QAM, 256-QAM

Radio

FCC Part 15C
FCC Part 15E
ETSI EN 300 328
EN 301 893
LP0002
EN 60601-1-2

EMC

FCC Part 15B
EN 301 489-1
EN 301 489-17
EN55032
EN55024
EN61000-3-2/-3
BSMI CNS13438

Safety

EN 60950-1
IEC 60950-1
BSMI CNS14336-1

Item

Dimensions (WxDxH)(mm/in.)
211 x 223 x 39 / 8.31 x 8.78 x 1.54
Weight (g/lb.)
750/1.653

Packing

Dimensions (WxDxH)(mm/in.)
251 x 247 x 55/9.88 x 9.72 x 2.17
Weight (g/lb.)
990/2.182

Included accessories

Wall/ceiling mount plate

Plenum rating

Yes

Kensington lock support

Yes

Power supply

Input: AC 100-240V, 50~60Hz
Output: DC +12V 2A (Sold separately)

MTBF (hr)

4,134,738

Operating

Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
10% to 90% (Non-condensing)

Storage

Temperature
-40°C to 70°C / -40°F to 158°F
Humidity
10% to 90%
