Zyxel WAX650S Product Specification
|
|
Overview
|

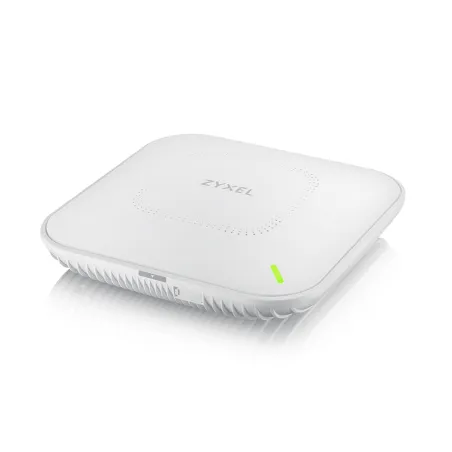

Zyxel WAX650S Wireless Access Point 802.11ax (WiFi 6) 4x4 MU-MIMO ความเร็วสูงสุด 3.55Gbps Dual-Radio Unified Pro Access Point
1 Port Lan Multi-Gig 1/ 2.5/ 5Gbps, 1 Port Lan Gigabit, รองรับการทำงานแบบ Standalone และ Nebula Cloud
รองรับ PoE (Not Include)
|
| Wireless |
| Standard |
IEEE802.11 ax/ac/n/g/b/a |
| MIMO |
MU-MIMO |
| Wireless speed |
2.4GHz: 1150Mbps
5GHz: 2400Mbps |
| Frequency band |
2.4 GHz (IEEE 802.11 b/g/n)
USA (FCC): 2.412 to 2.462 GHz
Europe (ETSI): 2.412 to 2.472 GHz
5 GHz (IEEE 802.11 a/n/ac)
USA (FCC): 5.15 to 5.35 GHz; 5.725 to 5.850 GHz
European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
|
| Bandwidth |
20-, 40- ,80- and 160-MHz |
| Conducted typical transmit output power |
US (2.4GHz/5GHz): 28/28dBm
EU (2.4GHz/5GHz): 19/26dBm |
| RF Design |
| Antenna type |
4x4 Smart Antenna |
| Antenna gain |
2.4GHz: Peak Gain 3dBi
5GHz: Peak Gain 5.8dBi |
| Minimum Receive sensitivity |
-105 dBm |
| WLAN feature |
| Band Steering |
Yes |
| WDS |
Future Support |
| Mesh AP (By License) |
Future Support |
| Mesh AP for multiple SSID with VLAN |
Future Support |
| Smart mesh |
Future Support |
| Fast roaming |
Pre-authentication, PMK caching and 802.11k/v/r |
| DCS (Auto Channel) |
Yes |
| Load balancing |
Yes |
| Security |
| Wireless Security |
WPA
WPA-PSK
WPA-Enterprise (WPA/WPA2/WPA3)
|
| Access management |
L2-isolation
MAC filtering
Rogue AP detection
EAP
IEEE 802.1X
RADIUS authentication
|
| Networking |
| IPv6 |
Yes |
| VLANs |
Yes |
| WMM |
Yes |
| U-APSD |
Yes |
| DiffServ marking |
Yes |
| Management |
| Operating mode |
Nebula Cloud managed
Controller-managed
Standalone
|
| ZON Utility |
Discovery of Zyxel switches, APs and gateways
Centralized and batch configurations
IP configuration IP renew
Device factory reset
Device reboot
Device locating
Web GUI access
Firmware upgrade
Password configuration
One-click quick association with Zyxel AP Configurator (ZAC)
|
| Zyxel AP Configurator |
Batch AP configuration
Batch AP firmware upgrade
Batch AP profile backup
|
| Zyxel Wireless Optimizer |
WiFi AP planning
WiFi coverage detection
Wireless health management
|
| Web UI/ CLI |
Yes |
| SNMP |
Yes |
| Physical Specifications and others |
| Item |
Dimensions (WxDxH)(mm/in.)
230 x 235 x 53.5/9.06 x 9.25 x 2.11
Weight (g/lb.)
1160/2.56 |
| Packing |
Dimensions (WxDxH)(mm/in.)
282 x 266 x 79/11.1 x 10.47 x 3.11
Weight (g/lb.)
1490/3.38 |
| Included accessories |
Mount plate
Mounting screws
|
| MTBF (hr) |
180,653 |
| Physical Interfaces |
| Ethernet port |
1 x 1/2.5/5Gbps Ethernet (PoE port)
1 x 1Gbps Ethernet
|
| Power |
802.3BT POE (Maximum power draw: 31W)
12V DC input
|
| Environmental Specifications |
| Operating |
Temperature
0°C to 50°C/32°F to 122°F
Humidity
10% to 95% (non-condensing) |
| Storage |
Temperature
-30°C to 70°C/-22°F to 158°F
Humidity
10% to 90% (non-condensing) |
| Certifications |
| Radio |
FCC Part 15C
FCC Part 15E
ETSI EN 300 328
EN 301 893
LP0002
|
| EMC |
FCC Part 15B
EN 301 489-1
EN 301 489-17
EN55022
EN55024
EN61000-3-2/-3
EN60601-1-2
BSMI CNS13438
|
| Safety |
Safety EN 60950-1
IEC 60950-1
BSMI CNS14336-1
|
