IEEE 802.3 10BASE-TX Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE802.3ab 1000BASE-T IEEE 802.3bz 2500BASE-T Gigabit Ethernet SFF-8431 IEEE 802.3az Energy Efficient Ethernet IEEE 802.3x full duplex operation and flow control
Performance
Switching capacity: 66 Gbps Switching forwarding rate: 49 Mpps MAC address table: 16 K Packet buffer: 1.5 MB Jumbo frame support up to 12 KB
Features
10M,100M,1G,2.5G and 10G ports for multi speed Fanless and quiet Plug and Play, Easy use and Quick Install Support IEEE 802.3az Energy Efficient Desktop and Wall mount Auto-MDI/MDIX in all ports QoS ports for smooth media streaming, VoIP calls, and online gaming Weighted Fair Queuing (WFQ) priority QoS
Interface

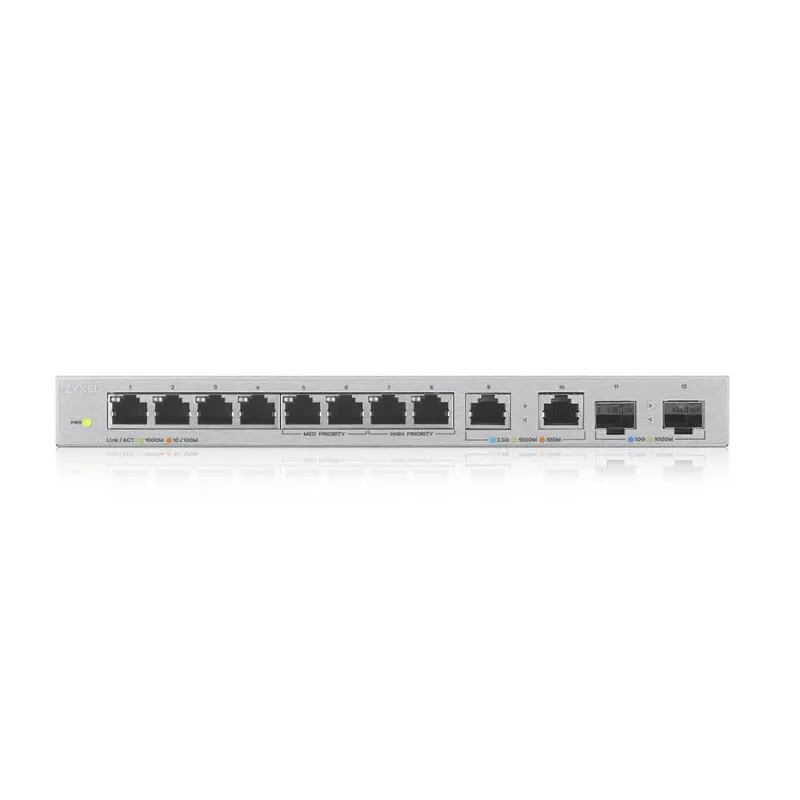

8 x RJ-45 10/100/1000 Mbps Ethernet port with metal shielding 2 x RJ-45 100/1000/2500 Mbps Ethernet port with metal shielding 2 x SFP+ Hardware reset button
LED Indicator
PWR: Power Port 1~8: Link/Activity Green: 1000 Mbps Amber: 10/100 Mbps Port 9~10: Link/Activity Sky Blue : 2.5Gbps Green : 1Gbps Amber: 100Mbps Port 11~12: Link/Activity Blue: 10Gbps Green : 1000Mbps
Power Supply
AC-to-DC external power adapter Input: 100-240V~50-60Hz Output: 12V DC/1.5A
Physical Specifications
Item dimensions (WxDxH): 250 x 104 x 27mm(9.84” x .10” x 1.06”) Item weight: 768 g (1.69 lb.) Packing dimensions (WxDxH): 306 x 225 x 64mm (12.04” x 8.86” x 1.06”) Packing weight: 1217g (2.68 lb.)
Operating Environment
Temperature: 0°C to 40°C (32°F to 104°F) Humidity: 10% to 90% (Non-condensing)
Storage Environment
Temperature: -40°C to 70°C (-32°F to 158°F) Humidity: 10% to 90% (Non-condensing)
Certification
Safety: CE-LVD, BSMI EMC: CE, FCC, EAC, BSMI, Class B
Package Contents
Switch Power adapter Quick Start Guide Safety warning and DoC
