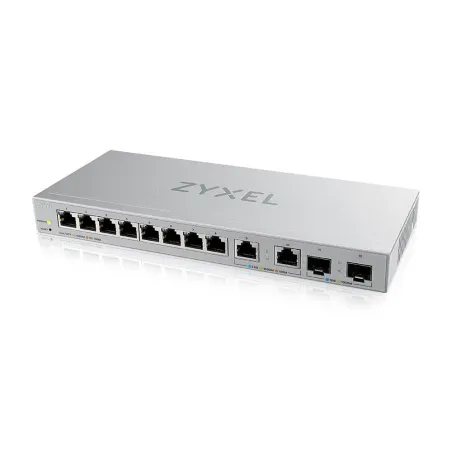

Zyxel XGS1210-12 12-Port L2-Managed Multi-Gigabit Switch 2.5Gbps, 2 SFP+

Standard

IEEE 802.3 10BASE-TX Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE802.3ab 1000BASE-T
IEEE 802.3bz 2500BASE-T Gigabit Ethernet
SFF-8431
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.3x full duplex operation and flow control

Performance

Switching capacity: 66 Gbps
Switching forwarding rate: 49 Mpps
MAC address table: 16 K
Packet buffer: 1.5 MB
Jumbo frame support up to 12 KB

Features

Web-based management
Auto-MDI/MDIX in all ports
System password
VLAN (Port supported)
Port-based QoS
802.1p QoS
Broadcast storm control
Loop detection/prevention
DHCP client
Static Link aggregation
Port mirroring
Weighted Round Robin (WRR) priority QoS
IGMP snooping v1/v2/and v3 compatible
Supported multicast groups: 128
Firmware update

Interface

8 x RJ-45 10/100/1000 Mbps Ethernet port with metal shielding
2 x RJ-45 100/1000/2500 Mbps Ethernet port with metal
shielding
2 x SFP+
Hardware reset button

LED Indicator

PWR: Power
Port 1~8: Link/Activity
Green: 1000 Mbps
Amber: 10/100 Mbps
Port 9~10: Link/Activity
Sky Blue : 2.5Gbps
Green : 1Gbps
Amber: 100Mbps
Port 11~12: Link/Activity
Blue: 10Gbps
Green : 1000Mbps

Power Supply

AC-to-DC external power adapter
Input: 100-240V~50-60Hz
Output: 12V DC/1.5A

Physical Specifications

Operating Environment

Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 10% to 90% (Non-condensing)

Storage Environment

Temperature: -40°C to 70°C (-32°F to 158°F)
Humidity: 10% to 90% (Non-condensing)

Certification

Package Contents
