Zyxel XGS1930-28HP Product Specification
|
|
Overview
|

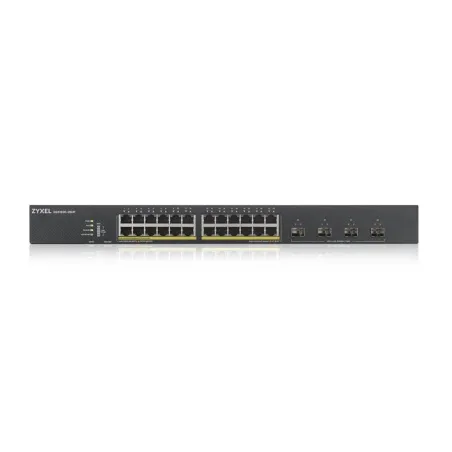

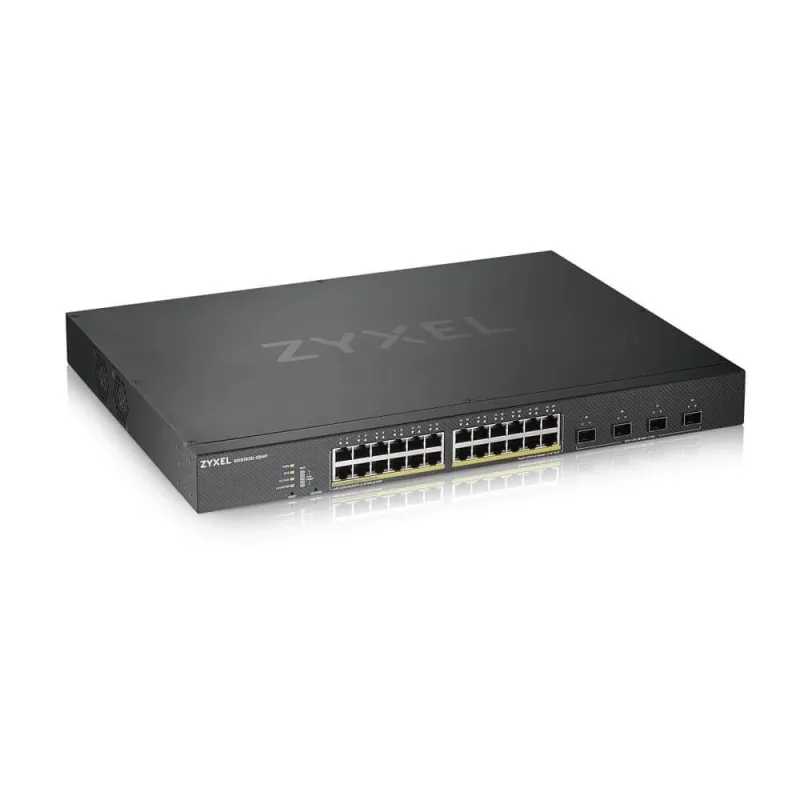

Zyxel XGS1930-28HP Smart Managed Gigabit POE Switch 24 Port, 4 Port SFP+ 10Gbps,
POE 802.3at 24 Port จ่ายไฟสูงสุด 375W
รองรับ Managed แบบ Standalone/NabulaFlex, Static Routing, VLAN, DHCP Snooping
|
| Product name |
24-port GbE Smart Managed PoE Switch with 4 SFP+ Uplink |
| Switch class |
Smart Managed |
| Total port count |
28 |
| 100/1000 Mbps |
24 |
| 10 Gigabit SFP+ |
4 |
| PoE ports |
24 |
| Total PoE budget (Watts) |
375 |
| High power PoE 802.3at |
Yes |
| Switching capacity (Gbps) |
128 |
| Forwarding rate (Mpps) |
95.2 |
| Packet buffer (byte) |
1.5 M |
| MAC address table |
16 K |
| L3 forwarding table |
Max. 512 IPv4 entries; Max. 512 IPv6 entries |
| Routing table |
32 |
| IP interface (IPv4/IPv6) |
32/32 |
| Flash/RAM |
32 MB/512 MB |
| Input |
100 to 240 V AC, 50/60 Hz |
| Max. power consumption (watt) |
471 |
| Item |
Dimensions (WxDxH)(mm/in.)
441 x 330 x 44/17.36 x 12.99 x 1.73
Weight (kg/lb.)
4.6/10.14 |
| Fanless |
- |
| MTBF (hr) |
1,369,432 |
| Heat dissipation (BTU/hr) |
1,606.11 |
| Acoustic noise @ 25°C (dBA) |
28.5 |
|
Operating
|
Temperature 0°C to 50°C/32°F to 122°F
Humidity 10% to 90% (non-condensing) |
|
Storage
|
Temperature -40°C to 70°C/-40°F to 158°F
Humidity 10% to 90% (non-condensing) |
|
Included accessories
|
Power cord
Rack mounting kit
|
|
Standard Compliance
|
IEEE 802.3 10BASE-T Ethernet*
IEEE 802.3u 100BASE-TX Ethernet*
IEEE 802.3ab 1000BASE-T Ethernet*
IEEE 802.3z 1000BASE-X*
IEEE 802.3ae 10-Gigabit Ethernet Over Fiber*
IEEE 802.3af PoE*
IEEE 802.3at PoE Plus*
IEEE 802.3az EEE*
IEEE 802.3x flow control
IEEE 802.3ad LACP aggregation*
IEEE 802.1D Spanning Tree Protocol (STP)*
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)*
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
IEEE 802.1p Class of Service (CoS) prioritization*
IEEE 802.1X port authentication*
|
|
Resilience and Availability
|
IEEE 802.1D Spanning Tree Protocol (STP)*
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)*
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
IEEE 802.3ad LACP (Max # Trunks/ Links per Trunk): 12/8 for 28/28HP, 24/8 for 52/52HP*
Loop guard*
Dual configuration files
Dual images*
|
|
Traffic Control
|
802.1Q Static VLANs*/Dynamic VLANs: 1K/4K
Support up to 4K VLAN ID*
Independent VLAN Learning (IVL)*
L2PT
Port-based VLAN*
Voice VLAN*
VLAN trunking
GVRP
|
|
Security
|
802.1X*
Port security*
MAC authentication*
Static MAC forwarding
SSL
Static ARP
Policy-based security filtering
Port isolation
MAC search
Guest VLAN*
PPPoE relay agent
PPPoE option 82
PPPoE IA
Interface related trap enable/ disable (by port)
CPU protection
SHA2 HTTPS certification*
Login authentication by RADIUS*
RADIUS accounting
Authorization on RADIUS*
Multiple RADIUS servers*
802.1x VLAN and bandwidth assignment by RADIUS*
ACL packet filtering (IPv4/IPv6)
|
|
Quality of Service (QoS)
|
No. of hardware queues per port: 8*
802.1p queuing methods: SPQ, WRR, WFQ*
Storm control: broadcast, unknown L2MC, unknown unicast (DLF)*
Rate limiting per port
Policy-based rate limiting
Policy-based prioritization
|
|
Layer 2 Multicast
|
L2 multicast group: 1K
IGMP snooping (v1, v2, v3)*
Configurable IGMP snooping timer and priority
IGMP snooping statistics
IGMP throttling
IGMP filtering
Static multicast
|
|
Layer 3 Routing
|
Static route
Assigned DHCP relay with specific source IP interface
|
|
Manageability
|
SNMP v1, v2c, v3
SNMP trap group
RMON (1, 2, 3, 9)
Syslog (IPv4/v6)*
IEEE 802.1AB LLDP
IEEE 802.1AB LLDP-MED
Custom default
Display port utilization*
Support NebulaFlex™ for hybrid mode
|
|
IPv6 Management
|
IPv6 over Ethernet (RFC 2464)
IPv6 addressing architecture
(RFC 4291)
Dual stack (RFC 4213)
ICMPv6 (RFC4884)
Path MTU (RFC 1981)
Minimum path MTU size of 1280
(RFC 5095)
Encapsulation for maximum MTU of 1500
Neighbor discovery (RFC 4861)
DHCPv6 relay
Default DHCP client mode*
Duplicated Address Detection (DAD)
|
|
Device Management
|
Standalone management by Web interface
Cloud management by Nebula Control Center*
Setup Wizard
Management through Telnet
Management through Web, SNMP
Firmware upgrade by FTP/Web
Configuration saving and retrieving
Multiple login supported
Configure clone
DHCP relay per VLAN
DHCP client IPv4*
DHCP client IPv6
DHCP option 82
Daylight saving*
NTP Server (IPv4/IPv6) –
Support DNS format
Port mirroring*
Scheduled PoE*
PoE default consumption mode*
PoE power management extended configuration*
Web login warning page
Restore to last custom default
|
|
MIB
|
Zyxel private common MIB
RFC 1066 TCP/IP-based MIB
RFC 1213, 1157 SNMPv2c/v3 MIB
RFC 1493 bridge MIB
RFC 1643 Ethernet MIB
RFC 1757 RMON Group 1, 2, 3, 9
RFC 2011, 2012, 2013 SNMPv2 MIB
RFC 2233 SMIv2 MIB
RFC 2358 Ethernet-like MIB
RFC 2674 bridge MIB extension
RFC 2819, 2925 remote management MIB
RFC 3621 power Ethernet MIB
RFC 4022 management information base for transmission control protocol
RFC 4113 management information base for user datagram protocol
RFC 4292 IP forwarding table MIB
RFC 4293 Management Information Base (MIB) for IP
|
|
Certifications
|
Safety
LVD
BSMI Safety
EMC
FCC Part 15 (Class A)
CE (Class A)
BSMI EMC
RoHS
|
|
Zyxel One Network
|
ZON Utility*
Discovery of Zyxel switches, APs and gateways
Centralized and batch configurations:
IP configuration
IP renew
Device factory reset
Device reboot
Device locating
Web GUI access
Password configuration
One-click quick association with Zyxel AP Configurator (ZAC)
Automatic detection of the latest firmware
Displays device serial number and hardware version
Cloud mode on/off option for Hybrid series devices
Smart Connect
Discover neighboring devices
One-click remote management access to the neighboring
Zyxel devices
Reset neighboring devices remotely to factory defaults
Power cycle neighboring powered devices (PoE switches only)
|
