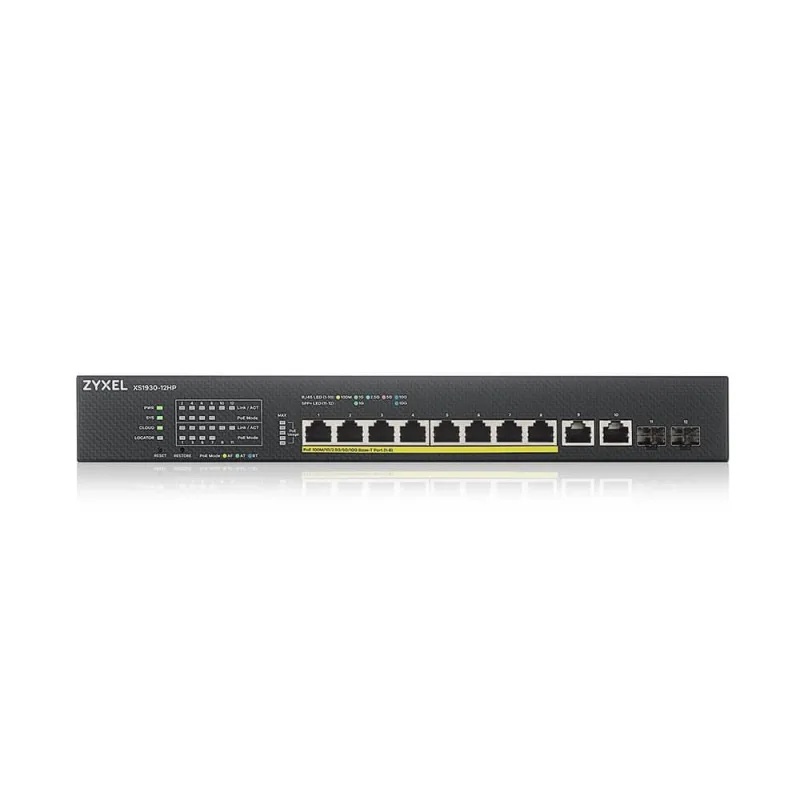

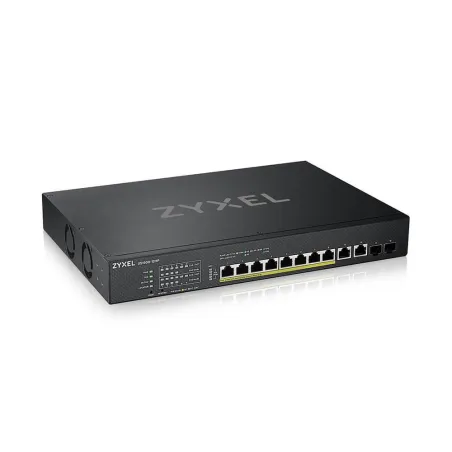

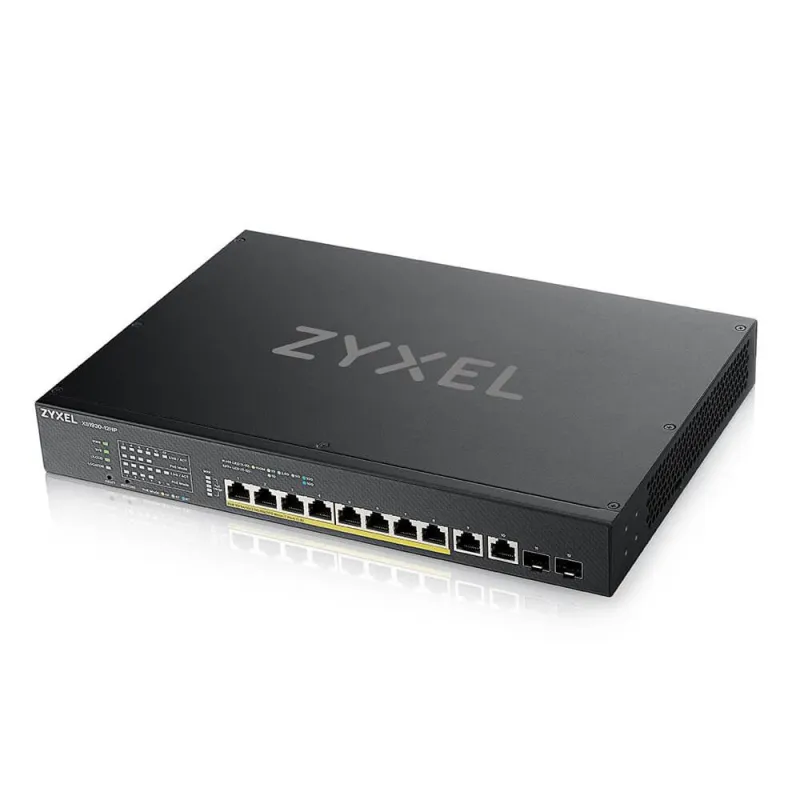

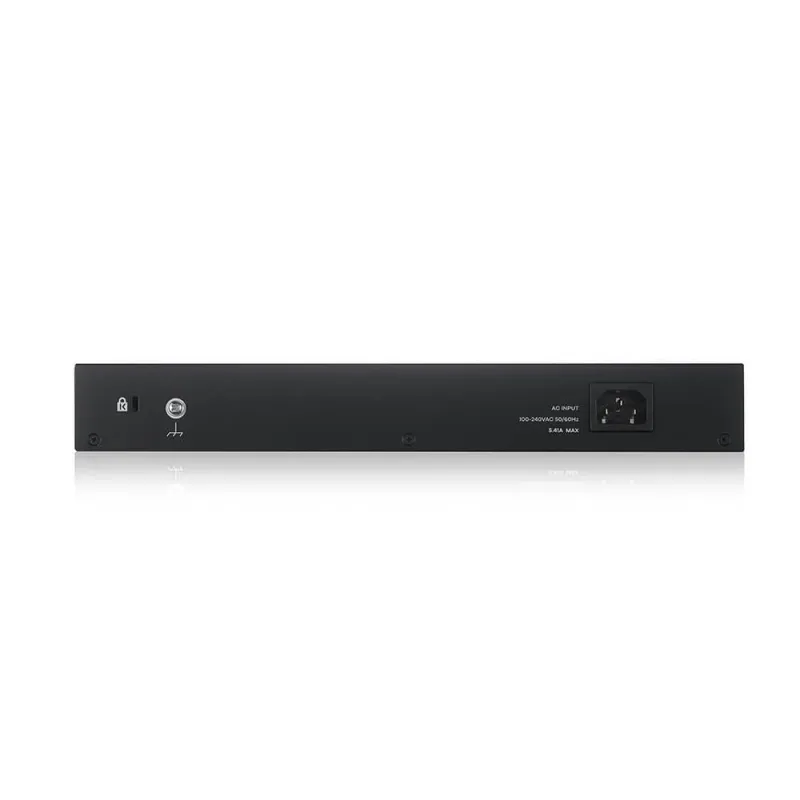

ZyXel Zyxel XS1930-12HP 8-port Multi-Gigabit Smart Managed PoE Switch, 2 SFP+ 375W
    • ZyXel Zyxel XS1930-12HP 8-port Multi-Gigabit Smart Managed PoE Switch, 2 SFP+ 375W
    • ZyXel Zyxel XS1930-12HP 8-port Multi-Gigabit Smart Managed PoE Switch, 2 SFP+ 375W
    • ZyXel Zyxel XS1930-12HP 8-port Multi-Gigabit Smart Managed PoE Switch, 2 SFP+ 375W
    • ZyXel Zyxel XS1930-12HP 8-port Multi-Gigabit Smart Managed PoE Switch, 2 SFP+ 375W

    Zyxel XS1930-12HP 8-port Multi-Gigabit Smart Managed PoE Switch, 2 SFP+ 375W

    ZyXel
    Zyxel XS1930-12HP L2 Managed POE Switch 8 Port ความเร็ว Multi-Gig (100M, 1G, 2.5G, 5G, 10G) , 2-Port SFP+ ความเร็ว 10Gbps POE 375W
    ฿42,900.00
    ยังไม่ได้รวมภาษี
    จำนวน

    รายละเอียด

    Zyxel XS1930 Series Datasheet
    Zyxel XS1930 Series User Manual

    Product Specification

    Overview

    Zyxel XS1930-12HP L2 Managed POE Switch 8 Port ความเร็ว Multi-Gig (100M, 1G, 2.5G, 5G, 10G) , 2-Port SFP+ ความเร็ว 10Gbps POE 375W

    Product name

    8-port Multi-Gigabit Smart Managed Switch with 2 SFP+ Uplink

    Switch class

    Smart Managed

    Total port count

    12

    100M/1G/2.5G/5G/10G Ethernet (RJ-45)

    10

    10-Gigabit SFP+

    2

    PoE ports

    2

    Total PoE budget (watts)

    8

    IEEE 802.3bt (PoE++)

    375

    Switching capacity (Gbps)

    240

    Forwarding rate (Mpps)

    178.5

    Packet buffer (byte)

    2 MB

    MAC address table

    16 K

    L3 forwarding tab

    Max. 512 IPv4 entries;
    Max. 512 IPv6 entries

    Routing table

    32

    IP interface

    32/32

    Flash/RAM

    32 MB/256 MB

    Input

    100 - 240 V AC, 50/60 Hz

    Max. power consumption (watt)

    493

    Item

    Dimensions (WxDxH)(mm/in.):
    330 x 230 x 44/12.99 x 9.06 x 1.73
    Weight (kg/lb.): 2.8/6.1

    Packing

    Dimensions (WxDxH)(mm/in.):
    484 x 337 x 79/19.06 x 13.27 x 3.11
    Weight (kg/lb.): 4.0/8.82

    Included accessories

    Power cord
    Rack mounting kit

    Operating

    Temperature -20°C to 50°C/-4°F to 122°F
    Humidity 5% to 95% (non-condensing)

    Storage

    Temperature -40°C to 70°C/-40°F to 158°F
    Humidity 5% to 95% (non-condensing)

    MTBF (hr)

    582,873

    Heat dissipation (BTU/hr)

    1,681.13

    Acoustic noise (min/max, dBA)

    28.3/50.8



    รายละเอียดสินค้า
    10 รายการ

    Data sheet

    ประเภท Switch
    L2 Managed
    ความเร็ว Port Lan
    2.5Gbps (Multi-Gigabit), 5Gbps (Multi-Gigabit)
    จำนวน Port Lan
    8 Port
    มาตรฐานจ่ายไฟ POE
    802.3af/at (30W), 802.3bt (60W)
    จำนวน Port POE
    8 Port
    มี Uplink Port Lan Multi-Gig
    Yes
    SFP Port Gigabit
    1-2 Port
    SFP+ Port 10-Gigabit
    1-2 Port
