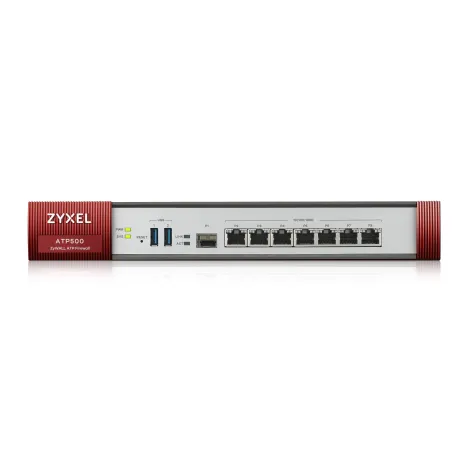

ZYXEL ZyWALL ATP500 Next Generation UTM Firewall, 200 VPN IPSec/L2TP, 7 Gigabit User-Definable Ports (Includes 1 Year License Gold License Packs)
ZyWALL ATP Series Datasheet
ZyWALL ATP Series User Guide
ZyWALL ATP Series Quick Start Guide
ZyXell ZyWALL ATP500 Product Specification | |
Overview | ZyXell ZyWALL ATP500 Next Generation UTM Firewall, 7 Port Gigabit Uesr-Definable, 1 Port SFP, 2 USB Firewall/UTM Throughput 2,600/700 Mbps, 1,000,000 sessions) 200 VPN IPSec/L2TP, 50 SSL VPN Bundled License WLAN controller up to 34 AP Bundled Gold License Packs including: Cloud Sandboxing, Content Filter, Botnet Filter, App Patrol, Email Security, Anti-Malware, IDP, GeoIP / Bundled License SecuReporter (Cloud Log / Security analysis report) Bundle ARS (NBD) พร้อม 9 x 6 Technical Support (ภาษาไทย) |
Interface | 7 (Configurable), 1 x SFP |
USB 3.0 ports | 2DB9 |
Console port | Yes |
Rack-mountable | Yes |
Fanless | Yes |
System Capacity & Performance | |
SPI firewall throughput (Mbps) | 2,600 |
VPN throughput (Mbps) | 900 |
IDP throughput (Mbps) | 1,700 |
AV throughput (Mbps)* | 900 |
UTM throughput (AV and IDP)* | 890 |
Max. TCP concurrent sessions | 100,000 |
Max. concurrent IPsec VPN tunnels | 300 |
Concurrent SSL VPN users | 150 |
VLAN interface | 64 |
Speedtest Performance | |
SPI firewall throughput (Mbps) | 900 |
WLAN Management | |
Managed AP number (default/max.) | 8 / 72 |
Recommend max. AP in 1 AP Group | 60 |
Security Services | Yes |
Sandboxing | Yes |
Web Security | Yes |
Application Security | Yes |
Malware Blocker | Yes |
Intrusion Prevention (IDP) | Yes |
Reputation Filter | Yes |
Geo Enforcer | Yes |
SecuReporter Premium | Yes |
Key Features | |
VPN | IKEv2, IPSec, SSL, L2TP/IPSec |
SSL (HTTPS) Inspection | Yes |
2-Factor Authentication | Yes |
Microsoft Azure | Yes |
Amazon VPC | Yes |
Device HA Pro | - |
Power Requirements | |
Power input | 12 V DC, 4.17 A max. |
Max. power consumption (watt) | 24.1 |
Heat dissipation (BTU/hr) | 82.23 |
Physical Specifications | |
Dimensions (WxDxH) (mm/in.) | 300 x 188 x 44/ 11.81 x 7.4 x 1.73
|
Weight (kg/lb.) | 1.65/3.64 |
Operating environment | |
Temperature | 0°C to 40°C/ |
Humidity | 10% to 90% (non-condensing) |
Storage environment | |
Temperature | -30°C to 70°C/ |
Humidity | 10% to 90% (non-condensing) |
MTBF (hr) | 529,688.2 |
Certifications | |
EMC | FCC Part 15 (Class B), |
Safety | LVD (EN60950-1), BSMI |
รับติดตั้ง , Setup ระบบเชื่อมต่อเครือข่ายระหว่างสาขาด้วย VPN Site To Stite
ระบบจะทำการเชื่อมวง Network แต่ละสาขาเข้าด้วยกัน สามารถ Share File, Printer, Database, VOIP
Share File / Printer ระหว่างสาขา
โทรศัพท์ระหว่างสาขาหากันฟรีด้วย VOIP ผ่าน VPN
ใช้ Smart-Phone เชื่อมเครือข่ายกับสาขาด้วย VPN Client To Site ถ้าใช้ร่วมกับ App Zoiper โทรผ่าน VOIP ทำให้โทรหาสาขาได้ฟรี
เชื่อมต่อฐานข้อมูลที่เป็น RDBMS เช่น MS SQL, Oracle, MySQL ได้ง่าย โดยการสร้าง Connection String ชี้ไปที่ Databse Server ได้เลย
ความเร็วในการเชื่อมต่อ VPN ได้เทียบเท่าค่า Upload ตาม Package ที่สมัคร
