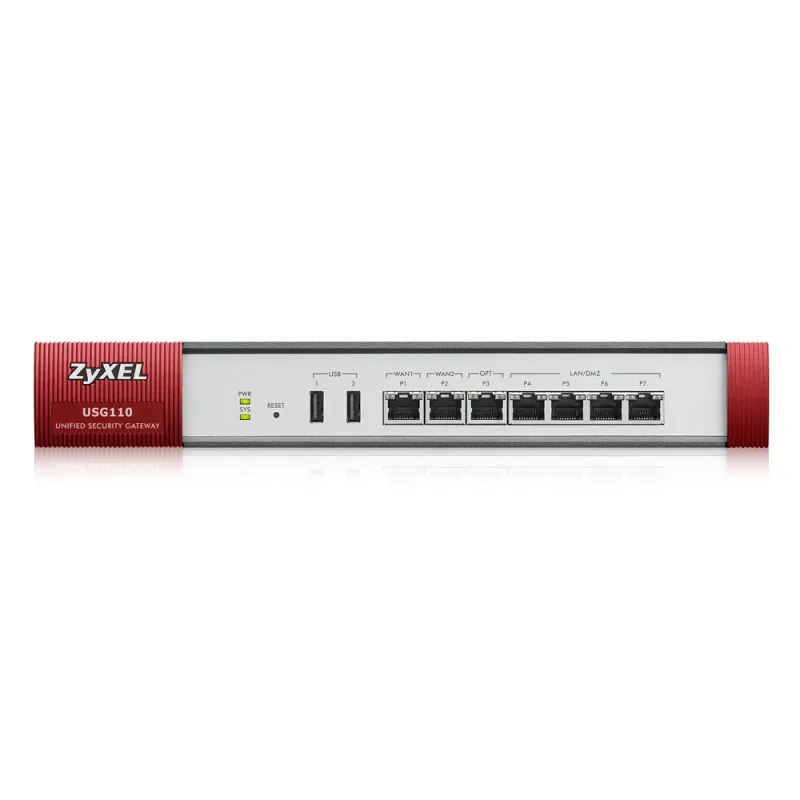

Interfaces | 4 x LAN/DMZ, 2 x WAN, 1 x OPT |
USB ports | 2 |

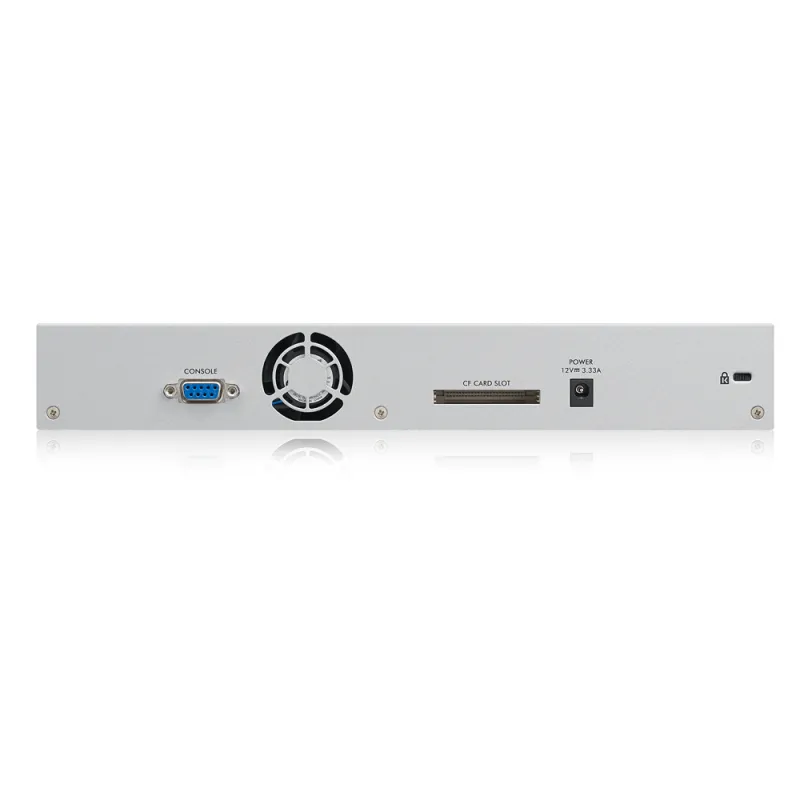

Console port | Yes (DB9) |
Rack-mountable | Yes |
SPI firewall throughput(Mbps)*2 | 1,600 |
VPN throughput (Mbps)*3 | 400 |
IDP throughput (Mbps)*4 | 590 |
AV throughput (Mbps)*4 | 450 |
UTM throughput (AV and IDP)*4 | 450 |
Max. TCP concurrent sessions*5 | 150,000 |
Max. concurrent IPsec VPN tunnels*6 | 100 |
Concurrent SSL VPN user no. (default/max.)*7 | 25/150 |
VLAN interface | 16 |
Concurrent devices logins (default/max.)*7*8 | 200 / 300 |
Managed AP number (default/max.)*7 | 2/34 |
Recommend max. AP in 1 AP Group | 20 |
Anti-virus (AV)*7 | Yes |
Intrusion detection and prevention (IDP) & Application Patrol*7 | Yes |
Anti-spam*7 | Yes |
Content filtering (CF 2.0)*7*9 | Yes |
SecuReporter Premium*7 | Yes |
VPN | IKEv2, IPSec, SSL, L2TP/IPSec |
SSL (HTTPS) inspection | Yes |
2-Factor Authentication | Yes |
EZ Mode | Yes |
Hotspot Management*7 | Yes |
Ticket printer support*10 / Support Q'ty (max.) | Yes (SP350E) / 10 |
Microsoft Azure | Yes |
Amazon VPC | Yes |
Facebook WiFi | Yes |
Device HA Pro | Yes |
Link Aggregation (LAG) | - |
Power input | 12V DC, 3.33 A max. |
Max. power consumption (watt) | 37.0 |
Heat dissipation (BTU/hr) | 126.25 |
Item | Dimensions (WxDxH)(mm/in.)
300 x 188 x 44/11.81 x 7.4 x 1.73
Weight (kg/lb.)
2/4.4 |
Packing | Dimensions (WxDxH)(mm/in.)
351 x 149 x 243/13.82 x 5.98 x 9.65
Weight (kg/lb.)
3.264/7.20 |
Included accessories | Power adapter
Power cord
Rack mounting kit |
Operating | Temperature
0°C to 40°C (32°F to 104°F)
Humidity
10% to 90%(non-condensing) |
Storage | Temperature
-30°C to 70°C (-22°F to 158°F)
Humidity
10% to 90%(non-condensing) |
MTBF (hr) | 787,109.3 |
EMC | FCC Part 15 (Class A)
CE EMC (Class A)
C-Tick (Class A)
BSMI |
Safety | LVD (EN60950-1), BSMI |
Features: | |
Firewall | ICSA-certified firewall (certification in progress)
Routing and transparent (bridge) modes
Stateful packet inspection
User-aware policy enforcement
SIP/H.323 NAT traversal
ALG support for customized ports
Protocol anomaly detection and protection
Traffic anomaly detection and protection
Flooding detection and protection
DoS/DDoS protection |
IPv6 Support | IPv6 Ready gold logo (certification in progress)
Dual stack
IPv4 tunneling (6rd and 6to4 transition tunnel)
IPv6 addressing
DNS
DHCPv6
Bridge
VLAN
PPPoE
Static routing
Policy routing
Session control
Firewall and ADP
IPSec VPN
Intrusion Detection and Prevention (IDP)
Application intelligence and optimization
Content filtering
Anti-virus, anti-malware
Anti-spam |
IPSec VPN | ICSA-certified IPSec VPN (certification in progress)
Encryption: AES (256-bit), 3DES and DES
Authentication: SHA-2 (512-bit), SHA-1 and MD5
Key management: manual key, IKEv1 and IKEv2 with EAP
Perfect forward secrecy (DH groups) support 1, 2, 5
IPSec NAT traversal
Dead peer detection and relay detection
PKI (X.509) certificate support
VPN concentrator
Simple wizard support
VPN auto-reconnection
VPN High Availability (HA): load-balancing and failover
L2TP over IPSec
GRE and GRE over IPSec
NAT over IPSec
Zyxel VPN client provisioning |
SSL VPN | Supports Windows and Mac OS X
Supports full tunnel mode
Supports 2-step authentication
Customizable user portal |
Intrusion Detection and Prevention (IDP) | Routing and transparent (bridge) mode
Signature-based and behavior-based scanning
Automatic signature updates
Customizable protection profile
Customized signatures supported |
Application Intelligence and Optimization | Granular control over the most important applications
Identifies and controls over 3,000 applications and behaviors
Supports over 15 application categories
Application bandwidth management
Supports user authentication
Real-time statistics and reports |
Anti-Virus | Supports Kaspersky anti-virus signatures
Identifies and blocks over 650,000 viruses
Stream-based anti-virus engine
HTTP, FTP, SMTP, POP3 and IMAP4 protocol support
Automatic signature updates
No file size limitation |
Anti-Spam | Transparent mail interception via SMTP and POP3 protocols
Configurable POP3 and SMTP ports
Sender-based IP reputation filter
Recurrent Pattern Detection (RPD) technology
Zero-hour virus outbreak protection
X-Header support
Blacklist and whitelist support
Supports DNSBL checking
Spam tag support
Statistics report |
Content Filtering | Social media filtering
Malicious Website filtering
URL blocking and keyword blocking
Blacklist and whitelist support
Blocks java applets, cookies and ActiveX
Dynamic, cloud-based URL filtering database
Unlimited user license support
Customizable warning messages and redirection URL |
Unified Security Policy | Unified policy management interface
Supported UTM features: anti-virus, antispam, IDP, content filtering, application intelligence, firewall (ACL)
3-tier configuration: object-based, profilebased, policy-based
Policy criteria: zone, source and destination IP address, user, time |
WLAN Management | Zyxel AP Controller (APC) 1.0 compliant
Client RSSI threshold to prevent sticky clients
IEEE 802.1x authentication
Captive portal Web authentication
Customizable captive portal page
RADIUS authentication
Wi-Fi Multimedia (WMM) wireless QoS
CAPWAP discovery protocol |
Mobile Broadband | WAN connection failover via 3G and 4G* USB modems
Auto fallback when primary WAN recovers* 4G USB modem support available in future firmware upgrades |
Networking | Routing mode, bridge mode and hybrid mode
Ethernet and PPPoE
NAT and PAT
VLAN tagging (802.1Q)
Virtual interface (alias interface)
Policy-based routing (user-aware)
Policy-based NAT (SNAT)
Dynamic routing (RIPv1/v2 and OSPF)
DHCP client/server/relay
Dynamic DNS support
WAN trunk for more than 2 ports
Per host session limit
Guaranteed bandwidth
Maximum bandwidth
Priority-bandwidth utilization
Bandwidth limit per user
Bandwidth limit per IP |
Authentication | Local user database
Microsoft Windows Active Directory integration
External LDAP/RADIUS user database
XAUTH, IKEv2 with EAP VPN authentication
Web-based authentication
Forced user authentication (transparent authentication)
IP-MAC address binding
SSO (Single Sign-On) support (Download SSO Agent) |
System Management | Role-based administration
Multiple administrator logins
Multi-lingual Web GUI (HTTPS and HTTP)
Command line interface (console, Web console, SSH and TELNET)
SNMP v2c (MIB-II)
System configuration rollback
Firmware upgrade via FTP, FTP-TLS and Web GUI
Dual firmware images |
Logging/Monitoring | Comprehensive local logging
Syslog (to up to 4 servers)
Email alerts (to up to 2 servers)
Real-time traffic monitoring
Built-in daily report
Advanced reporting with Vantage Report |
