ZyXel ZYXEL ZyWALL USG60 Next Generation Unified Security Gateway 1 ปี Security License Pack
    • ZyXel ZYXEL ZyWALL USG60 Next Generation Unified Security Gateway 1 ปี Security License Pack
    • ZyXel ZYXEL ZyWALL USG60 Next Generation Unified Security Gateway 1 ปี Security License Pack
    • ZyXel ZYXEL ZyWALL USG60 Next Generation Unified Security Gateway 1 ปี Security License Pack
    • ZyXel ZYXEL ZyWALL USG60 Next Generation Unified Security Gateway 1 ปี Security License Pack
    • ZyXel ZYXEL ZyWALL USG60 Next Generation Unified Security Gateway 1 ปี Security License Pack
    • ZyXel ZYXEL ZyWALL USG60 Next Generation Unified Security Gateway 1 ปี Security License Pack
    • ZyXel ZYXEL ZyWALL USG60 Next Generation Unified Security Gateway 1 ปี Security License Pack

    ZYXEL ZyWALL USG60 Next Generation Unified Security Gateway 1 ปี Security License Pack

    ZyXel

    ZYXEL ZyWALL USG60 Next Generation Unified Security Gateway, VPN Tunnels, SSL VPN, 2 WAN, 4 LAN/DMZ (Includes 1 Year License Pack Anti Virus/ IDP/ Content Filtering/ Anti Spam)

    เลือก Security & Service License Packs
    ฿21,000.00
    ยังไม่ได้รวมภาษี
    จำนวน

    รายละเอียด

    ZyWALL USG40/40W/60/60W Datasheet
    ZyWALL USG Series Handbook

    ZyWALL USG Series User Guide

    ZyWALL USG Series Quick Start Guide

    ZyXell ZyWALL USG60 Product Specification

    Overview

    ZyXell ZyWALL USG60 - Next Generation Unified Security Gateway 40 VPN Tunnels, SSL VPN, 2 Port WAN Gigabit, 4 Port LAN/DMZ Gigabit

    Security และ Service License รองรับ Anti-Virus, IDP, Content Filtering, Anti-Spam

    Bundled License SecuReporter (Cloud Log / Security Analysis Report)

    Bundle ARS (NBD) พร้อม 9 x 6 Technical Support (ภาษาไทย)

    USG40 Enterprise Pack - 1Y

    - 1 ปี Security License Pack รองรับ Anti Virus/ IDP/ Content Filtering/ Anti Spam
    - 1 ปี SecuReporter
    - 1 ปี ARS Advance Replacement Service
    - 1 ปี 9 x 6 Technical Support

    รับประกัน

    ประกัน Limited Lifetime (เงื่อนไขการรับประกัน)

    Hardware Specifications

    10/100/1000 Mbps RJ-45 ports

    4 x LAN/DMZ,
    2 x WAN

    USB ports

    2

    Console port

    Yes (DB-9)

    Rack-mountable

    Yes-

    Fanless

    Yes

    System Capacity & Performance*1



    SPI firewall throughput (Mbps)*2

    1,000

    VPN throughput (Mbps)*3

    180

    IDP throughput (Mbps)*4

    120

    AV throughput (Mbps)*4

    90

    UTM throughput (AV and IDP)*4

    90

    Unlimited user licenses

    Yes

    Max. TCP concurrent sessions*5

    40,000

    New TCP session rate

    3,000

    Max. concurrent IPsec VPN tunnels

    20

    Max. concurrent SSL VPN users

    12

    Included SSL VPN user no.

    2

    Customizable zones

    Yes

    IPv6 support

    Yes

    VLAN interface

    168

    WLAN Management

    AP Controller (APC) ver.

    1.0

    Managed AP number (default/max.)

    2/10

    Key Software Features

    Virtual Private Network (VPN)

    Yes (IPSec, SSL, L2TP over IPSec)

    Firewall

    Yes

    Anti-Virus (AV)

    Yes

    Anti-spam

    Yes

    Content Filtering (CF)

    Yes

    Application intelligence and optimization

    Yes

    Intrusion Detection and Prevention (IDP)

    Yes

    Single Sign-On (SSO)

    Yes

    WLAN controller

    Yes

    Power Requirements



    Power input

    12 V DC, 2.0 A max.

    Max. power consumption (watt)

    19.0

    Physical Specifications



    Dimensions (WxDxH)(mm/in.)

    242 x 175 x 36 / 9.53 x 6.89 x 1.42

    Weight (kg/lb.)

    1.25 / 2.76

    Included accessories

    Power adapter
    DB9 - RJ45 cable for console connection

    Environmental Specifications



    Operating temperature

    0?C to 40?C (32?F to 104?F)

    Storage temperature

    -30?C to 70?C (-22?F to 158?F)

    Operating humidity

    10% to 90%(non-condensing)

    Storage humidity

    10% to 90%(non-condensing)

    MTBF (hr)

    815,463.9

    Certifications



    EMC

    FCC Part 15 (Class B), CE EMC(Class B), C-Tick (Class B), BSMI

    Safety

    LVD (EN60950-1), BSMI

    Features:



    Firewall

    ICSA-certified firewall (certification in progress)
    Routing and transparent (bridge) modes
    Stateful packet inspection
    User-aware policy enforcement
    SIP/H.323 NAT traversal
    ALG support for customized ports
    Protocol anomaly detection and protection
    Traffic anomaly detection and protection
    Flooding detection and protection
    DoS/DDoS protection

    IPv6 Support

    IPv6 Ready gold logo (certification in progress)
    Dual stack
    IPv4 tunneling (6rd and 6to4 transition tunnel)
    IPv6 addressing
    DNS
    DHCPv6
    Bridge
    VLAN
    PPPoE
    Static routing
    Policy routing
    Session control
    Firewall and ADP
    IPSec VPN
    Intrusion Detection and Prevention (IDP)
    Application intelligence and optimization
    Content filtering
    Anti-virus, anti-malware
    Anti-spam

    IPSec VPN

    ICSA-certified IPSec VPN (certification in progress)
    Encryption: AES (256-bit), 3DES and DES
    Authentication: SHA-2 (512-bit), SHA-1 and MD5
    Key management: manual key, IKEv1 and IKEv2 with EAP
    Perfect forward secrecy (DH groups) support 1, 2, 5
    IPSec NAT traversal
    Dead peer detection and relay detection
    PKI (X.509) certificate support
    VPN concentrator
    Simple wizard support
    VPN auto-reconnection
    VPN High Availability (HA): load-balancing and failover
    L2TP over IPSec
    GRE and GRE over IPSec
    NAT over IPSec
    Zyxel VPN client provisioning

    SSL VPN

    Supports Windows and Mac OS X
    Supports full tunnel mode
    Supports 2-step authentication
    Customizable user portal

    Intrusion Detection and Prevention (IDP)

    Routing and transparent (bridge) mode
    Signature-based and behavior-based scanning
    Automatic signature updates
    Customizable protection profile
    Customized signatures supported

    Application Intelligence and Optimization

    Granular control over the most important applications
    Identifies and controls over 3,000 applications and behaviors
    Supports over 15 application categories
    Application bandwidth management
    Supports user authentication
    Real-time statistics and reports

    Anti-Virus

    Supports Kaspersky anti-virus signatures
    Identifies and blocks over 650,000 viruses
    Stream-based anti-virus engine
    HTTP, FTP, SMTP, POP3 and IMAP4 protocol support
    Automatic signature updates
    No file size limitation

    Anti-Spam

    Transparent mail interception via SMTP and POP3 protocols
    Configurable POP3 and SMTP ports
    Sender-based IP reputation filter
    Recurrent Pattern Detection (RPD) technology
    Zero-hour virus outbreak protection
    X-Header support
    Blacklist and whitelist support
    Supports DNSBL checking
    Spam tag support
    Statistics report

    Content Filtering

    Social media filtering
    Malicious Website filtering
    URL blocking and keyword blocking
    Blacklist and whitelist support
    Blocks java applets, cookies and ActiveX
    Dynamic, cloud-based URL filtering database
    Unlimited user license support
    Customizable warning messages and redirection URL

    Unified Security Policy

    Unified policy management interface
    Supported UTM features: anti-virus, antispam, IDP, content filtering, application intelligence, firewall (ACL)
    3-tier configuration: object-based, profilebased, policy-based
    Policy criteria: zone, source and destination IP address, user, time

    WLAN Management

    Zyxel AP Controller (APC) 1.0 compliant
    Client RSSI threshold to prevent sticky clients
    IEEE 802.1x authentication
    Captive portal Web authentication
    Customizable captive portal page
    RADIUS authentication
    Wi-Fi Multimedia (WMM) wireless QoS
    CAPWAP discovery protocol

    Mobile Broadband

    WAN connection failover via 3G and 4G* USB modems
    Auto fallback when primary WAN recovers* 4G USB modem support available in future firmware upgrades

    Networking

    Routing mode, bridge mode and hybrid mode
    Ethernet and PPPoE
    NAT and PAT
    VLAN tagging (802.1Q)
    Virtual interface (alias interface)
    Policy-based routing (user-aware)
    Policy-based NAT (SNAT)
    Dynamic routing (RIPv1/v2 and OSPF)
    DHCP client/server/relay
    Dynamic DNS support
    WAN trunk for more than 2 ports
    Per host session limit
    Guaranteed bandwidth
    Maximum bandwidth
    Priority-bandwidth utilization
    Bandwidth limit per user
    Bandwidth limit per IP

    Authentication

    Local user database
    Microsoft Windows Active Directory integration
    External LDAP/RADIUS user database
    XAUTH, IKEv2 with EAP VPN authentication
    Web-based authentication
    Forced user authentication (transparent authentication)
    IP-MAC address binding
    SSO (Single Sign-On) support (Download SSO Agent)

    System Management

    Role-based administration
    Multiple administrator logins
    Multi-lingual Web GUI (HTTPS and HTTP)
    Command line interface (console, Web console, SSH and TELNET)
    SNMP v2c (MIB-II)
    System configuration rollback
    Firmware upgrade via FTP, FTP-TLS and Web GUI
    Dual firmware images

    Logging/Monitoring

    Comprehensive local logging
    Syslog (to up to 4 servers)
    Email alerts (to up to 2 servers)
    Real-time traffic monitoring
    Built-in daily report
    Advanced reporting with Vantage Report

    Note:
    *1: Actual performance may vary depending on network conditions and activated applications.
    *2: Maximum throughput based on RFC 2544 (1,518-byte UDP packets).
    *3: VPN throughput measured based on RFC 2544 (1,424-byte UDP packets).
    *4: AV and IDP throughput measured using the industry standard HTTP performance test (1,460-byte HTTP packets). Testing done with multiple flows.
    *5: Maximum sessions measured using the industry standard IXIA IxLoad testing tool.
    6: Product availability varies by country and region. Please contact local sales team regarding availability in your region.

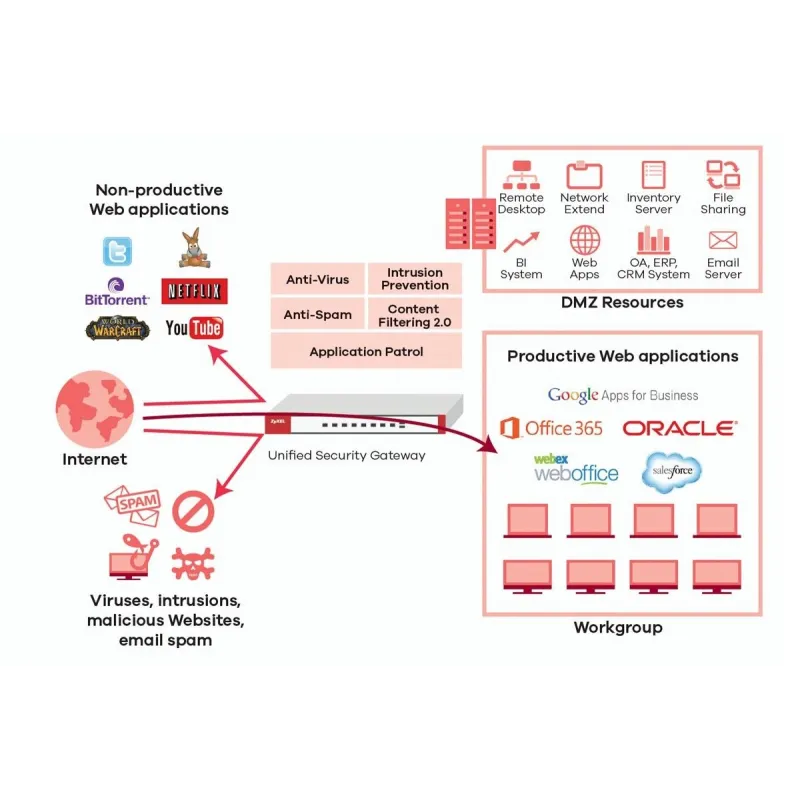

    Anti-Malware Protection and Application Optimization

    • Enabling anti-virus, anti-spam and intrusion prevention, business networks gain deep, extensive protection against all types of malware threats
    • Content filtering enables businesses to deny access to Websites that are malicious or not business-related
    • Application intelligence technology not only enable businesses to block or throttle non-productive Web applications, but also optimize Web applications that increase productivity

    Anti-Malware Protection and Application Optimization

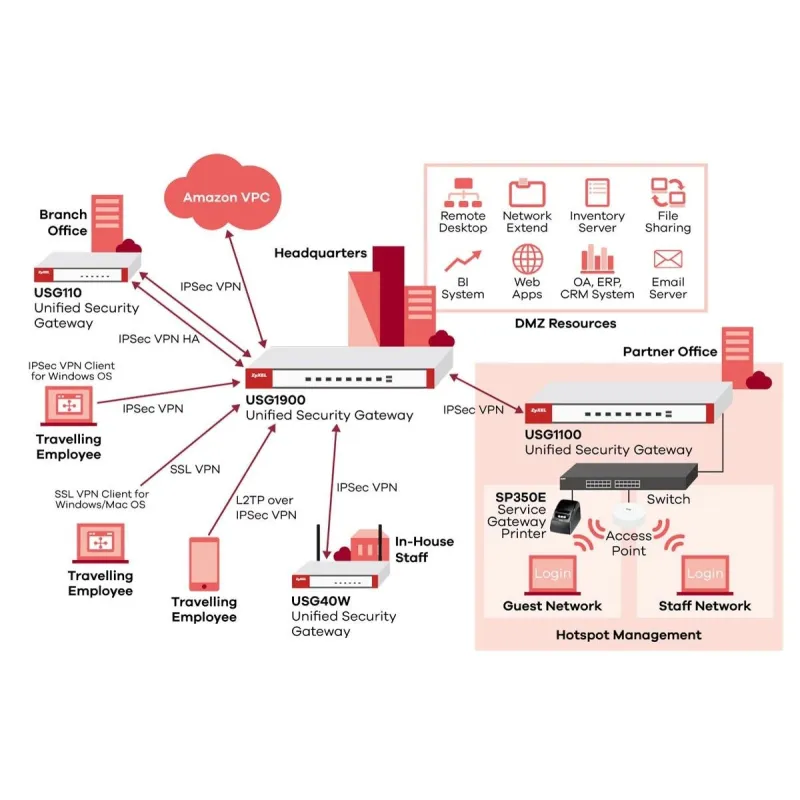

    VPN Application

    • Branch offices, partners and home users can deploy Zyxel USGs/ ZyWALLs for site-to-site IPSec VPN connections
    • Branch offices can additionally deploy IPSec VPN HA (load balancing and failover) for always online VPN connectivity
    • Remote users can securely access company resources with their computers or smartphones via SSL, IPSec and L2TP over IPSec VPN
    • The headquarter USG/ZyWALL can also establish an IPSec VPN connection with Microsoft Azure for secured access to a variety of cloud-based applications

    VPN Application

    รายละเอียดสินค้า
    20 รายการ

    Data sheet

    จำนวน WAN/ Internet
    2 Wan/Internet
    รองรับ VPN
    Yes
    รองรับ 3G/ 4G LTE
    3G/4G USB Dongle
    มี Firewall
    Yes

    รับติดตั้ง , Setup ระบบเชื่อมต่อเครือข่ายระหว่างสาขาด้วย VPN Site To Stite

    • Setup ง่าย ไม่ยุ่งยาก, รองรับ Dynamic DNS
    • รองรับการทำ VPN Link Backup ถ้า Internet เส้นหลักล่ม ก็ยังใช้ VPN ได้ปกติ (SD-WAN)
    • รองรับการทำ VPN ผ่านเครือข่าย 4G LTE

    VPN Virtual Private Network

    • เลือกใช้ Internet แต่ละคู่สายต่างค่ายกัน เพื่อความเสถียรในกรณีที่ค่ายใดค่ายนึงมีปัญหา ยังสามารถใช้งาน Internet รวมถึง VPN ได้
    • ใช้ 4G LTE Dongle/Aircard เป็น Link-VPN Backup ในกรณีที่สาย Internet Fiber/ Cable มีปัญหา หรือ สายขาด

    vpn sd wan link backup

    ระบบจะทำการเชื่อมวง Network แต่ละสาขาเข้าด้วยกัน สามารถ Share File, Printer, Database, VOIP

    Share File / Printer ระหว่างสาขา

    vpn share file share printer

    vpn connect remote network

    โทรศัพท์ระหว่างสาขาหากันฟรีด้วย VOIP ผ่าน VPN

    vpn voip ip-pbx

    ใช้ Smart-Phone เชื่อมเครือข่ายกับสาขาด้วย VPN Client To Site ถ้าใช้ร่วมกับ App Zoiper โทรผ่าน VOIP ทำให้โทรหาสาขาได้ฟรี

    vpn smart phone client to site l2tp ipsecs

    เชื่อมต่อฐานข้อมูลที่เป็น RDBMS เช่น MS SQL, Oracle, MySQL ได้ง่าย โดยการสร้าง Connection String ชี้ไปที่ Databse Server ได้เลย

    vpn connect database server

    ความเร็วในการเชื่อมต่อ VPN ได้เทียบเท่าค่า Upload ตาม Package ที่สมัคร

    vpn connection speed

    VPN connection speed
