Ubiquiti Unifi U6-Enterprise Datasheet

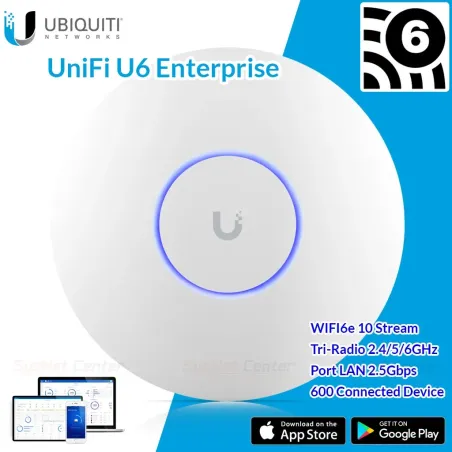

U6 Enterprise WIFI 6E Ubiquiti Unifi Access Point
High-performance, ceiling-mounted WiFi 6E access point designed to provide seamless, multi-band coverage within high-density client environments.
|
Product Specification
|
|
Overview
|
Ubiquiti UniFi 6 Enterprise Access Point U6-Enterprise
Wireless Access Point มาตรฐาน WIFI 6E ความถี่ 2.4/5/6GHz Band 4x4 MU-MIMO ความเร็วสูงสุด 10.2Gbps รองรับ 600 Client
Port Lan ความเร็ว 2.5Gbps
|
| Dimensions |
Ø220 x 48.1 mm (Ø8.66 x 1.89") |
| Weight |
Without mount: 960 g (2.1 lb)
With mount: 1090 g (2.4 lb) |
| Enclosure materials |
Top housing: plastic
Bottom housing: aluminum |
| Mount material |
SGCC steel |
| Management interface |
Ethernet
Bluetooth |
| Networking interface |

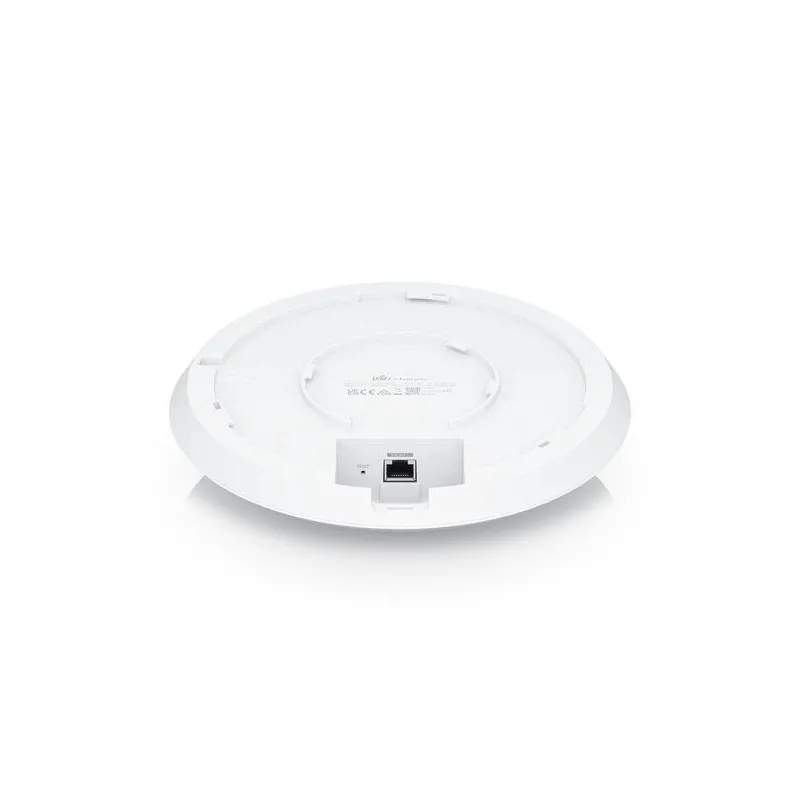

(1) 2.5GbE RJ45 port |
| Button |
Reboot and factory-reset |
| LED |
W/B |
| Power method |
PoE+ |
| Power supply |
UniFi PoE switch
48V, 0.5A PoE adapter (optional) |
| Supported voltage range |
44 - 57VDC |
| Max. power consumption |
22W |
Max. TX power
2.4 GHz
5-7 GHz |
22 dBm
26 dBm |
MIMO
2.4 GHz
5 GHz
6 GHz |
2 x 2 (UL MU-MIMO)
4 x 4 (DL/UL MU-MIMO)
4 x 4 (DL/UL MU-MIMO) |
Throughput rate
2.4 GHz
5 GHz
6 GHz |
573.5 Mbps
4.8 Gbps
4.8 Gbps |
Antenna gain
2.4 GHz
5 GHz
6 GHz |
3.2 dBi
5.3 dBi
6 dBi |

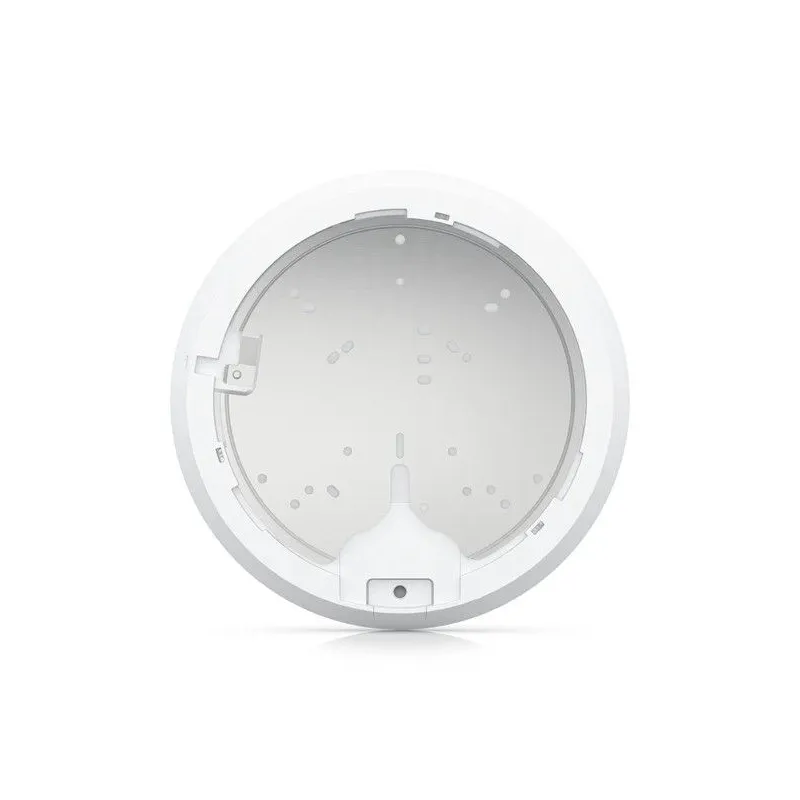

| Mounting |
Wall/ceiling (included) |
| Operating temperature |
-30 to 60° C (-22 to 140° F) |
| Operating humidity |
5 - 95% noncondensing |
| Certifications |
CE, FCC, IC |
| WiFi standards |
802.11a/b/g
WiFi 4/WiFi 5/WiFi 6/WiFi 6E |
| Wireless security |
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID |
8 per radio |
| VLAN |
802.1Q |
| Advanced QoS |
Per-user rate limiting |
| Guest traffic isolation |
Supported |
| Concurrent clients |
600+ |
| Zero wait DFS |
Yes |
| 802.11a |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b |
1, 2, 5.5, 11 Mbps |
| 802.11g |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) |
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| 802.11ac (WiFi 5) |
6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11ax (WiFi 6/6E) |
7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
|
รับประกัน
|
2 ปี
|
รายละเอียดสินค้า
10 รายการ
ข้อมูลสินค้า
- ลักษณะงาน Wireless
- กระจายสัญญาณ WIFI
- ความเร็ว มาตรฐาน WIFI
- WIFI-6 (ax) 1.7Gbps+
WIFI-6E (ax+6GHz): 4Gbps+)
- ย่านความถี่
- Tri-Band 2.4/5/6GHz
- รองรับ Controller
- Hardware Controller
- Mode Repeate/WDS/MESH
- MESH
- รองรับ POE
- Yes
