Product Specification
|
|
Overview
|

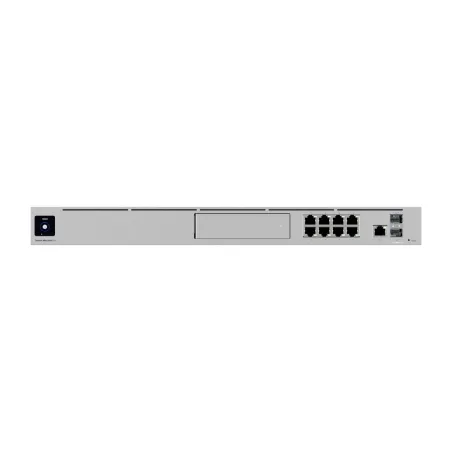

UDM-Pro-MAX Ubiquiti Dream Machine Pro MAX
อุปกรณ์ Unifi รวม Security Gateway, L2-Managed Switch 8 Port Gigabit, พร้อม HDD SSD ความจุ 128GB สำหรับบันทึกวีดีโอจากกล้อง Unifi Camera (แนะนำใช้ HDD ขนาด 1-2TB สำหรับบันทึกวีดีโอ)
รองรับความเร็ว Internet Throughput 5Gbps
พร้อม Software UniFi Network Controller, Unifi Protect, Unifi Access
2 SFP+ Port ความเร็ว 10Gpbs, UniFi Protect Software
|
|
|
รองรับ 3.5" HDD Bay (หรือ 2.5" HDD) สำหรับบันทึกภาพจาก Ubiquiti Unifi Camera (ไม่มี Harddisk ในชุด)
|
Mechanical
|
|
Dimensions
|
442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
|
|
Weight
|
4.7 kg (10.4 lb)
|
|
Enclosure material
|
Aluminium CNC, SGCC steel
|
|
Mount material
|
SGCC steel
|
Hardware
|
|
Processor
|
Quad-core ARM® Cortex®-A57 at 2.0 GHz
|
|
System memory
|
8 GB DDR4
|
|
On-board storage
|
32 GB eMMC
Integrated 128 GB SSD |
|
Management interface
|
Ethernet
Bluetooth |
|
Networking interface
|
LAN:
(8) GbE RJ45 ports
(1) 10G SFP+ port
WAN:
(1) 2.5 GbE RJ45 port
(1) 10G SFP+ port |
|
IDS/IPS throughput
|
5 Gbps*
*Measured with iPerf3 on a DHCP network. Performance may be reduced with PPPoE depending on ISP implementation. |
|
Power method
|
(1) Universal AC input, 100—240V AC, 2A Max., 50/60 Hz
(1) USP-RPS DC input, 11.5V DC, 8.7A |
|
Power supply
|
AC/DC, internal, 100W
|
|
Supported voltage range
|
100—240V AC
|
|
Max. power consumption
|
100W
|
|
ESD/EMP protection
|
Air: ± 15kV, contact: ± 8kV
|
|
LCM display
|
(1) 1.3" touchscreen
|
|
Button
|
Factory reset
|
|
Ambient operating temperature
|
-10° to 40° C (14° to 104° F)
|
|
Ambient operating humidity
|
5 to 95% noncondensing
|
|
Certifications
|
CE, FCC, IC
|
Gateway Features
|
|
Performance
|
Redundant WAN with failover and load balancing
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting |
|
Next-generation security
|
Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall |
|
Advanced networking
|
License-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support |
LEDs
|
|
Ethernet
|
Green: link/activity
|
|
SFP+
|
Green: link/activity
|
|
HDD
|
White: disk activity
Amber: disk error |
|
RPS
|
Blue: ready
|
Additional Features
|
|
Automatic QoS
|
Top QoS priority is assigned to voice and video traffic.
|
|
VPN Server for Secure Communications
|
site-to-site VPN secures and encrypts private data communications traveling over the internet.
|
|
Convenient VLAN Support
|
The UDM Pro can create virtual network segments for security and network traffic management.
|
|
Innovative Display
|
The 1.3" touchscreen displays status information for easy monitoring and quick troubleshooting.
|
Scalable UniFi Network Controller
|
|
Management Capabilities
|
The UniFi Network Controller can provision UniFi devices, map out networks, and quickly manage system traffic. Important network details are logically organized for a simplified, yet powerful, interface.
|
|
Network Overview
|
From a single pane of glass, view network topology and configuration, real-time statistics, and debugging metrics. Monitor your network's vitals and make on-the-fly adjustments as needed.
|
|
Deep Packet Inspection
|
Ubiquiti's proprietary Deep Packet Inspection (DPI) engine includes the latest application identification signatures to track which applications (and IP addresses) are using the most bandwidth.
|
|
Detailed Analytics
|
The UniFi Network Controller provides configurable reporting and analytics to manage large user populations and expedite troubleshooting. Advanced search and sorting capabilities make network management more efficient.
|
|
Multi-Site Management
|
A single controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi‑tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and administrator accounts.
|
|
Switch Port Configuration
|
You can configure a variety of switch port features:
Operation mode (switching, mirroring, or aggregate) per port
Network/VLAN configuration
Jumbo frame and flow control services
Network settings
Storm control setting per port
Spanning tree configuration
802.1X control and RADIUS VLAN
Debug terminal option for command-line interface
|
|
Switch Port Status
|
You can also view status information for each port:
Connection speed and duplex mode
TX/RX data rates
Network/VLAN setting
|
|
Software Features
|
The UniFi Network Controller software offers the following features:
Centralized configuration management (including configuration cloning)
Auto-MDIX automatically adjusts as needed for straight through or crossover cable
802.1X (RADIUS) authentication and dynamic VLAN
|
|
รับประกัน
|
1 ปี
|
|
|
|
