ACTi Bullet E31 Datasheet
งานตัวอย่างที่ใช้กล้อง ACTi IP-Camera

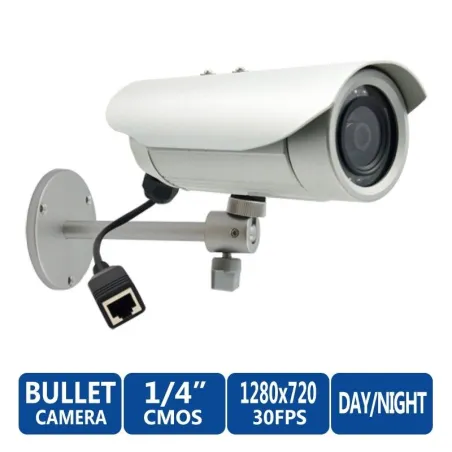

ACTi E31 WDR IR Day/Night 720P HD Bullet Security Camera Specifications
Device Type | Bullet camera |
Image Sensor | Progressive Scan CMOS |
Day/Night | Yes |
Minimum Illumination | Color: 0.1 lux at F1.8 (30 IRE, 2400°K); B&W: 0 lux (IR LED On) |
Color to B/W switch | ISP-based switch, configurable |
Mechanical IR Cut Filter | Yes |
IR Sensitivity Range | 700 to 1,100 nm |
IR LED | 20x IR LEDs (850 nm) |
IR Working Distance | 49.2' (15 m) (0 lux, 30 IRE, Max Exposure Gain) |
Electronic Shutter | 1/5 to 1/2,000 sec (Manual / Auto mode) |
|
Focal Length / Aperture | Fixed focal, f4.2 mm / F1.8 |
Iris | Fixed iris |
Focus | Fixed focus |
Lens Mount | Board mount |
Horizontal Viewing Angle | 55.9° |
|
Compression | H.264 HP, MJPEG |
Maximum Frame Rate vs. Resolution | 30 fps at 1280 x 720 (HD 720p); 30 fps at 640 x 480 (VGA) |
Multi-Streaming | Simultaneous dual streams based on 2 configurations |
Bit Rate | 28 Kbps to 6 Mbps (per stream) |
Bit Rate Mode | Constant, Variable |
Image Enhancement | Basic WDR; white balance: automatic, hold, and manual; Brightness; Contrast; Auto gain control; Digital noise reduction; Flicker-less |
Privacy Mask Type | 4 configurable regions |
Text Overlay | User-defined text on video |
Image Orientation | Image flip and mirror |
|
Protocol | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP,RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP,IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
Ethernet Port | 1, Ethernet (10/100 Base-T), RJ-45 connector |
Security | IP address filtering; HTTPS encryption; Password-protected user levels; IEEE 802.1X network access control |
|
Alarm Triggers | Video motion detection (3 regions) |
Alarm Response | Notify control center; Change camera settings; Command other devices; Email notification with snapshots; Upload video, snapshot to FTP server |
|
Power Source and Consumption | PoE Class 2 (IEEE802.3af) / 5.41 W (IR On) |
Mount Type | Wall, Ceiling, Corner, Pole |
Environmental Casing | Weatherproof (IP66 rated) |
Operating Temperature | -4 to 122°F (-20 to 50°C) |
Operating Humidity | 10 to 85% RH |
Approvals | CE, FCC, IP66 |
|
Unified Solution | Fully compatible with ACTi software |
ISV Integration | Software Development Kit (SDK) available; ONVIF compliant |
Firmware Access Browser | Microsoft Internet Explorer 6.0 or newer |
Dimensions (Ø x H) | 3.04 x 7.7" (77 x 196.74 mm) |
Weight | 1.29 lb (0.58 kg) |
สินค้ารับประกัน 3 ปี
