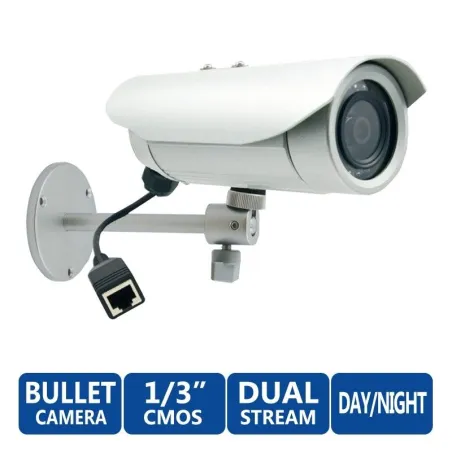

ACTi Bullet E34 ความละเอียด 3MP 1080p/30fps Day/Night Adaptive IR, Superior WDR, Fixed lens, f3.6mm/F1.8, H.264, DNR, PoE, IP66, IK10 (Metal casing)
สอบถามข้อมูลสินค้าเพิ่มเติม
LINE ID: @sysnet โทร: 02 102 4284
Click ต้องการใบเสนอราคา
ACTi Live! Demo เข้ามาชมความคมชัด และความสามารถในการบันทึกภาพในสภาวะแสง หลากหลายรุ่น
ใช้ Internet Explorer พิมพ์ URL มาที่
http://nvkvpn0.dyndns.org
UserName: guest / Password: guest123
ACTi Bullet E34 Datasheet
งานตัวอย่างที่ใช้กล้อง ACTi IP-Camera
ACTi E34 Outdoor 3 Megapixel IR Day/Night Bullet IP Security Camera Specifications
Image Sensor | Progressive scan CMOS |
Sensor Size | 1/3" |
Minimum Illumination | Color: 0.1 lux at F2.0 (30 IRE, 2400°K) |
Color to B/W switch | ISP based switch, configurable |
IR Sensitivity Range | 700 to 1100 nm |
IR LED | IR LED x 10 (850 nm) |
IR Working Distance | 15 m (0 lux, 30 IRE, maximum exposure gain) |
Electronic Shutter | 1/5 to 1/2,000 sec (manual mode), 1/5 to 1/10,000 sec (auto mode) |
Focal Length / Aperture | Fixed focal, f3.6 mm / F1.8 |
Iris | Fixed |
Focus | Fixed |
Mount Type | Board |
Horizontal Viewing Angle | 85.1° |
Viewing Angle Adjustment | Pan: 0 to 360° |
Compression | H.264 high profile, MJPEG |
Maximum Frame Rate vs. Resolution | 15 fps at 2048 x 1536 |
Multi-Streaming | Simultaneous dual streams based on 2 configurations |
Bit Rate | 28 kb/s to 6 Mb/s (per stream) |
Bit Rate Mode | Constant, variable |
Image Enhancement | Superior WDR; White balance: automatic, hold, and manual; Brightness; Contrast; Sharpness(auto); Auto gain control; Digital noise reduction; Flickerless |
Privacy Mask Type | 4 configurable regions |
Text Overlay | User-defined text on video |
Image Orientation | Flip and mirror |
Protocol | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
Ethernet Port | 1, Ethernet (10/100 Base-T), RJ-45 connector |
Security | IP address filtering; HTTPS encryption; password-protected user levels; IEEE 802.1X network access control |
Alarm Triggers | Video motion detection (3 regions) |
Alarm Response | Notify control center; change camera settings; command other devices; send email notifications with snapshots; upload videos or snapshots to FTP server |
Power Source and Consumption | PoE Class 2 (IEEE802.3af) / 4.7 W (IR on) |
Mount Type | Wall, ceiling, corner, pole |
Environmental Casing | Weatherproof (IP66 rated) |
Operating Temperature | -4 to 122°F (-20 to 50°C) |
Operating Humidity | 10 to 85% RH |
Approvals | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IP66 |
Unified Solution | Fully compatible with ACTi software |
ISV Integration | Software Development Kit (SDK) available (sold separately), ONVIF compliant |
Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer versions (full functionality) and other browsers with VLC installed (partial functionality) |
Dimensions (Ø x L) | 3.04 x 7.7" (77.00 x 196.74 mm) |
Weight | 1.29 lb (0.58 kg) |
สินค้ารับประกัน 3 ปี
