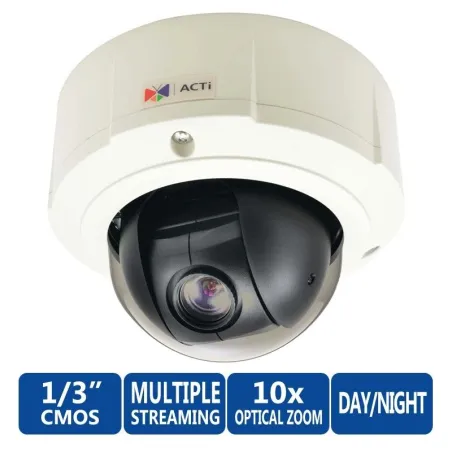

ACTi Mini PTZ B94 1.3MP 720p/60fps Outdoor Day/Night, Basic WDR, SLLS, 10x Zoom lens, f4.9-49mm/F1.8-3.0, DC iris, H.264, DNR, Audio, MicroSD, PoE/DC12V, IP66, IK10, DI/DO
สอบถามข้อมูลสินค้าเพิ่มเติม
LINE ID: @sysnet โทร: 02 102 4284
ACTi Live! Demo เข้ามาชมความคมชัด และความสามารถในการบันทึกภาพในสภาวะแสง หลากหลายรุ่น
ใช้ Internet Explorer พิมพ์ URL มาที่
http://nvkvpn0.dyndns.org
UserName: guest / Password: guest123
ACTi PTZ B94 Datasheet
งานตัวอย่างที่ใช้กล้อง ACTi IP-Camera
ACTi B94 1.3 Mp Basic WDR Mini PTZ Day & Night Outdoor Dome PoE Camera with 10x Zoom Lens
Image Sensor | Progressive Scan CMOS |
Sensor Size | 1/3" |
Minimum Illumination | Color: 0.1 lux at F1.8 (30 IRE, 2400°K) |
Color to B/W Switch | ISP based switch, configurable |
IR Sensitivity Range | 700 to 1,100 nm |
Electronic Shutter | 1/5 to 1/2,000 sec (manual mode) |
Focal Length / Aperture | Zoom, f4.9 to 49 mm / F1.8 to 3.0 |
Zoom Ratio | 10x optical |
Zoom Speed | Maximum 2 seconds |
Iris | DC iris |
Focus | Auto focus |
Lens Mount | Board mount |
Horizontal Viewing Angle | 52.12 to 5.9° |
Compression | H.264 HP, MJPEG |
Maximum Frame Rate vs. Resolution | 30 fps at 1280 x 960 |
Multi-Streaming | Simultaneous dual streams based on 2 configurations |
Bit Rate | 28 kb/s to 6 Mb/s (per stream) |
Image Enhancement | Basic WDR 83.5 dB |
Text Overlay | User-defined text on video |
Image Orientation | Image flip and mirror |
Protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
Ethernet Port | 1, Ethernet (10/100 Base-T), RJ-45 connector |
Security | IP address filtering |
Alarm Triggers | Video motion detection (3 regions) |
Alarm Response | Notify control center |
Digital In/Out | 2, Terminal block |
Local Storage | microSDHC / microSDXC memory card slot 1 |
Unified Solution | Fully compatible with ACTi software |
ISV Integration | Software Development Kit (SDK) available |
Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality) |
Power Source and Consumption | PoE Class 3 IEEE802.3af / 12.95 W; 12 VDC / 10.36 W (adapter sold separately) |
Environmental Casing | Weatherproof (IP66 rated) Vandal proof (IK10), transparent dome cover (included) |
Mount Type | Surface, pendant, wall, corner, pole, flush, gang box |
Starting Temperature | 14 to 122°F (-10 to 50°C) |
Operating Temperature | 14 to 122°F (-10 to 50°C) |
Operating Humidity | 10 to 85% RH |
Dimensions (Ø x H) | 6.00 x 4.60" (15.24 x 11.68 cm) |
Weighing units | 2.78 lb (1.26 kg) |
สินค้ารับประกัน 3 ปี
ACTi B94 Brand comparison video
ACTi B94: Kilburn Park Station, London [Day]
ACTi B94 Train station installation in UK - Night time view
ACTi B94 Train station installation in UK - Day time view
ACTi B94 installation in Japan
