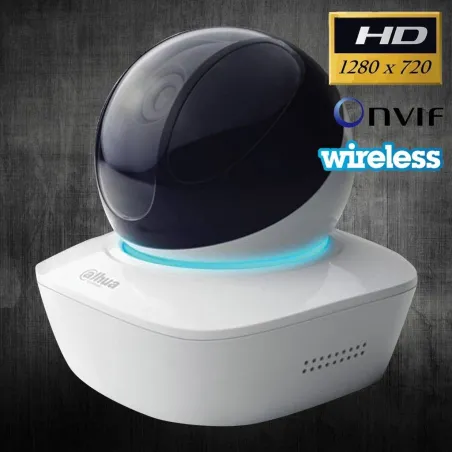

dahua DH-IPC-AW12WP IP Camera แบบ Wireless รองรับ Pan/Tilt ความละเอียด HD 720P, IR, บันทึกลง SD Card

Model

DH-IPC-AW12W

Camera

Image Sensor

1/4” Progressive scan CMOS

Effective Pixels

1280(H)x720(V)

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3s~1/30000s

Min. Illumination

0.01lux/F1.8(color)

S/N Ratio

More than 50dB

Video Output

N/A

Camera Features

Max. LEDs Length

10m

Day/Night

Auto(ICR) / Color / B/W

Backlight Compensation

BLC / HLC / DWDR

White Balance

Auto/Manual

Gain Control

Auto/Manual

Noise Reduction

3D

Lens

Focal Length

3.6mm

Max Aperture

F1.8

Focus Control

Manual

Angle of View

H:62?

Lens Type

Fixed Lens

Mount Type

Board-in Type

PT

Pan/ Tilt Range

Pan: 0?~355?; Tilt: 0?~90?

Preset Speed

100?/s

Preset

25

Tour

8

Video

Compression

H.264/H.264B/MJPEG

Resolution

720P(1280x720)/D1/CIF

Frame Rate

Main Stream: 720P(1~25/30fps)
Sub Stream: D1/CIF(1 ~ 25/30fps)

Bit Rate

H.264: 8Kbps~8192Kbps

Audio

Compression

G.711a;G.711Mu;AAC

Interface

Built-in Mic & Speaker

Network

Ethernet

RJ-45 (10/100Base-T)

Wi-Fi

Wi-Fi(IEEE802.11b/g/n) 50m(open field)

Protocol

IPv4/IPv6, HTTP, TCP/IP, UDP, UPnP, ICMP,
 IGMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,
FTP, QoS,

Compatibility

ONVIF CGI

Max. User Access

10 users

Smart Phone

iPhone, iPad, Android, Windows Phone

Auxiliary Interface

Memory Slot

Micro SD, up to 64GB

RS485

N/A

Alarm

N/A

PIR Sensor Range

N/A

General

Power Supply

DC 5V2A

Power Consumption

<7.5W

Working Environment

-10?C~+45?C, Less than 95%RH

Ingress Protection

N/A

Vandal Resistance

N/A

Dimensions(W?D?H)

94mm x 94mm x 94mm

Weight

0.36Kg

รับประกัน

1 ปี
