Product Specification
|
|
Overview
|

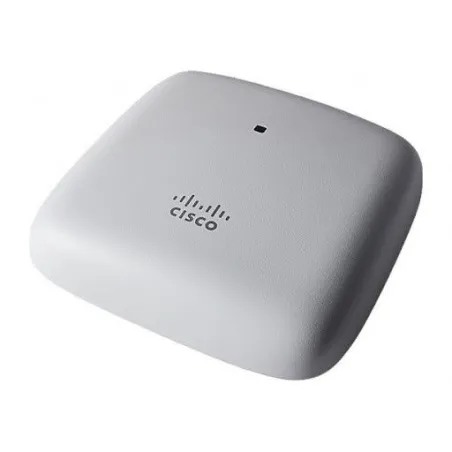

Cisco AIR-AP1815I-S-K9C Access Point 11ac 2x2:2 MU-MIMO Wave 2, Mobility Express เป็น Mode Controller ในตัว
|
|
Integrated antennas
|
2.4 GHz, gain 2 dBi
5 GHz, gain 4 dBi
|
|
Interfaces
|
1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE)
Management console port (RJ-45)
|
|
Indicators
|
Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
|
|
Dimensions (W x L x H)
|
Access point (without mounting bracket): 6 x 6 x 1.3 in (150.8 x 150.8 x 33 mm)
|
|
Weight
|
Access point without mounting bracket or any other accessories: 14 oz (400 g)
|
|
Environmental
|
Operating
Temperature: 32° to 104°F (0° to 40°C)
Humidity: 10% to 90% (noncondensing)
Max. altitude: 9843 ft (3000 m) @ 40°C
Nonoperating (storage and transportation)
Temperature: -22° to 158°F (-30° to 70°C)
Humidity: 10% to 90% (noncondensing)
Max. altitude: 15,000 ft (4500 m) @ 25°C
|
|
System
|
1 GB DRAM
256 MB flash
710 MHz quad core
|
|
Authentication and security
|
Advanced Encryption Standard (AES) for Wi-Fi Protected Access 2 (WPA2)
802.1X, RADIUS authentication, authorization, and accounting (AAA)
802.11r
802.11i
|
|
Software
|
Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 or later
Cisco Mobility Express
|
|
Supported WLAN Controllers
|
Cisco 2500 Series Wireless Controllers, Cisco 3500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco 9800 series Wireless Controllers, Cisco Mobility Express
|
|
Maximum clients
|
Maximum number of associated wireless clients: 200 per Wi-Fi radio, in total 400 clients per access point
|
|
802.11ac
|
2x2 single-user/multiuser MIMO with two spatial streams
Maximal ratio combining (MRC)
20-, 40- and 80-MHz channels
PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx)
802.11 Dynamic Frequency Selection (DFS)
Cyclic shift diversity (CSD) support
|
|
Ethernet ports
|
Authentication with 802.1X or MAC filtered
Dynamic VLAN or per port
Traffic locally switched or tunneled back to wireless LAN controller
|
|
Bluetooth (future availability)
|
Integrated Bluetooth 4.1 (including BLE) radio
Maximum transmit power: 4 dBm
Antenna gain: 2 dBi
|
|
Input power requirements
|
Power injector: AIR-PWRINJ5= or AIR-PWRINJ6=
|
|
Powering options
|
802.3af/at Ethernet switch
Optional Cisco power injectors (AIR-PWRINJ5=, AIR-PWRINJ6=)
|
|
Power draw
|
8.3W (maximum, on PoE)
|
|
Physical security
|
Torx security screw, included with the access point
|
|
Mounting
|
Included with the access point: mounting bracket AIR-AP-BRACKET8
|
|
Accessories
|
Mounting bracket: AIR-AP-BRACKET8= (available as spare)
Physical security kit: AIR-SEC-50= (sold separately), with 50 pcs. Security screws used to secure access point onto wall-mounting bracket, 50 pcs. RJ-45 caps and 2 pcs. unlock keys used to block physical access to Ethernet ports
|
|
Compliance
|
Safety:
UL 60950-1
CAN/CSA-C22.2 No. 60950-1
UL 2043
IEC 60950-1
EN 60950-1
Radio approvals:
FCC Part 15.247, 15.407
RSS-247 (Canada)
EN 300.328, EN 301.893 (Europe)
ARIB-STD 66 (Japan)
ARIB-STD T71 (Japan)
EMI and susceptibility (Class B)
FCC Part 15.107 and 15.109
ICES-003 (Canada)
VCCI (Japan)
EN 301.489-1 and -17 (Europe)
EN 50385
IEEE standards:
IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d
IEEE 802.11ac
Security:
802.11i, WPA2, WPA
802.1X
AES
Extensible Authentication Protocol (EAP) types:
EAP-Transport Layer Security (TLS)
EAP-Tunneled TLS (TTLS) or Microsoft Challenge
Handshake Authentication Protocol Version 2 (MSCHAPv2)
Protected EAP (PEAP) v0 or EAP-MSCHAPv2
EAP-Flexible Authentication via Secure Tunneling (FAST)
PEAP v1 or EAP-Generic Token Card (GTC)
EAP-Subscriber Identity Module (SIM)
Multimedia:
Wi-Fi Multimedia (WMM)
Other:
FCC Bulletin OET-65C
RSS-102
|
|
รับประกัน
|
Life Time Warranty
|
|
|
|
