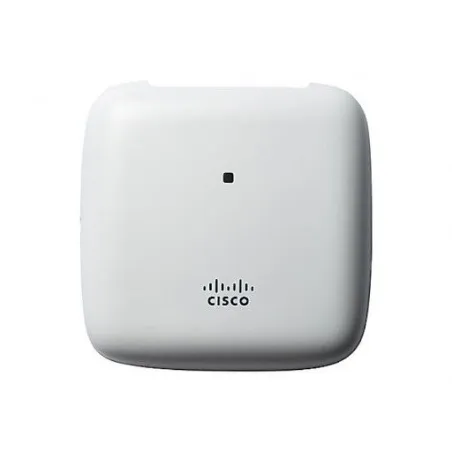

    Cisco AIR-AP1815M-S-K9C Access Point 11ac MU-MIMO High Power, Mobility Express


    Cisco AIR-AP1815M-S-K9C Access Point 11ac 2x2:2 MU-MIMO Wave 2 High Power, Mobility Express เป็น Mode Controller ในตัว



    Cisco Cisco Aironet 1815M Datasheet
    Cisco Aironet 1815M Geting Start Guide

    Product Specification


    Cisco AIR-AP1815M-S-K9C High Power Access Point 11ac 2x2:2 MU-MIMO Wave 2, Mobility Express เป็น Mode Controller ในตัว

    Higher Tx power

    With more than 3 dB (twice the transmit power) than the 1815i, the 1815m can penetrate walls and doors, making it ideal for deployment in hotels, dorm rooms, or other dense building locations.


    Multiuser (MU) Multiple-input, Multiple-output (MU-MIMO) allows simultaneous data transmission of data to multiple 802.11ac Wave 2–capable clients to improve the client experience. Prior to MU-MIMO, 802.11n and 802.11ac Wave 1 access points could transmit data to only one client at a time. This transmission was typically referred to as single-User MIMO (SU-MIMO).

    Cisco Mobility Express Solution

    Flexible deployment mode through the Mobility Express Solution is ideal for small to medium-sized deployments that require 50 or fewer access points. Easy setup allows deployment of the 1815m Series on networks without a physical controller.

    Integrated antennas

    2.4 GHz, gain 2 dBi
    5 GHz, gain 4 dBi


    1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE)
    Management console port (RJ-45)


    Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors

    Dimensions (W x L x H)

    Access point (without mounting bracket): 6 x 6 x 1.3 in (150.8 x 150.8 x 33 mm)


    Access point without mounting bracket or any other accessories: 460 g


    Temperature: 32° to 104°F (0° to 40°C)
    Humidity: 10% to 90% (noncondensing)
    Max. altitude: 9843 ft (3000 m) @ 40°C
    Nonoperating (storage and transportation)
    Temperature: -22° to 158°F (-30° to 70°C)
    Humidity: 10% to 90% (noncondensing)
    Max. altitude: 15,000 ft (4500 m) @ 25°C


    1 GB DRAM
    256 MB flash
    710 MHz quad core

    Authentication and security

    Advanced Encryption Standard (AES) for Wi-Fi Protected Access 2 (WPA2)
    802.1X, RADIUS authentication, authorization, and accounting (AAA)


    Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 or later
    Cisco Mobility Express

    Supported WLAN Controllers

    Cisco 2500 Series Wireless Controllers, Cisco 3500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco 9800 series Wireless Controllers, Cisco Mobility Express

    Maximum clients

    Maximum number of associated wireless clients: 200 per Wi-Fi radio, in total 400 clients per access point


    2x2 single-user/multiuser MIMO with two spatial streams
    Maximal ratio combining (MRC)
    20-, 40- and 80-MHz channels
    PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz)
    Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx)
    802.11 Dynamic Frequency Selection (DFS)
    Cyclic shift diversity (CSD) support

    Ethernet ports

    Authentication with 802.1X or MAC filtered
    Dynamic VLAN or per port
    Traffic locally switched or tunneled back to wireless LAN controller

    Bluetooth (future availability)

    Integrated Bluetooth 4.1 (including BLE) radio
    Maximum transmit power: 4 dBm
    Antenna gain: 2 dBi

    Input power requirements

    Power injector: AIR-PWRINJ5= or AIR-PWRINJ6=

    Powering options

    802.3af/at Ethernet switch
    Optional Cisco power injectors (AIR-PWRINJ5=, AIR-PWRINJ6=)

    Power draw

    Max power draw is 13.9W with 100 meters Category 5 cable

    Physical security

    Torx security screw, included with the access point


    Included with the access point: mounting bracket AIR-AP-BRACKET8


    Mounting bracket: AIR-AP-BRACKET8= (available as spare)
    Physical security kit: AIR-SEC-50= (sold separately), with 50 pcs. Security screws used to secure access point onto wall-mounting bracket, 50 pcs. RJ-45 caps and 2 pcs. unlock keys used to block physical access to Ethernet ports


    UL 60950-1
    CAN/CSA-C22.2 No. 60950-1
    UL 2043
    IEC 60950-1
    EN 60950-1

    Radio approvals:
    FCC Part 15.247, 15.407
    RSS-247 (Canada)
    EN 300.328, EN 301.893 (Europe)
    ARIB-STD 66 (Japan)
    ARIB-STD T71 (Japan)
    EMI and susceptibility (Class B)
    FCC Part 15.107 and 15.109
    ICES-003 (Canada)
    VCCI (Japan)
    EN 301.489-1 and -17 (Europe)
    EN 50385

    IEEE standards:
    IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d
    IEEE 802.11ac

    802.11i, WPA2, WPA

    Extensible Authentication Protocol (EAP) types:
    EAP-Transport Layer Security (TLS)
    EAP-Tunneled TLS (TTLS) or Microsoft Challenge
    Handshake Authentication Protocol Version 2 (MSCHAPv2)
    Protected EAP (PEAP) v0 or EAP-MSCHAPv2
    EAP-Flexible Authentication via Secure Tunneling (FAST)
    PEAP v1 or EAP-Generic Token Card (GTC)
    EAP-Subscriber Identity Module (SIM)

    Wi-Fi Multimedia (WMM)

    FCC Bulletin OET-65C


    Life Time Warranty




    10 รายการ

    Data sheet

    ลักษณะงาน Wireless
    กระจายสัญญาณ WIFI
    ความเร็ว Wireless
    WIFI-5 (802.11ac: 650Mbps+)
    Dual-Band 2.4/5GHz
    รองรับ Controller
    Hardware Controller
    รองรับ POE
