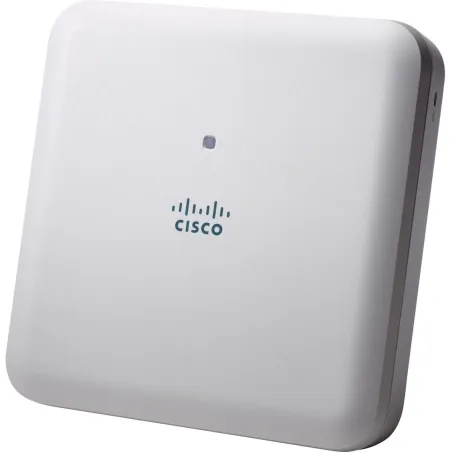

Cisco AIR-AP1832I-S-K9 Access Point 11ac 3x3 MU-MIMO, Mobility Express

Product Specification

Overview

Cisco AIR-AP1815M-S-K9C Access Point 11ac 3x3 MU-MIMO Wave 2 High Power, Mobility Express เป็น Mode Controller ในตัว

Software

Cisco Unified Wireless Network Software Release with AireOS wireless controllers:
8.1.121.0 or later for the Cisco Aironet 1830 Series Access Points

Deployment modes

Centralized, standalone, sniffer^**, Cisco FlexConnect^™, monitor^**, OfficeExtend^**, mesh^**

Supported wireless LAN controllers

Cisco 2500 Series Wireless Controllers, Cisco 3500 series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Cisco Catalyst ^® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex ^® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco 9800 series Wireless Controllers, Cisco 5760 Wireless LAN Controller, * ^* Cisco Catalyst 3650 and 3850 Series Switches with integrated controller ^**

Cisco Mobility Express

802.11n version 2.0 (and related) capabilities

802.11ac Wave 1 and 2 capabilities

3x3 MIMO with two spatial streams, single-user or multiuser MIMO
MRC
802.11ac beamforming (transmit beamforming)
20-, 40-, and 80-MHz channels
PHY data rates up to 867 Mbps (80 MHz in 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 DFS CSD support

Integrated antennas

2.4 GHz, gain 3 dBi, internal omni, horizontal beamwidth 360°
5 GHz, gain 5 dBi, internal omni, horizontal beamwidth 360°

Interfaces

1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE)
Management console port (RJ-45)
USB 2.0 (enabled via future software)

Indicators

Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors

Dimensions (W x L x H)

Access point (without mounting bracket): 8.3 x 8.3 x 2 in. (210.8 x 210.8 x 50.8 mm)

Weight

2.05 lb (930 grams)

Environmental

Cisco Aironet 1830i
Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)
Nonoperating (storage) altitude test: 25˚C, 15,000 ft.
Operating temperature: 32° to 104°F (0° to 40°C)
Operating humidity: 10% to 90% (noncondensing)
Operating altitude test: 40˚C, 9843 ft.

System

1 GB DRAM
256 MB flash

Input power requirements

AP1830: 44 to 57 VDC
Power supply and power injector: 100 to 240 VAC; 50 to 60 Hz

Power draw

15.4W
Note: When deployed using a PoE specification, the power drawn from the power sourcing equipment will be higher by some amount, depending on the length of the interconnecting cable.

Powering options

802.3af/802.3at
 Enhanced PoE
Cisco local power supply, AIR-PWR-C=
Cisco power injector, AIR-PWRINJ5= ( Note: This injector supports 802.3af only), AIR-PWRINJ6=
Note: If 802.3af PoE is the source of power, the USB port is disabled.

รับประกัน

Life Time Warranty
