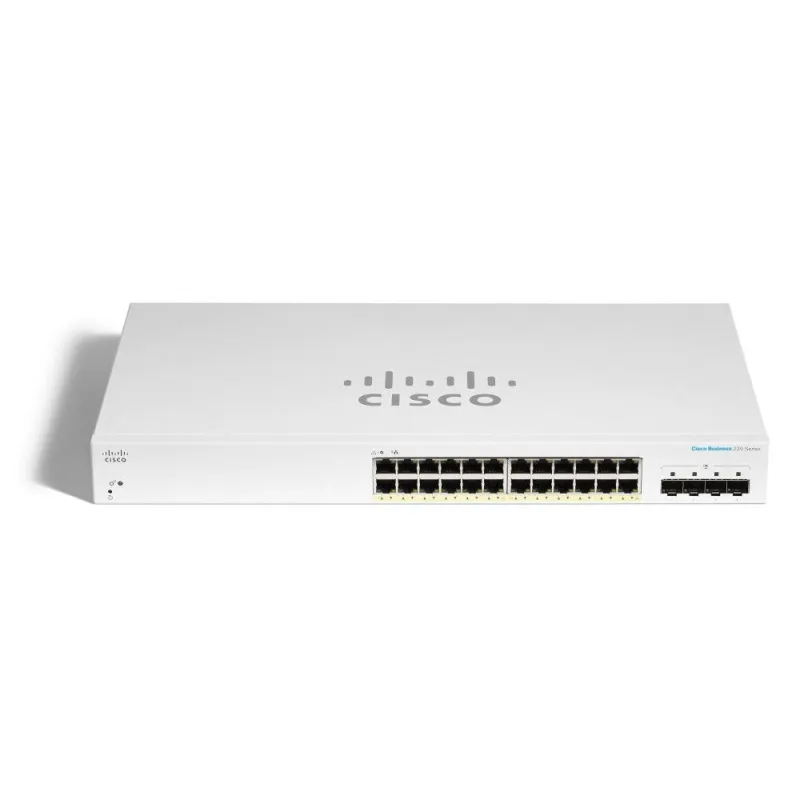

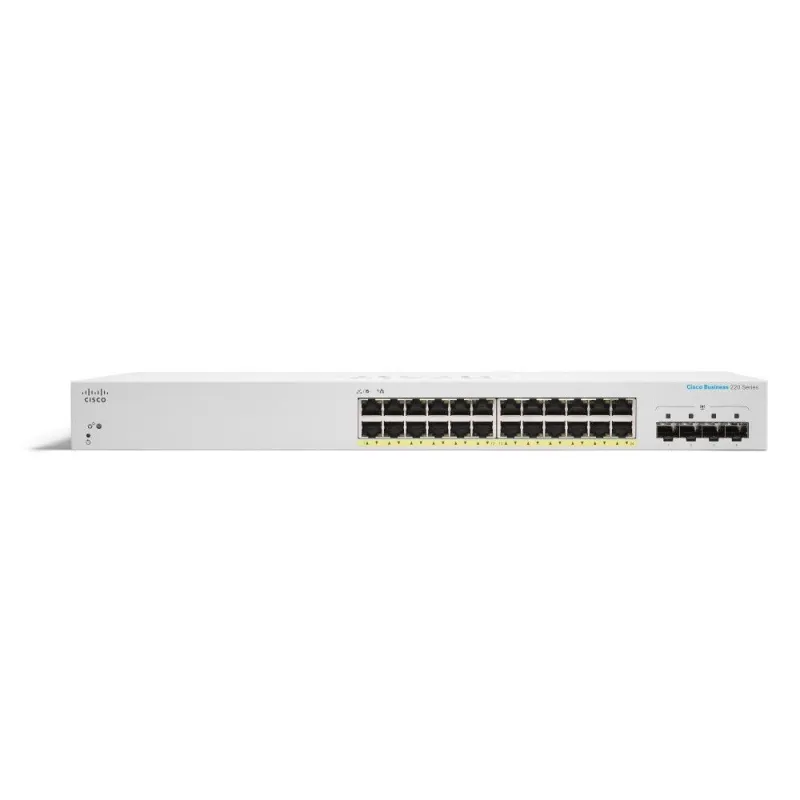

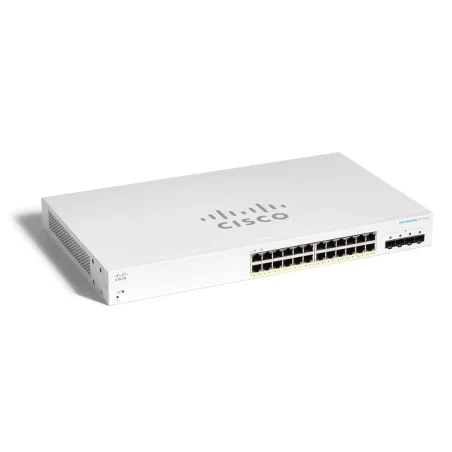

Overview | Cisco CBS220-24P-4X L2-Managed Gigabit POE Switch 24 Port Gigabit, 4 Port SFP+ จ่ายไฟ POE 802.3af/at 24 Port รวม 195W รองรับ VLAN, STP, ACL, QoS, IGMP Snooping, Static Routing |
Switching capacity |
Forwarding rate in millions of packets per second (mpps; 64-byte packets) | 95.23 |
Switching capacity in Gigabits per second (Gbps) | 128 |
Layer 2 switching |
MAC table | Up to 8,192 Media Access Control (MAC) addresses |
Spanning Tree Protocol (STP) | Standard 802.1d Spanning Tree support, enabled by defaultFast convergence using 802.1w (Rapid Spanning Tree [RSTP])Multiple Spanning Tree instances using 802.1s (MSTP)
16 instances are supported |
Port grouping/link aggregation | Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)
Up to 8 groups
Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation
Load balance based on source and destination MAC address, or source and destination MAC/IP |
VLAN | Support for up to 256 Virtual Local Area Networks (VLANs) simultaneously
Port-based and 802.1Q tag-based VLANs
Management VLAN
Guest VLAN |
Auto voice VLAN | Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS |
QinQ VLAN | VLANs transparently cross a service provider network while isolating traffic among customers |
Security |
ACLs | Drop or rate limit based on source and destination MAC, VLAN ID or IP address, protocol, port, Differentiated Services Code Point (DSCP)/IP precedence, Transmission Control Protocol (TCP)/ User Datagram Protocol (UDP) source and destination ports, 802.1p priority, Ethernet type, Internet Control Message Protocol (ICMP) packets, Internet Group Management Protocol (IGMP) packets, TCP flag
Support up to 512 rules |
Port security | Creates the ability to lock source MAC addresses to ports; limits the number of learned MAC addresses |
IEEE 802.1X (authenticator role) | 802.1X: Remote Authentication Dial-in User Service (RADIUS) authentication; guest VLAN;
Single-host, multiple-host, and multisession mode |
RADIUS, TACACS+ | Supports RADIUS and Terminal Access Controller Access Control System (TACACS) authentication; switch functions as a client |
MAC address filtering | Supported |
Storm control | Broadcast, multicast, and unknown unicast |
DoS protection | DOS attack prevention |
STP Bridge Protocol Data Unit (BPDU) Guard | This security mechanism protects the network from invalid configurations. A port enabled for BPDU Guard is shut down if a BPDU message is received on that port. |
Spanning Tree Loop Guard | This feature provides additional protection against Layer 2 forwarding loops (STP loops). |
Secure Shell (SSH) Protocol | SSH is a secure replacement for Telnet traffic. SCP also uses SSH. SSH v1 and v2 are supported. |
Secure Sockets Layer (SSL) | SSL support: Encrypts all HTTPS traffic, allowing highly secure access to the browser-based management GUI in the switch |
QoS |
Priority levels | 8 hardware queues per port |
Scheduling | Strict priority and Weighted Round-Robin (WRR) queue assignment based on DSCP and class of service (802.1p/CoS) |
Class of service | Port-based; 802.1p VLAN priority-based; IPv4/v6 IP precedence, Type of Service (ToS), and DSCP-based; Differentiated Services (DiffServ); classification and re-marking ACLs, trusted QoS |
Rate limiting | Ingress policer; egress shaping and rate control; per VLAN, per port, and flow-based |
Congestion avoidance | A TCP congestion avoidance algorithm is required to reduce and prevent global TCP loss synchronization. |
Multicast |
Internet Group Management Protocol (IGMP) Versions 1, 2, and 3 Snooping | IGMP limits bandwidth-intensive multicast traffic to only the requesters; supports 256 multicast groups |
IGMP querier | IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router |
IPv6 |
IPv6 | IPv6 host mode
IPv6 over Ethernet
IPv6/IPv4 Dual Stack
IPv6 neighbor and router discovery (ND)
IPv6 stateless address auto-configurationPath Maximum Transmission Unit (MTU) discovery
Duplicate Address Detection (DAD)
ICMP version 6 |
IPv6 ACL | Drop or rate limit IPv6 packets in hardware |
IPv6 QoS | Prioritize IPv6 packets in hardware |
Multicast Listener Discovery (MLD v1/2) Snooping | Deliver IPv6 multicast packets only to the required receivers |
IPv6 applications | Web/SSL, Telnet server/SSH, DHCP Client, DHCP Autoconfig, Cisco Discovery Protocol (CDP), Link Layer Discovery Protocol (LLDP) |
IPv6 Requests for Comments (RFCs) supported | RFC 4443 (which obsoletes RFC2463) - ICMP version 6RFC 4291 (which obsoletes RFC 3513) - IPv6 address architecture
RFC 4291 - IPv6 addressing architectureRFC 2460 - IPv6 specification
RFC 4861 (which obsoletes RFC 2461) - Neighbor discovery for IPv6
RFC 4862 (which obsoletes RFC 2462) - IPv6 stateless address auto-configuration
RFC 1981 - Path MTU discovery
RFC 4007 - IPv6 scoped address architecture
RFC 3484 - Default address selection mechanism |
Management |
Cisco Business Dashboard | Support direct management with Cisco Business Dashboard and mobile app. Eliminates the need to set up a separate hardware or virtual machine for the Cisco Business Dashboard Probe on site. |
Cisco Business mobile app | Mobile app for Cisco Business Switch and Wireless products. Helps to set up a local network in minutes and provide easy management at your fingertips. |
Cisco Network Plug and Play (PnP) agent | The Cisco Network Plug and Play solution provides a simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or for provisioning updates to an existing network. The solution provides a unified approach to provision Cisco routers, switches, and wireless devices with a zero touch deployment experience.
Supports Cisco PnP Connect |
Web user interface | Built-in switch configuration utility for easy browser-based device configuration (HTTP/HTTPS). Supports configuration, system dashboard, system maintenance, and monitoring |
Text-editable config files | Config files can be edited with a text editor and downloaded to another switch, facilitating easier mass deployment |
Command-line interface | Scriptable CLI; a full CLI is supported. User privilege levels 1 and 15 are supported for the CLI |
SNMP | Simple Management Network Protocol (SNMP) versions 1, 2c, and 3 with support for traps, and SNMP version 3 User-based Security Model (USM) |
Remote Monitoring (RMON) | Embedded RMON software agent supports 4 RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis |
IPv4 and IPv6 dual stack | Coexistence of both protocol stacks to ease migration |
Port mirroring | Traffic on a port or VLAN can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to 8 source ports can be mirrored to one destination port. Four sessions are supported. |
Firmware upgrade | Web browser upgrade (HTTP/HTTPS) and Trivial File Transfer Protocol (TFTP)
Dual images for resilient firmware upgrades |
DHCP (Option 12, 66, 67, 82, 129, and 150) | DHCP options facilitate tighter control from a central point (DHCP server) to obtain IP address, auto-configuration (with configuration file download), DHCP relay, and hostname |
Time synchronization | Simple Network Time Protocol (SNTP) |
Other management | HTTP/HTTPS; TFTP upgrade; DHCP client; Bootstrap Protocol (BOOTP); cable diagnostics; ping; traceroute; syslog |
Power over Ethernet |
PoE Power Budget | 195W |
Number of Ports That Support PoE | 24 Port |
Hardware |
Buttons | Reset button |
Cabling type | Unshielded Twisted Pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX; UTP Category 5Ethernet or better for 1000BASE-T |
LEDs | System, Link/Act, Speed |
Flash | 64 MB |
CPU memory | 256 MB |
Ports |
Total system ports | 24 Gigabit Ethernet +
4 10 Gigabit Ethernet SFP+ |
RJ-45 ports | 24 Gigabit Ethernet |
Uplink ports | 4 10G SFP+ |
Packet Buffer | 12Mb |
Environmental |
Unit dimensions
(W x D x H) | 440 x 257 x 44 mm (17.3 x 10.1 x 1.7 in) |
Unit weight | 4.03 kg (8.88 lb) |
Power | 100-240 V, 50-60 Hz, Internal: CBS220-16T-2G, CBS220-16P-2G, CBS220-24T-4G, CBS220-24P-4G, CBS220-24FP-4G, CBS220-48T-4G, CBS220-48P-4G, CBS220-24T-4X, CBS220-24P-4X, CBS220-24FP-4X, CBS220-48T-4X, CBS220-48P-4X, CBS220-48FP-4X100-240 V, 50-60 Hz, External: CBS220-8T-E-2G, CBS220-8P-E-2G, CBS220-8FP-E-2G |
Certifications | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, C-tick |
Operating temperature | 0-50° C |
Storage temperature | –20° C to +70° C |
Operating humidity | 10% to 90%, relative, noncondensing |
Storage humidity | 10% to 90%, relative, noncondensing |
Power Consumption |
System power consumption | 110V=36.9W
220V=37.6W |
Power consumption (with PoE) | 110V=248.7W
220V=244.4W |
Heat dissipation (BTU/hr) | 848.6 |
Package contents | Cisco Business 220 Series Ethernet switch
Power cord or adaptor
Mounting kit
Quick start guide |
รับประกัน | Life Time |
