Product Specification
|
|
Overview
|

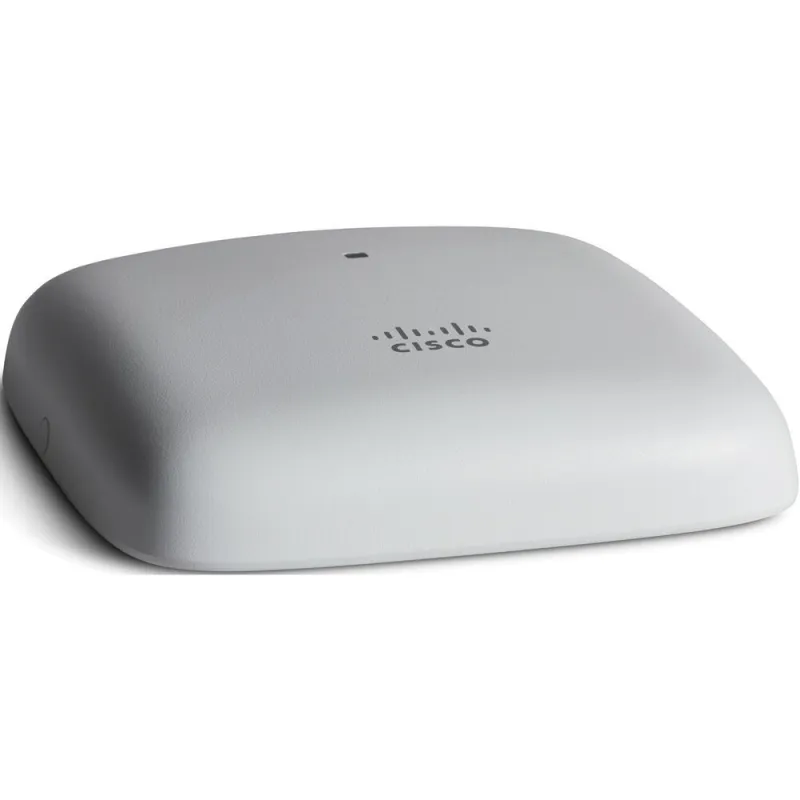

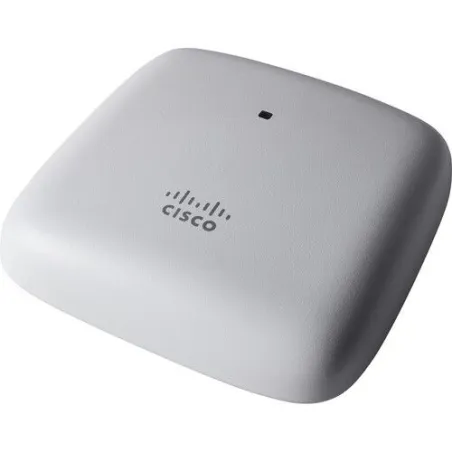

Cisco CBW140AC-S Access Point 11ac MU-MIMO Wave 2, เสา 4dBi x 2, รองรับ MESH ใช้ร่วมกับ Cisco Business Mobile app
รองรับ Client ได้สูงถึง 200 per Radio / 400 Client per Access Point รองรับ Mesh extenders ได้ถึง 25 per Access Point สูงสุด 8 Hop
|
|
Cisco Bussiness APP
|
IOS
Android
|
|
Authentication and security
|
Wi-Fi Protected Access 2 (WPA2) WPA3 is coming in a post–Frame Check Sequence (FCS) release
802.1X, RADIUS Authentication, Authorization, and Accounting (AAA)
Segmentation via VLANs (up to 16)
802.11r and 802.11i
Guest network can also authenticate against: Google and Facebook
|
|
Maximum clients
|
Maximum number of associated wireless clients: 200 per Wi-Fi radio, for a total of 400 clients per access point, or 1000 in a system
|
|
Maximum # of Access Points
|
50
Recommended up to 25
|
|
Max # of Mesh Extenders
|
Maximum number of associated Cisco Business mesh extenders: 25 per Access Point, up to 8 hops
|
|
802.11ac
|
2x2 single-user/multi-user MIMO with two spatial streams, up to 867 Mbps in 5GHz
20-, 40-, and 80-MHz channels
Dynamic Frequency Selection (DFS)
|
|
Ethernet ports
|
Authentication with 802.1X or MAC filtered
Dynamic VLAN or per port
Traffic locally switched or tunneled back to Master AP
|
|
Data rates supported
|
802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
802.11n data rates on 2.4 GHz: 6.5 to 300 Mbps (MCS0-MCS15, HT 20/40)
802.11ac data rates on 5 GHz: 6.5 to 867 Mbps (MCS0-MCS9)
|
|
Maximum number of nonoverlapping channels
|
2.412 to 2.472 GHz; 13 channels
5.180 to 5.320 GHz; 8 channels
5.500 to 5.700 GHz; 11 channels
5.745 to 5.825 GHz; 5 channels
|
|
Available transmit power settings
|
2.4 GHz
Up to 20 dBm
5 GHz
Up to 20 dBm
|
|
Integrated antennas
|
2.4 GHz, gain 2 dBi
5 GHz, gain 4 dBi
|
|
Interfaces
|
1x Gigabit Ethernet (10/100/1000BASE-T autosensing), Power over Ethernet (PoE)
RJ-45 console port (not functional)
|
|
Indicators
|
Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
|
|
Dimensions (WxLxH)
|
Access point (without mounting bracket): 6 x 6 x 1.3 in. (150.8 x 150.8 x 33 mm)
|
|
Weight
|
Access point without mounting bracket or any other accessories: 14 oz (400 g)
|
|
Environmental
|
Operating
Temperature: 32° to 104°F (0° to 50°C)
Humidity: 10% to 90% (noncondensing)
Maximum altitude: 9843 ft (3000 m) at 40°C
Nonoperating (storage and transportation)
Temperature: –22° to 158°F (-30° to 70°C)
Humidity: 10% to 90% (noncondensing)
Maximum altitude: 15,000 ft (4500 m) at 25°C
|
|
System
|
1 GB DRAM, 256 MB flash
710-MHz quad core processor
|
|
Powering options
|
802.3af/at Ethernet switch; a Cisco Business switch with PoE is recommended Optional Cisco Business PoE injecto
|
|
Power draw
|
8.3W (maximum, on PoE)
|
|
Mounting and physical security
|
Included with the access point:
Mounting bracket
Torx security screw
Ceiling rail mount clip
|
|
รับประกัน
|
Limited Life Time Warranty (5 Yrs after EOS)
|
