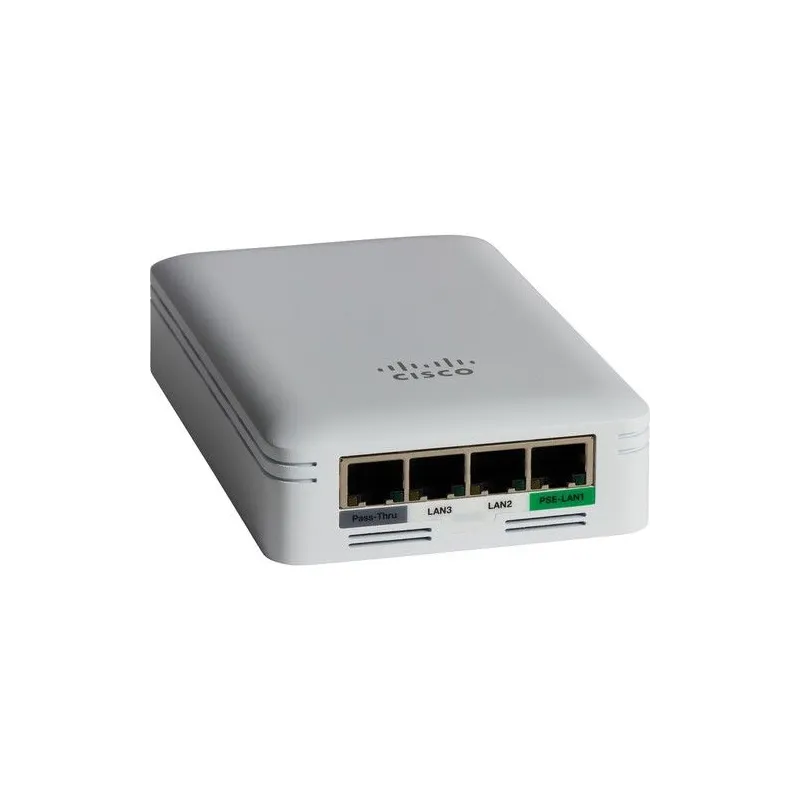

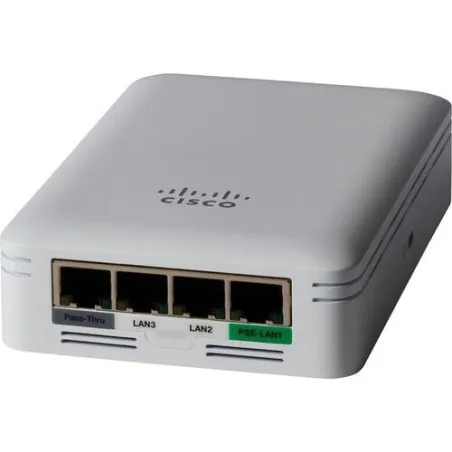

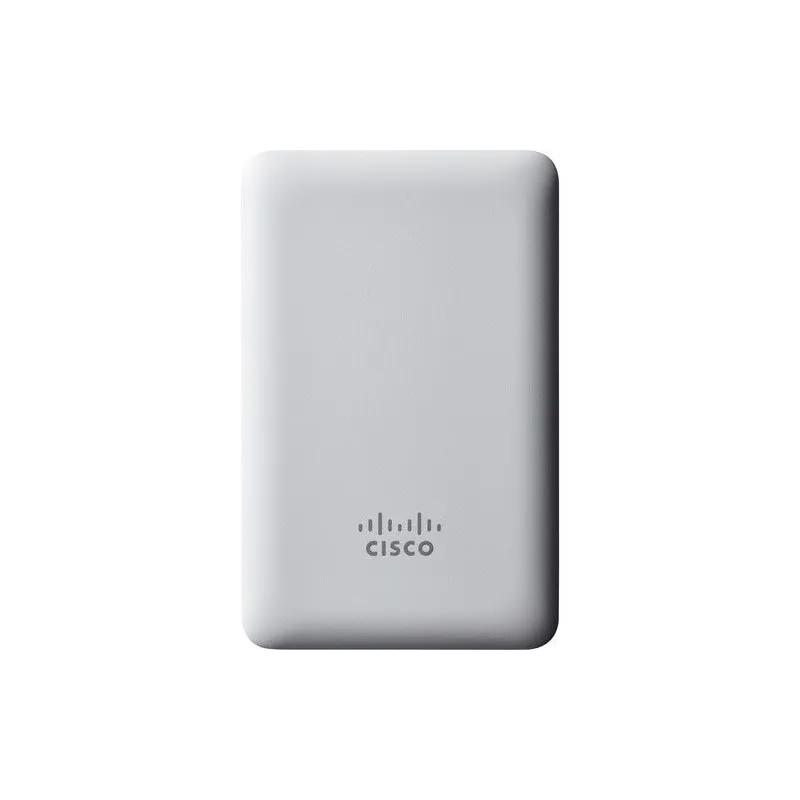

CBW145AC-S Cisco Wall Plate Access Point 11ac 2x2 MU-MIMO Wave 2, 4 Port Gigabit

Product Specification

Overview

Cisco CBW145AC-S Wall Plate Access Point 11ac MU-MIMO Wave 2, เสา 2dBi x 2, รองรับ MESH ใช้ร่วมกับ Cisco Business Mobile app

มาพร้อม 4 Port Gigabit รองรับ POE Passthrough

รองรับ Client ได้สูงถึง 200 per Radio / 400 Client per Access Point รองรับ Mesh extenders ได้ถึง 25 per Access Point สูงสุด 8 Hop

Cisco Bussiness App

IOS
Android

Authentication and security

Wi-Fi Protected Access 2 (WPA2) WPA3 is coming in a post–Frame Check Sequence (FCS) release
802.1X, RADIUS Authentication, Authorization, and Accounting (AAA)
Segmentation via VLANs (up to 16)
802.11r and 802.11i

Maximum clients

Maximum number of associated wireless clients: 200 per Wi-Fi radio, for a total of 400 clients per access point

Max # of Mesh Extenders

Maximum number of associated Cisco Business mesh extenders: 25 per Access Point, up to 8 hops

802.11ac

2x2 single-user/multi-user MIMO with two spatial streams, up to 867 Mbps in 5GHz
20-, 40-, and 80-MHz channels
Dynamic Frequency Selection (DFS)

Data rates supported

802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
802.11n data rates on 2.4 GHz: 6.5 to 300 Mbps (MCS0-MCS15, HT 20/40)
802.11ac data rates on 5 GHz: 6.5 to 867 Mbps (MCS0-MCS9)

Maximum number of nonoverlapping channels

2.412 to 2.472 GHz; 13 channels
5.180 to 5.320 GHz; 8 channels
5.500 to 5.700 GHz; 11 channels
5.745 to 5.825 GHz; 5 channels

Available transmit power settings

2.4 GHz
Up to 20 dBm

5 GHz
Up to 20 dBm

Integrated antennas

2.4 GHz, gain 2 dBi

5 GHz, gain 3dBi

Interfaces

1x Gigabit Ethernet uplink (10/100/1000BASE-T autosensing), PoE

3x Gigabit Ethernet local ports (10/100/1000BASE-T), including one PoE out port:

PoE out provides 802.3af (Class 0) when access point is powered by 802.3at, or no output when powered by 802.3af

One passive pass-through port, RJ-45 (back to bottom)

Indicators

Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors

Dimensions (WxLxH)

Access point without mounting bracket or any other accessories: 10 oz (280 g)

Weight

Access point without mounting bracket or any other accessories: 14 oz (400 g)

Environmental

Operating
Temperature: 32° to 104°F (0° to 50°C)
Humidity: 10% to 90% (noncondensing)
Maximum altitude: 9843 ft (3000 m) at 40°C

Nonoperating (storage and transportation)
Temperature: –22° to 158°F (-30° to 70°C)
Humidity: 10% to 90% (noncondensing)
Maximum altitude: 15,000 ft (4500 m) at 25°C

System

1 GB DRAM, 256 MB flash
710-MHz quad core processor

Powering options

802.3af/at Ethernet switch; a Cisco Business switch with PoE is recommended Optional Cisco Business PoE injecto

Power draw

8.5W (maximum, without PoE out)

Mounting and physical security

Bracket is included with the access point

รับประกัน

Limited Life Time Warranty (5 Yrs after EOS)
