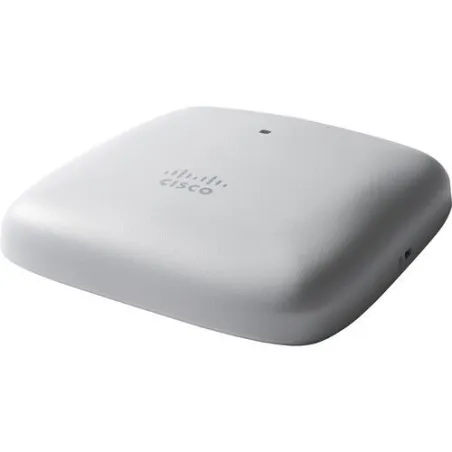

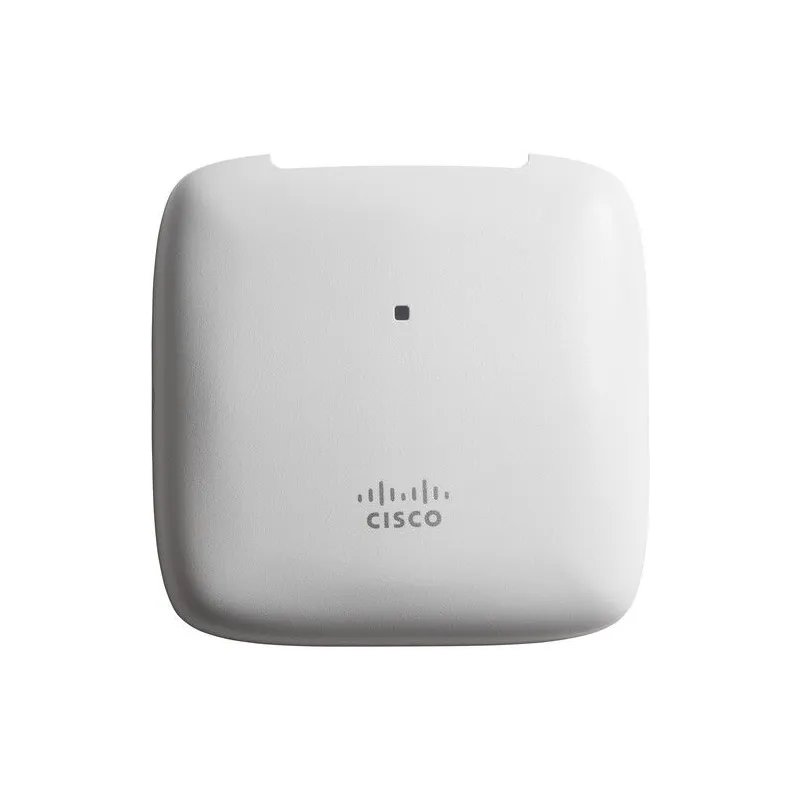

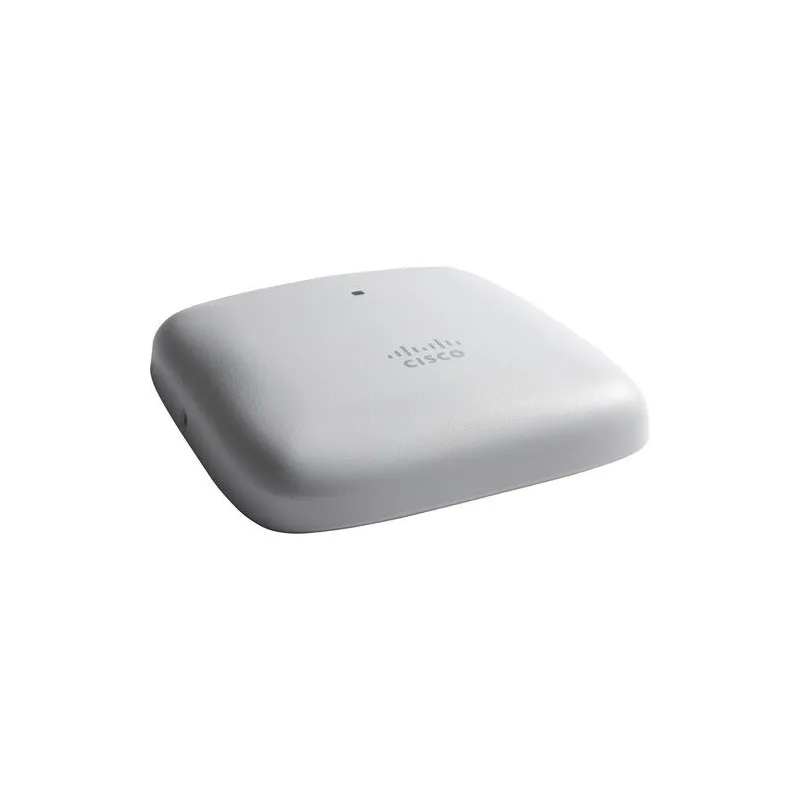

CBW240AC-S Cisco Access Point 11ac 4x4 MU-MIMO Wave 2, MESH

Product Specification

Overview

Cisco CBW240AC-S Access Point 11ac 4x4 MU-MIMO Wave 2, เสา 5dBi, รองรับ MESH ใช้ร่วมกับ Cisco Business Mobile app

รองรับ Client ได้สูงถึง 200 per Radio / 400 Client per Access Point รองรับ Mesh extenders ได้ถึง 25 per Access Point สูงสุด 8 Hop

Authentication and security

Wi-Fi Protected Access 2 (WPA2) WPA3 is coming in a post–Frame Check Sequence (FCS) release
802.1X, RADIUS Authentication, Authorization, and Accounting (AAA)
Segmentation via VLANs (up to 16)
802.11r and 802.11i
Guest network can also authenticate against: Google and Facebook

Maximum clients

Maximum number of associated wireless clients: 200 per Wi-Fi radio, for a total of 400 clients per access point, or 1000 in a system

Maximum # of Access Points

50
Recommended up to 25

Max # of Mesh Extenders

Maximum number of associated Cisco Business mesh extenders: 25 per Access Point, up to 8 hops

802.11ac

4x4 Downlink (DL) MU-MIMO with four spatial streams, up to 1733 Mbps
802.11ac beamforming
20, 40, 80 MHz channels
Dynamic Frequency Selection (DFS)

Ethernet ports

Authentication with 802.1X or MAC filtered
Dynamic VLAN or per port

Data rates supported

802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
802.11n data rates on 2.4 GHz: 6.5 to 300 Mbps (MCS0-MCS15, HT 20/40)
802.11ac data rates on 5 GHz: 6.5 to 867 Mbps (MCS0-MCS9)

Maximum number of nonoverlapping channels

2.412 to 2.472 GHz; 13 channels
5.180 to 5.320 GHz; 8 channels
5.500 to 5.700 GHz; 11 channels
5.745 to 5.825 GHz; 5 channels

Available transmit power settings

2.4 GHz
Up to 20 dBm

5 GHz
Up to 23 dBm

Integrated antennas

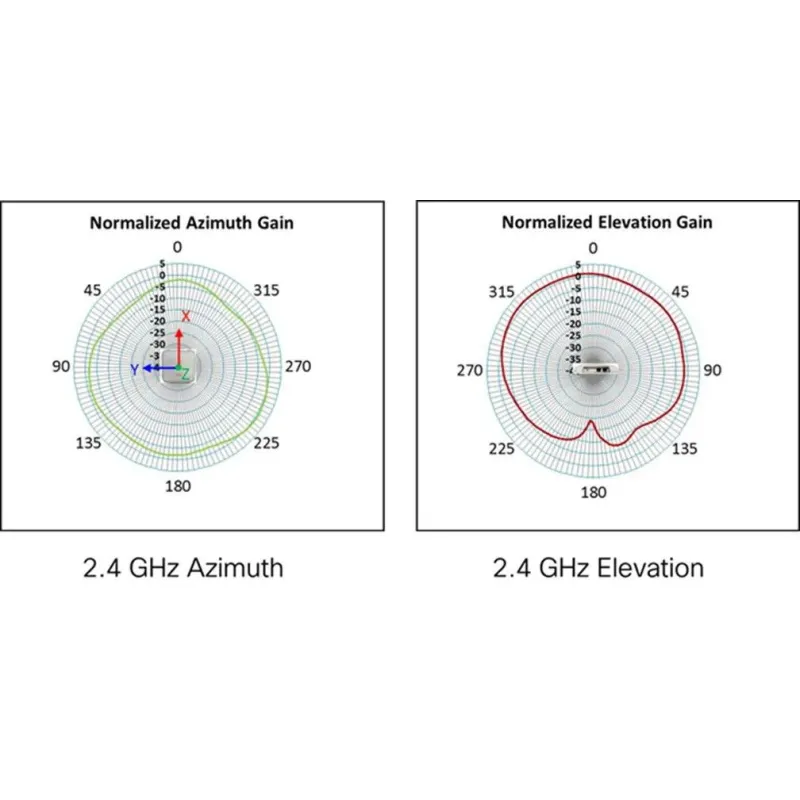

2.4 GHz, peak gain 4 dBi, internal antenna, omnidirectional

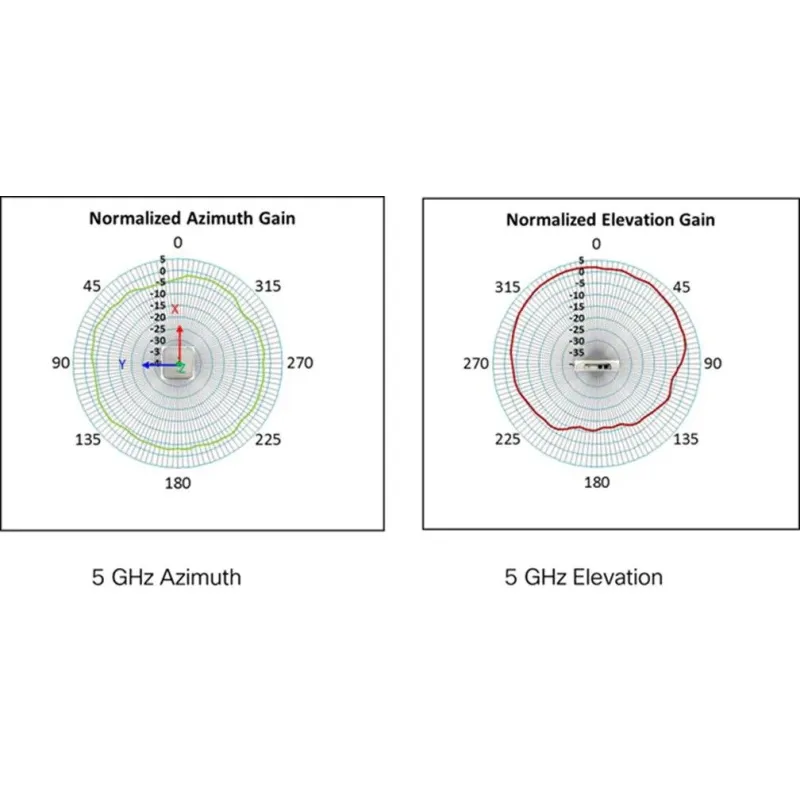

5 GHz, peak gain 5 dBi, internal antenna, omnidirectional

Interfaces

2 x Gigabit (10/100/1000BASE-T autosensing), Power over Ethernet (PoE)
RJ-45 console port (not functional)
USB 2.0 (not functional)

Indicators

Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors

Dimensions (W x L x H)

Access point (without mounting brackets): 7 x 7 x 1.5 in

Weight

0.94 lb (0.43 kg)

Environmental

Operating
 Temperature: 32° to 104°F (0° to 50°C)
Humidity: 10% to 90% (noncondensing)
Maximum altitude: 9843 ft (3000 m) at 40°C

Nonoperating (storage and transportation)
Temperature: –22° to 158°F (-30° to 70°C)
Humidity: 10% to 90% (noncondensing)
Maximum altitude: 15,000 ft (4500 m) at 25°C

System

1 GB DRAM, 256 MB flash

Powering options

802.3af/at Ethernet switch; a Cisco Business switch with PoE is recommended Optional Cisco Business PoE injecto

Power draw

13.2W

Mounting and physical security

Included with the access point:
Mounting bracket
Torx security screw
Ceiling rail mount clip

รับประกัน

Limited Life Time Warranty (5 Yrs after EOS)
