RG-CF30XS Cybrey Next-Generation Firewall แบบ Rack-Mounted รองรับ Firewall Throughput 9Gbps, Threat Protection 1.3Gbps, Concurrent Sessions 1.5 ล้าน Sessions, IPsec VPN 3.7Gbps, 10GE SFP+ สำหรับระบบ Network องค์กรที่ต้องการ Firewall ประสิทธิภาพสูงและบริหารจัดการผ่าน Cloud
สอบถามข้อมูลสินค้าเพิ่มเติม
LINE ID: @sysnet โทร: 02 102 4284
Ruijie Cybrey RG-CF30S Datasheet
Ruijie Cybrey RG-CF series next-generation high-performance firewalls NGFW_NTOS 1.0R13 User Manual
Cybrey RG-CF30XS เป็น Next-Generation Firewall แบบ Rack-Mounted สำหรับองค์กรที่ต้องการ Firewall ประสิทธิภาพสูง รองรับการใช้งานเป็น Internet Gateway, Firewall Gateway, ระบบป้องกันเครือข่ายสำนักงาน, ระบบเครือข่ายหลายสาขา และระบบ Network ที่ต้องการความปลอดภัยในระดับองค์กร
รุ่น RG-CF30XS รองรับ Firewall Throughput สูงสุด 9Gbps, IPS Throughput 1.8Gbps, NGFW Throughput 1.6Gbps และ Threat Protection Throughput 1.3Gbps พร้อม Concurrent Sessions สูงสุด 1.5 ล้าน Sessions เหมาะสำหรับองค์กรที่มีผู้ใช้งานจำนวนมาก มี Traffic สูง และต้องการระบบ Security ที่สามารถตรวจจับภัยคุกคามได้หลายรูปแบบ
ตัวอุปกรณ์มาพร้อมพอร์ตเชื่อมต่อครบทั้ง 8 x GE RJ45, 2 x 2.5GE RJ45, 2 x GE SFP และ 2 x 10GE SFP+ รองรับการเชื่อมต่อทั้งฝั่ง WAN, LAN, Core Switch, Distribution Switch และระบบเครือข่ายที่ต้องการ Uplink ความเร็วสูงระดับ 10G
Cybrey RG-CF30XS เหมาะสำหรับองค์กรที่ต้องการ Firewall ที่มีพอร์ต 10G, ความสามารถด้าน Security ครบ และบริหารจัดการผ่าน Cloud ได้สะดวก เหมาะกับงาน Internet Egress, Branch Egress, Area Boundary, Data Center Boundary และระบบ Network ที่ต้องการความเสถียรสูง
Product Overview | |
|---|---|
| Model | Ruijie Cybrey RG-CF30XS |
| Product Type | Next-Generation High-Performance Firewall |
| Form Factor | 1 RU Rack-Mounted Firewall |
| Deployment Scenario | Internet Egress, Area Boundary, Data Center Boundary, Branch Egress |
| Cloud Management | Supported |
Performance | |
| Firewall Throughput | 9 Gbps |
| IPS Throughput | 1.8 Gbps |
| NGFW Throughput | 1.6 Gbps |
| Threat Protection Throughput | 1.3 Gbps |
| Threat Protection Expansion | Expandable up to 1.6 Gbps with RG-CF30XS-300M-LIC |
| SSL Inspection Throughput | 840 Mbps |
| Concurrent Sessions | 1.5 Million TCP Sessions |
| New Sessions Per Second | 105,000 TCP Sessions/Sec |
| Firewall Policies | 3,000 Policies |
VPN Performance | |
| SSL VPN Throughput | 2.16 Gbps |
| Concurrent SSL VPN Users | 1,125 Users, Recommended Maximum in Tunnel Mode |
| IPsec VPN Throughput | 3.7 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 Tunnels |
Interfaces | |
| Fixed Service Ports | 8 x 10/100/1000BASE-T Ports 2 x 10/100/1000/2.5GBASE-T Ports 2 x 1GE SFP Ports 2 x 10GE SFP+ Ports |
| Management Ports | 1 x RJ45 MGMT Port 1 x RJ45 Console Port, RS-232 |
| USB Port | 1 x USB 3.0 Port |
| LTE Expansion | Optional 4G Plug-in Module, RG-NSEC-SIC-LTE-S |
Security Features | |
| Intrusion Prevention | Supported |
| Antivirus | Supported |
| Application Control | Supported |
| URL Filtering | Supported |
| File Filtering | Supported |
| Threat Intelligence | Google & Kaspersky Threat Intelligence |
| WAF | Supported |
| AI-Based Threat Detection | AI-Powered Stealthy Attack and Abnormal Behavior Detection |
| DoS/DDoS Attack Defense | Supported |
| ARP Attack Defense | ARP Spoofing and ARP Flooding Protection |
| Blocklist / Allowlist | Supported |
| SSL Proxy Policy | Supported |
Network Features | |
| Interface Mode | LAN/WAN Port, Routing Mode, Transparent Mode, Bypass Mode |
| WAN IP Assignment | PPPoE, DHCP, Static IP |
| Sub-interface / VLAN | Supported |
| Bridge Interface | Supported |
| Aggregate Interface | Supported |
| Routing | IPv4/IPv6 Static and Dynamic Routing, Routing Policy, PBR, ISP Address Library-Based Routing, Application-Based Routing, Egress Load Balancing |
| DHCP Server | Supported |
| DNS Server | Supported |
| DDNS | Multiple DDNS Service Providers Supported |
| Link Detection | Supported |
| VRRP | Supported |
| High Availability | Active/Passive Redundancy with Automatic Switchover |
| SD-WAN | Cloud Platform Integration for Branch Orchestration and Monitoring |
Policy & Operation Features | |
| Traffic Learning | Record Destination IP, Port Number and Abnormal Traffic |
| NAT | NAT Policy, NAT Policy Batch Import, ALG, Server Port Mapping, NAT Address Pool Status |
| Security Policy | Object, Content and Zone-Based Security Policies |
| Policy Simulation | Simulate Policy Execution Before Applying to Real Traffic |
| Policy Configuration Wizard | Port Scan, Policy Configuration and Policy Testing Wizard |
| Policy Optimization | Analyze Redundant, Expired and Conflicting Policies |
| Policy Lifecycle | Policy Change Records and Full Lifecycle Display |
| Port Scan | Scan Configured IP Ranges for All Ports or Selected Ports |
Management | |
| Cloud Management Platform | Supported with Log Upload to Cloud |
| SNMP | SNMPv1, SNMPv2, SNMPv3 |
| System Upgrade | System Upgrade and Rollback |
| Database Backup | System Database Backup and Restoration |
| Patch Installation | Supported |
| One-Click Collection | Collect Fault Information with One Click |
| Device Health | Device Health Diagnosis |
| Service Diagnosis | Service Continuity Diagnosis |
| API | Open APIs for Third-Party Platform Integration |
| Reports | Periodic Network Status and Network Security Reports |
Hardware Specifications | |
| Product Dimensions | 440 x 222 x 43.6 mm |
| Shipping Dimensions | 540 x 345 x 153 mm |
| Product Weight | 2.42 kg |
| Shipping Weight | 3 kg |
| Storage | No Hard Disk for Factory Delivery, Optional 480GB SSD or 1TB HDD Expansion Module |
| Power Supply | Built-in Single Power Module, 100-240V AC, 50/60Hz, Max 1.5A |
| Maximum Power Consumption | 30W |
Environment | |
| Operating Temperature | 0°C to 45°C at Altitudes Below 1,800 m |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% RH to 90% RH, Non-Condensing |
| Storage Humidity | 5% RH to 95% RH, Non-Condensing |
| Operating Altitude | 0 m to 5,000 m |
Regulatory Compliance | |
| RoHS | Yes |
| Safety Compliance | IEC 62368-1 |
| EMC | EN 55032, EN 55035, EN 61000-3-3, EN 61000-3-2, EN 301489-1 |
Ordering Information | |
| RG-CF30XS | Rack-Mounted Firewall, Threat Protection Throughput 1.3Gbps to 1.6Gbps, 8 x GE RJ45, 2 x 2.5GE RJ45, 2 x GE SFP, 2 x 10GE SFP+, Built-in 64GB Storage, Single Power Module, Hard Disk and LTE Expansion Support |
| Security License | RG-CF30XS-UTP-LIS-1Y / RG-CF30XS-UTP-LIS-1M: All-in-One Security Feature License, IPS + AV + TI-G + TI-K + URL Filtering + App Control + AI + WAF |
| Performance License | RG-CF30XS-300M-LIC: Additional 300Mbps Threat Protection Throughput License, Maximum Total 1.6Gbps |
| LTE Module | RG-NSEC-SIC-LTE-S: 4G Plug-in Module for Network Access via 4G Card |
| Storage Expansion | RG-NSEC-SSD-480G-B-M: 480GB SSD Expansion Module RG-NSEC-HDD-1T-B: 1TB HDD Expansion Module |
Package Contents | |
| Included Items | RG-CF30XS Series Chassis x 1 Power Cord x 1 Grounding Wire x 1 Rubber Pad x 4 L-Shaped Rack-Mount Bracket x 2 M4 x 8 mm Cross Recessed Countersunk Head Screw x 4 Warranty Card x 1 User Manual x 1 |
Note: Performance values are maximum values from datasheet and may vary depending on system configuration, enabled security features, traffic type and license level. For storage expansion, Ruijie recommends using Ruijie hard disks to ensure syslog security and system stability.

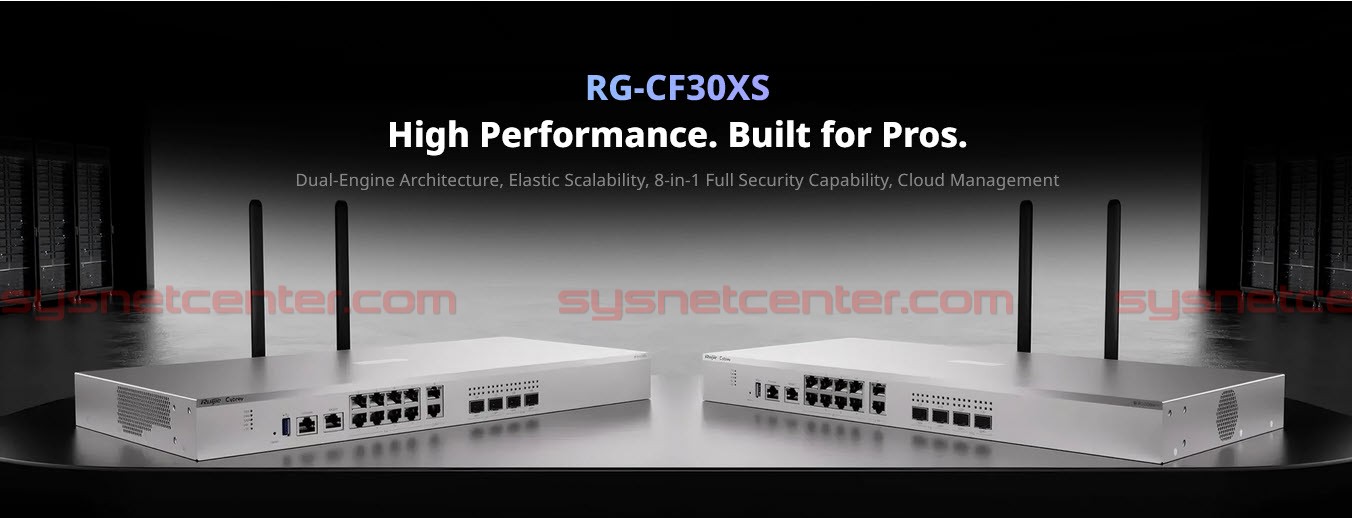

High Performance. Built for Pros.
Dual-Engine Architecture, Elastic Scalability, 8-in-1 Full Security Capability, Cloud Management

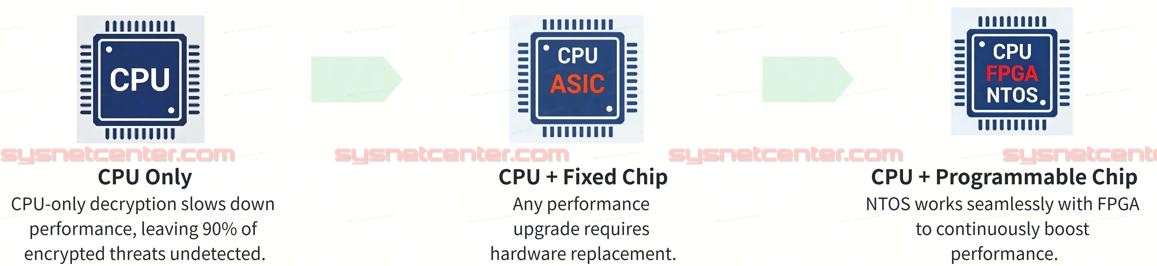

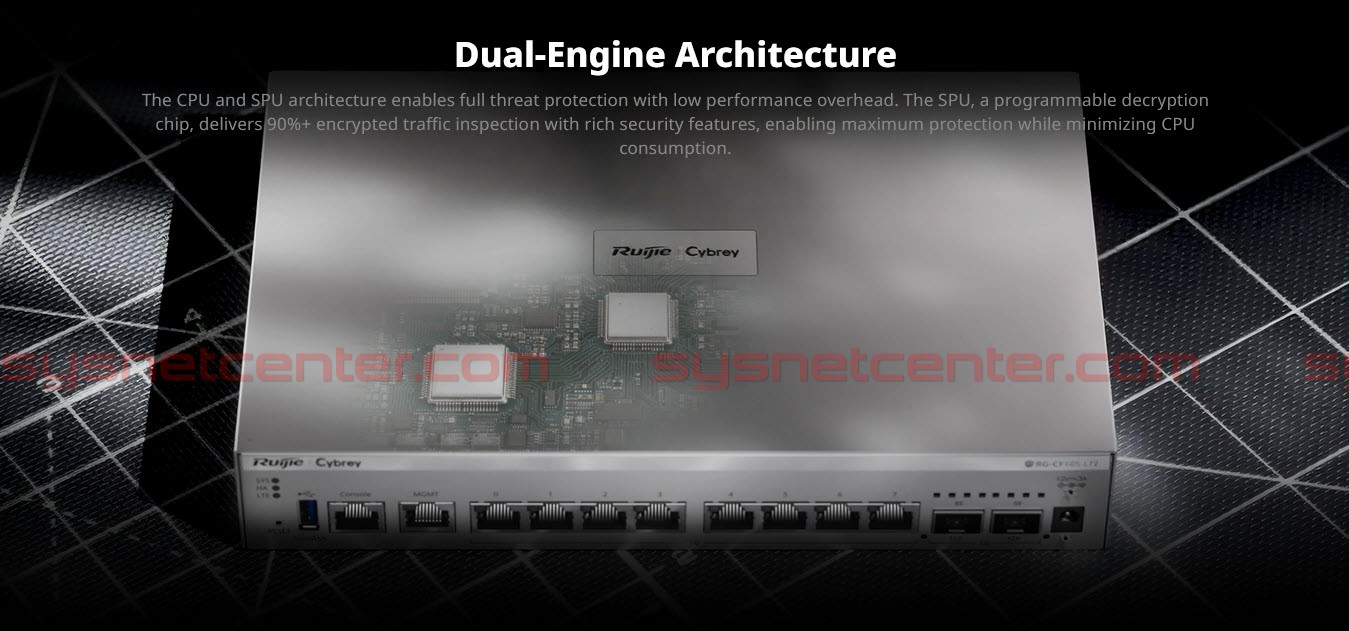

The CPU and SPU architecture enables full threat protection with low performance overhead. The SPU, a programmable decryption chip, delivers 90%+ encrypted traffic inspection with rich security features, enabling maximum protection while minimizing CPU consumption.

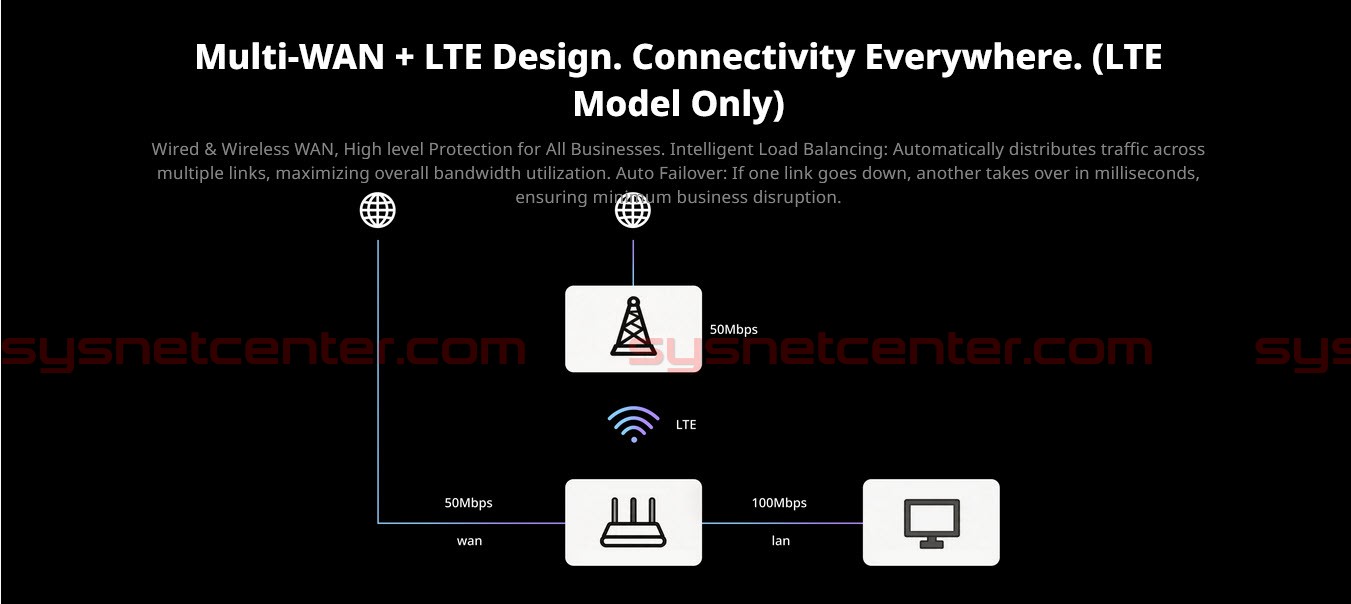

Wired & Wireless WAN, High level Protection for All Businesses. Intelligent Load Balancing: Automatically distributes traffic across multiple links, maximizing overall bandwidth utilization. Auto Failover: If one link goes down, another takes over in milliseconds, ensuring minimum business disruption.

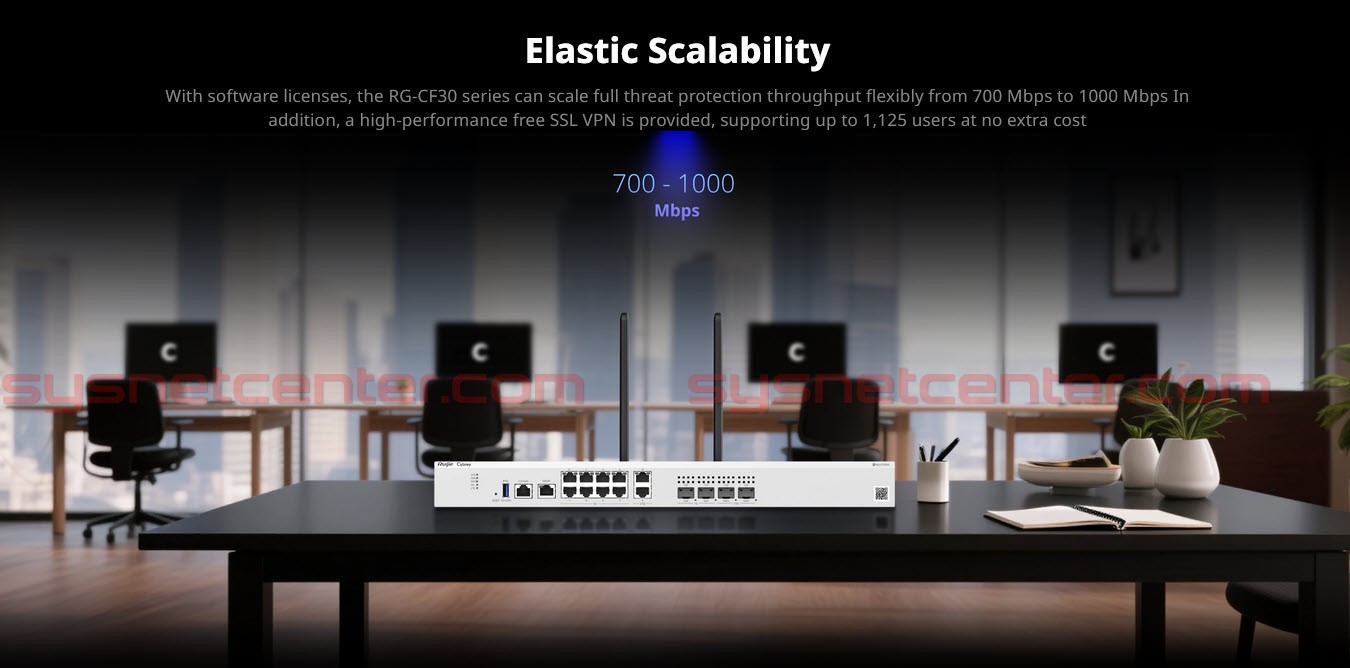

With software licenses, the RG-CF30 series can scale full threat protection throughput flexibly from 700 Mbps to 1000 Mbps In addition, a high-performance free SSL VPN is provided, supporting up to 1,125 users at no extra cost

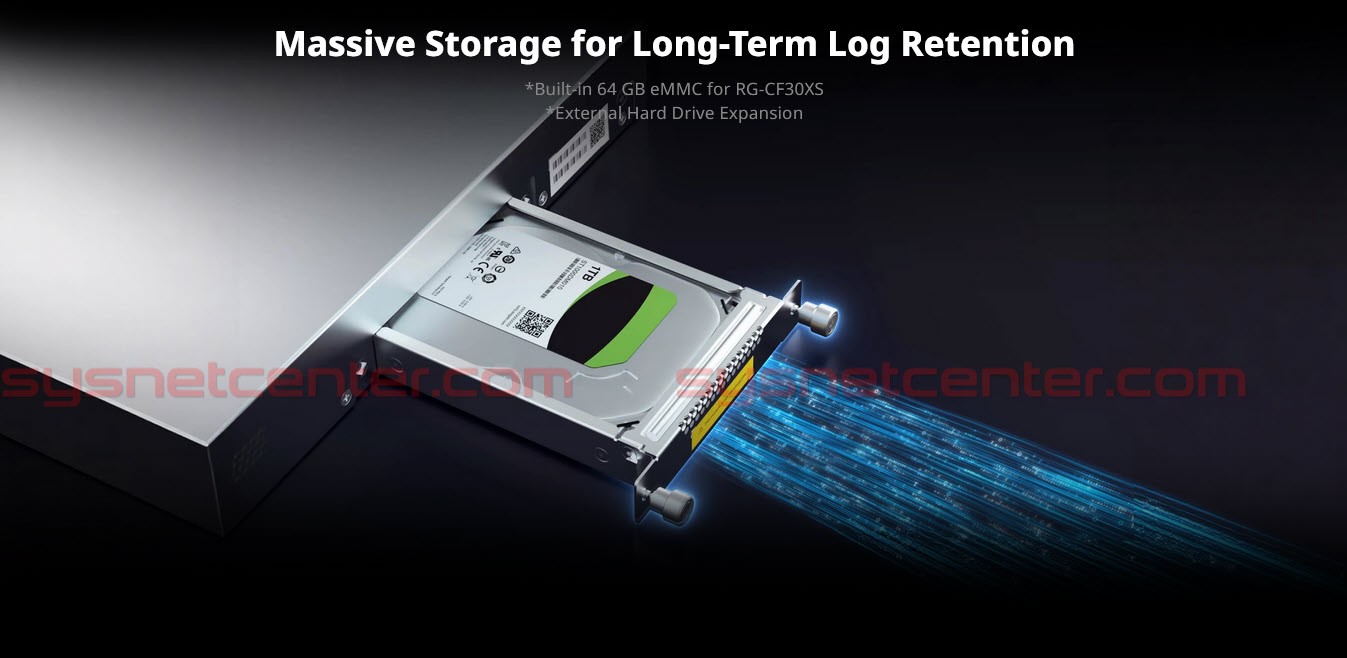

*Built-in 64 GB eMMC for RG-CF30XS
*External Hard Drive Expansion

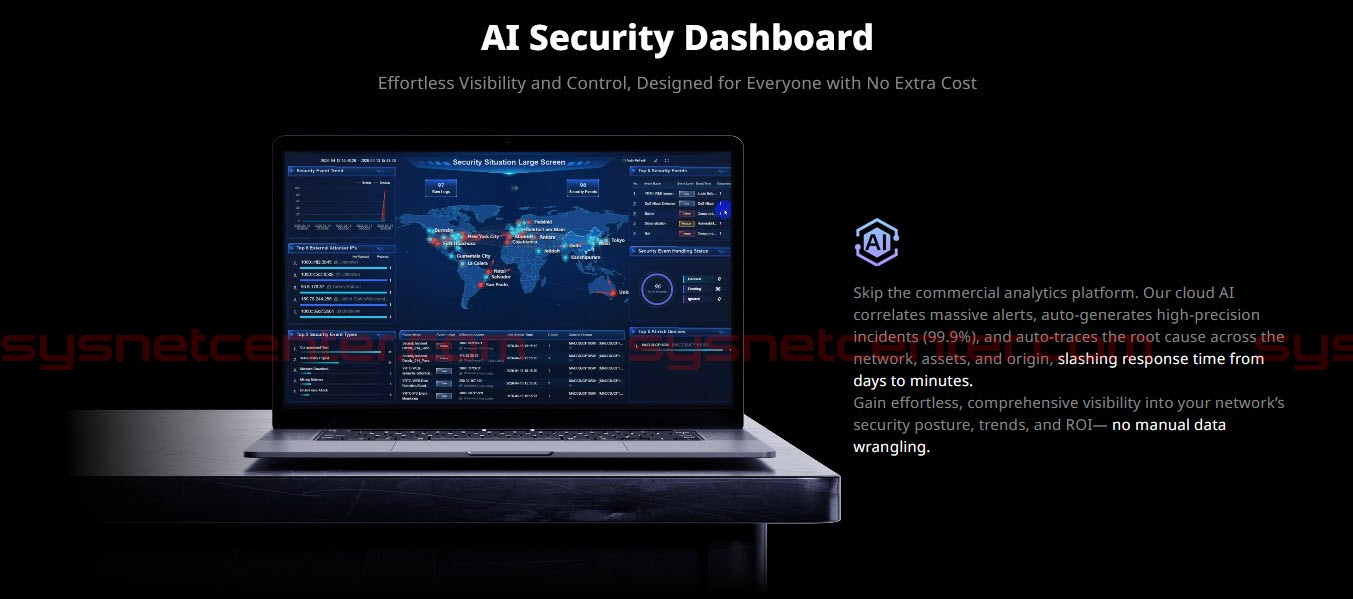

Effortless Visibility and Control, Designed for Everyone with No Extra Cost
Skip the commercial analytics platform. Our cloud AI correlates massive alerts, auto-generates high-precision incidents (99.9%), and auto-traces the root cause across the network, assets, and origin, slashing response time from days to minutes.
Gain effortless, comprehensive visibility into your network’s security posture, trends, and ROI— no manual data wrangling.

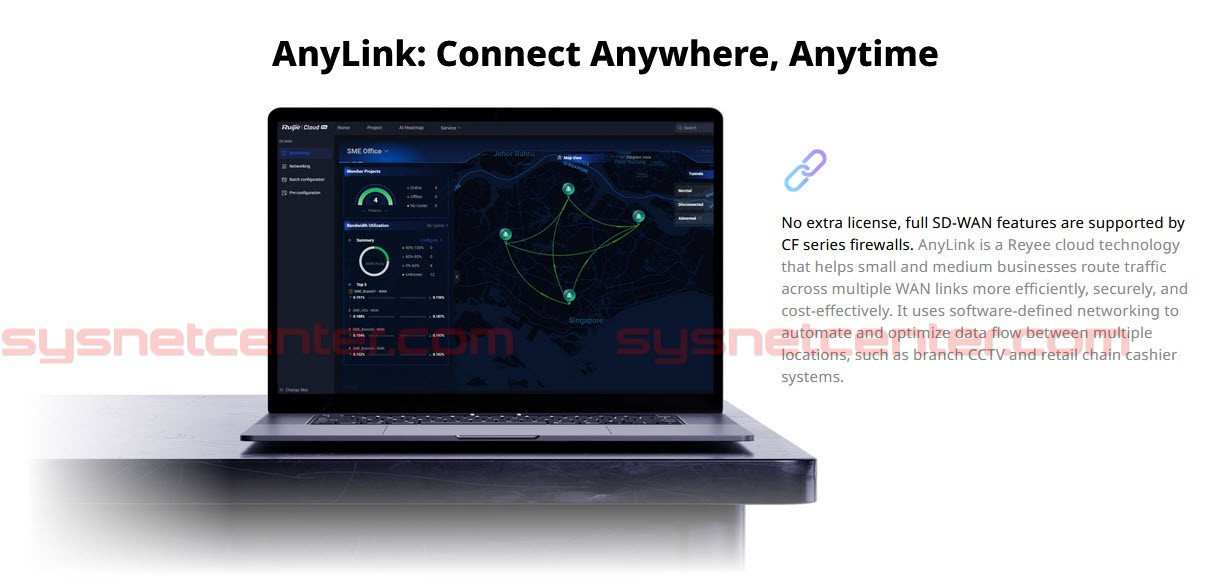

No extra license, full SD-WAN features are supported by CF series firewalls. AnyLink is a Reyee cloud technology that helps small and medium businesses route traffic across multiple WAN links more efficiently, securely, and cost-effectively. It uses software-defined networking to automate and optimize data flow between multiple locations, such as branch CCTV and retail chain cashier systems.

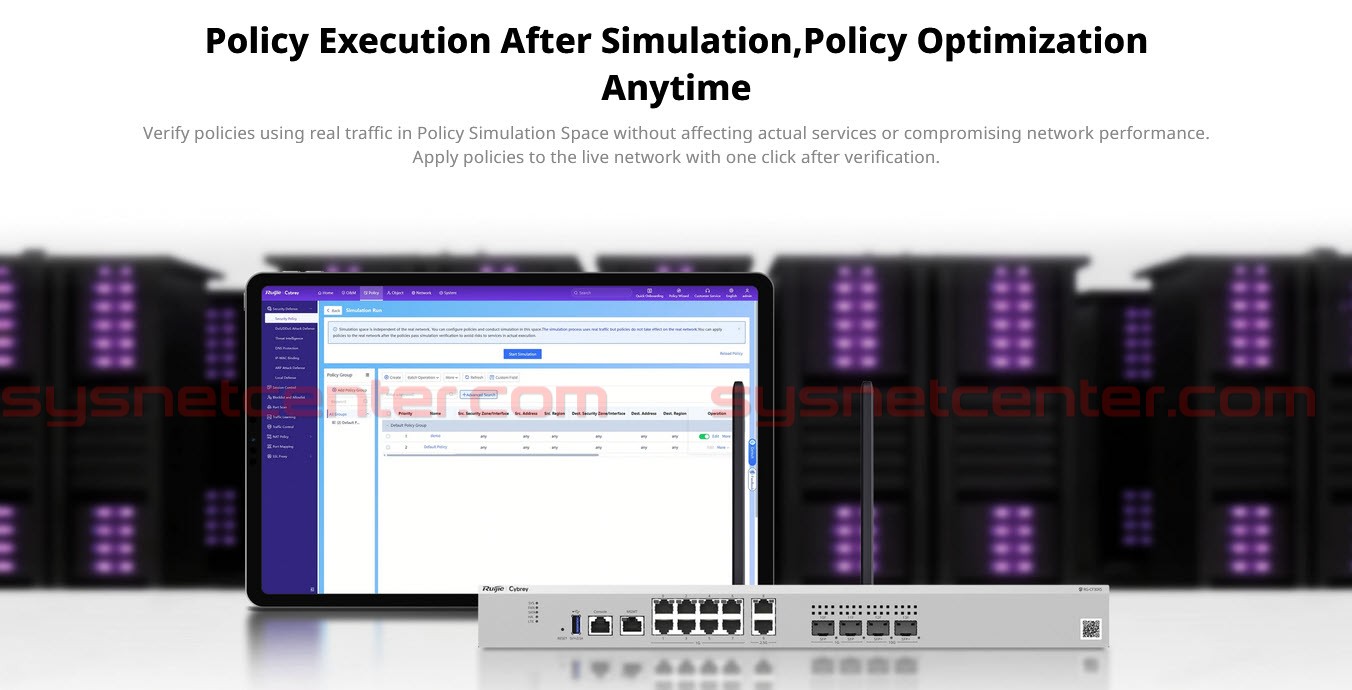

Verify policies using real traffic in Policy Simulation Space without affecting actual services or compromising network performance. Apply policies to the live network with one click after verification.

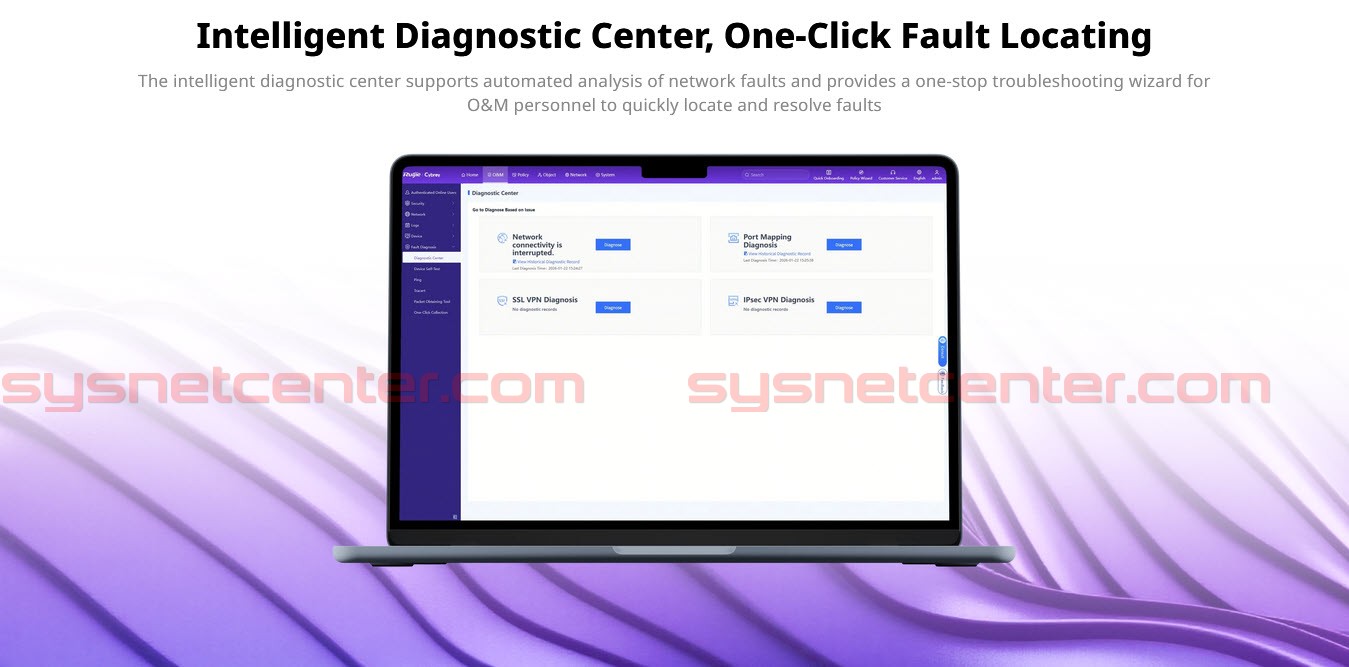

The intelligent diagnostic center supports automated analysis of network faults and provides a one-stop troubleshooting wizard for O&M personnel to quickly locate and resolve faults

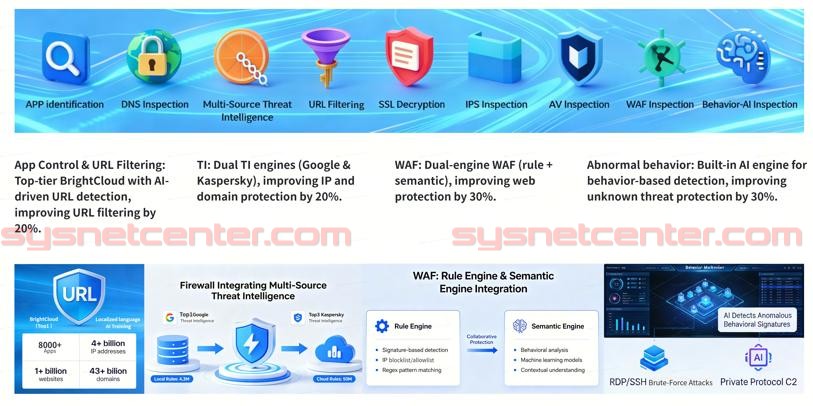

All-in-One Capabilities: One firewall delivers built-in app control and URL filtering, IPS, AV, Google & Kaspersky threat intelligence, WAF, and AI-based unknown threat detection.
firewall delivers over 20% higher decryption and threat protection performance, and seamlessly scales with your business. There is no need to rip and replace infrastracture, saving 10% in procurement costs and over 20% in hardware upgrade costs.
