Vigor2136 Product Specification |

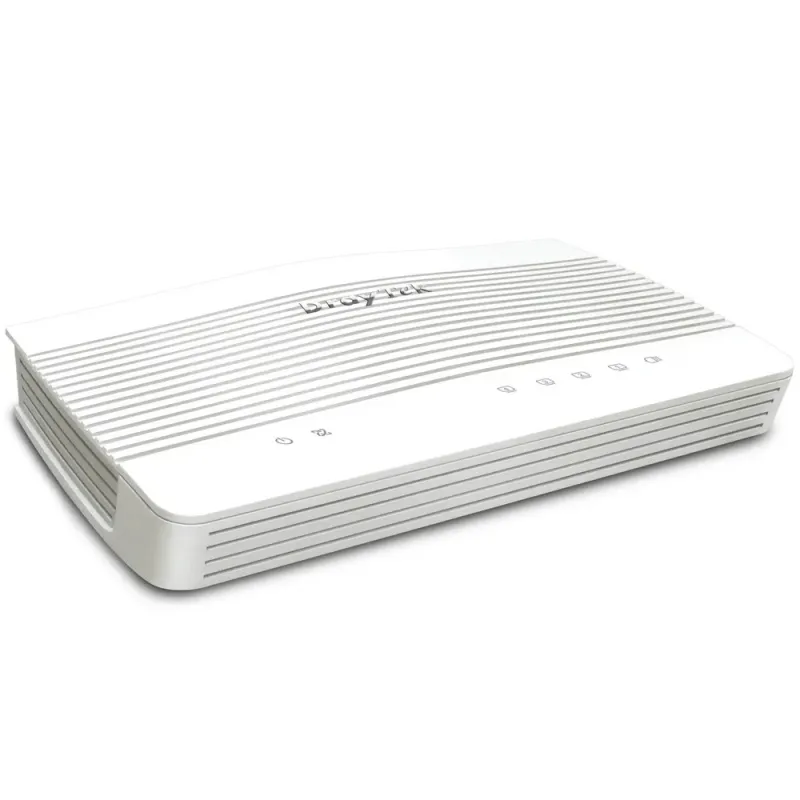

Overview | DrayTek Vigor2136
2-WAN Load Balance VPN Router, Port WAN/LAN 2.5Gbps Port, Max Throughput 2.3Gbps, 1,000,000 Session, VPN 4Tunnel IPsec throughput 390Mbps, รองรับ 30 Clients
|
Performance |
| NAT Session | 50K |
| Max. NAT (Mbps) | 2300 |
WAN |
Ethernet (2.5 GbE) | 2 |
Ethernet - LAN/WAN Switchable | Support |
Cellular (via USB) | 2 |
Internet Connection |
| IPv4 | PPPoE
DHCP
Static IP |
| IPv6 | PPP
DHCPv6
Static IPv6
TSPC
AICCU
6rd
6in4 Static Tunnel |
| 802.1p/q Multi-VLAN Tagging | Support |
| Failover | Support |
| Connection Detection | ARP, Ping, Strict ARP |
| WAN Data Budget | Support |
| Dynamic DNS | Support |
| DrayDDNS | Support |
LAN |
| Fixed LAN (RJ-45, GbE) | 3 |
| LAN Subnet | 4 |
| VLAN | 802.1q Tag-based VLAN
Port-based VLAN |
| Max. Number of VLAN | 8 |
| DHCP Server | Multiple IP Subnet
Custom DHCP Options
Bind-IP-to-MAC |
Wired 802.1x Authentication | Support |
| Port Mirroring | Support |
| Local DNS Server | Support |
| Conditional DNS Forwarding | Support |
| Hotspot Web Portal (Profile No.) | 4 |
| Hotspot Authentication | Click-Through
Social Login
SMS PIN
RADIUS
External Portal Server |
Other Ports |
| Console (RJ-45) | - |
| USB | 2 |
USB Application | User Management
FTP File Sharing
Device Status
Printer Server
Temperature Sensor
USB WAN
File Explorer* |
| USB Type | 2.0 |
Networking |
| Routing | IPv4 Static Route
IPv6 Static Route
Policy Route
Inter-VLAN Route
Fast Routing
RIP v1/v2
BGP
OSPFv2 |
| Policy-based Routing | Protocol
IP Address
Port
Domain
Country |
| Smart Action | Support |
| High Availability | Support |
| DNS Security (DNSSEC) | Support |
| IGMP | IGMP v2/v3
IGMP Proxy
IGMP Snooping & Fast Leave |
| Local RADIUS server | Support |
VPN |
Site-to-Site VPN | Support |
| Teleworker-to-LAN | Support |
| Protocols | IPsec
IKEv1/IKEv2
IKEv2-EAP
IPsec-XAuth
OpenVPN
WireGuard |
| Max. VPN Tunnels | 4 |
| IPsec VPN Throughput (AES 256 bits) (single-directional) (Mbps) | 390 |
WireGuard VPN Throughput (single-directional) (Mbps) | 90 |
| User Authentication | Local
RADIUS
TACACS+
mOTP
TOTP |
| IKE Authentication | Pre-Shared Key, X.509 |
| IPsec Authentication | SHA-1, SHA-256 |
| Encryption | DES
3DES
AES |
| VPN Trunk (Redundancy) | Failover, Load Balancing |
| Single-Armed VPN | Support |
| NAT-Traversal (NAT-T) | Support |
VPN Connection Status | Support |
Firewall & Content Filtering |
| NAT | Port Redirection
Open Ports
Port Triggering
Port Knocking
Fast NAT
DMZ Host
UPnP
Server Load Balance |
| ALG (Application Layer Gateway) | FTP, H.323, RTSP, SIP |
| VPN Pass-Through | IPsec, L2TP, PPTP |
| IP-based Firewall Policy | Support |
| Content Filtering | APP
URL Keyword
DNS Keyword
Web Features
Web Category*(*subscription required) |
| DoS Attack Defense | Support |
| Spoofing Defense | Support |
Bandwidth Management |
| IP-based Bandwidth Limit | Support |
| IP-based Session Limit | Support |
| QoS (Quality of Service) | TOS
DSCP
802.1p
IP Address
Service Type |
| VoIP Prioritization | Support |
| APP QoS | Support |
Management |
| Local Service | HTTP
HTTPS
Telnet
SSH v2
FTP
TR-069 |
| Config Backup/Restore | Support |
| Firmware Upgrade | HTTP, TFTP, TR-069 |
| 2-Level Administration Privilege | Support |
| Access Control | Access List, Brute Force Protection |
| Notification Alert | E-mail, SMS |
| SNMP | v1, v2c, v3 |
| Syslog | Support |
Virtual AP Controller (Device up to) | 20 |
Virtual Switch Controller | 5 |
| VigorACS Management (Since f/w) | V5.3.0 |
Physical |
| Power Input | DC 12V @ 0.9A |
| Max. Power Consumption (watts) | 10 |
| Dimension (mm) | 207 x 131 x 42 |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -25 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
รับประกัน | 2 ปี |
