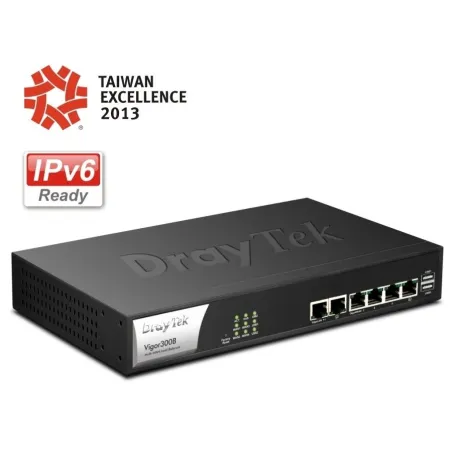

DrayTek Vigor300B Product Specification
|
|
Overview
|

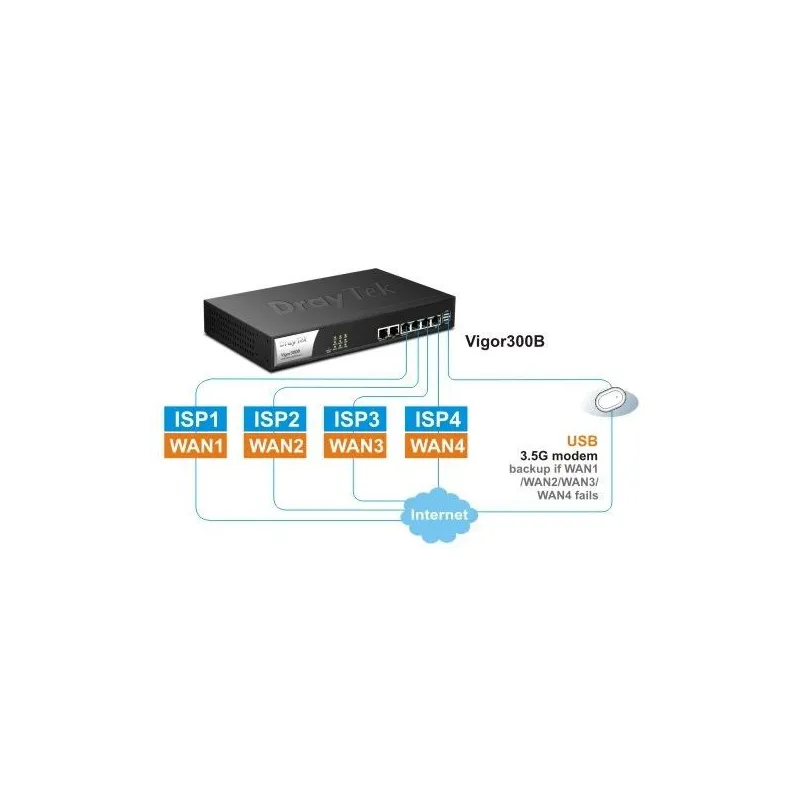

DrayTek Vigor300B 4-WAN Load-Balance Firewall Router รวม Internet 4 คู่สาย, รองรับ NAT Sessions สูงถึง 100,000 NAT Sessions, รองรับ Internet 900Mbps, QOS, รองรับ 3G/4G LTE Modem
|
| |
|
Interface
|
| WAN Port |
4 x 100/1000Base-Tx, RJ-45
(WAN4 is configurable as physical DMZ port) |
| LAN Port |
2 x 100/1000Base-Tx, RJ-45

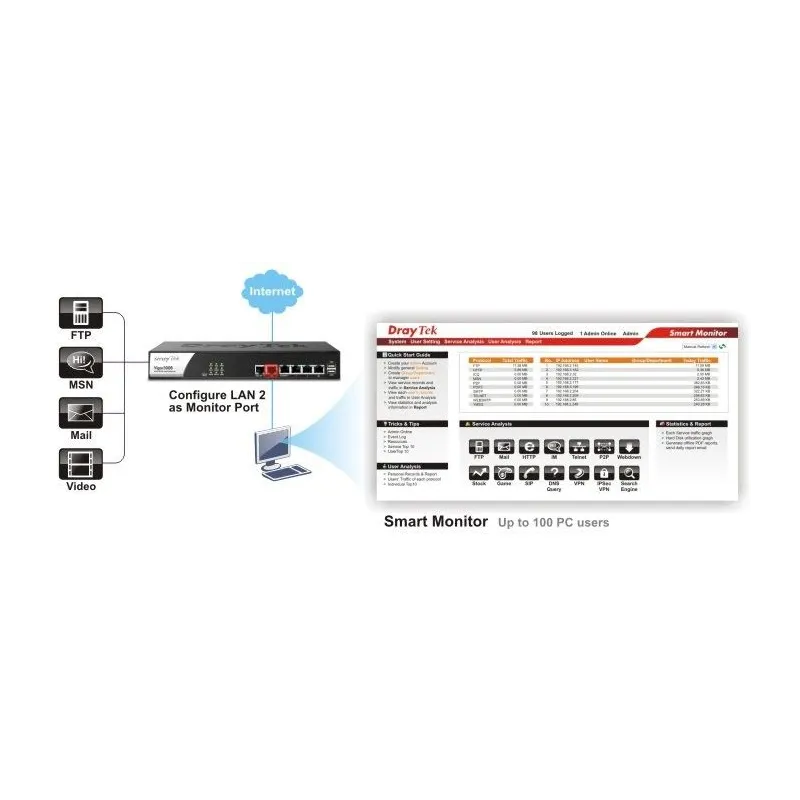

(LAN2 is configurable as monitor port or physical DMZ port) |
| USB Port |
2 x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or thermometer |
Performance
|
| NAT Throughput |
900 Mbps |
| NAT Sessions |
100,000 |
Internet Connection
|
| IPv4 |
PPPoE, DHCP, Static IP, PPTP |
| IPv6 |
Link Local, Static, PPP, DHCP IA NA, DHCP IA PD |
| Multi-VLAN |
|
| 3G/4G/LTE WAN with USB modem |
|
| Outbound Load Balancing |
IP-based, Session-based |

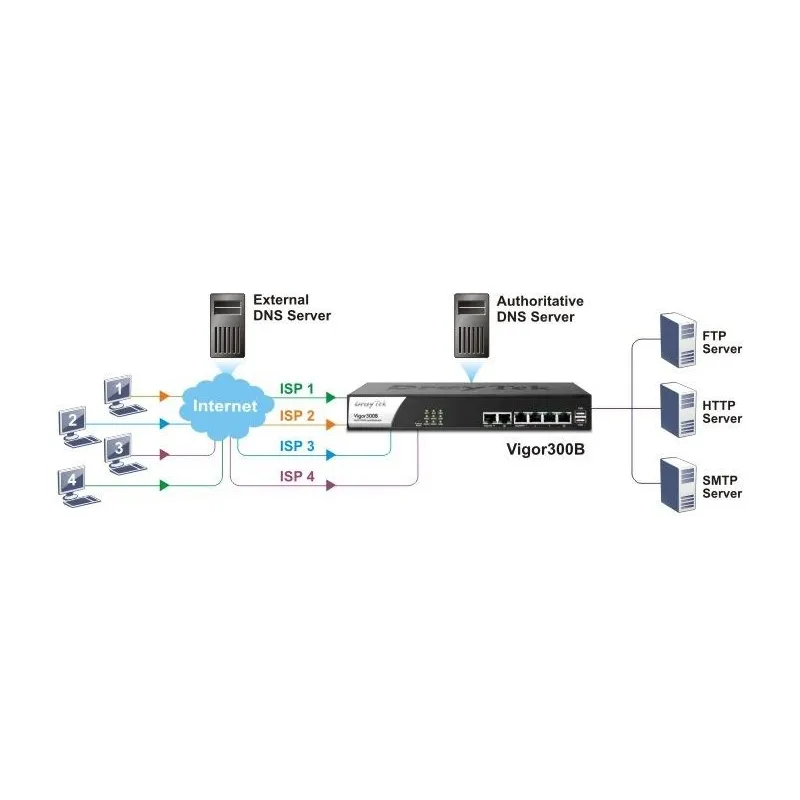

| Inbound Load Balancing |
|
| WAN Failover |
|
| Connection Detection |
ARP, Ping, HTTP |
| Dynamic DNS |
|
| DrayDDNS |
|
LAN Management
|

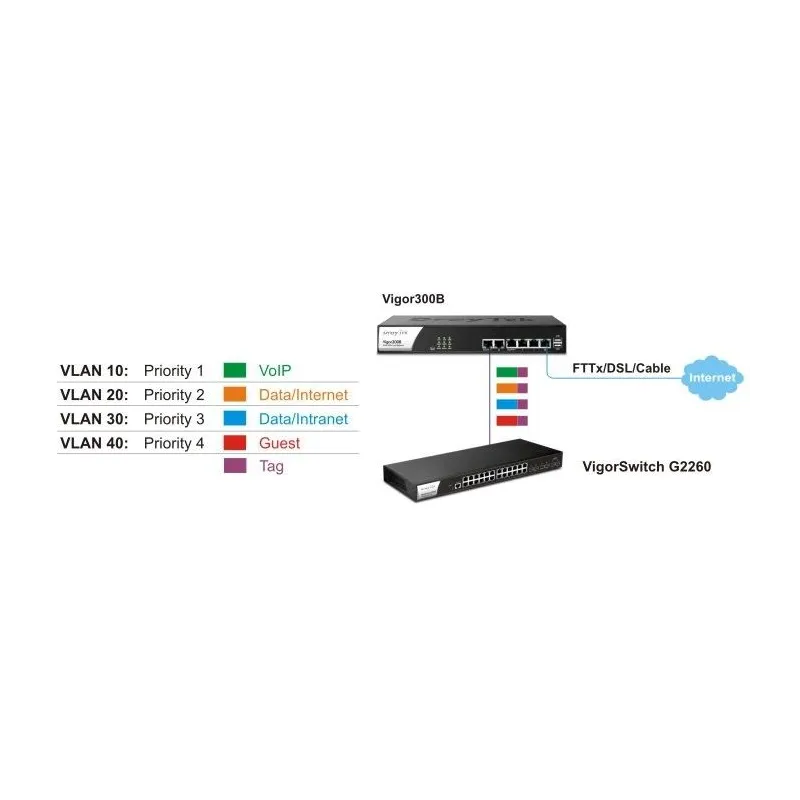

| 802.1q VLAN |
|
| DHCP Server |
Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC |
| PPPoE Server |
|
| Port Mirroring |
|
| Local DNS Server |
|
| Conditional DNS Forwarding |
|
| Web Portal |
|
| Web Portal Authentication |
Local User Profile, Guest Profile, RADIUS, LDAP, SMS PIN |
Networking
|
| Routing |
IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP, BGP, OSPF |
| Policy-based Routing |
Protocol, IP Address, Port, Domain, Country |
| DNS Security (DNSSEC) |
|
| GVRP |
|
| Proxy |
IGMP, LAN ARP, WAN ARP |
| SMB File Sharing |
(Requires external storage) |
Firewall & Content Filtering
|
| NAT |
Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP |
| ALG (Application Layer Gateway) |
SIP, FTP, H.323 |
| VPN Pass-Through |
PPTP, L2TP, IPsec |
| IP-based Firewall Policy |
|
| Content Filtering |
Application, URL Keyword, File Extension, Web Category*, QQ Filter (*: subscription required) |
| DoS Attack Defense |
|
Bandwidth Management
|
| IP-based Bandwidth Limit |
|
| IP-based Session Limit |
|
| QoS (Quality of Service) |
TOS, DSCP, 802.1p, IP Address, Service Type |
| Hardware QoS |
|
| VoIP Prioritization |
|
Management
|
| Local Service |
HTTP, HTTPS, Telnet, SSH, TR-069 |
| Config File Export & Import |
|
| Firmware Upgrade |
TFTP, HTTP, TR-069 |
| 2-Level Administration Privilege |
|
| Access Control |
Access List, Brute Force Protection (Fail to Ban), Access Barrier |
| Syslog |
|
| Notification Alert |
SMS, E-mail |
| SNMP |
v2, v2c, v3 |
| Managed by VigorACS |
|
| Central AP Management |
30 VigorAP |
| Central Switch Management |
10 VigorSwitch |
Physical
|
| 19" Rack Mountable |
Mouting Kit Included |
| Power Supply |
DC 12V @ 1.5A |
| Max. Power Consumption |
19 watts |
| Dimension |
273 mm x 171 mm x 45 mm |
| Weight |
1.35 kg |
| Max. Power Consumption |
19 watts |
| Operating Temperature |
0 to 45°C |
| Storage Temperature |
-10 to 55°C |
| Operating Humidity (non-condensing) |
10 to 90% |
|
รับประกัน
|
2 ปี
|
