Technical Specifications
|
|
|
Port Standards
|
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 10000Base-T Ethernet
802.3x Full-Duplex Flow Control
|
|
Network Ports
|
(8) 10/100/1000 Mbps Ports
|
|
Performance
|
Switching Capacity: 16Gbps
Forwarding Mode: Store-and-Forward
Flash Memory: 32 MB
SDRAM:256MB
Packet Buffer Memory: 512 KB
Address Database Size: 8,000 MAC Addresses
|
|
PoE Capability
|
PoE Standard: Ports 1~8 Support IEEE 802.3af
PoE Capable Ports: All Gigabit Ethernet Ports
|
|
PoE Budget
|
55 W
|
|

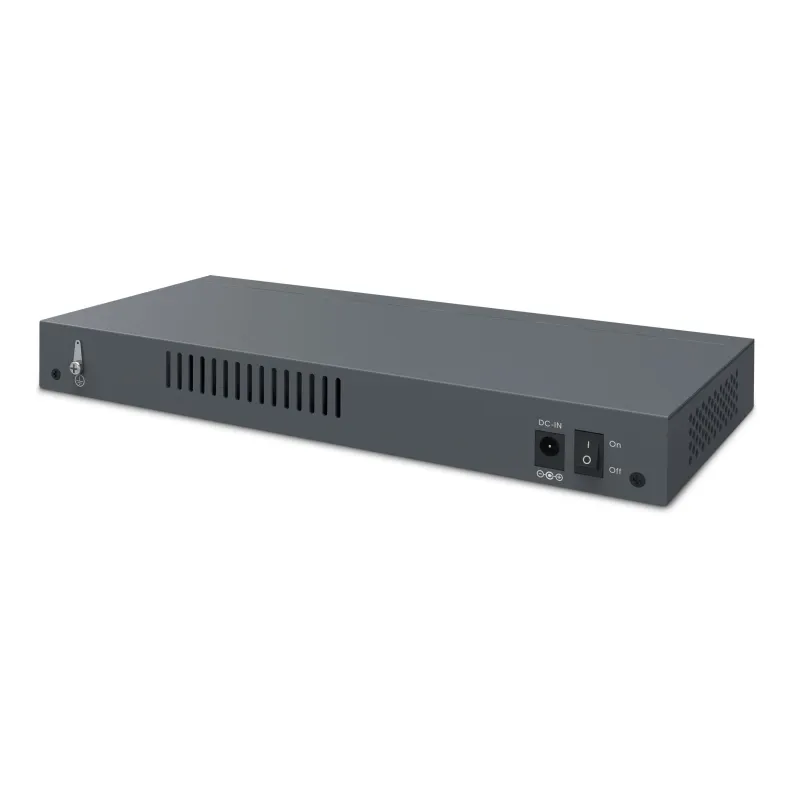

Power Source
|
AC Input: 100 ~ 240VAC, 50-60Hz, 1.2A
DC Output: 54V/1.67A
|
Physical Interface
|
|
|
LED Indicators
|
Reset Button
Desktop/Wall Mount
|
|

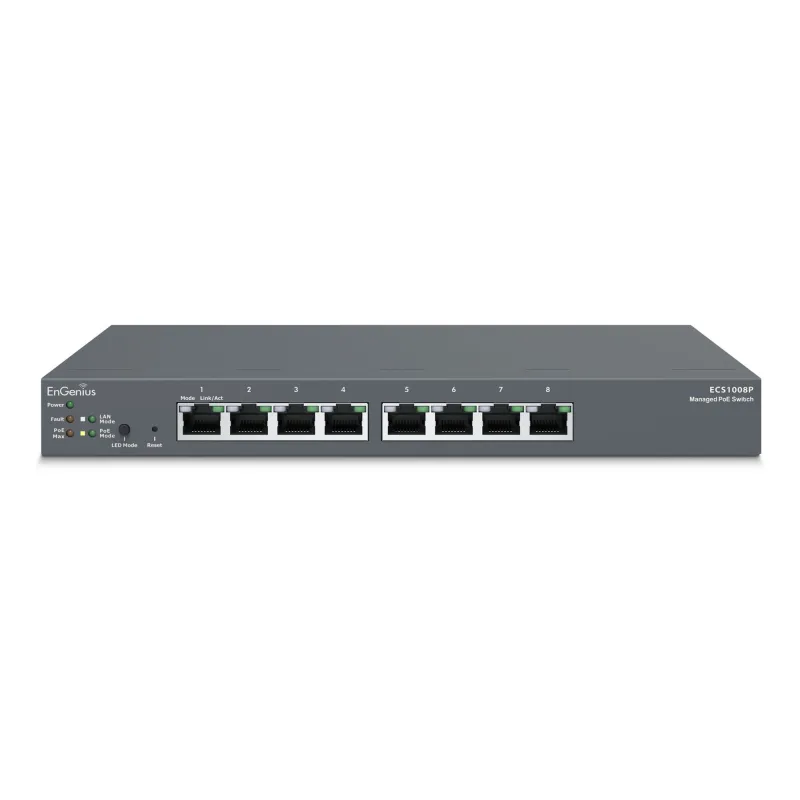

LED Indicators
|
Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED
|
|
Ports
|
Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)
|
Environmental & Physical
|
|
|
Temperature Range
|
Operating: 32 to 104? F/0 to 40? C
Storage: -4 to 158? F/-20 to 70 ? C
|
|
Humidity (Non-Condensing)
|
5% – 95%
|
|
Dimensions & Weight
|
|
|

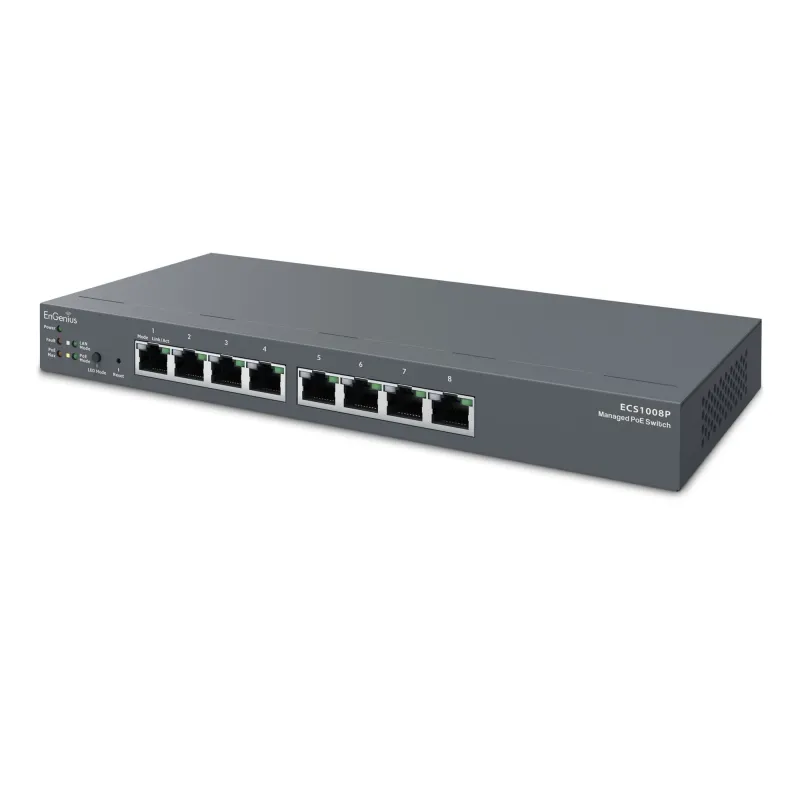

ECS1008P Device
|
Weight: 1.5 kg
Width: 105 mm
Length: 240 mm
Height: 27mm
|
|
Package Contents
|
(1) ECS1008P Switch
(1) Power Cord
(1) RJ45 Console Cable
(1) Rack Mount Kit
(1) Quick Installation Guide
|
L2 Features
|
|
|
Layer 2 Features
|
|
|
802.3ad Link Aggregation
|
Maximum of 8 Groups/8 Ports per Group
|
|
Spanning Tree Protocol
|
802.1D Spanning Tree Protocol (STP)
802.1w Rapid Spanning Tree Protocol (RSTP)
802.1s Multiple Spanning Tree Protocol (MSTP)
|
|
MAC Address Table
|
8K Entries
|
|
Static MAC Address
|
256 Entries
|
|
802.1ab Link Layer Discovery Protocol
|
|
|
IGMP Snooping
|
IGMP v1/v2/v3 Snooping
Supports 4094 IGMP Groups
IGMP per VLAN
IGMP Snooping Query
IGMP Snooping Fast Leave
|
|
MLD Snooping
|
MDL Snooping v1/v2
Supports 4,094 MLD Groups
IGMP per VLAN
|
|
Jumbo Frame
|
Up to 9,216 bytes
|
|
802.3x Flow Control
|
802.3az Energy Efficient Ethernet
|
|
VLAN
|
802.1Q Support
|
|
VLAN Group
|
Max 4,094 Static VLAN Groups
|
|
Voice VLAN
|
|
|
QoS
|
|
|
802.1p Quality of Service
|
8 Queues per Port
|
|
Queue Handling
|
Strict
Weighted Round Robin (WRR)
|
|
QoS Based on:
|
802.1p Priority
DSCP
|
|
Bandwidth Control
|
Port-Based (Ingress/Egress, 64 Kbps~1000 Mbps)
|
|
Broadcast/Unknown Multicast/Unknown Unicast Storm Control
|
|
|
Access Control List (ACL)
Layer 2/3
|
Supports Maximum 50 Entries (ACL)
Supports Maximum 256 Entries (ACE)
|
|
ACL Based on:
|
MAC Address
VLAN ID
802.1p Priority
Ethertype
IP Address
Protocol Type
DSCP
|
Security
|
|
|
802.1X
|
Guest VLAN
Port-Based Access Control
|
|
Supports RADIUS Authentication
|
|
|
Port Security
|
Up to 256 MAC Addresses per Port
|
|
Port Isolation
|
|
|
DoS Attack Prevention
|
|
|
BPDU Attack Prevention
|
Monitoring
Port Statistics
System Log
RMON
|
|
Management
|
Web Graphical User Interface (GUI)
Command Line Interface (CLI)
BootP/DHCP Client/DHCPv6 Client
SSH Server
Telnet Server
TFTP Client
HTTPS
|
|
SNMP
|
Supports v1/v2c/v3
SNMP Trap
SNTP
Configuration Restore/Backup
Dual Images
|
|
Diagnostic
|
Cable Diagnostic
Ping Test
Trace Route
|
|
MIB/RFC Standards
|
RFC1213
RFC1493
RFC1757
RFC2674
RFC 2863
|
L3 Features
|
|
|
Multiple IP Interface
|
20 IPv6 address
|
|
ARP Table
|
Max. 192 ARP entries
|
|
Static ARP
|
Static 192 ARP entries
|
|
IPv4 Static Route
|
Max. 63 entries
|
|
IPv6 Static Route
|
Max. 21 entries
|
|
