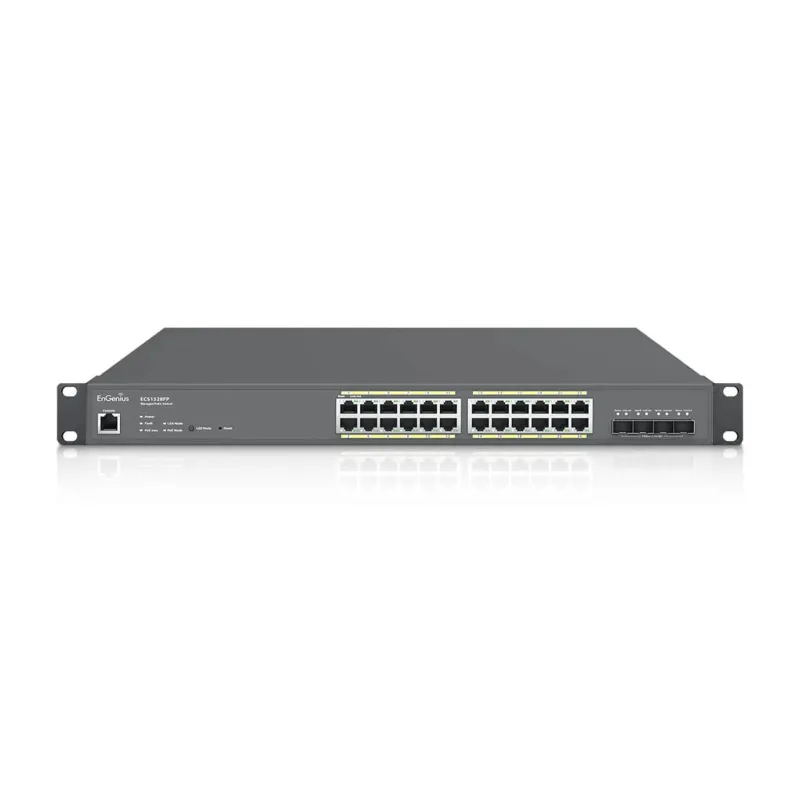

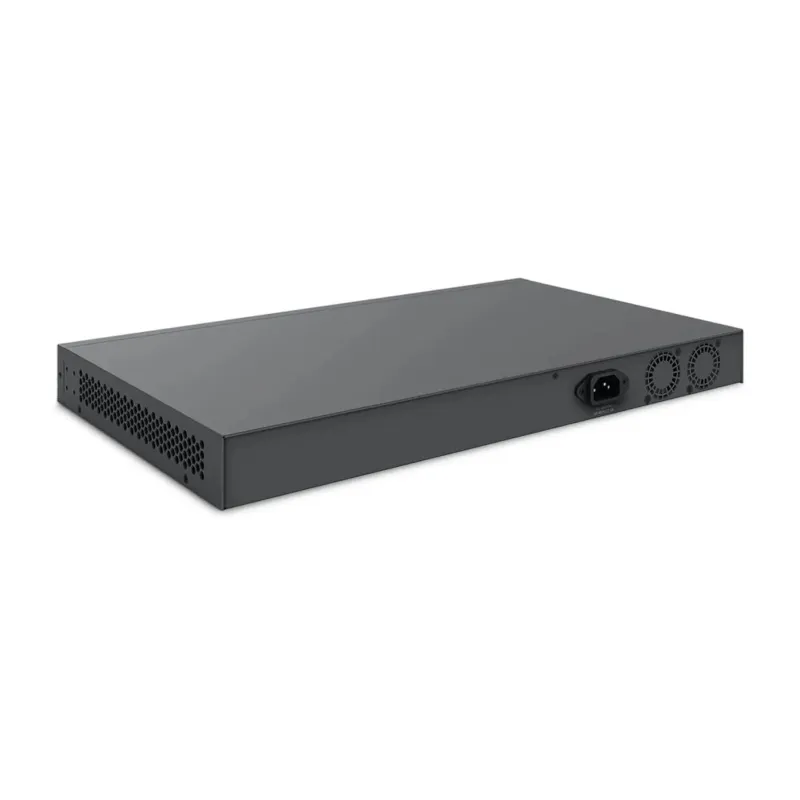

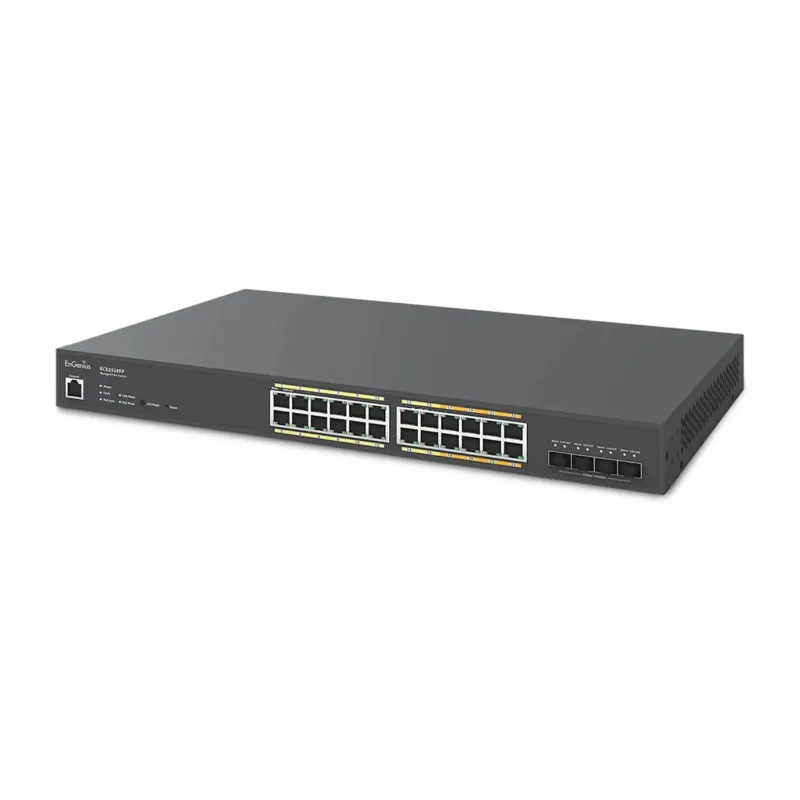

EnGenius ECS1528FP Cloud Managed Layer 2 PoE Switch 24 Port, 4SFP, af/at 410W

Technical Specifications

Port Standards

802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 10000Base-T Ethernet
802.3x Full-Duplex Flow Control

Network Ports

(24) 10/100/1000 Mbps Ports

Performance

Switching Capacity: 128Gbps
Forwarding Mode: Store-and-Forward
Flash Memory: 128 MB
SDRAM:512MB
Packet Buffer Memory: 2M
Address Database Size: 16K MAC Addresses

PoE Capability

PoE Standard: Ports 1~4 Support IEEE 802.3af/at
PoE Capable Ports: All Gigabit Ethernet Ports

PoE Budget

410 W

Power Source

AC Input: 100 ~ 240VAC, 50-60Hz, 1.2A
DC Output: 54V/1.67A

Physical Interface

LED Indicators

Reset Button
Desktop/Wall Mount

LED Indicators

Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED

Ports

Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)

Environmental & Physical

Temperature Range

Operating: 32 to 122? F/0 to 50? C
Storage: -4 to 158? F/-20 to 70 ? C

Humidity (Non-Condensing)

5% – 95%

Dimensions & Weight

ECS1008P Device

Weight: 4.7 kg
Width: 260mm
Length: 440 mm
Height: 44mm

Package Contents

(1) ECS1528FP Switch
(1) Power Cord
(1) RJ45 Console Cable
(1) Rack Mount Kit
(1) Quick Installation Guide

L2 Features

Layer 2 Features

802.3ad Link Aggregation

Maximum of 8 Groups/8 Ports per Group

Spanning Tree Protocol

802.1D Spanning Tree Protocol (STP)
802.1w Rapid Spanning Tree Protocol (RSTP)
802.1s Multiple Spanning Tree Protocol (MSTP)

MAC Address Table

8K Entries

Static MAC Address

256 Entries

802.1ab Link Layer Discovery Protocol

IGMP Snooping

IGMP v1/v2/v3 Snooping
Supports 4094 IGMP Groups
IGMP per VLAN
IGMP Snooping Query
IGMP Snooping Fast Leave

MLD Snooping

MDL Snooping v1/v2
Supports 4,094 MLD Groups
IGMP per VLAN

Jumbo Frame

Up to 9,216 bytes

802.3x Flow Control

802.3az Energy Efficient Ethernet

VLAN

802.1Q Support

VLAN Group

Max 4,094 Static VLAN Groups

Voice VLAN

QoS

802.1p Quality of Service

8 Queues per Port

Queue Handling

Strict
Weighted Round Robin (WRR)

QoS Based on:

802.1p Priority
DSCP

Bandwidth Control

Port-Based (Ingress/Egress, 64 Kbps~1000 Mbps)

Broadcast/Unknown Multicast/Unknown Unicast Storm Control

Access Control List (ACL)
Layer 2/3

Supports Maximum 50 Entries (ACL)
Supports Maximum 256 Entries (ACE)

ACL Based on:

MAC Address
VLAN ID
802.1p Priority
Ethertype
IP Address
Protocol Type
DSCP

Security

802.1X

Guest VLAN
Port-Based Access Control

Supports RADIUS Authentication

Port Security

Up to 256 MAC Addresses per Port

Port Isolation

DoS Attack Prevention

BPDU Attack Prevention

Monitoring
Port Statistics
System Log
RMON

Management

Web Graphical User Interface (GUI)
Command Line Interface (CLI)
BootP/DHCP Client/DHCPv6 Client
SSH Server
Telnet Server
TFTP Client
HTTPS

SNMP

Supports v1/v2c/v3
SNMP Trap
SNTP
Configuration Restore/Backup
Dual Images

Diagnostic

Cable Diagnostic
Ping Test
Trace Route

MIB/RFC Standards

RFC1213
RFC1493
RFC1757
RFC2674
RFC 2863

L3 Features

Multiple IP Interface

20 IPv6 address

ARP Table

Max. 192 ARP entries

Static ARP

Static 192 ARP entries

IPv4 Static Route

Max. 63 entries

IPv6 Static Route

Max. 21 entries

ประกัน

5 ปี
