EnGenius EWS1025CAM Neutron AP MeshCam IP-Camera พร้อมกระจาย Wireless AC ความละเอียด 2MP

Product Specification

Overview

EnGenius EWS1025CAM Neutron AP MeshCam กล้อง IP-Camera แบบ Wireless ความละเอียด 2MP มุม 120-Degree รองรับการบันทึกลง Micro SD สูงสุด 64GB รองรับการกระจายสัญญาณ Wireless Mesh มาตรฐาน AC ได้ในตัวอุปกรณ์ ความเร็วสูงสุด 867Mbps รองรับ POE มาตรฐาน 802.3af/at

Standards

IEEE 802.11b/g/n on 2.4 GHz
IEEE 802.11a/n/ac on 5 GHz
IEEE 802.3at/af
IEEE 802.11r
IEEE 802.11k
IEEE 802.11i
IEEE 802.11x

Antenna

5dBi 5 GHz & 5dBi 2.4 GHz Internal High-Gain Antennas

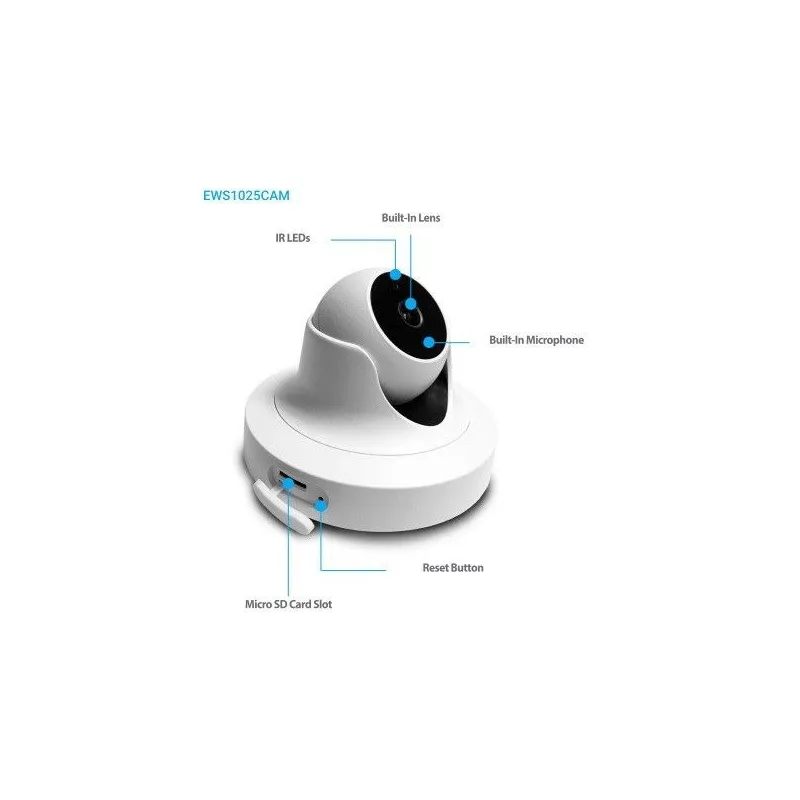

Physical Interface

1 x 100/1000 Gigabit Ethernet Port
- Supports 802.3at/af PoE Input
1 x Reset Button
1 x Power Connector
1 x Micro SD/SDXC Slot
24 Pcs IR LEDs
1x Embedded Microphone

Camera

Image Sensor

Sony 1 /2.9” 2-Megapixel Progressive Scan CMOS

Lens

Fixed Board Lens
Fixed-Focus, f=2.8 mm / F2.0

F.O.V.

120? (diagonal)

IR Illuminator

24 Pcs LEDs, Up to 65 Feet

Day/Night

Removable IR-Cut Filter

Minimum Illumination

Color (IR-Off): 0.01 Lux / F2.0
B/W (IR-On): 0 Lux / F2.0

Shutter Time

1/2 sec. to 1/10,000 sec.

Video

Compression

H.264/MJPEG

Frame Rates

Up to 30 FPS at 1920 x 1080P

Configurable

Brightness
Sharpness
Contrast
White Balance
Saturation
Exposure
AGC/AWB/AES
Flip & Mirror
Time Stamp & Text Caption Overlay
Auto/Manual Day & Night Mode
3D Noise Reduction
Low Light Compensation (LLC)

Audio

Audio Streaming

1-Way

Interface

Built-In Microphone

Networking

Wireless & Radio Specifications

Dual-Concurrent Radio

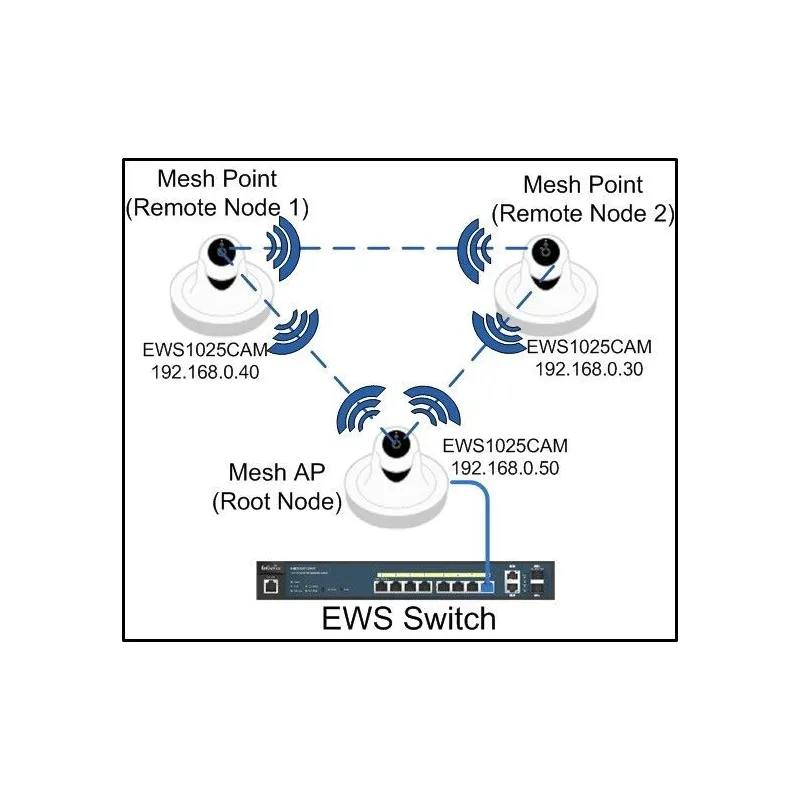

Operation Modes

Mesh Access Point/Access Point
Standalone: Access Point, Client Bridge, WDS Access Point, WDS Bridge, WDS Station

Transmit Power

Up to 21dBi on 2.4 GHz
Up to 19dBi on 5 GHz
Max transmit power is limited by regulatory power

Radio Chains/Spatial Streams

2x2:2

Supported Data Rates (Mbps)

2.4 GHz: Max 300
5 GHz: Max 867
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
802.11n: 6.5 to 300 (MCS0 to MCS15)
802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS=1~2)

Management

Multiple BSSID

Supports up to 16 SSIDs, 8 SSIDs per Radio

VLAN Tagging

Supports 802.1q SSID-to-VLAN Tagging
VLAN Pass-Through

Management Features

Deployment Options

รองรับทั้งแบบ Stand-Alone (Individually Managed)
และ Managed Mode (ควบคุมผ่าน Neutron Series Switch/ezMaster)

Stand-Alone Management Features

Auto-Channel Selection
Wireless STA (Client) Connection List
Guest Network
Fast Roaming (802.11k & 802.11r)
Pre-Authentication (802.11i, 802.11x)
PMK Caching (802.11i)
RSSI Threshold
Band Steering
Traffic Shaping
VLANs for Access Point – Multiple SSIDs
Backup/Restore Settings
Auto Reboot
E-Mail Alert

Wireless Management Features (with ezMaster & Neutron Switch)

AP Auto Discovery and Provisioning
AP Auto IP Assignment
AP Cluster Management
Remote AP Rebooting
AP Device Name Editing
AP Radio Settings
Band Steering
Traffic Shaping
Fast Roaming (802.11k & 802.11r)
Pre-Authentication (802.11i, 802.11x)
PMK Caching (802.11i)
RSSI Threshold
AP Client Limiting
Client Fingerprinting
AP VLAN Management
VLANs for AP - Multiple SSIDs
Secured Guest Network
Captive Portal
Access Point Status Monitoring
Rogue AP Detection
Wireless Client Monitoring
Background Scanning
Auto Transmit Power
Auto Channel
Email Alert
Wireless Traffic & Usage Statistics
Real-time Throughput Monitoring
SmartSync Redundancy
Visual Topology View
Floor Plan View
Map View
Wireless Coverage Display
Secure Control Messaging (SSL Certificate)
Local MAC Address Database
Remote MAC Address Database (RADIUS)
Unified Configuration Import/Export
Bulk Firmware Upgrade Capability
One-Click Update
Intelligent Diagnostics
Kick/Ban Clients
Wi-Fi Scheduler
Traffic Shaping

Configuration

Web Interface (HTTP)
CLI (Telnet)

Control Features

Managed Mode (by Neutron Switch/ezMaster)
Band Steering
Auto-Reboot
One-Click Firmware Upgrade
Firmware Upgrade: Web Interface or CLI (FTP/HTTP)

Security

WEP Encryption (64/128/152 bit)
WPA/WPA2 Enterprise (PSK using TKIP or AES)
Hide SSID in Beacons
MAC Address Filtering, Up to 50 MACs per SSID
SSH Support
Client Isolation

Supporting Protocol

IPv4, TCP, UDP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, UPnP, NFS/Samba Client, QoS/DSCP, RTP, RTSP, 3GPP, PPPoE, Time Zone Management
ONVIF Compatible (Profile S)

Alarm & Event/Recording

Event Trigger

Motion/Tamper/Audio Detection

Event Notification

Email/Push Notifications

Event Actions

File Upload to NFS/SAMBA/FTP/SMT/Local SD Card/EnGenius Cloud & Play Audio
EnGenius Simple Smart Recording (Only for EnGenius Cloud Series Routers/Gateways)

Video Buffer

5-Seconds Pre-Alarm & Post-Alarm

Video Playback

PC/iPhone?/Android? via EnVMS App

EnVMS Mobile APP

iOS/Android Devices
Live Viewing for Up to 5 Clients

Environment & Mechanical

Temperature Range

Operating: 32?F to 122?F, 0?C to 50?C

Humidity (Non-condensing)

Operating: 80% or less
Storage: 80% or less

Dimensions & Weights

Weight: 1.11 lbs.
Diameter: 5.27" (134 mm)
Height: 3.81" (97 mm)

Package Contents

- EWS1025CAM
- 12V/1.5A Power Adapter
- Mounting Bracket
- Mounting Screw Set
- T-Rail Mounting Kit
- RJ45 Ethernet Cable
- Quick Installation Guide

Certifications

FCC
IC

Warranty

2 ปี, Adapter 6 เดือน
