WPA/WPA2 Personal (WPA-PSK using TKIP or AES) WPA/WPA2 Enterprise (WPA-EAP using TKIP) 802.1X RADIUS Authenticator: MD5/TLS/TTLS, PEAP SSID broadcast enable/disable MAC Address Filtering, Up to 50 field L2 Isolation (Access Point mode) Wireless STA (Client) connected list (Idle/Connection Time, Pkt statistics)

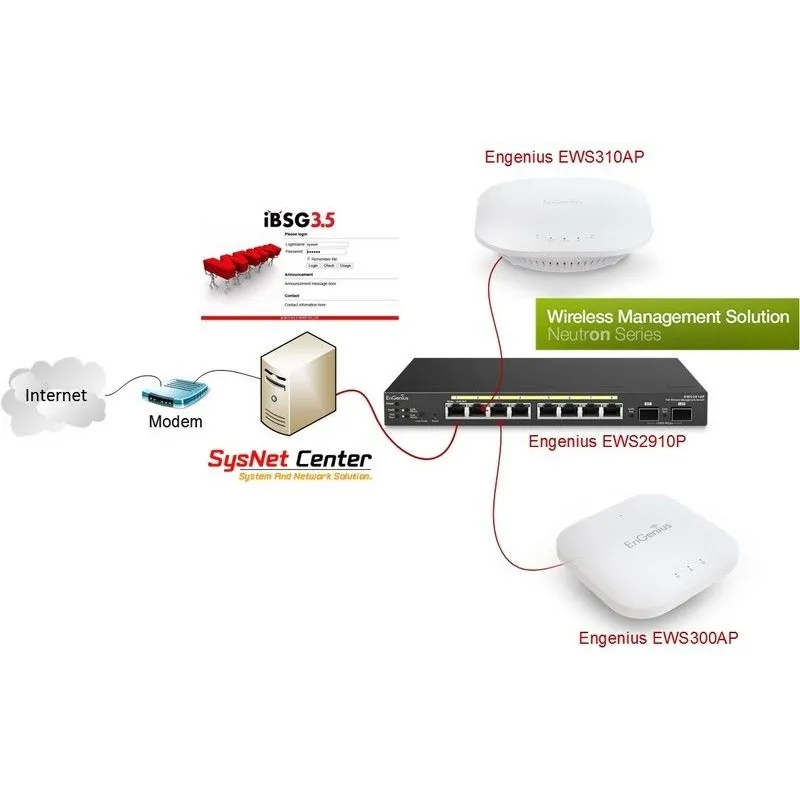

การใช้งานร่วมกับ Neutron Series Switch
Access Point Auto Discovery and Provisioning Access Point Auto IP Assignment Access Point Group Management Remote Access Point Rebooting Access Point Device Name Editing Access Point Radio Settings Band Steering (Dual-Band models only) Traffic Shaping Fast Roaming (802.11k & 802.11r) Pre-Authentication (802.11i & 802.11x) PMK Caching (802.11i) RSSI Threshold Access Point Client Limiting Client Fingerprinting Wireless Security (WEP, WPA/WPA2 Enterprise,WPA/WPA2 PSK) AP VLAN Management VLANs for Access Point- Multiple SSIDs Secured Guest Network Captive Portal Access Point Status Monitoring Rogue AP Detection Wireless Client Monitoring Background Scanning Email Alert Wireless Traffic & Usage Statistics Real-Time Throughput Monitoring SmartSync Redundancy Visual Topology View Floor Plan View Map View Wireless Coverage Display Secure Control Messaging (SSL Certificate) Local MAC Address Database Remote MAC Address Database (RADIUS) Unified Configuration Import / Export Bulk Firmware Upgrade Capability One-Click Update Intelligent Diagnostics Kick/Ban Clients Wi-Fi Scheduler
Management
Adjust transmit power by dBm Web-based configuration (http)/Telnet Reboot (press 1 second). Reset to factory default (press 10 seconds) Status Statistic and Event Log SNMP: V1, V2c, V3 Auto Reboot Access Point by minute, hour, day, or week Incoming and outgoing wireless traffic shaping Supports Command Line Interface Scanning for available EnGenius Aps
เสาอากาศ
2 dBi X 2ต้น (ย่านความถี่ 2.4 GHz) 2 dBi X 2ต้น (ย่านความถี่ 5 GHz) ไม่สามารถเพิ่มเติมเสาอากาศภายนอกได
