| แก้ปัญหาสัญญาณ Wireless ไม่สามารถเข้าถึงในห้องพักได้ |

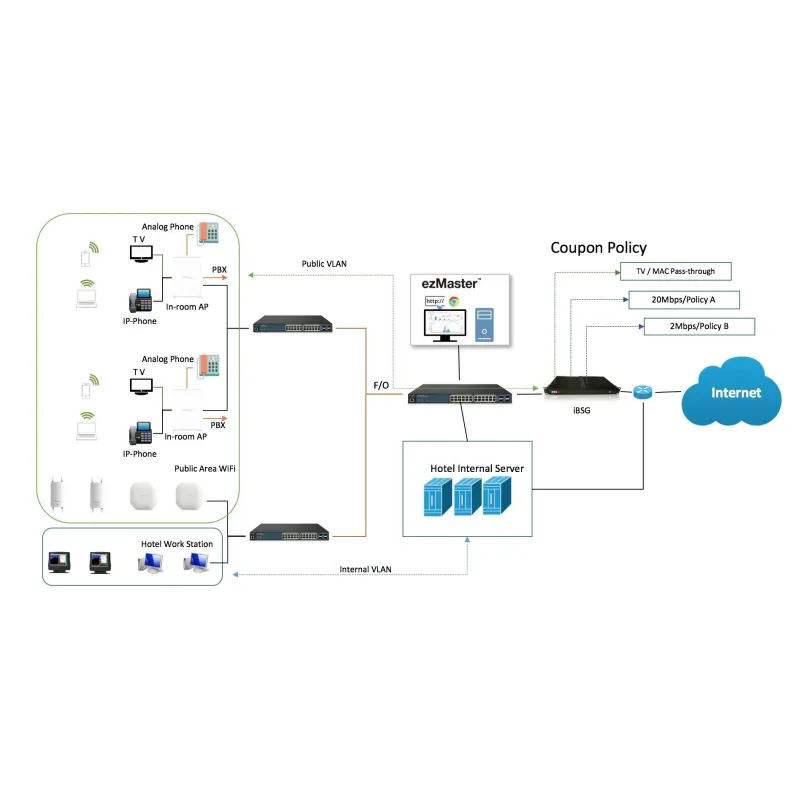

| เทคโนโลยี EnGenius Neutron Series Wireless Management solution รองรับการควบคุมการทำงาน หรือ Monitor ผ่านอุปกรณ์ Engenius Neutron Switch |
| รองรับ Software การบริหารเครือข่าย Wireless EZ Controller Access Point Management software |

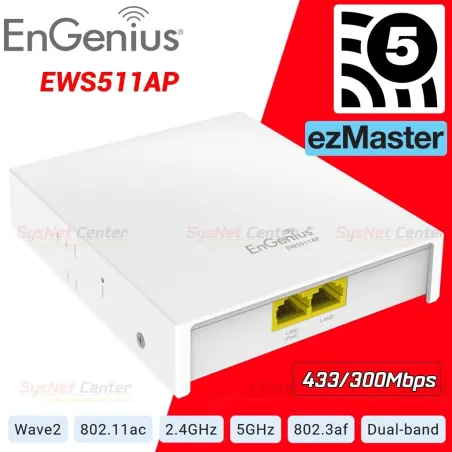

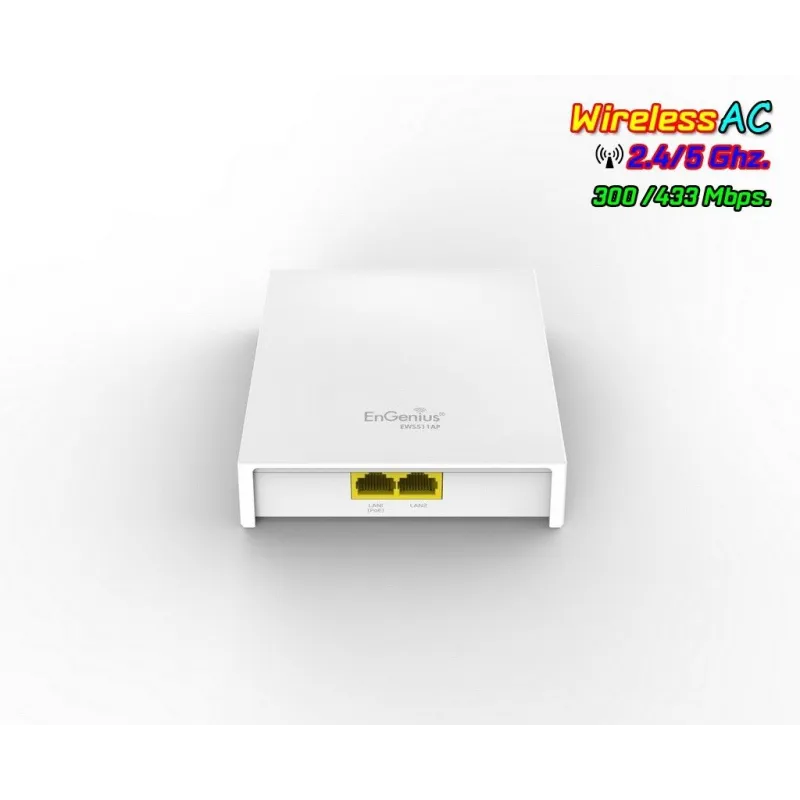

Access Point Type | Indoor, dual radios concurrent, 5GHz 802.11 ac 1x1 MIMO is back-wards compatible with 802.11 a/n mode, 2.4GHz 802.11 n 2x2 MIMO is backwards compatible with 802.11 b/g. |
SU-MIMO | Four(2) spatial stream SU-MIMO for up to 733 Mbps wireless data rate to a single wireless client device. |
Frequency Radio | 2.4GHz: 2400MHz ~ 2835MHz,
5GHz: 5150MHz~5250MHz, 5250MHz~5350MHz, 5470~5725MHz, 5725MHz~5850MHz |
Supported Radio Technology | 802.11b: Direct-sequence spread-spectrum (DSSS)
802.11ac/a/g/n: Orthogonal frequency-division multiplexing (OFDM)
802.11n/ac: 2x2 MIMO with 2 streams on 2.4GHz radio and 1x1 with 1 stream on 5GHz radio.
802.11ac supports very high throughput (VHT) — VHT 20/40/80 MHz
802.11n supports high throughput (HT) — HT 20/40 MHz
802.11n/ac packet aggregation: A-MPDU, A-SPDU |
Supported Modulation Type | 802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM |
Transmit Power (Maximum Value) | 2.4GHz: 18dBm
5GHz: 18dBm |
Supported data rates (Mbps) | 802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 300 (MCS0 to MCS15)
802.11ac: 6.5 to 733(MCS0 to MCS9, NSS=1 ) |
Power Source | Power Over Ethernet: 802.3af Input, Passive POE 48VDC |
Integrated Antenna | 2.4GHz: 4.5dBi กระจายสัญญาณรอบทิศทาง
5GHz: 5.0dBI กระจายสัญญาณรอบทิศทาง |

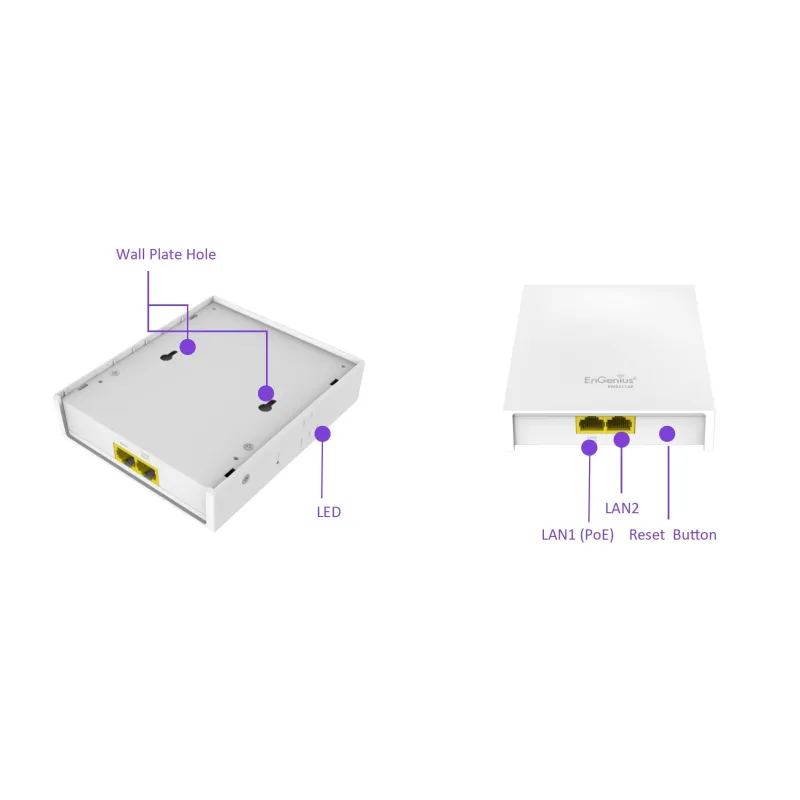

Networking Interface | 2 Port ความเร็ว 10/100 BASE-T RJ-45 Ethernet Ports |
LED Indicators | Display system and wireless transmission status |
Reset Button | Convert Access Point to the Factory default or the Users Default |
Ceiling Mounting | Assemble a mounting bracket to attach into T-rail for drop ceiling |
Wall Mounting | Mount Access Point on a flat wall |
Dimensions | 13.0 x 11.0 x 3.7 cm (5.19” x 4.33” x 1.45”) |
Weight | - |
Operating | Temperature: 0?C~40?C (32?F~104?F)
Humidity: 0%~90% typical |
Storage | Temperature: -30?C~80?C (-22?F~176?F)
Humidity: 0%~90% typical |
Compliance Regulatory | CE
EN 300 328
EN 301 893
EN 50385
EN 55022
EN 55024 |
รับประกัน | 3 ปี
|
| |
